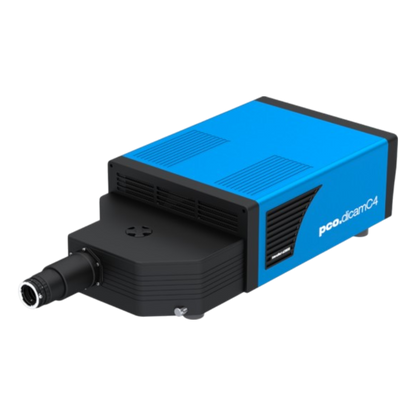

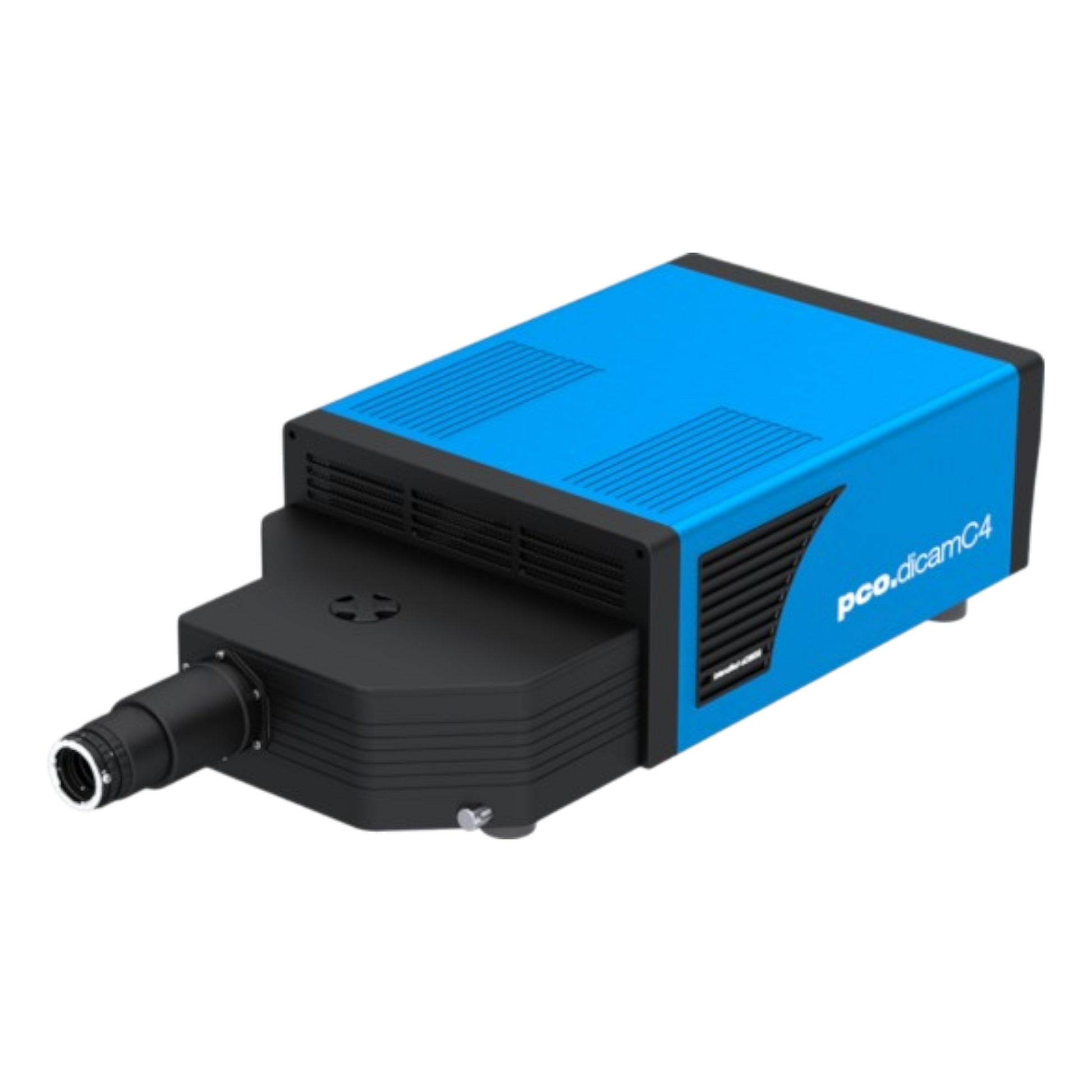

PCO pco.dicam C4 UHS 18-GAAS-P46 STD 1.5MP Monochrome Intensified sCMOS Microscope Camera

PCO pco.dicam C4 UHS 18-GAAS-P46 STD – 1.5 Megapixels Monochrome Intensified sCMOS Camera

The PCO pco.dicam C4 UHS 18-GAAS-P46 STD is a high-sensitivity intensified sCMOS camera designed for nanosecond time-resolved imaging in demanding scientific environments. Featuring a 1.5 megapixel sCMOS sensor (1280 x 1024), an 18 mm GaAs photocathode image intensifier, and a fast-decay P46 phosphor, this system excels in capturing dynamic, low-light phenomena. The standard (STD) configuration supports nanosecond gating, making it ideal for plasma diagnostics, laser-induced fluorescence, and other gated imaging techniques.

Condition

New with Manufacturer Warranty

Included Items

• PCO pco.dicam C4 UHS Camera Head with 18 mm GaAs/P46 Intensifier
• Standard Gating Electronics
• Power Supply
• PCO Software and Drivers

Key Features

• 1.5 Megapixel sCMOS sensor (1280 x 1024 resolution)
• 18 mm GaAs photocathode for excellent QE in visible and NIR
• P46 phosphor for fast decay and minimal afterglow
• Standard nanosecond gating (STD configuration)
• Optimized for fast, low-light imaging in scientific research

Applications

• Laser-Induced Fluorescence (LIF)
• Time-Resolved Fluorescence and Phosphorescence
• Plasma and Combustion Diagnostics
• Single-Photon and Low-Light Detection
• Time-Gated Scientific Imaging and Spectroscopy

Specifications
