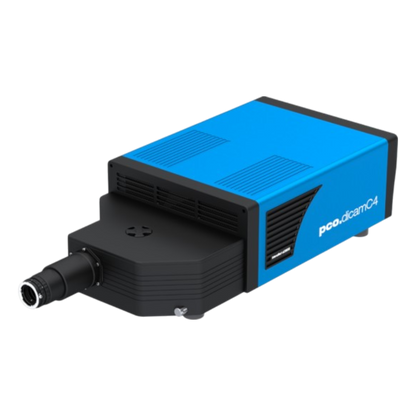

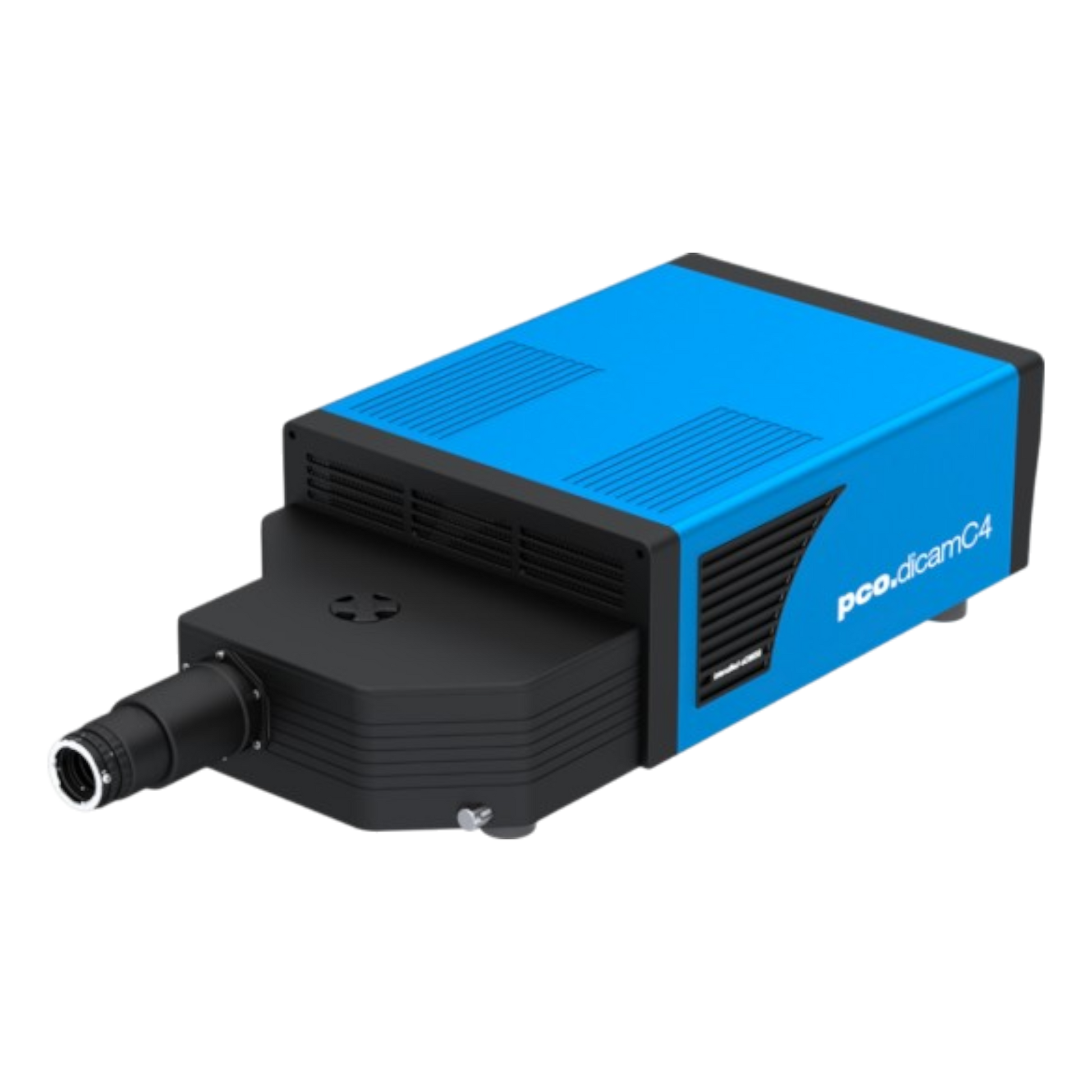

PCO pco.dicam C4 UHS 18-GAASP-P46 STD 1.5MP Monochrome Intensified sCMOS Microscope Camera

PCO pco.dicam C4 UHS 18-GAASP-P46 STD – 1.5 Megapixels Monochrome Intensified sCMOS Camera – 85108001510

The PCO pco.dicam C4 UHS 18-GAASP-P46 STD is a high-speed, high-sensitivity intensified sCMOS camera system engineered for time-resolved imaging under low-light conditions. It features a 1.5 megapixel sCMOS sensor (1280 x 1024), an 18 mm GaAsP photocathode intensifier, and a fast-decay P46 phosphor. The standard (STD) gating configuration provides nanosecond-level resolution, making this camera ideal for FLIM, LIF, and other time-gated optical applications in physics, biology, and combustion research.

Condition

New with Manufacturer Warranty

Included Items

• PCO pco.dicam C4 UHS Camera Head with 18 mm GaAsP/P46 Intensifier
• Standard Gating Electronics (nanosecond resolution)
• Power Supply
• PCO Software Suite and Drivers

Key Features

• 1.5 Megapixel sCMOS sensor (1280 x 1024 resolution)
• 18 mm GaAsP photocathode for high QE in the visible spectrum
• P46 phosphor for fast temporal response and reduced afterglow
• Standard nanosecond gating (STD configuration)
• Excellent signal-to-noise ratio for photon-limited imaging

Applications

• Fluorescence Lifetime Imaging (FLIM)
• Laser-Induced Fluorescence (LIF)
• Plasma and Combustion Diagnostics
• Time-Resolved Spectroscopy
• Low-Light and Single-Photon Imaging in Biophotonics

Specifications
