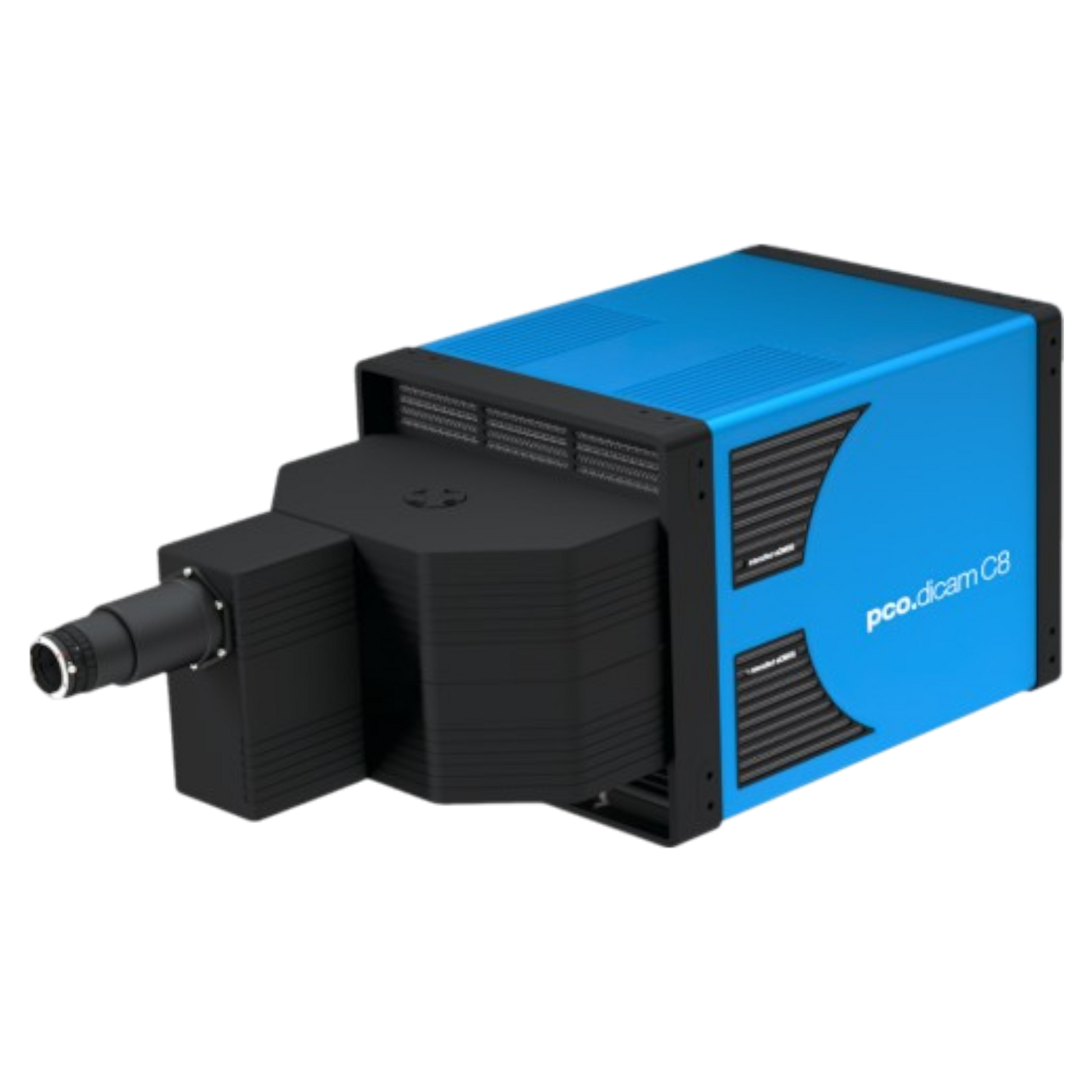

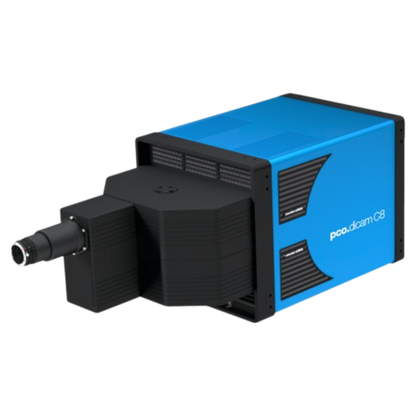

PCO pco.dicam C8 25-GAAS-P43 SEL 4.2MP Monochrome Intensified sCMOS Microscope Camera

PCO pco.dicam C8 25-GAAS-P43 SEL – 4.2 Megapixels Monochrome Intensified sCMOS Camera

The PCO pco.dicam C8 25-GAAS-P43 SEL is a high-resolution intensified sCMOS camera designed for high-speed, low-light, time-resolved imaging. It features a 4.2 megapixel sCMOS sensor (2048 x 2048) combined with a 25 mm GaAs photocathode image intensifier and fast-decay P43 phosphor. The SEL (Selected) configuration enables sub-nanosecond gating, offering exceptional timing precision for photon-starved applications such as FLIM, LIF, and plasma diagnostics.

Condition

New with Manufacturer Warranty

Included Items

• PCO pco.dicam C8 Camera Head with 25 mm GaAs/P43 Intensifier

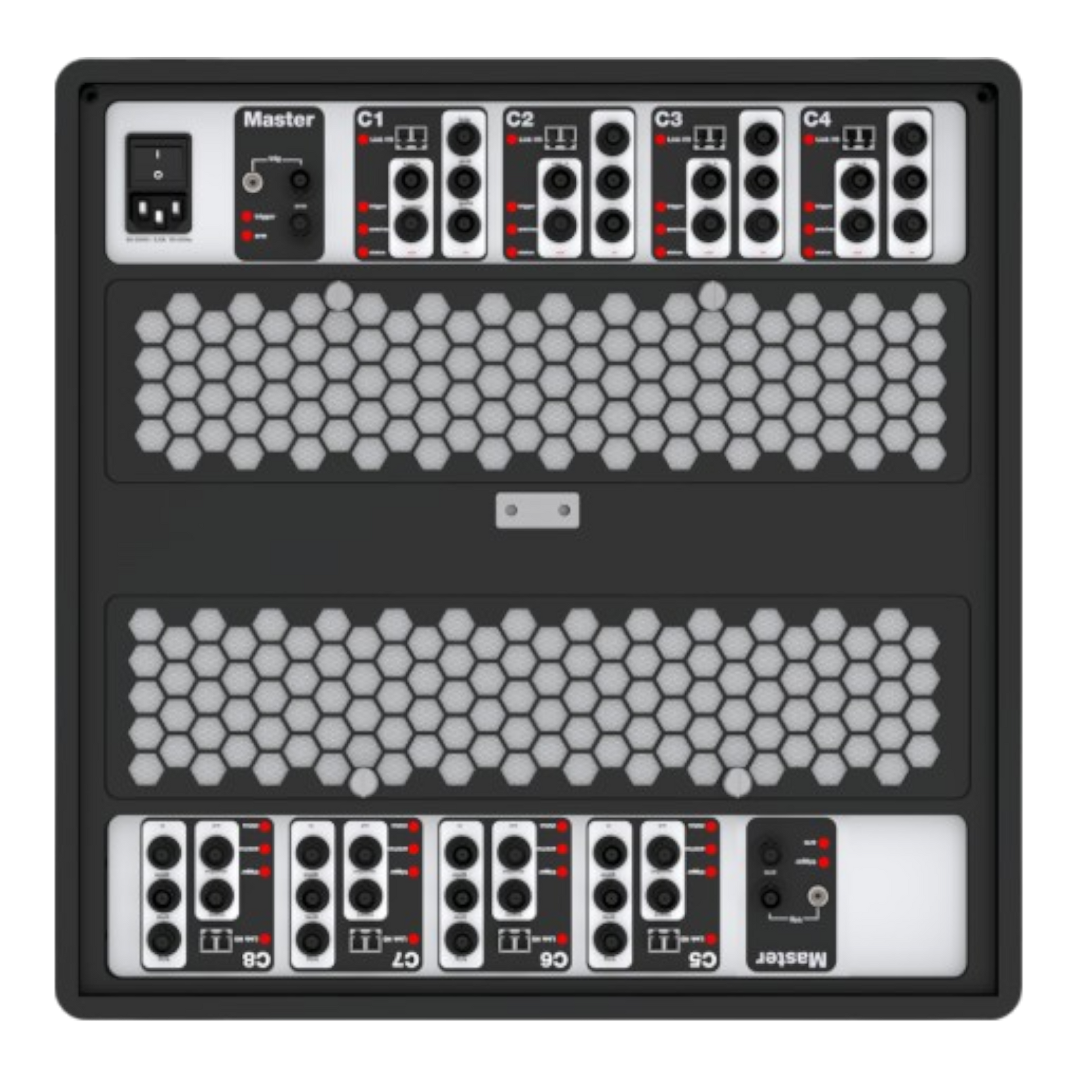

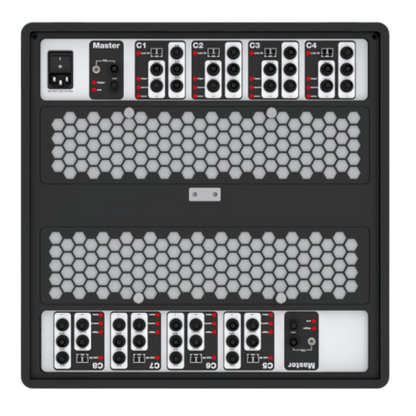

• Sub-Nanosecond Gating Control Unit (SEL)
• Power Supply
• PCO Software Suite and Drivers

Key Features

• 4.2 Megapixel sCMOS sensor (2048 x 2048 resolution)
• 25 mm GaAs photocathode for high QE from visible to NIR
• P43 phosphor for fast signal decay and low afterglow
• Sub-nanosecond gating for ultrafast time-resolved capture
• Ideal for high-speed, low-light imaging in scientific applications

Applications

• Fluorescence Lifetime Imaging (FLIM)
• Laser-Induced Fluorescence (LIF)
• Plasma and Combustion Diagnostics
• Shockwave and Explosive Event Analysis
• Single-Photon and Time-Gated Imaging

Specifications
