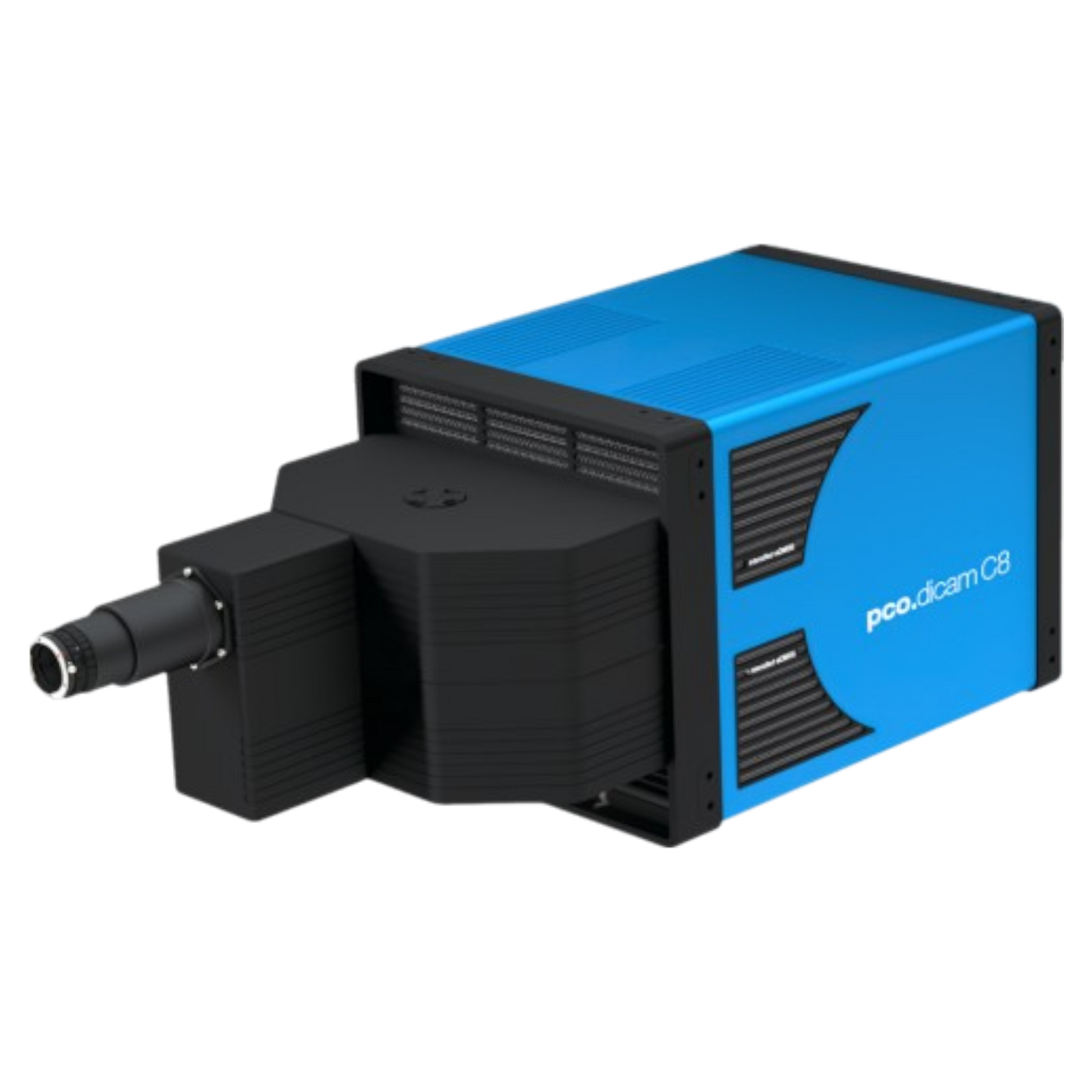

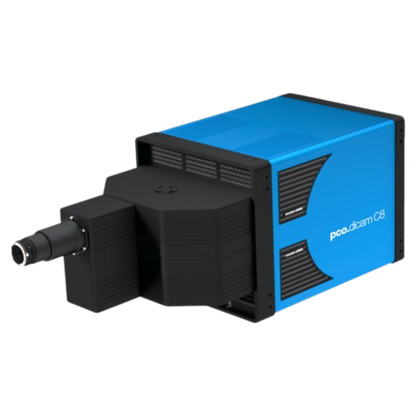

PCO pco.dicam C8 25-GAAS-P46 SEL 4.2MP Monochrome Intensified sCMOS Microscope Camera

PCO pco.dicam C8 25-GAAS-P46 SEL – 4.2 Megapixels Monochrome Intensified sCMOS Camera – 85108001537

The PCO pco.dicam C8 25-GAAS-P46 SEL is a top-tier intensified sCMOS camera system engineered for ultrafast time-resolved imaging in the most challenging low-light environments. It combines a 4.2 megapixel sCMOS sensor (2048 x 2048) with a 25 mm GaAs photocathode image intensifier and fast-decay P46 phosphor. With its SEL (Selected) configuration, this system offers sub-nanosecond gating, delivering unmatched temporal precision for applications such as LIF, FLIM, and high-speed plasma diagnostics.

Condition

New with Manufacturer Warranty

Included Items

• PCO pco.dicam C8 Camera Head with 25 mm GaAs/P46 Image Intensifier
• Sub-Nanosecond Gating Electronics (SEL configuration)
• Power Supply
• PCO Software and Drivers

Key Features

• 4.2 Megapixel sCMOS sensor (2048 x 2048 resolution)
• 25 mm GaAs photocathode with fast-decay P46 phosphor
• Sub-nanosecond gating (SEL configuration) for extreme timing accuracy
• High quantum efficiency from visible to near-infrared spectrum
• Rugged design for laboratory and field-based research

Applications

• Laser-Induced Fluorescence (LIF)
• Time-Resolved Spectroscopy and Fluorescence Imaging
• Plasma, Shockwave, and Combustion Diagnostics
• Single-Photon and Gated Biophotonics Imaging
• High-Speed Optical Measurements and Photon Counting

Specifications
