PCO pco.dicam C8 25-GAASP-P46 SEL 4.2MP Monochrome Intensified sCMOS Microscope Camera

PCO pco.dicam C8 25-GAASP-P46 SEL – 4.2 Megapixels Monochrome Intensified sCMOS Camera – 85108001535

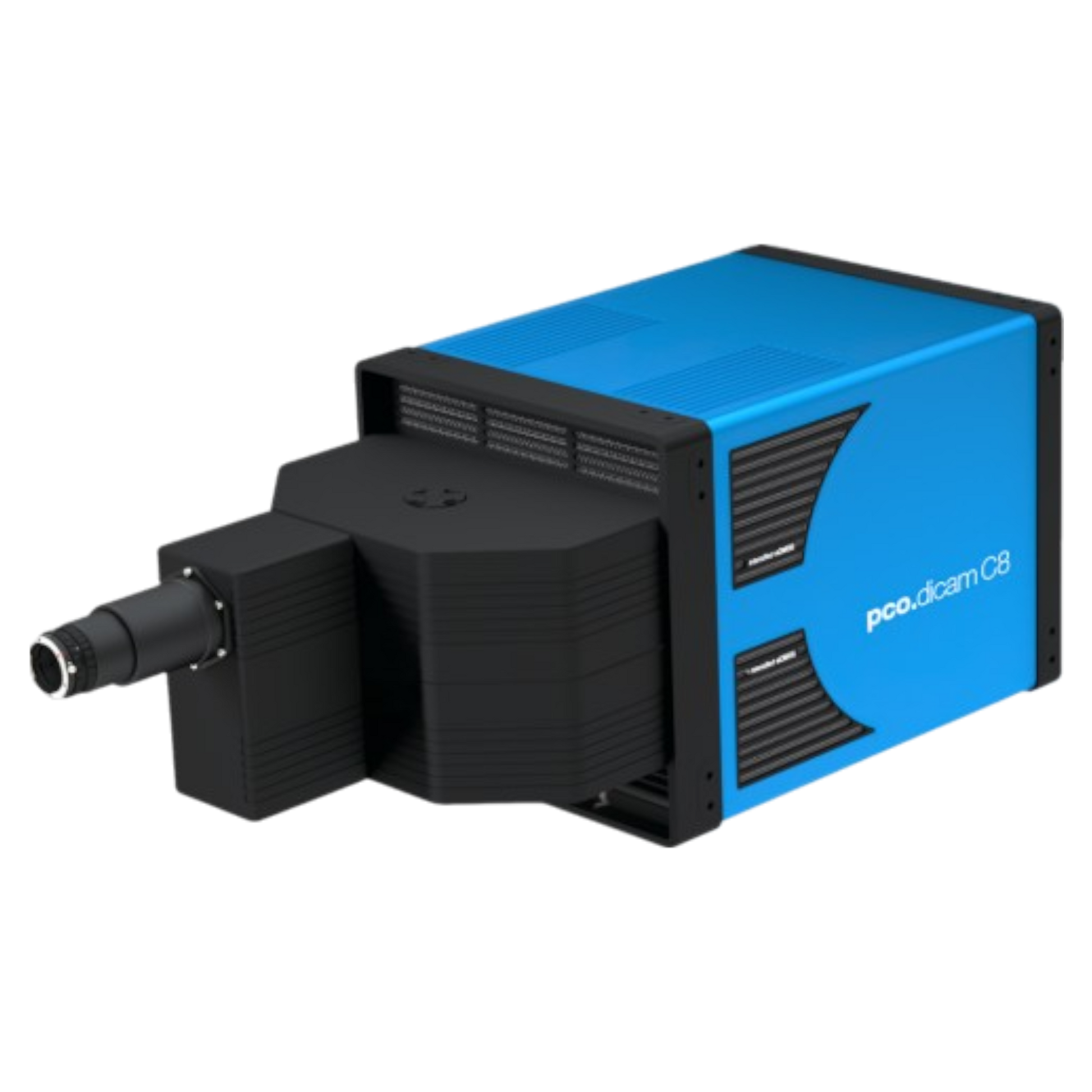

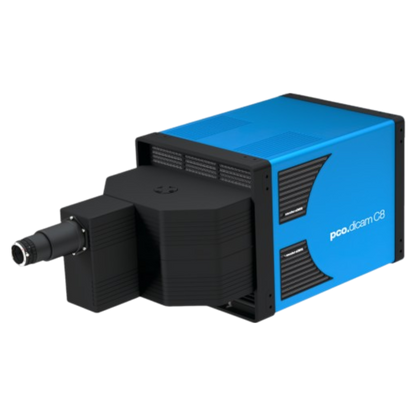

The PCO pco.dicam C8 25-GAASP-P46 SEL is a premium intensified sCMOS camera system built for ultrafast, low-light imaging in the most demanding scientific environments. It features a 4.2 megapixel sCMOS sensor (2048 x 2048) paired with a 25 mm GaAsP photocathode image intensifier and a fast-decay P46 phosphor. The SEL (Selected) configuration offers sub-nanosecond gating capability, providing exceptional temporal resolution for applications such as LIF, FLIM, single-photon detection, and shockwave analysis.

Condition

New with Manufacturer Warranty

Included Items

• PCO pco.dicam C8 Camera Head with 25 mm GaAsP/P46 Image Intensifier
• Sub-Nanosecond Gating Electronics (SEL configuration)
• Power Supply
• PCO Software and Drivers

Key Features

• 4.2 Megapixel sCMOS sensor (2048 x 2048 resolution)
• 25 mm GaAsP photocathode for maximum QE in the visible spectrum
• P46 phosphor for rapid decay and high-speed signal acquisition
• Sub-nanosecond gating (SEL configuration) for extreme temporal precision
• Rugged, research-grade design for high-performance imaging systems

Applications

• Fluorescence Lifetime Imaging (FLIM)
• Laser-Induced Fluorescence (LIF)
• Time-Resolved Spectroscopy and Single-Photon Detection
• Combustion, Plasma, and Shockwave Analysis
• Photon Counting and Gated Biophotonics Imaging
