PCO pco.dicam C8 25-GAASP-P46 STD 4.2MP Monochrome Intensified sCMOS Microscope Camera

PCO pco.dicam C8 25-GAASP-P46 STD – 4.2 Megapixels Monochrome Intensified sCMOS Camera – 85108001534

The PCO pco.dicam C8 25-GAASP-P46 STD is a high-resolution intensified sCMOS camera optimized for nanosecond time-resolved imaging and ultra-low light detection. It combines a 4.2 megapixel sCMOS sensor (2048 x 2048) with a 25 mm GaAsP photocathode image intensifier and fast-decay P46 phosphor. This STD (Standard) configuration supports nanosecond-range gating and is ideal for fluorescence lifetime imaging, LIF, and time-gated single-photon experiments across the visible spectrum.

Condition

New with Manufacturer Warranty

Included Items

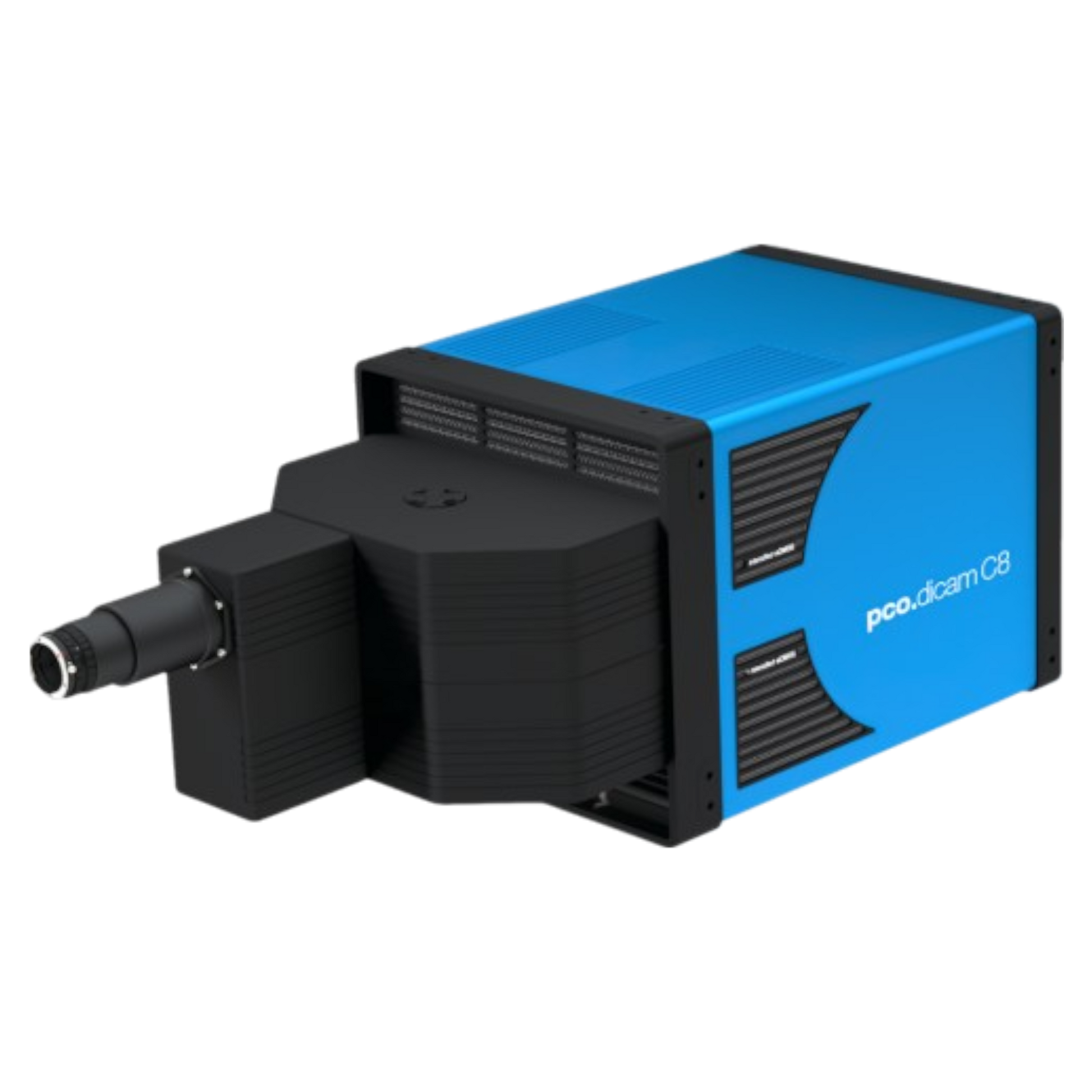

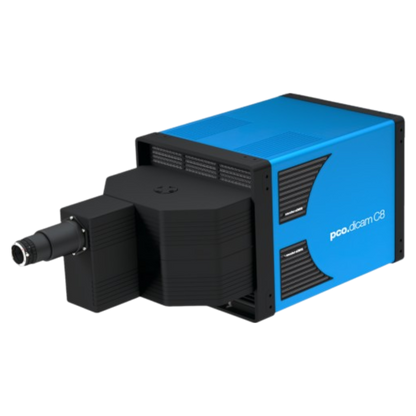

• PCO pco.dicam C8 Camera Head with 25 mm GaAsP/P46 Image Intensifier

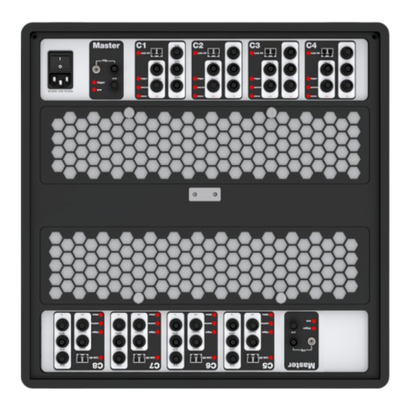

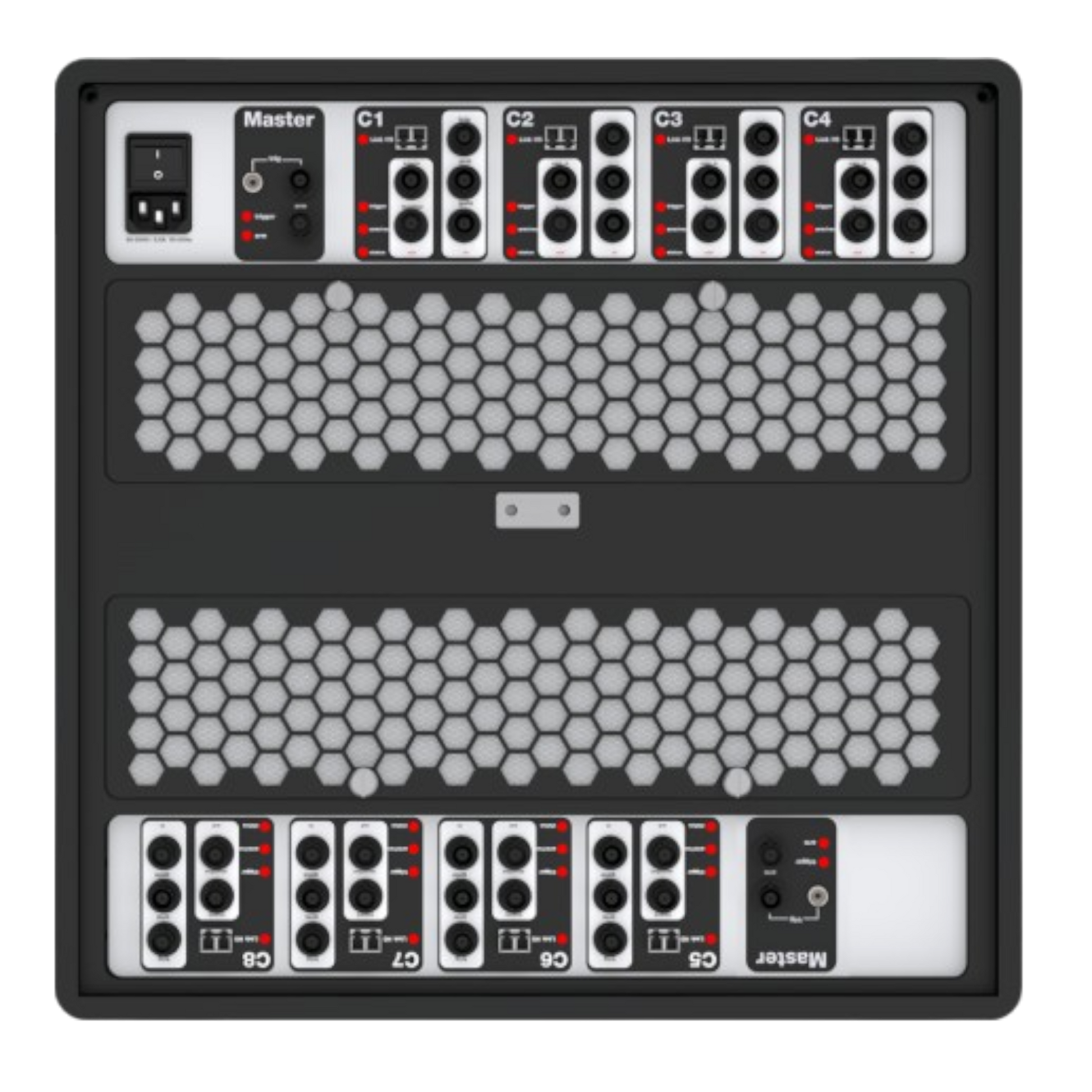

• Standard Gating Controller (Nanosecond-range)
• Power Supply
• PCO Software Suite and Drivers

Key Features

• 4.2 Megapixel sCMOS sensor (2048 x 2048 resolution)
• 25 mm GaAsP photocathode for high QE in the visible spectrum
• P46 phosphor for rapid signal decay and reduced afterglow
• Standard nanosecond gating (STD configuration)
• Ideal for time-gated low-light and fluorescence applications

Applications

• Fluorescence Lifetime Imaging (FLIM)
• Laser-Induced Fluorescence (LIF)
• Time-Resolved Plasma and Combustion Studies
• Biophotonics and Photon Counting
• Single-Photon and Time-Gated Spectroscopic Imaging

Specifications
