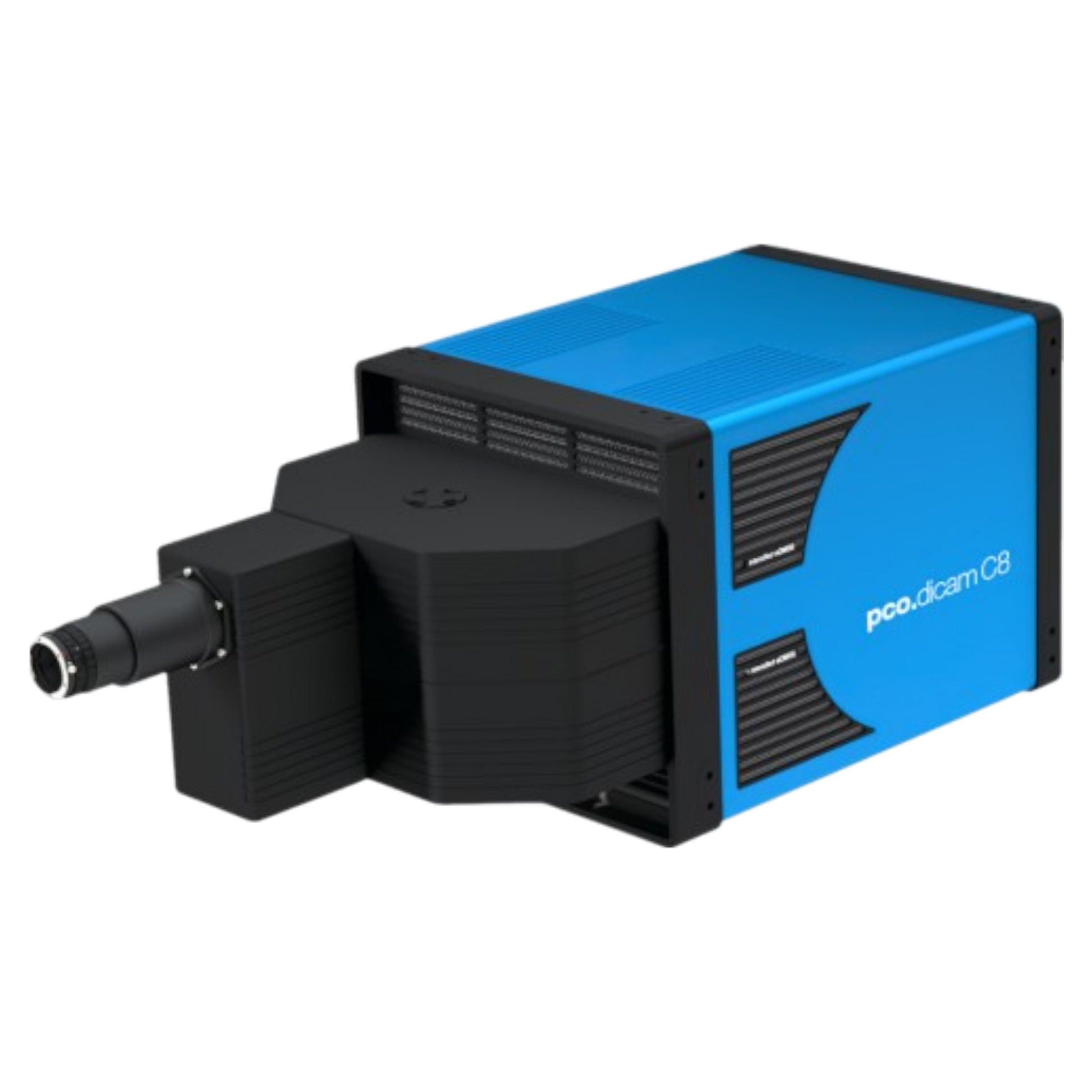

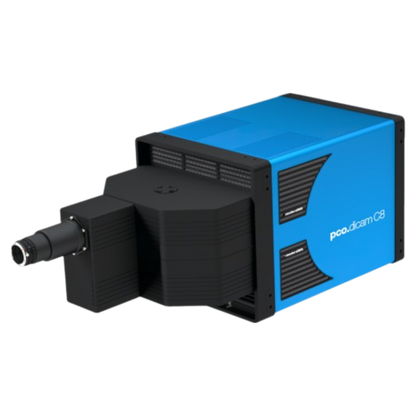

PCO pco.dicam C8 LT 18-S20-P46 SEL 1.5MP Monochrome Intensified sCMOS Microscope Camera

PCO pco.dicam C8 LT 18-S20-P46 SEL – 1.5 Megapixels Monochrome Intensified sCMOS Camera

The PCO pco.dicam C8 LT 18-S20-P46 SEL is a compact, high-speed intensified sCMOS camera optimized for ultrafast, low-light time-resolved imaging. It features a 1.5 megapixel sCMOS sensor (1280 x 1024) coupled with an 18 mm S20 photocathode image intensifier and fast-decay P46 phosphor. The SEL (Selected) configuration enables sub-nanosecond gating, making this camera ideal for applications in plasma physics, biophotonics, and time-gated fluorescence microscopy.

Condition

New with Manufacturer Warranty

Included Items

• PCO pco.dicam C8 LT Camera Head with 18 mm S20/P46 Image Intensifier
• Sub-Nanosecond Gating Electronics (SEL)
• Power Supply
• PCO Software and Drivers

Key Features

• 1.5 Megapixel sCMOS sensor (1280 x 1024 resolution)
• 18 mm image intensifier with S20 photocathode and P46 fast-decay phosphor
• Sub-nanosecond gating (SEL configuration)
• High temporal resolution and low-light sensitivity
• Compact, rugged design for laboratory or field use

Applications

• Laser-Induced Fluorescence (LIF)
• Time-Resolved Fluorescence and Phosphorescence Imaging
• Plasma and Combustion Diagnostics
• Single-Photon Detection and Biophotonics
• Shockwave and High-Speed Gated Imaging
