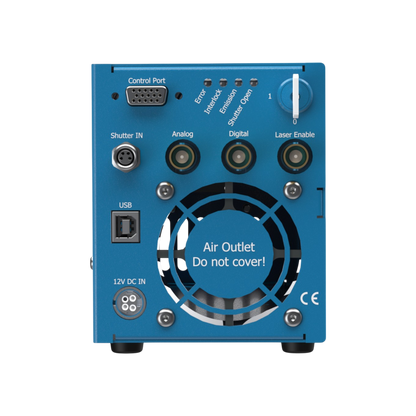

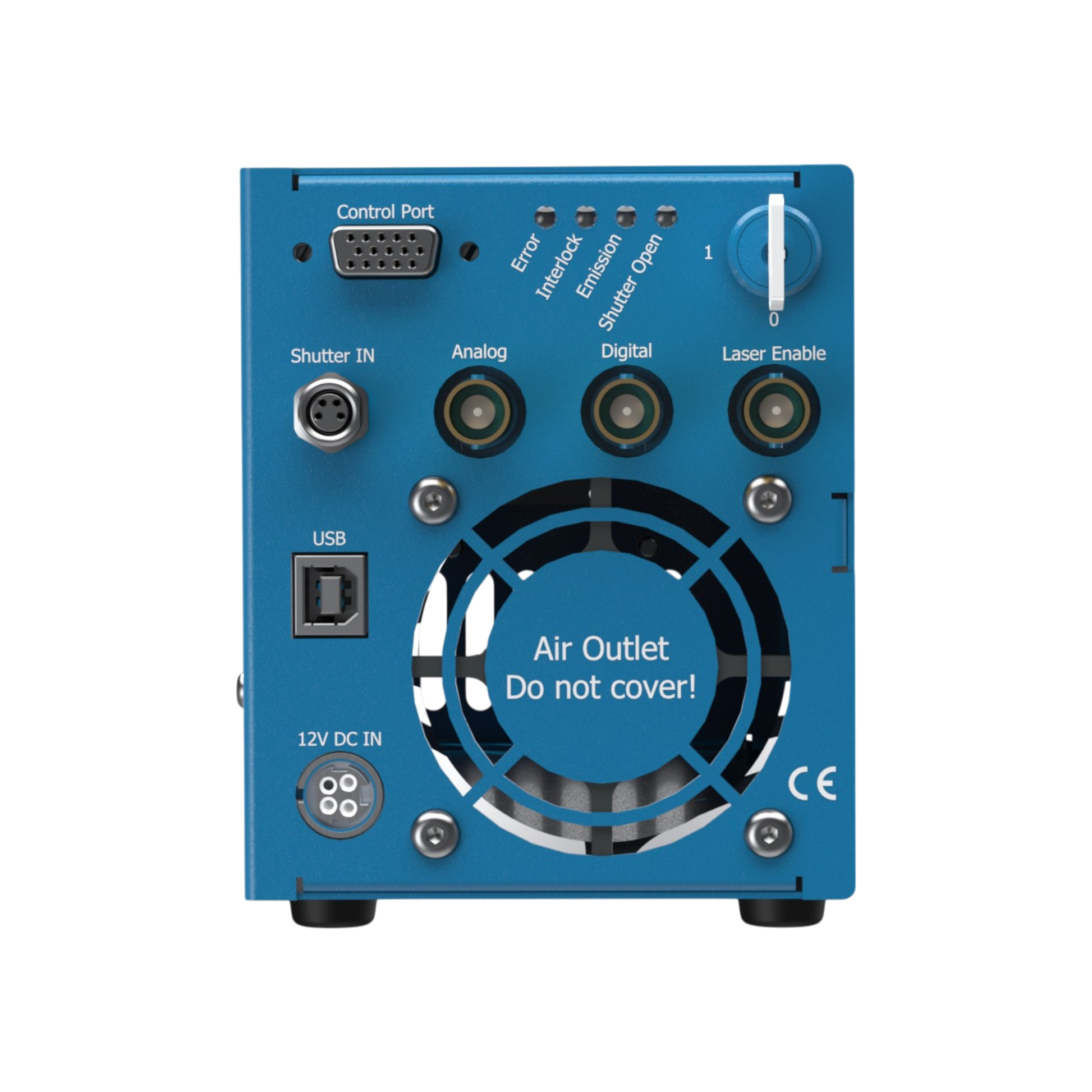

PCO pco.Laser638.150LLG – 638 nm Modulated Laser with Liquid Light Guide – 50202500063
The PCO pco.Laser638.150LLG is a high-output 638 nm red laser designed for frequency-domain fluorescence lifetime imaging (FD-FLIM) and high-intensity widefield excitation. Delivering 150 mW of power through a liquid light guide (LLG), it ensures stable, uniform illumination for red-emitting fluorophores. This system is ideal for live-cell imaging, protein labeling, and advanced lifetime measurements in the far-red spectrum.
Condition
New with Manufacturer Warranty
Included Items
- PCO pco.Laser638.150LLG Laser Module
- Integrated Liquid Light Guide (LLG)
Key Features
- Wavelength: 638 nm (deep red excitation)
- Output Power: 150 mW
- LLG output for even field illumination
- High-frequency modulation compatible for FD-FLIM applications
- Ideal for Cy5, Alexa Fluor 647, and similar red fluorophores
Applications
- FD-FLIM (Frequency-Domain Fluorescence Lifetime Imaging)
- Red Fluorescence Protein and Dye Excitation
- Live-Cell Imaging in the Far-Red Spectrum
- Time-Resolved Biophotonics
- Quantitative and Multichannel Widefield Imaging
Specifications
| Specification | Detail |
|---|---|
| Model | pco.Laser638.150LLG |
| Wavelength | 638 nm |
| Output Power | 150 mW |
| Output Type | Liquid Light Guide (LLG) |
| Modulation | High-frequency compatible (FD-FLIM ready) |
| Application | Red Fluorescence Excitation |
| Part Number | 50202500063 |
Additional discounts may apply. Contact us for a quote.
Additional Details
Additional Details
- Manufacturer: PCO
- Model:
- Catalog Number: PCO-50202500063
- Serial Number:
- Condition: New
