PCO pco.panda 26 DS USB 26MP Monochrome sCMOS Microscope Camera
PCO pco.panda 26 DS USB 26MP Monochrome sCMOS Microscope Camera
Couldn't load pickup availability
- ✓ New, with the full manufacturer warranty
- ✓ Typical delivery in 1 to 3 weeks, depending on parts
- ✓ Prices shown exclude freight, insurance, tariffs and applicable taxes
- ✓ Installation, training and service available from our engineers (quoted separately)
- ✓ SAM.gov registered (CAGE 10ZU5). Purchase orders welcome
- ✓ Leasing and finance companies available
Questions? Call (877) 564-2767 or email sales@coastalmicroscopes.com

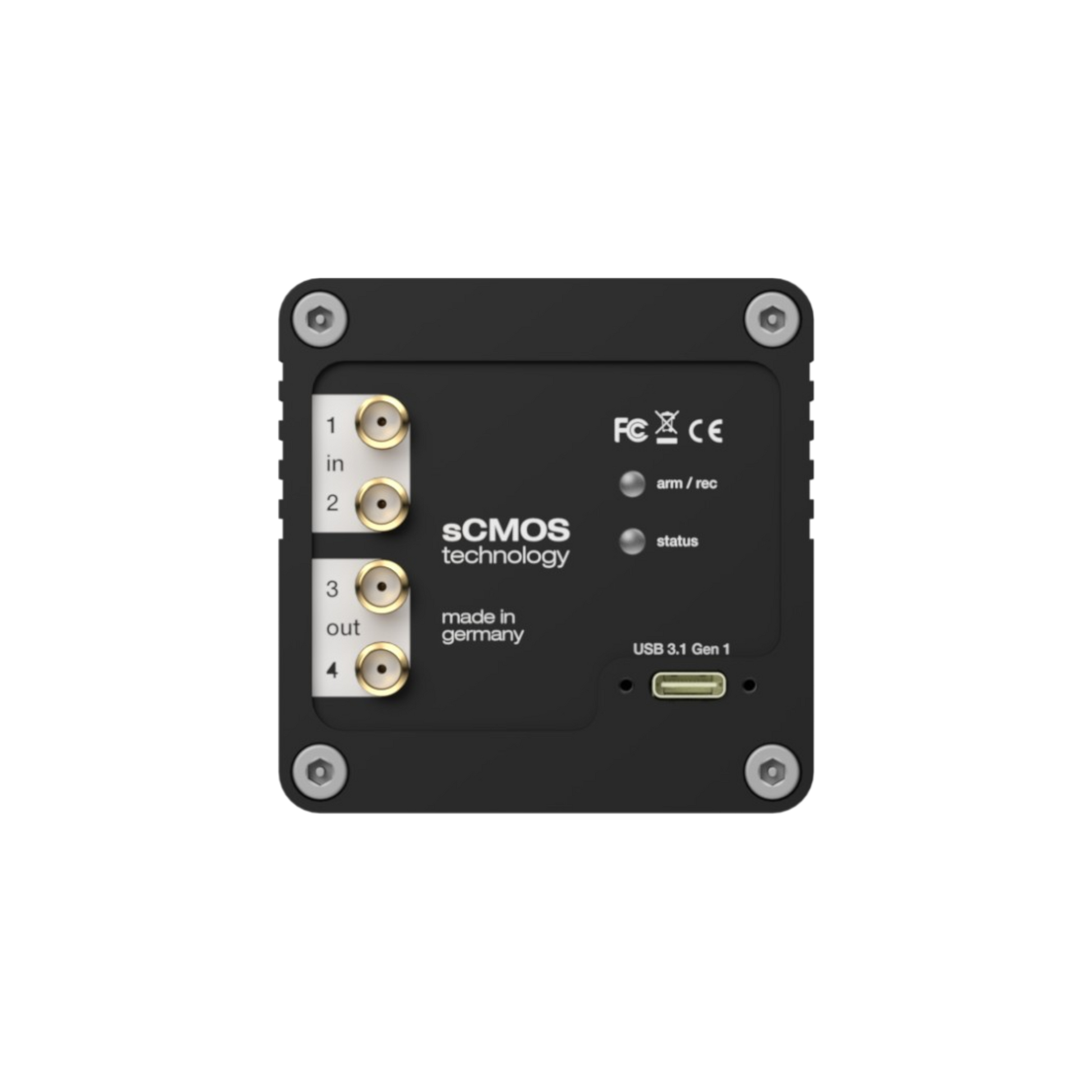

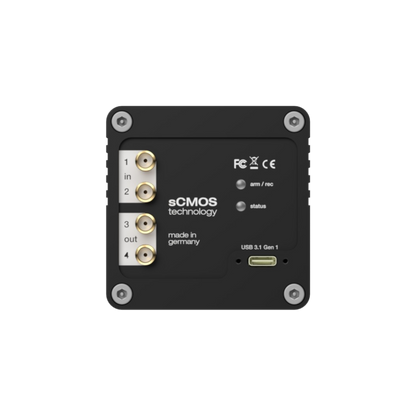

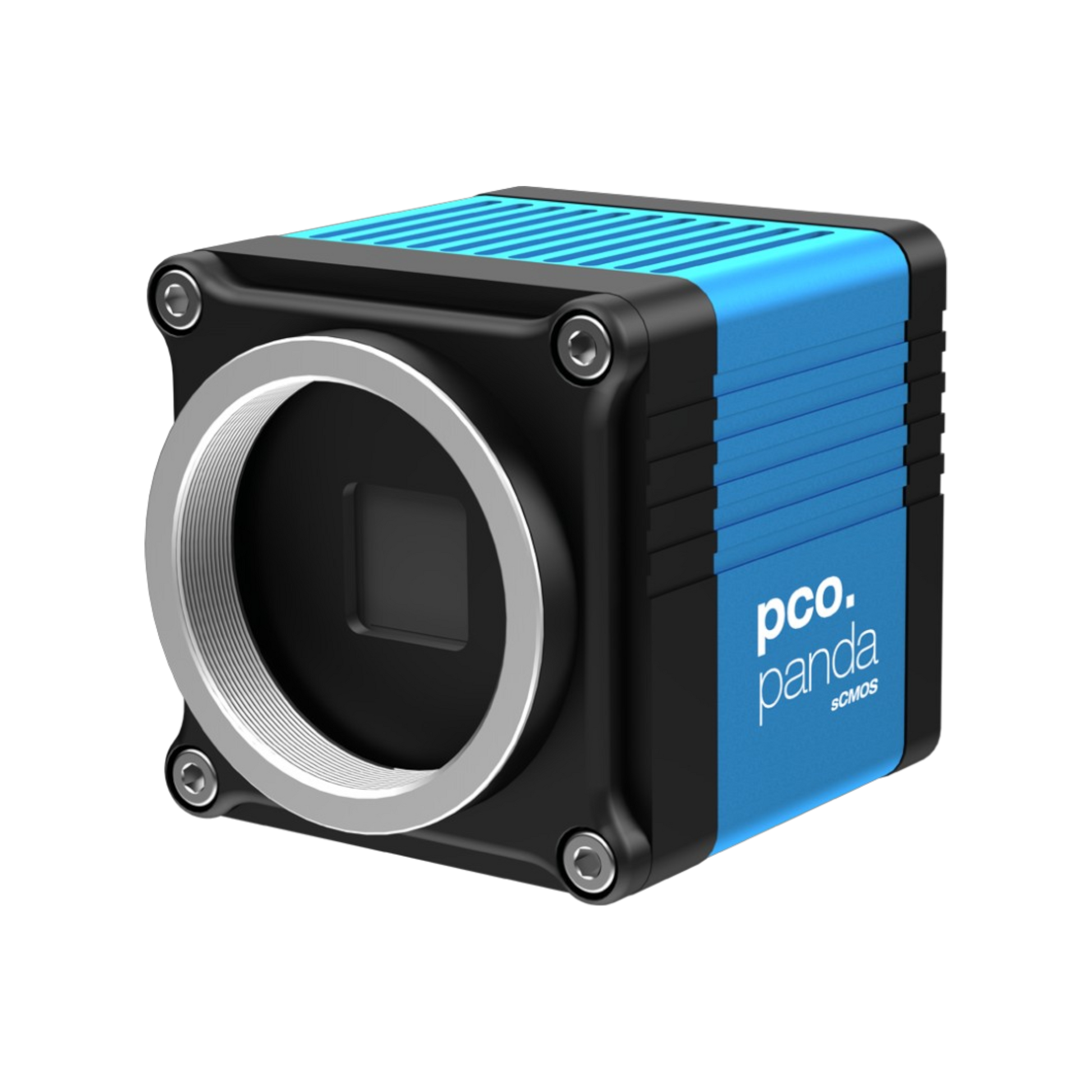

PCO pco.panda 26 DS USB Monochrome sCMOS Camera – 85108075016
The PCO pco.panda 26 DS USB is a compact, high-resolution scientific camera featuring a 26-megapixel monochrome sCMOS sensor and dual shutter capability. With 5120 x 5120 resolution and a global shutter, it provides precise, high-speed image capture and interframe timing control. The USB 3.1 interface ensures rapid data transfer, while the compact form factor makes it an ideal solution for OEM systems, microscopy, and fast imaging applications requiring both detail and timing precision.
Condition
New with Manufacturer Warranty
Included Items
- PCO pco.panda 26 DS Monochrome Camera Head
- USB 3.1 PCIe Board
- 2m USB Cable
- C-Mount Adapter
Key Features
- 26 Megapixel sCMOS sensor (5120 x 5120 resolution)
- Dual shutter mode for precise interframe imaging
- Global shutter for distortion-free high-speed capture
- Compact and lightweight design for embedded and benchtop systems
- USB 3.1 interface for high-throughput data acquisition
Applications
- Time-Resolved Scientific Imaging
- High-Speed Fluorescence and Brightfield Microscopy
- OEM and Embedded System Integration
- Material and Semiconductor Inspection
- Advanced Life Science and Quantitative Imaging
Specifications
| Specification | Detail |
|---|---|
| Sensor Type | sCMOS (Monochrome) |
| Resolution | 5120 x 5120 pixels |
| Pixel Size | 2.5 µm |
| Shutter | Global Shutter (Dual Shutter Mode) |
| Cooling | Air-cooled |
| Interface | USB 3.1 |
| Bit Depth | 16-bit |
| Readout Noise | < 2 e⁻ RMS typical |
| Max Frame Rate | Up to ~24 fps (full frame) |
| Quantum Efficiency | High QE across visible spectrum |
| Lens Mount | C-Mount Adapter Included |
| Included Accessories | USB 3.1 PCIe Card, 2m USB Cable, C-Mount Adapter |
| Part Number | 85108075016 |
Additional discounts may apply. Contact us for a quote.
Additional Details
Additional Details
- Manufacturer: PCO
- Model:
- Catalog Number: PCO-85108075016
- Serial Number:
- Condition: New
