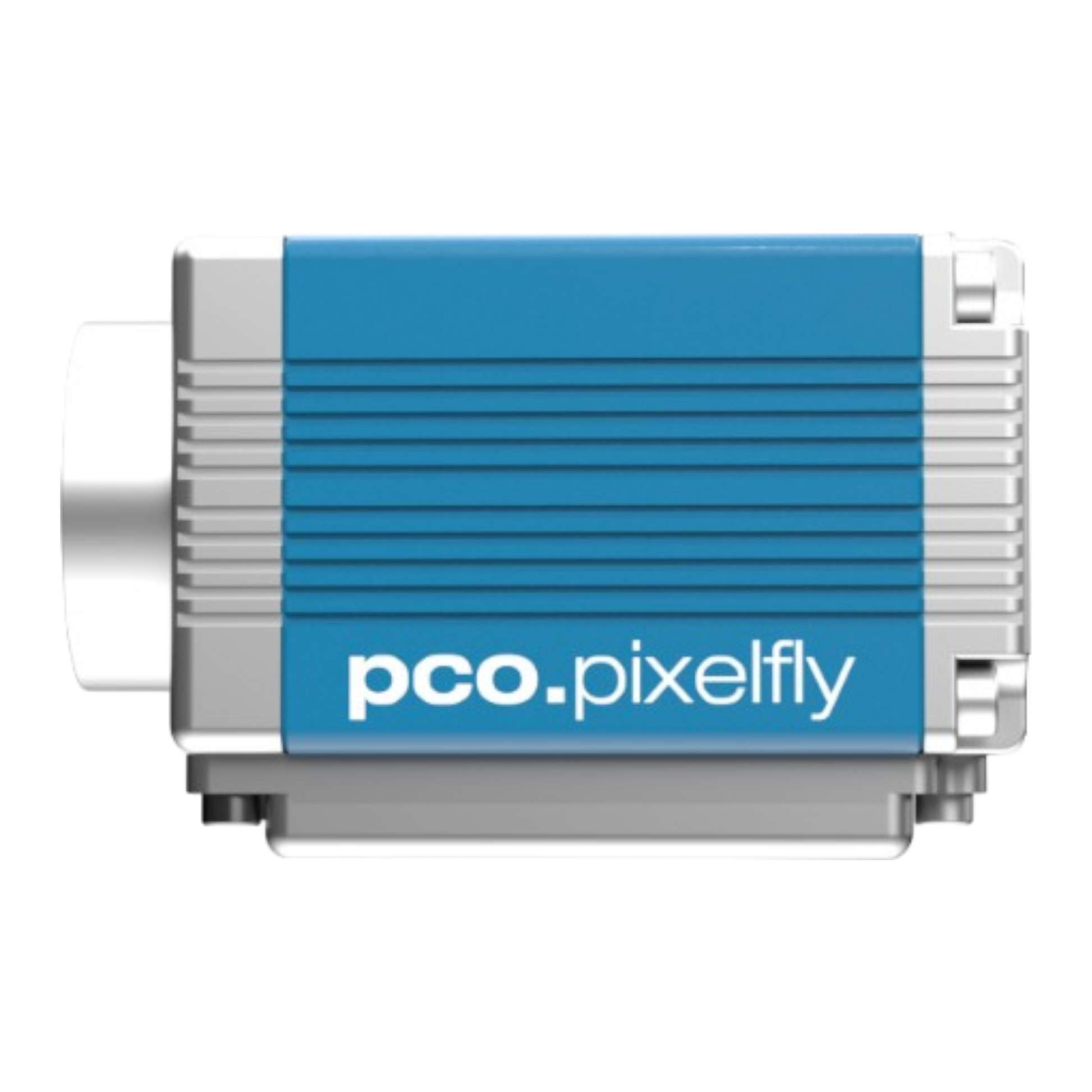

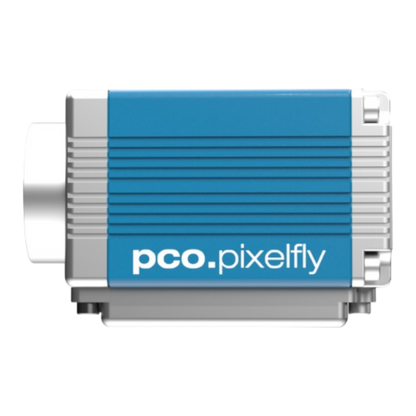

PCO pco.pixelfly 1.4 DS USB Monochrome sCMOS Camera – 85108015050
The PCO pco.pixelfly 1.4 DS USB is a dual-shutter, monochrome sCMOS camera engineered for time-critical imaging applications. With a 1.4-megapixel resolution (1392 x 1040), global shutter, and dual-shutter mode, this camera enables ultra-fast sequential imaging with precision interframing. Its USB 2.0 interface and compact form factor make it a practical solution for industrial vision, high-speed scientific applications, and OEM system integration.
Condition
New with Manufacturer Warranty
Included Items
- PCO pco.pixelfly 1.4 DS Monochrome Camera Head
- Power Supply
- USB 2.0 PCIe Board
- C-Mount Lens Adapter
- 3m USB Cable
Key Features
- 1.4 Megapixel sCMOS sensor (1392 x 1040 resolution)
- Dual-shutter capability for fast, sequential image capture
- Global shutter for distortion-free imaging of fast motion
- Compact and rugged housing for OEM and industrial integration
- USB 2.0 interface for easy and reliable connectivity
Applications
- High-Speed Fluorescence Imaging
- Plasma Physics and Particle Tracking
- Industrial Inspection and Machine Vision
- Time-Resolved Imaging
- Scientific and OEM Imaging Systems
Specifications
| Specification | Detail |
|---|---|
| Sensor Type | sCMOS (Monochrome) |
| Resolution | 1392 x 1040 pixels |
| Pixel Size | 6.45 µm |
| Shutter | Global Shutter (Dual Shutter Mode) |
| Cooling | Air-cooled |
| Interface | USB 2.0 |
| Bit Depth | 12-bit |
| Readout Noise | < 5 e⁻ RMS typical |
| Max Frame Rate | Up to ~30 fps (full frame) |
| Quantum Efficiency | Optimized for visible spectrum |
| Lens Mount | C-Mount Adapter Included |
| Included Accessories | Power Supply, USB 2.0 PCIe Card, 3m USB Cable, C-Mount Adapter |
| Part Number | 85108015050 |
Additional discounts may apply. Contact us for a quote.
Additional Details
Additional Details
- Manufacturer: PCO
- Model:
- Catalog Number: PCO-85108015050
- Serial Number:
- Condition: New
