Teledyne Photometrics Moment 7MP Monochrome CMOS Microscope Camera
Teledyne Photometrics Moment 7MP Monochrome CMOS Microscope Camera
This is the Teledyne Photometrics manufacturer list price.
Additional discounts may apply. Contact us for potential discount pricing and your exact quote.
Call (877) 564-2767 or email sales@coastalmicroscopes.com
Couldn't load pickup availability
- ✓ New, with the full manufacturer warranty
- ✓ Typical delivery in 1 to 3 weeks, depending on parts
- ✓ Prices shown exclude freight, insurance, tariffs and applicable taxes
- ✓ Installation, training and service available from our engineers (quoted separately)
- ✓ SAM.gov registered (CAGE 10ZU5). Purchase orders welcome
- ✓ Leasing and finance companies available
Questions? Call (877) 564-2767 or email sales@coastalmicroscopes.com

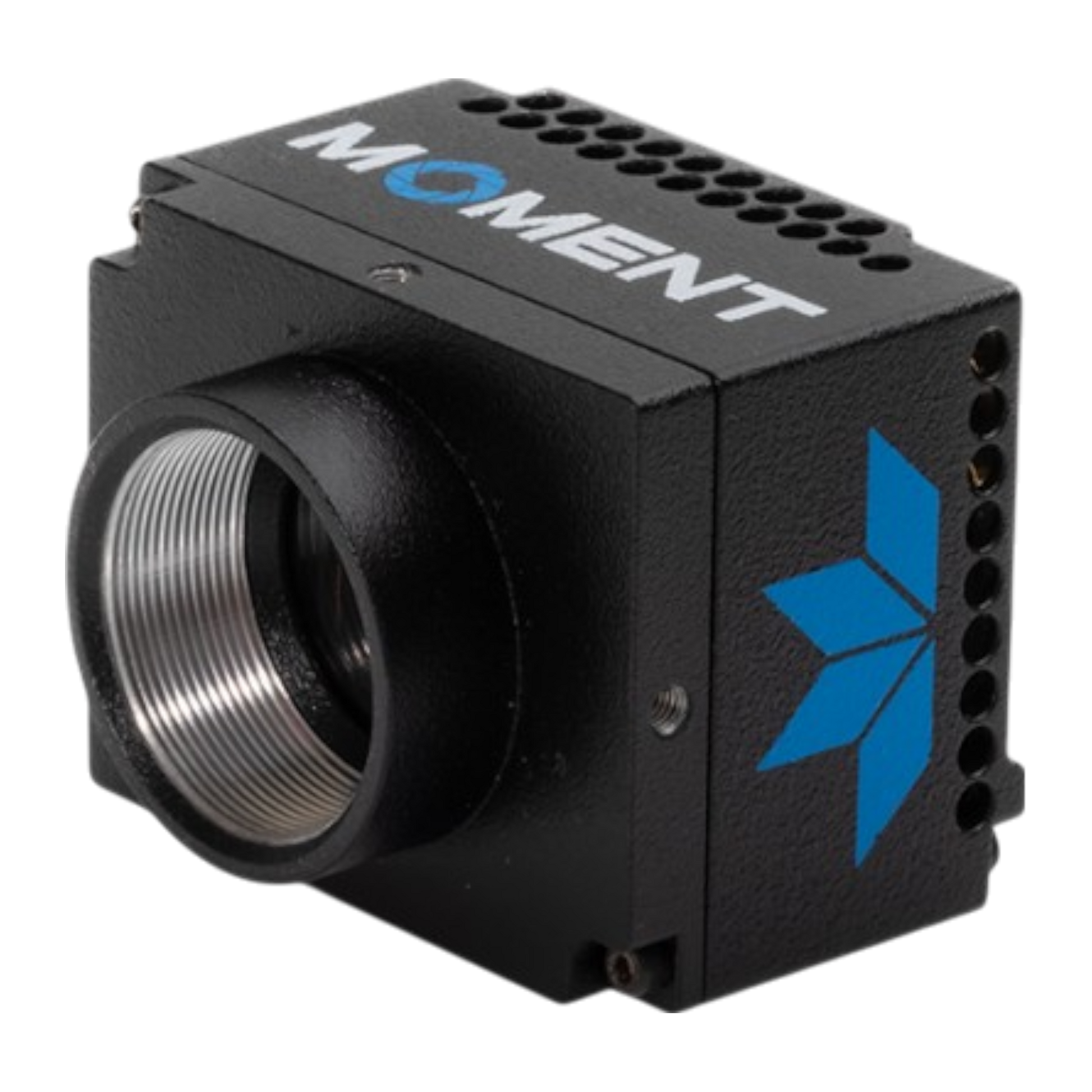

Teledyne Photometrics Moment 7MP Monochrome CMOS Camera
The Teledyne Photometrics Moment is a compact 7 megapixel CMOS camera with a true global shutter and 4.5 µm pixels, delivering 50 fps full frame with data and power over a single USB 3.2 Gen 2 cable. It is a straightforward choice for routine fluorescence and brightfield imaging on research and teaching microscopes.
Condition
New with Manufacturer Warranty
Included Items
- Moment camera (monochrome)
- USB 3.2 Gen 2 cable
- PVCAM drivers and quick start guide
Key Features
- 7.1 megapixel CMOS sensor, 3200 x 2200 array
- True global shutter for distortion-free imaging of moving samples
- 4.5 µm pixels, 17.5 mm sensor diagonal
- Up to 51 fps full frame
- 2.1 e- read noise, 73% peak QE
- Data and power over a single USB 3.2 Gen 2 (10 Gbps) cable
- Compact form factor, C-mount
Applications
- Routine fluorescence imaging
- Brightfield documentation
- Live-cell imaging
- Teaching and core facility microscopes
Specifications
| Manufacturer | Teledyne Photometrics |
| Model | Moment |
| Catalog number | 01-MOMENT-MONO |
| Sensor | Sony global shutter CMOS |
| Active array | 3200 x 2200 (7.1 MP) |
| Pixel size | 4.5 x 4.5 µm |
| Sensor area | 14.4 x 9.9 mm (17.5 mm diagonal) |
| Peak QE | 73% |
| Read noise | 2.1 e- (median) |
| Full-frame rate | Up to 51 fps |
| Shutter | Global |
| Spectral range | 300 to 1100 nm |
| Interface | USB 3.2 Gen 2 (10 Gbps), data and power on one cable |
| Lens mount | C-mount |
Additional tariffs may apply.
Additional discounts may apply. Contact us for a quote.
Additional Details
Additional Details
- Manufacturer: Teledyne Photometrics
- Model: Moment 7MP Monochrome sCMOS
- Catalog Number: 1T-01-MOMENT-MONO
- Serial Number: N/A
- Condition: New
