SKU: PRODUCT ID:1T-01-PRIME-95B-25MM-R-M-16-C
Teledyne Photometrics Prime 95B 25mm 2.6MP Monochrome sCMOS Microscope Camera
Teledyne Photometrics Prime 95B 25mm 2.6MP Monochrome sCMOS Microscope Camera
This is the Teledyne Photometrics manufacturer list price.
Additional discounts may apply. Contact us for potential discount pricing and your exact quote.
Call (877) 564-2767 or email sales@coastalmicroscopes.com
Couldn't load pickup availability
- ✓ New, with the full manufacturer warranty
- ✓ Typical delivery in 1 to 3 weeks, depending on parts
- ✓ Prices shown exclude freight, insurance, tariffs and applicable taxes
- ✓ Installation, training and service available from our engineers (quoted separately)
- ✓ SAM.gov registered (CAGE 10ZU5). Purchase orders welcome
- ✓ Leasing and finance companies available
Questions? Call (877) 564-2767 or email sales@coastalmicroscopes.com

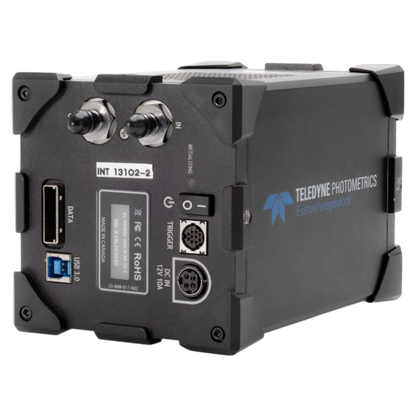

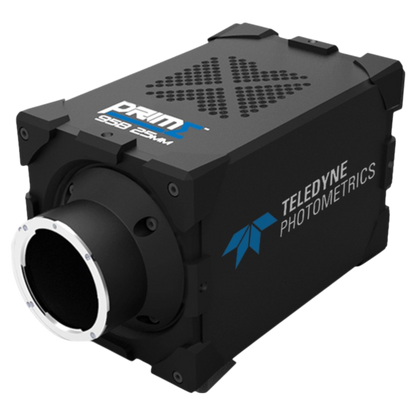

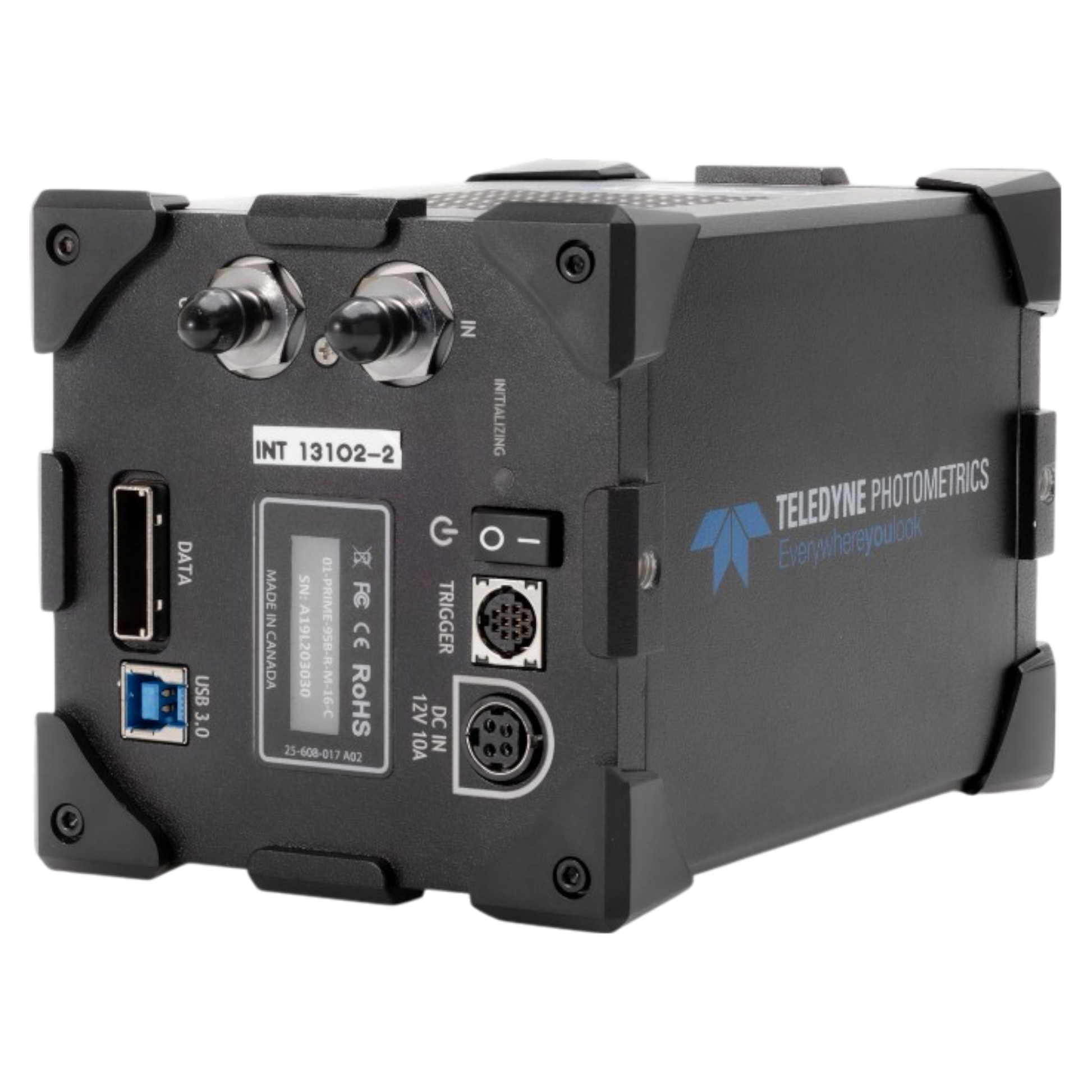

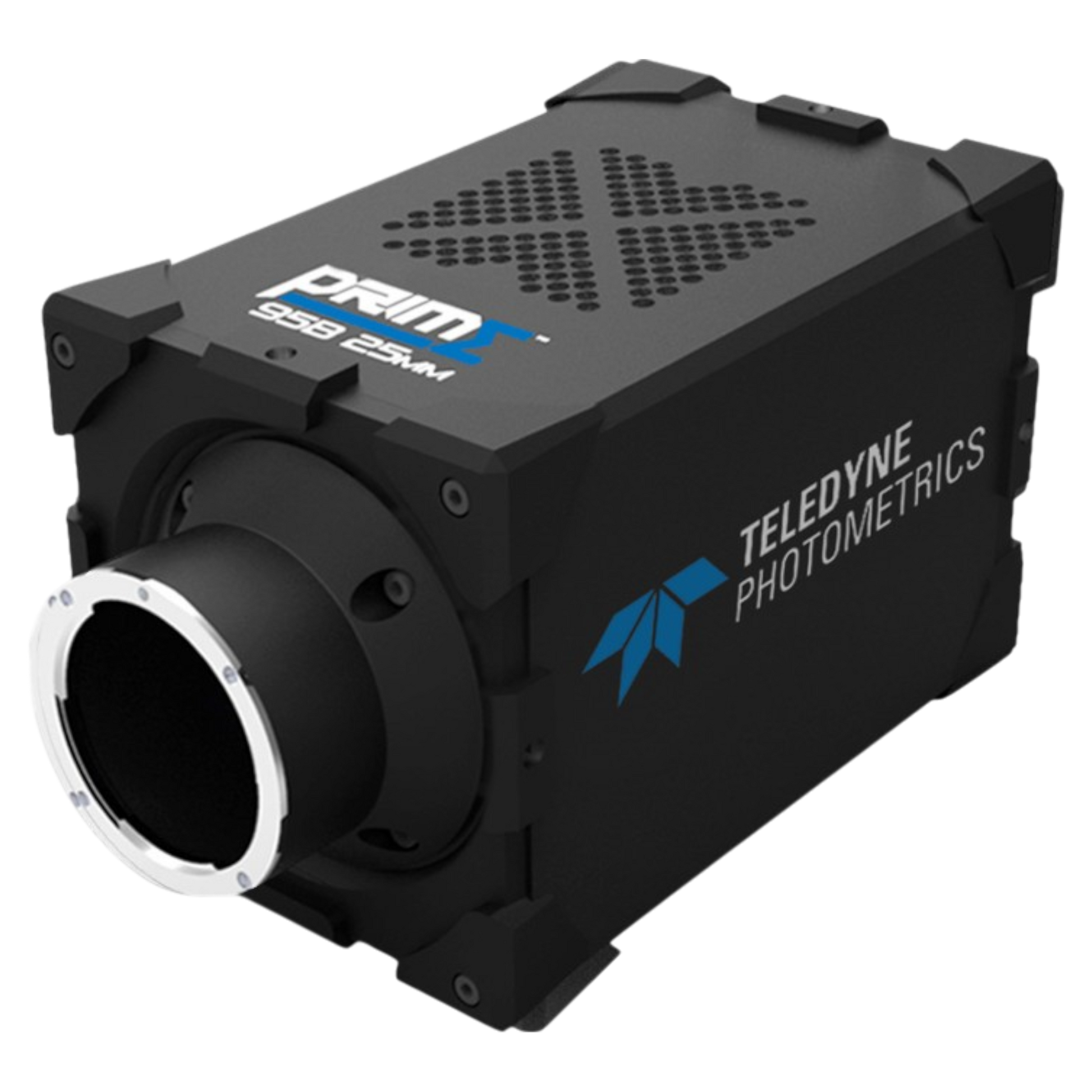

Teledyne Photometrics Prime 95B 25mm 2.6MP Monochrome sCMOS Camera
The Teledyne Photometrics Prime 95B 25mm pairs the 95% QE back-illuminated Prime 95B sensor with large 11 µm pixels across a 25 mm diagonal, filling the field of view of large-format research microscopes. It is built for low-light imaging where every photon counts, such as spinning disk confocal and single-molecule work.
Condition
New with Manufacturer Warranty

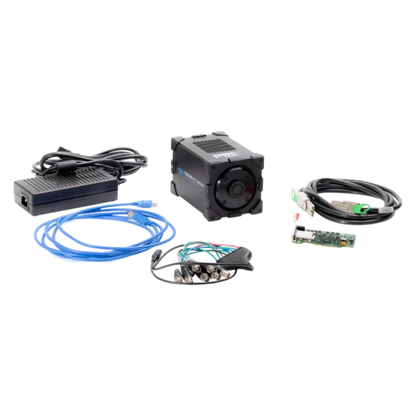

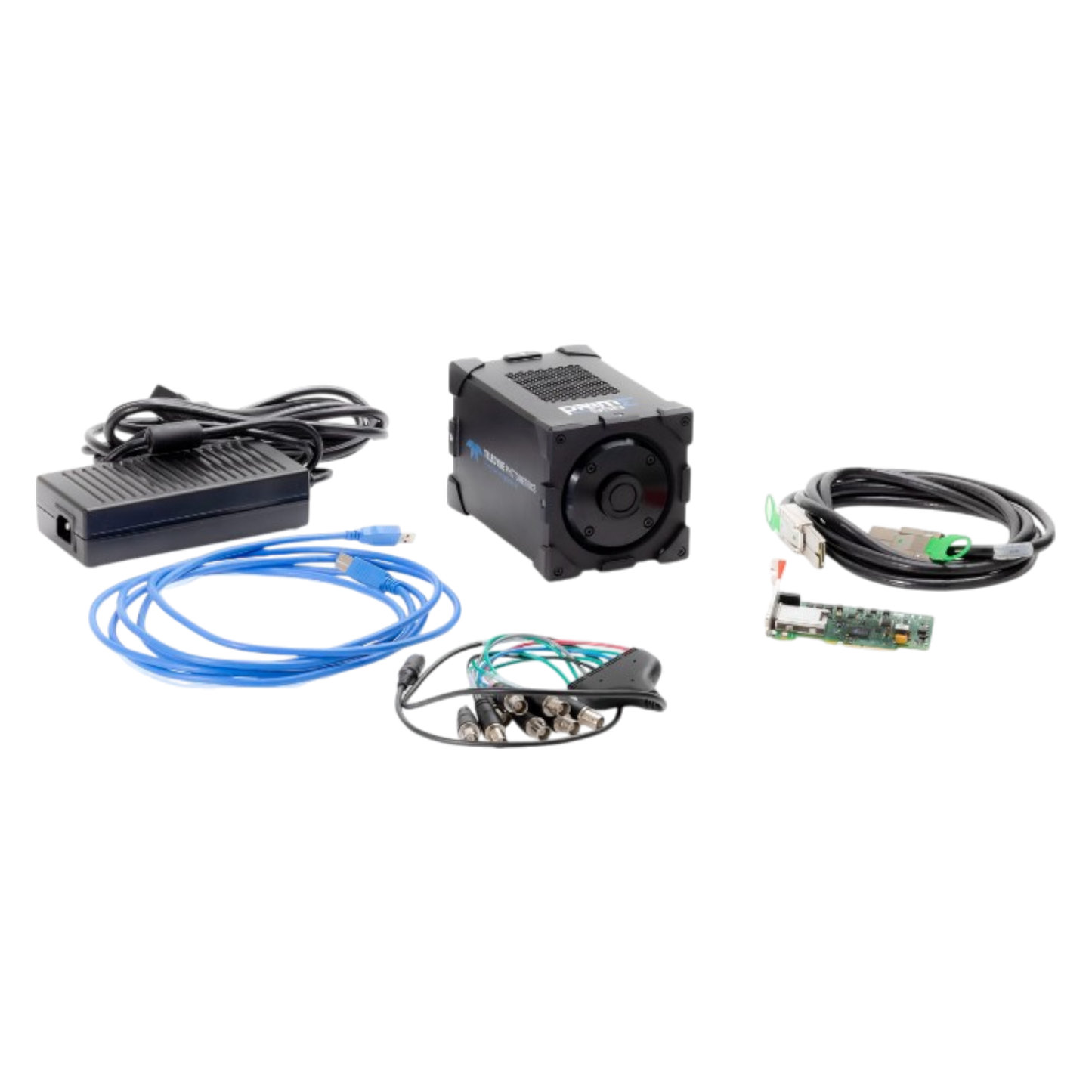

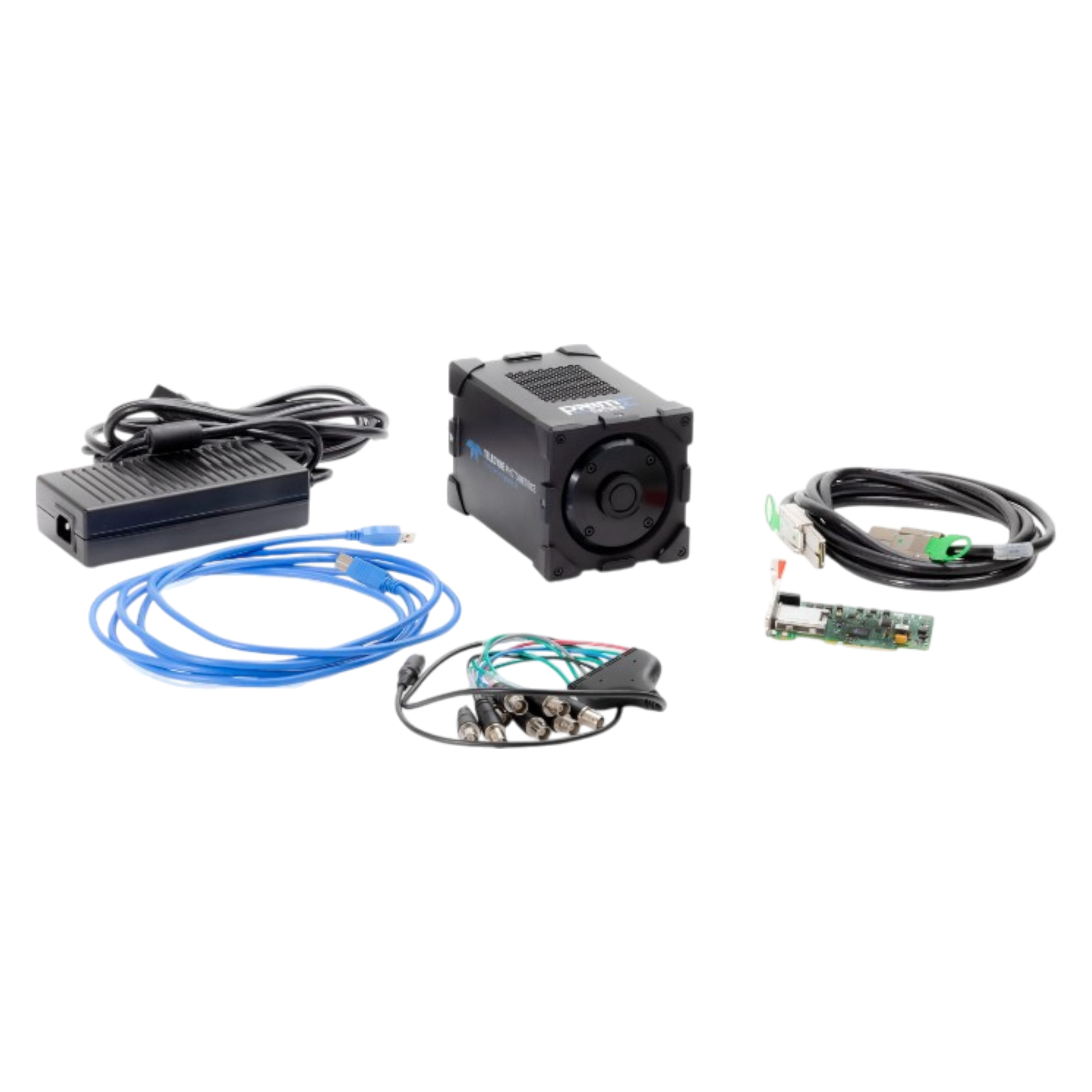

Included Items
- Prime 95B camera (monochrome)
- PCIe interface card and cable
- USB cable
- Trigger cable
- Power supply
- Manuals and quick start guide
- Performance and gain calibration test data
Key Features
- Back-illuminated sCMOS sensor with >95% peak QE
- Large 11 µm pixels for maximum light collection per pixel
- 1608 x 1608 array (2.58 MP) across a 25 mm diagonal
- 1.6 e- median read noise
- 80,000 e- full well, 50,000:1 dynamic range
- 30 fps at 16-bit, 60 fps at 12-bit full frame
- Up to four selectable expose-out lines for triggering
- PCIe and USB interfaces
Applications
- Spinning disk confocal microscopy
- Single-molecule and TIRF imaging
- Low-light live-cell fluorescence
- Calcium and voltage imaging
- Super-resolution microscopy
Specifications
| Manufacturer | Teledyne Photometrics |
| Model | Prime 95B 25mm |
| Catalog number | 01-PRIME-95B-25MM-R-M-16-C |
| Sensor | GPixel GSENSE400BSI back-illuminated sCMOS |
| Active array | 1608 x 1608 (2.58 MP) |
| Pixel size | 11 x 11 µm |
| Sensor area | 17.69 x 17.69 mm (25 mm diagonal) |
| Peak QE | >95% |
| Read noise | 1.6 e- (median) |
| Full well | 80,000 e- (16-bit) |
| Full-frame rate | 30 fps (16-bit), 60 fps (12-bit) |
| Readout | Rolling shutter with effective global shutter modes |
| Cooling | Forced air (liquid cooling option) |
| Interface | PCI Express and USB |
| Dynamic range | 50,000:1 |
Additional tariffs may apply.
Additional discounts may apply. Contact us for a quote.
Additional Details
Additional Details
- Manufacturer: Teledyne Photometrics
- Model: Prime 95B 25mm 2.6MP Monochrome sCMOS (25MM)
- Catalog Number: 1T-01-PRIME-95B-25MM-R-M-16-C
- Serial Number: N/A
- Condition: New
