SKU: PRODUCT ID:1T-01-PRIME-95B-R-M-16-C-ENH-LOC
Teledyne Photometrics Prime 95B Enhanced 1.4MP Monochrome sCMOS Microscope Camera
Teledyne Photometrics Prime 95B Enhanced 1.4MP Monochrome sCMOS Microscope Camera
This is the Teledyne Photometrics manufacturer list price.
Additional discounts may apply. Contact us for potential discount pricing and your exact quote.
Call (877) 564-2767 or email sales@coastalmicroscopes.com
Couldn't load pickup availability
- ✓ New, with the full manufacturer warranty
- ✓ Typical delivery in 1 to 3 weeks, depending on parts
- ✓ Prices shown exclude freight, insurance, tariffs and applicable taxes
- ✓ Installation, training and service available from our engineers (quoted separately)
- ✓ SAM.gov registered (CAGE 10ZU5). Purchase orders welcome
- ✓ Leasing and finance companies available
Questions? Call (877) 564-2767 or email sales@coastalmicroscopes.com
Teledyne Photometrics Prime 95B Enhanced 1.4MP Monochrome sCMOS Camera with PrimeEnhance and PrimeLocate
This Teledyne Photometrics Prime 95B is configured with the PrimeEnhance and PrimeLocate on-camera processing features. PrimeEnhance reduces photon shot noise in real time at low signal levels, and PrimeLocate finds fluorescent events on the camera and sends only those regions to the computer, cutting data volume for localization super-resolution.
Condition
New with Manufacturer Warranty

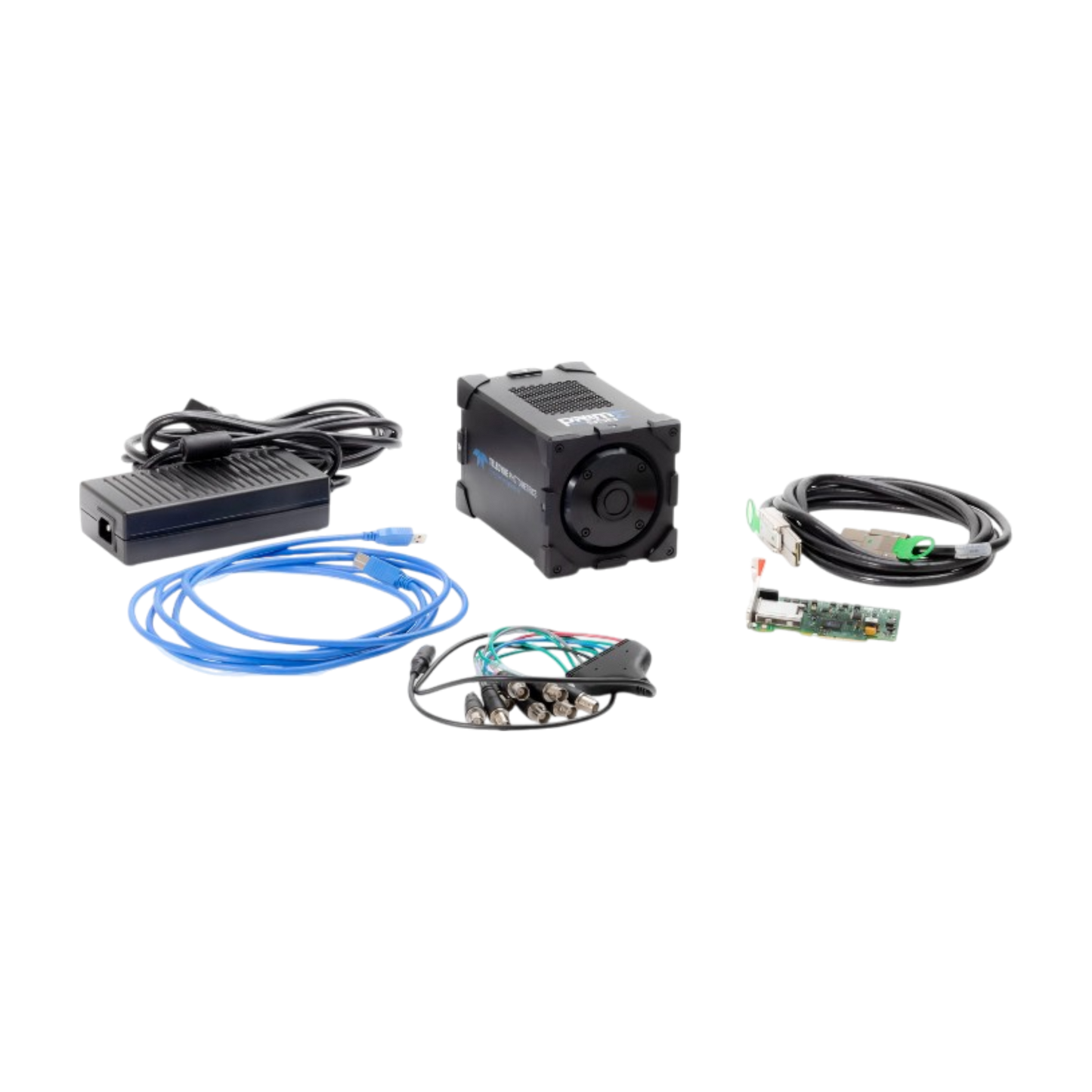

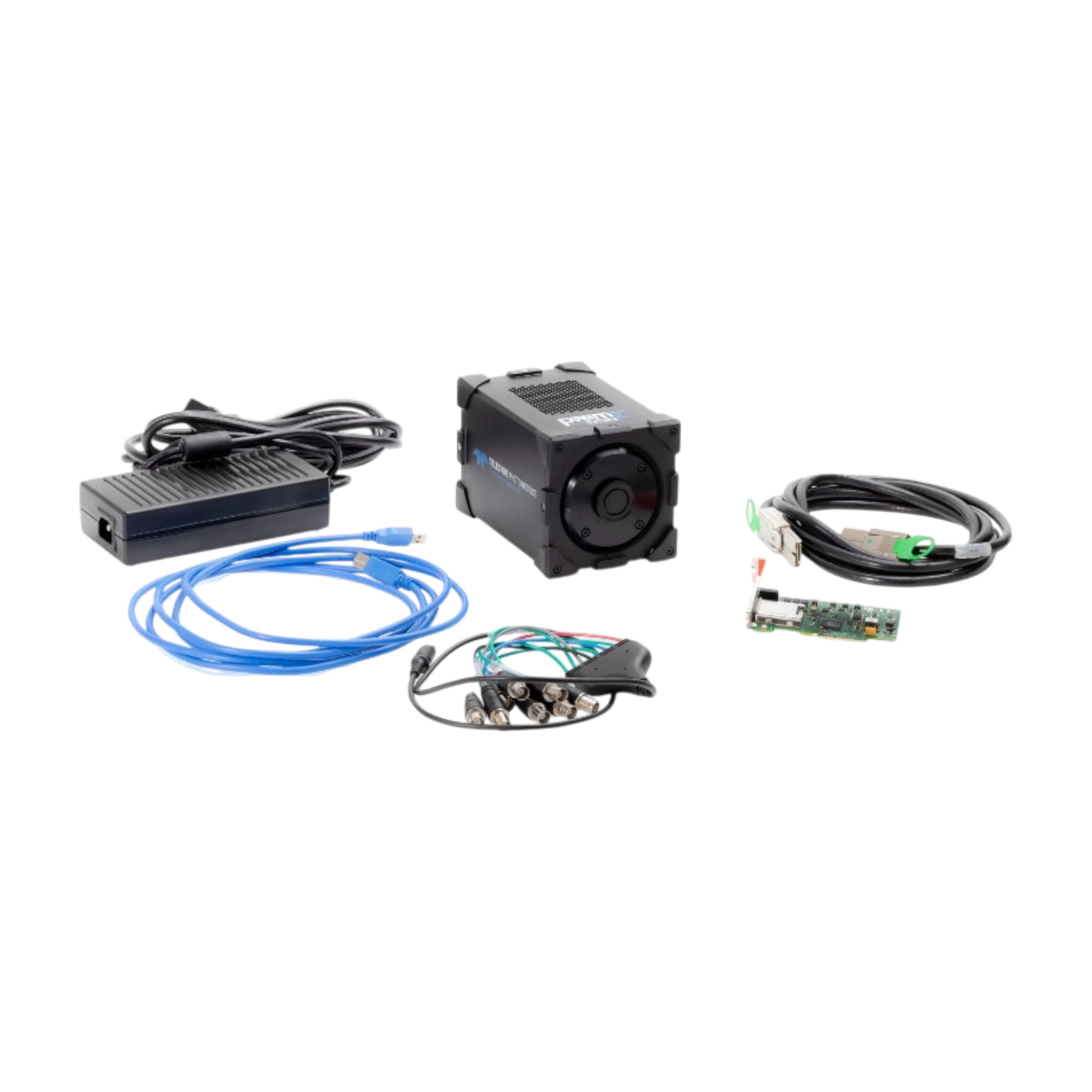

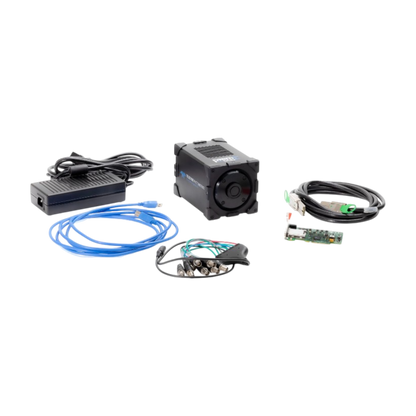

Included Items
- Prime 95B camera (monochrome)
- PCIe interface card and cable
- USB cable
- Trigger cable
- Power supply
- Manuals and quick start guide
- Performance and gain calibration test data
Key Features
- Back-illuminated sCMOS sensor with >95% peak QE and 11 µm pixels
- PrimeEnhance real-time 2D denoising to raise SNR at low light without longer exposures
- PrimeLocate on-camera localization that transfers only regions with emitters (1 to 512 patches per frame)
- 1.6 e- median read noise
- 82 fps at 12-bit, 41 fps at 16-bit full frame
- 80,000 e- full well in 16-bit mode
- Air cooled to 0 °C, liquid cooling to -25 °C
- PCIe and USB interfaces, C-mount
Applications
- Single-molecule localization microscopy (STORM, PALM, DNA-PAINT)
- Spinning disk confocal microscopy
- Low-light live-cell fluorescence
- TIRF and single-molecule imaging
Specifications
| Manufacturer | Teledyne Photometrics |
| Model | Prime 95B with PrimeEnhance and PrimeLocate |
| Catalog number | 01-PRIME-95B-R-M-16-C-ENH-LOC |
| Sensor | GPixel GSENSE400BSI back-illuminated sCMOS |
| Active array | 1200 x 1200 (1.44 MP) |
| Pixel size | 11 x 11 µm |
| Sensor area | 13.2 x 13.2 mm (18.7 mm diagonal) |
| Peak QE | >95% |
| Read noise | 1.6 e- (median) |
| Full well | 80,000 e- (16-bit) |
| Full-frame rate | 82 fps (12-bit), 41 fps (16-bit) |
| Readout | Rolling shutter with effective global shutter modes |
| Interface | PCI Express and USB |
| Cooling detail | Air: 0 °C at 30 °C ambient; liquid: -25 °C at 25 °C ambient |
| Lens mount | C-mount |
| Weight | 1.7 kg (3.7 lb) |
| On-camera processing | PrimeEnhance (real-time denoising), PrimeLocate (on-camera localization, up to 512 patches per frame) |
Additional tariffs may apply.
Additional discounts may apply. Contact us for a quote.
Additional Details
Additional Details
- Manufacturer: Teledyne Photometrics
- Model: Prime 95B Enhanced 1.4MP Monochrome sCMOS
- Catalog Number: 1T-01-PRIME-95B-R-M-16-C-ENH-LOC
- Serial Number: N/A
- Condition: New
