Teledyne Photometrics Prime BSI Express 4.2MP Monochrome sCMOS Microscope Camera

Teledyne Photometrics Prime BSI Express 4.2MP Monochrome sCMOS CN: 1T-01-PRIME-BSI-EXP

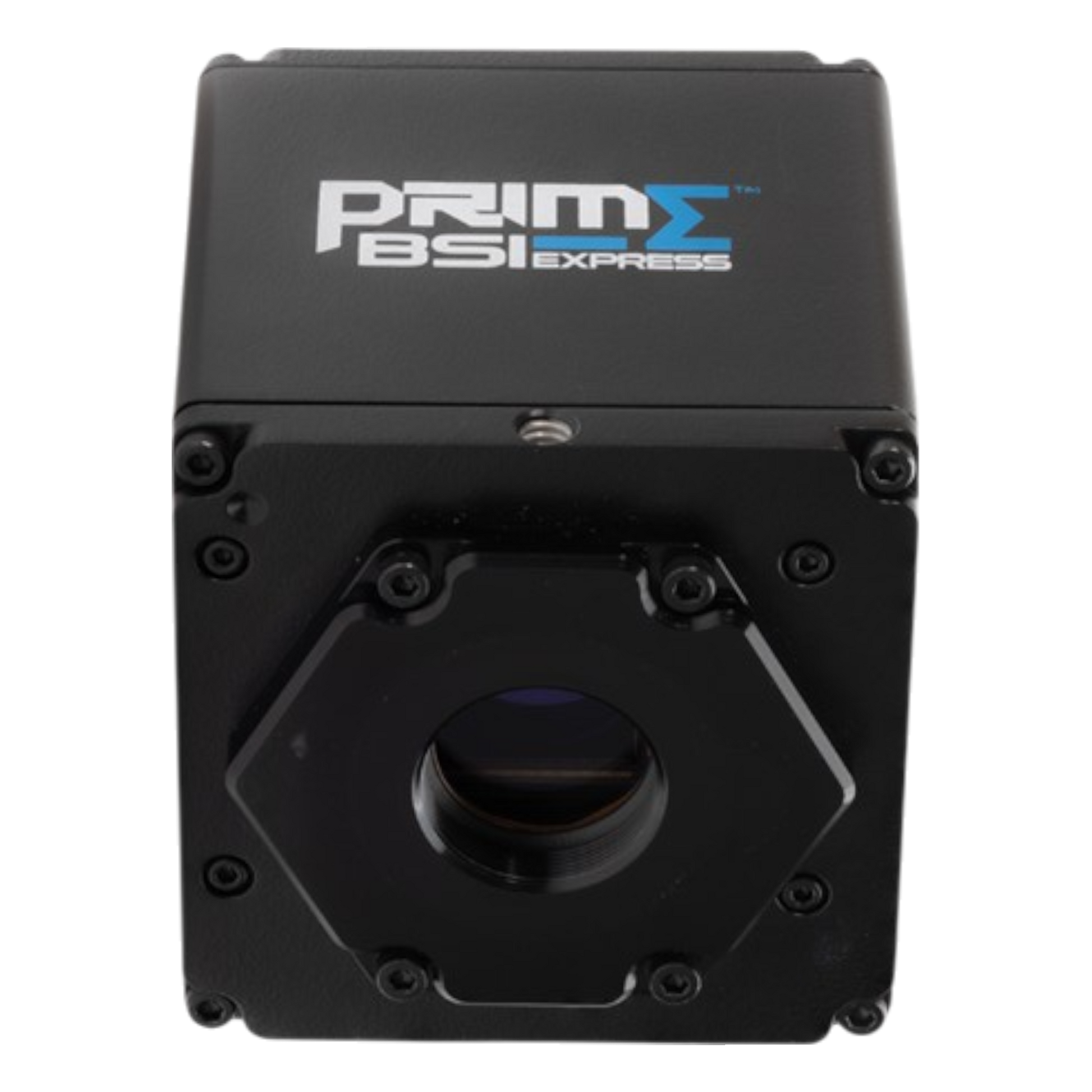

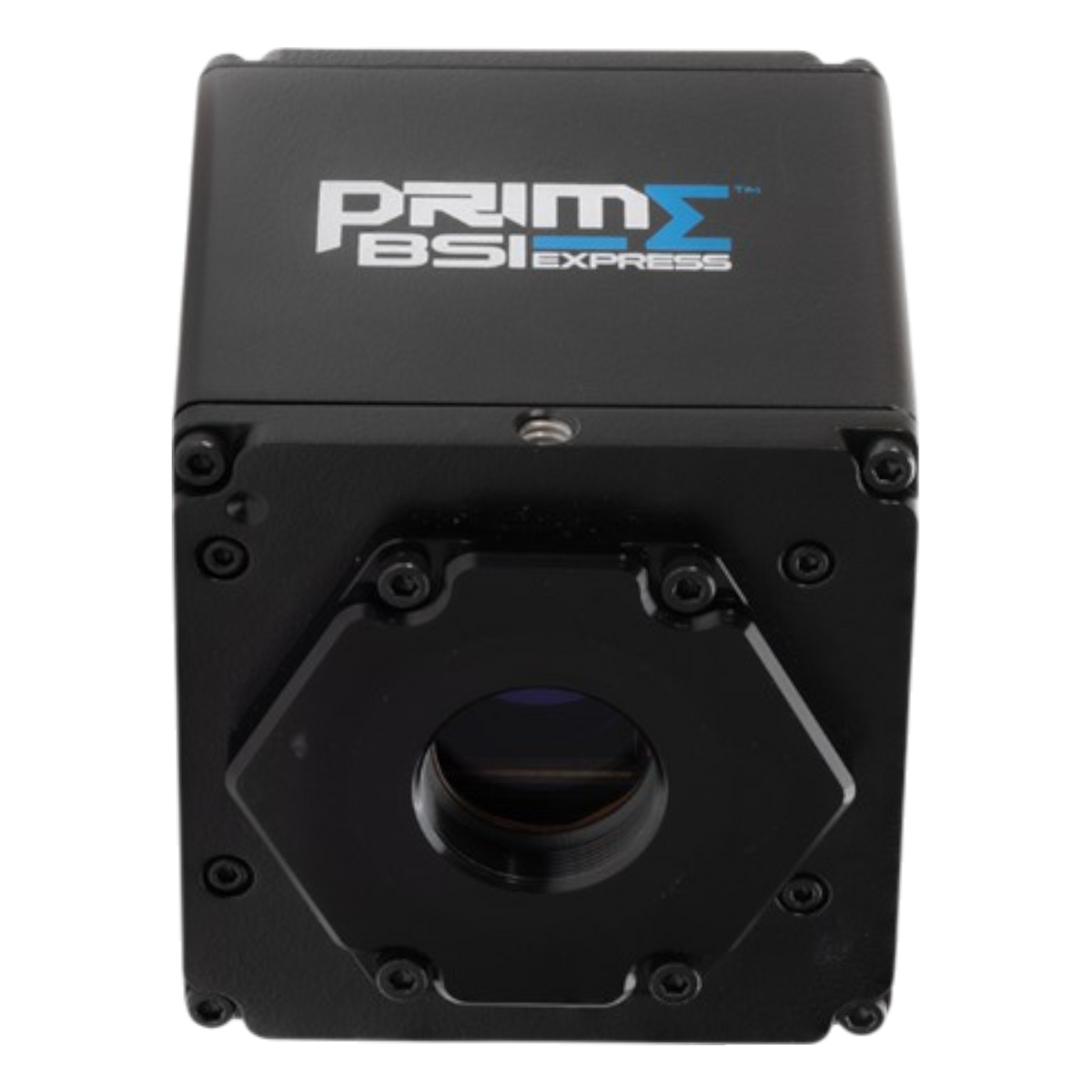

The Teledyne Photometrics Prime BSI Express is a 4.2 Megapixel Back-Illuminated Monochrome sCMOS Camera, optimized for high-speed, low-noise imaging in demanding scientific applications. With an 18.8mm sensor diagonal, 6.5 µm pixel size, and 95% peak quantum efficiency, the Prime BSI Express offers exceptional sensitivity and superior image quality. The USB 3.2 interface supports 43 frames per second (fps) at 16-bit resolution and 95 fps at 11-bit, making it ideal for fluorescence microscopy, super-resolution imaging, and high-speed live-cell imaging.

Condition:

• New with Manufacturer Warranty

Key Features:

• 4.2 Megapixel Resolution (6.5 x 6.5 µm pixel size)
• Back-Illuminated Sensor for improved photon detection
• High Quantum Efficiency (95%) for exceptional low-light sensitivity
• Low Read Noise (1.0e-) for superior signal clarity
• 43 Frames Per Second (fps) at 16-bit Resolution
• 95 fps at 11-bit Mode for high-speed applications
• USB 3.2 Interface with 10Gbps high-speed data transfer
• Monochrome Sensor optimized for fluorescence imaging

Applications:

• Fluorescence Microscopy
• Live-Cell Imaging
• Super-Resolution Microscopy
• High-Speed Imaging
• Low-Light Imaging

Technical Specifications:
