SKU: PRODUCT ID:1T-01-PRIME-BSI-R-M-16-C-PCI-E

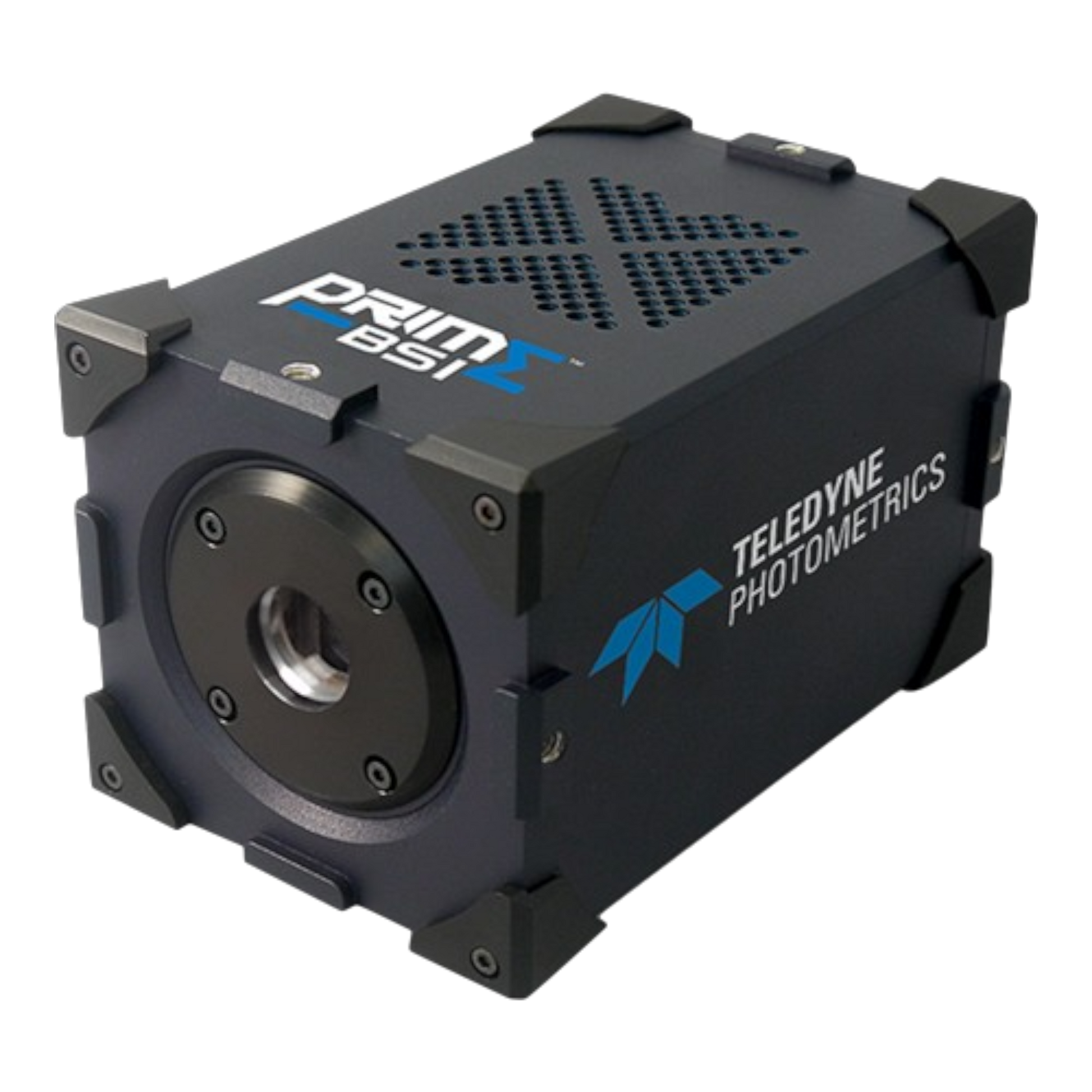

Teledyne Photometrics Prime BSI PCI-E 4.2MP Monochrome sCMOS Microscope Camera
Teledyne Photometrics Prime BSI PCI-E 4.2MP Monochrome sCMOS Microscope Camera
This is the Teledyne Photometrics manufacturer list price.
Additional discounts may apply. Contact us for potential discount pricing and your exact quote.
Call (877) 564-2767 or email sales@coastalmicroscopes.com
Couldn't load pickup availability
- ✓ New, with the full manufacturer warranty
- ✓ Typical delivery in 1 to 3 weeks, depending on parts
- ✓ Prices shown exclude freight, insurance, tariffs and applicable taxes
- ✓ Installation, training and service available from our engineers (quoted separately)
- ✓ SAM.gov registered (CAGE 10ZU5). Purchase orders welcome
- ✓ Leasing and finance companies available
Questions? Call (877) 564-2767 or email sales@coastalmicroscopes.com
Teledyne Photometrics Prime BSI PCIe 4.2MP Monochrome sCMOS Camera
The Teledyne Photometrics Prime BSI combines a 95% QE back-illuminated sCMOS sensor with balanced 6.5 µm pixels and 1.0 e- read noise. This PCIe version runs the full 63 fps in Speed mode and supports Programmable Scan Mode for light sheet and line-scanning confocal setups.
Condition
New with Manufacturer Warranty
Included Items
- Prime BSI camera (monochrome)
- PCIe interface card and PCIe data cable
- USB data cable
- BNC trigger cable
- Power supply (12 V / 10 A DC)
- PVCAM drivers and software
- Quick installation guide, performance and gain test data
Key Features
- Back-illuminated GSENSE2020BSI sCMOS sensor with 95% peak QE
- 2048 x 2048 array (4.2 MP) of 6.5 µm pixels, 18.8 mm diagonal
- 1.0 e- median read noise in Correlated Multi-Sampling (CMS) mode
- 45,000 e- full well, 25,000:1 dynamic range
- 63 fps (11-bit Speed) and 43 fps (16-bit HDR or 12-bit CMS) full frame over PCIe
- Programmable Scan Mode (PCIe only) for light sheet and line-scan synchronization
- Air cooled to -20 °C, liquid cooling to -30 °C
- C-mount
Applications
- Live-cell fluorescence imaging
- Light sheet microscopy
- Spinning disk confocal microscopy
- Single-molecule localization super-resolution
- Calcium imaging
Specifications
| Manufacturer | Teledyne Photometrics |
| Model | Prime BSI (PCIe) |
| Catalog number | 01-PRIME-BSI-R-M-16-C-PCIE |
| Sensor | GPixel GSENSE2020BSI back-illuminated sCMOS |
| Active array | 2048 x 2048 (4.2 MP) |
| Pixel size | 6.5 x 6.5 µm |
| Sensor area | 13.3 x 13.3 mm (18.8 mm diagonal) |
| Peak QE | 95% |
| Read noise | 1.0 e- (CMS), 1.6 e- (HDR and Speed) |
| Full well | 45,000 e- (HDR) |
| Dynamic range | 25,000:1 |
| Full-frame rate | 63 fps (11-bit), 43 fps (16-bit HDR, 12-bit CMS) |
| Interface | PCI Express and USB 3.0 |
| Readout | Rolling shutter, effective global shutter, Programmable Scan Mode (PCIe) |
| Cooling | Air -20 °C; liquid -30 °C |
| Lens mount | C-mount |
| Weight | 1.7 kg (3.7 lb) |
Additional tariffs may apply.
Additional discounts may apply. Contact us for a quote.
Additional Details
Additional Details
- Manufacturer: Teledyne Photometrics
- Model: Prime BSI PCI-E 4.2MP Monochrome sCMOS
- Catalog Number: 1T-01-PRIME-BSI-R-M-16-C-PCI-E
- Serial Number: N/A
- Condition: New
