Teledyne Photometrics Retiga Lumo 6MP Monochrome CCD Microscope Camera
Teledyne Photometrics Retiga Lumo 6MP Monochrome CCD Microscope Camera
This is the Teledyne Photometrics manufacturer list price.
Additional discounts may apply. Contact us for potential discount pricing and your exact quote.
Call (877) 564-2767 or email sales@coastalmicroscopes.com
Couldn't load pickup availability
- ✓ New, with the full manufacturer warranty
- ✓ Typical delivery in 1 to 3 weeks, depending on parts
- ✓ Prices shown exclude freight, insurance, tariffs and applicable taxes
- ✓ Installation, training and service available from our engineers (quoted separately)
- ✓ SAM.gov registered (CAGE 10ZU5). Purchase orders welcome
- ✓ Leasing and finance companies available
Questions? Call (877) 564-2767 or email sales@coastalmicroscopes.com

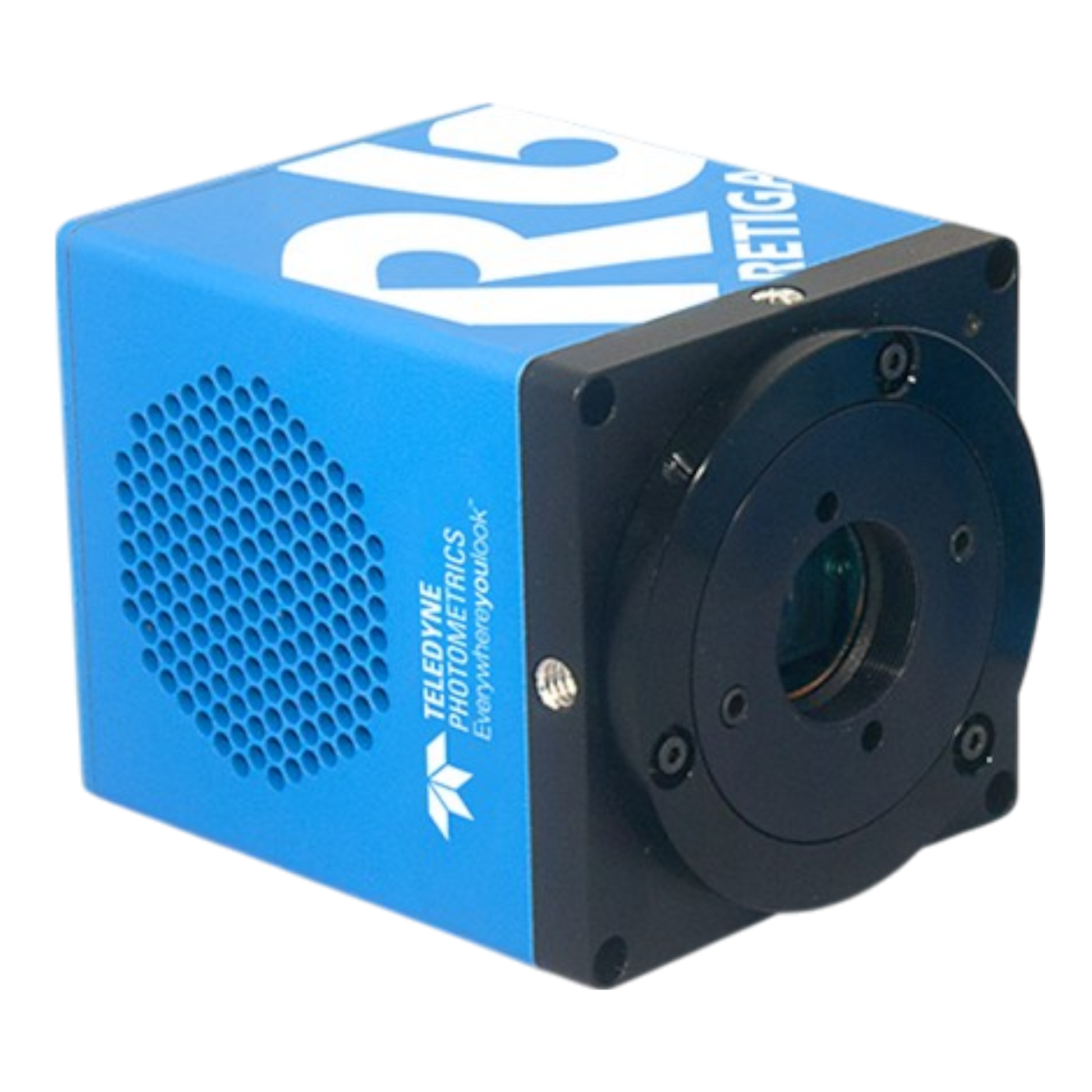

Teledyne Photometrics Retiga LUMO 6MP Monochrome Cooled CCD Camera with Ocular
The Teledyne Photometrics Retiga LUMO is a cooled 6 megapixel CCD camera tuned for bioluminescence and other long-exposure imaging, with exposures up to 60 minutes and dark current as low as 0.0001 e-/pixel/s with correction enabled. Ocular image capture software is included.
Condition
New with Manufacturer Warranty
Included Items
- Retiga LUMO (monochrome) camera
- Power supply
- USB 3.0 cable
- Trigger cable
- Ocular imaging software
Key Features
- Sony ICX695 interline CCD, 2688 x 2200 array of 4.54 µm pixels
- Cooled to -20 °C, dark current 0.0004 e-/pixel/s (0.0001 with DPC and DDFC)
- Exposures from 25 µs to 60 minutes
- <4.5 e- read noise at 650 kHz readout
- 16-bit output at 650 kHz, 14-bit at 50 MHz
- Full well up to 27,000 e-
- 16 mm diagonal field of view
- USB 3.0, Ocular capture software included
Applications
- Bioluminescence imaging
- Chemiluminescence and luminescence assays
- Long-exposure low-light fluorescence
- Gel and blot documentation
Specifications
| Manufacturer | Teledyne Photometrics |
| Model | Retiga LUMO |
| Catalog number | 01-RET-LUMO-R-M-16-C (Ocular bundle) |
| Sensor | Sony ICX695 interline CCD (monochrome) |
| Active array | 2688 x 2200 (6 MP) |
| Pixel size | 4.54 x 4.54 µm |
| Sensor area | 12.5 x 10 mm (16 mm diagonal) |
| Peak QE | 75% at 600 nm |
| Read noise | <4.5 e- RMS at 650 kHz |
| Full well | Up to 27,000 e- |
| Frame rate | 7.1 fps full, 12.8 fps 2 x 2 binned |
| Digital output | 16-bit (650 kHz), 14-bit (50 MHz) |
| Exposure range | 25 µs to 60 minutes |
| Cooling | Thermoelectric, -20 °C at 22 °C ambient |
| Dark current | 0.0004 e-/pixel/s |
| Interface | USB 3.0 |
| Lens mount | C-mount |
| Dimensions | 98.4 x 76 x 76 mm |
| Weight | 0.72 kg |
Additional tariffs may apply.
Additional discounts may apply. Contact us for a quote.
Additional Details
Additional Details
- Manufacturer: Teledyne Photometrics
- Model: Retiga Lumo 6MP Monochrome sCMOS
- Catalog Number: 1T-01-RET-LUMO-R-M-16-C-OC
- Serial Number: N/A
- Condition: New
