SKU: PRODUCT ID:1T-01-RET-R6-R-M-14-C-OC
Teledyne Photometrics Retiga R6 6MP Monochrome CCD Microscope Camera
Teledyne Photometrics Retiga R6 6MP Monochrome CCD Microscope Camera
This is the Teledyne Photometrics manufacturer list price.
Additional discounts may apply. Contact us for potential discount pricing and your exact quote.
Call (877) 564-2767 or email sales@coastalmicroscopes.com
Couldn't load pickup availability
- ✓ New, with the full manufacturer warranty
- ✓ Typical delivery in 1 to 3 weeks, depending on parts
- ✓ Prices shown exclude freight, insurance, tariffs and applicable taxes
- ✓ Installation, training and service available from our engineers (quoted separately)
- ✓ SAM.gov registered (CAGE 10ZU5). Purchase orders welcome
- ✓ Leasing and finance companies available
Questions? Call (877) 564-2767 or email sales@coastalmicroscopes.com

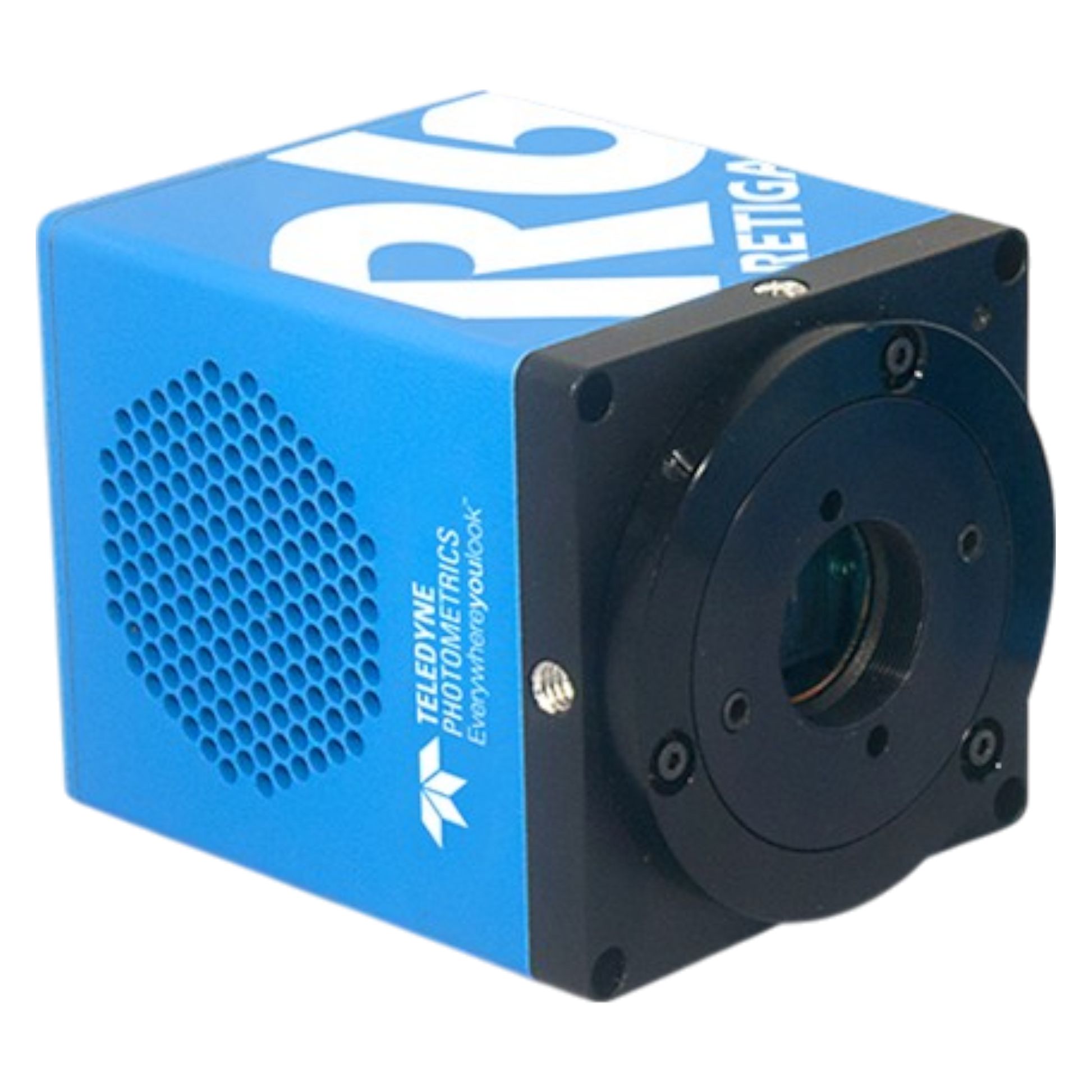

Teledyne Photometrics Retiga R6 6MP Monochrome Cooled CCD Camera with Ocular
The Teledyne Photometrics Retiga R6 is a cooled 6 megapixel monochrome CCD camera with small 4.54 µm pixels and a 16 mm diagonal field of view, a solid choice for sensitive fluorescence documentation and tile scanning. This package includes Ocular image capture software.
Condition
New with Manufacturer Warranty
Included Items
- Retiga R6 (monochrome) camera
- Power supply
- USB 3.0 cable
- Trigger cable
- Ocular imaging software
Key Features
- Sony ICX695 scientific interline CCD, 2688 x 2200 array
- 4.54 µm pixels across a 16 mm diagonal
- 75% peak QE at 600 nm
- 5.7 e- read noise, 19,000 e- full well
- Thermoelectric cooling to -12 °C with 0.00073 e-/pixel/s dark current
- 14-bit output, 6.9 fps full frame, 10.9 fps at 2 x 2
- USB 3.0 interface
- Ocular capture software included
Applications
- Fluorescence documentation
- Time-lapse imaging
- Tile and stitch imaging
- Stereo microscope imaging
Specifications
| Manufacturer | Teledyne Photometrics |
| Model | Retiga R6 |
| Catalog number | 01-RET-R6-R-M-14-C (Ocular bundle) |
| Sensor | Sony ICX695 interline CCD (monochrome) |
| Active array | 2688 x 2200 (6 MP) |
| Pixel size | 4.54 x 4.54 µm |
| Sensor area | 12.5 x 10 mm (16 mm diagonal) |
| Peak QE | 75% at 600 nm |
| Read noise | 5.7 e- RMS (typical) |
| Full well | 19,000 e- |
| Frame rate | 6.9 fps full, 10.9 fps 2 x 2 binned |
| Digital output | 14-bit |
| Cooling | Thermoelectric, -12 °C at 22 °C ambient |
| Dark current | 0.00073 e-/pixel/s |
| Interface | USB 3.0 |
| Lens mount | C-mount |
| Dimensions | 98.4 x 76 x 76 mm |
| Weight | 0.72 kg |
Additional tariffs may apply.
Additional discounts may apply. Contact us for a quote.
Additional Details
Additional Details
- Manufacturer: Teledyne Photometrics
- Model: Retiga R6 6MP Monochrome sCMOS
- Catalog Number: 1T-01-RET-R6-R-M-14-C-OC
- Serial Number: N/A
- Condition: New
