Thermo EVOS M5000 Inverted Phase Contrast Fluorescence Motorized Imaging System Microscope

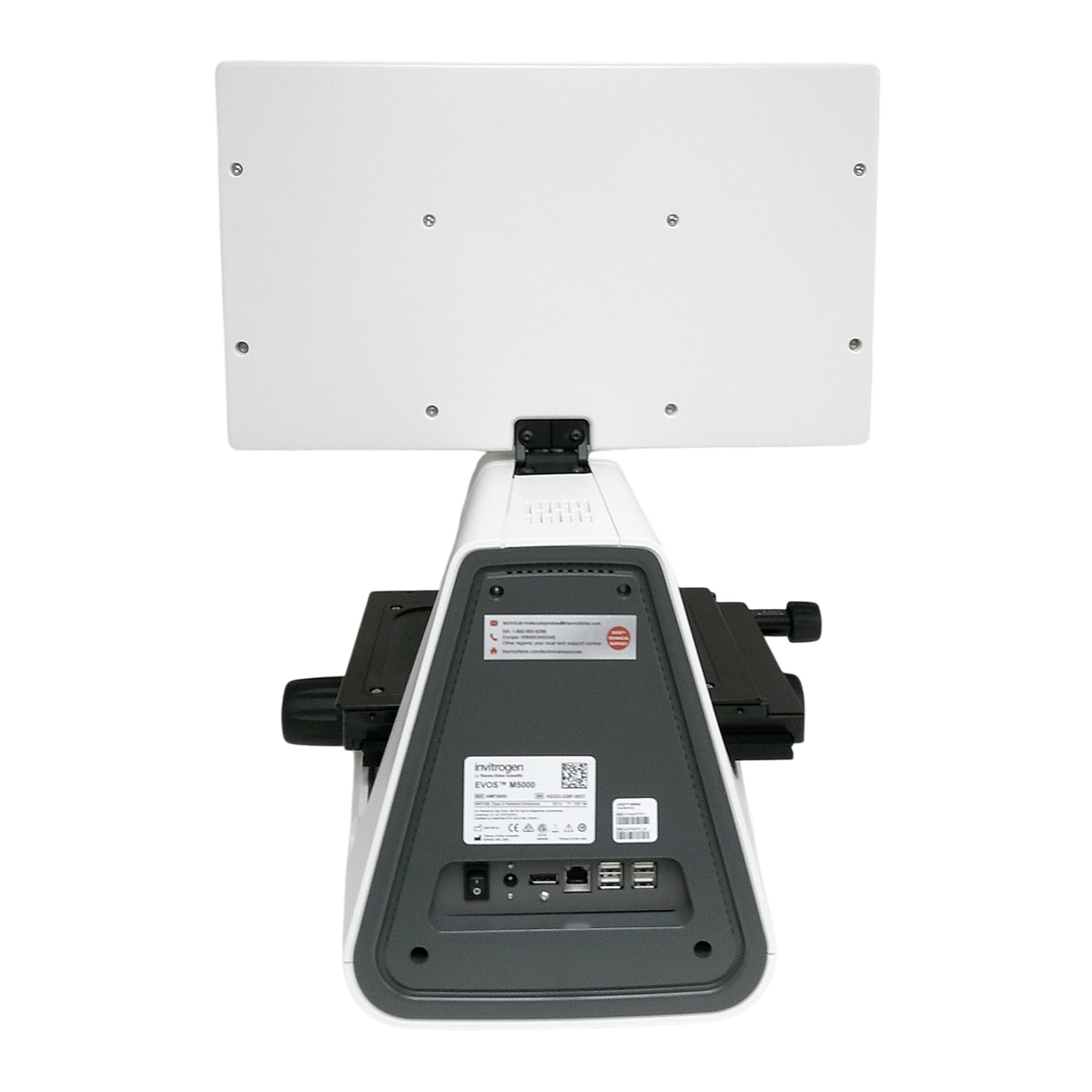

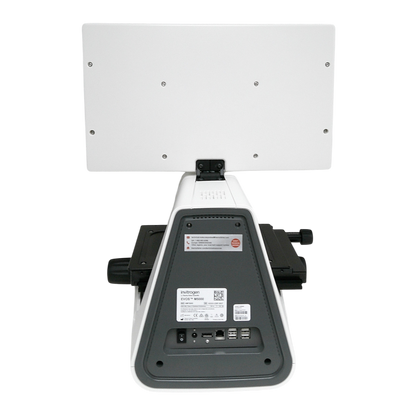

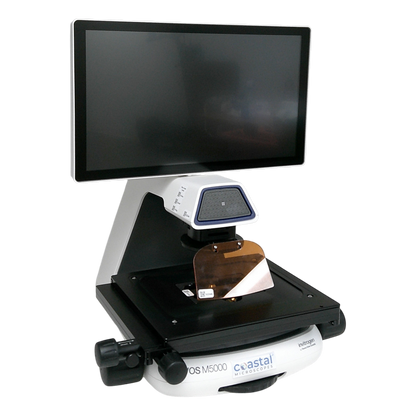

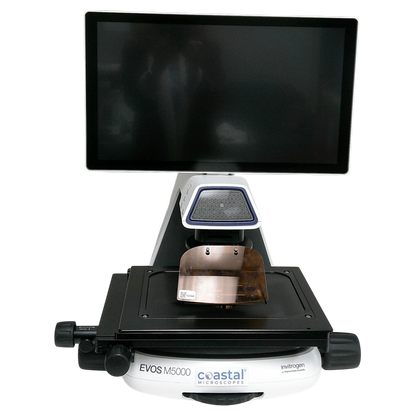

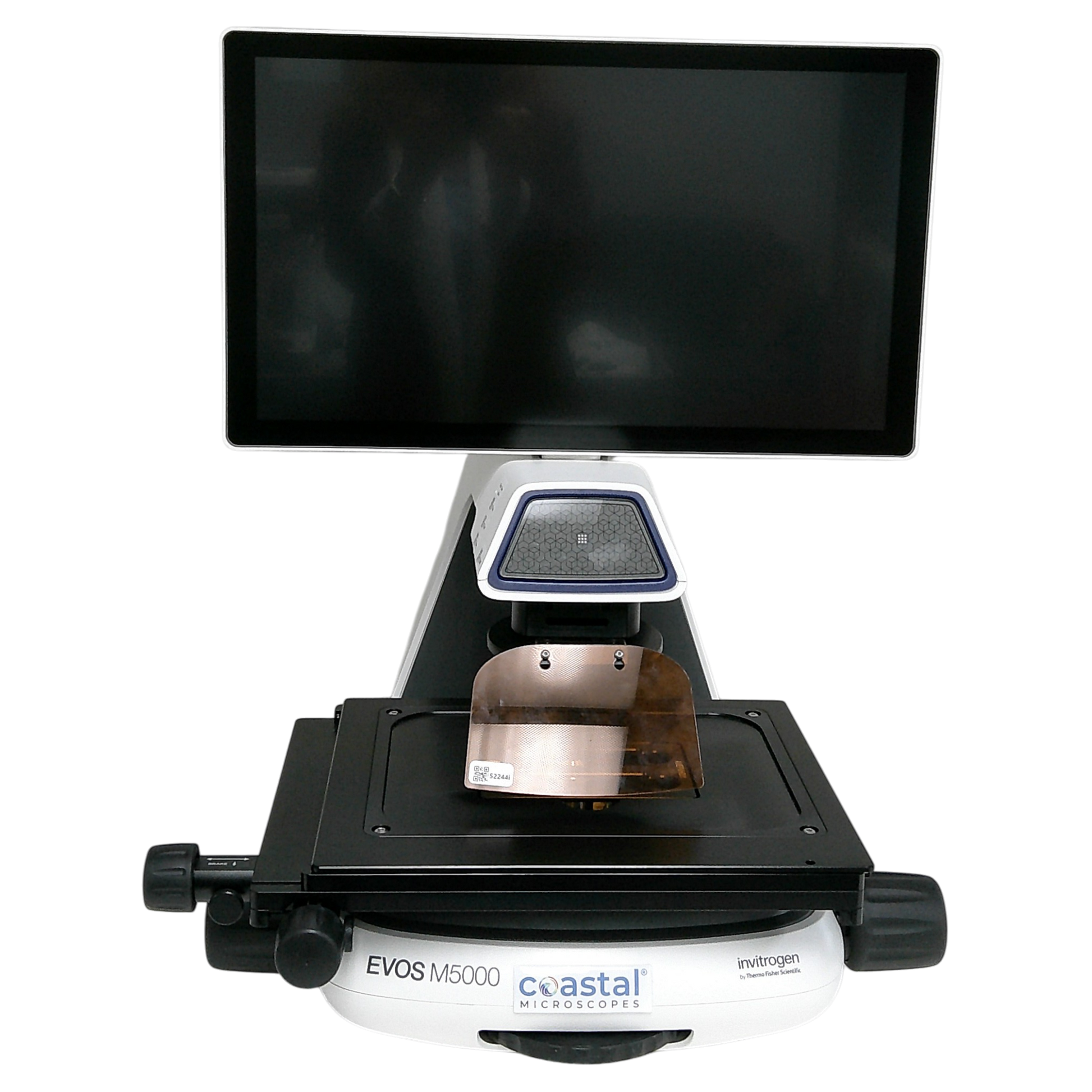

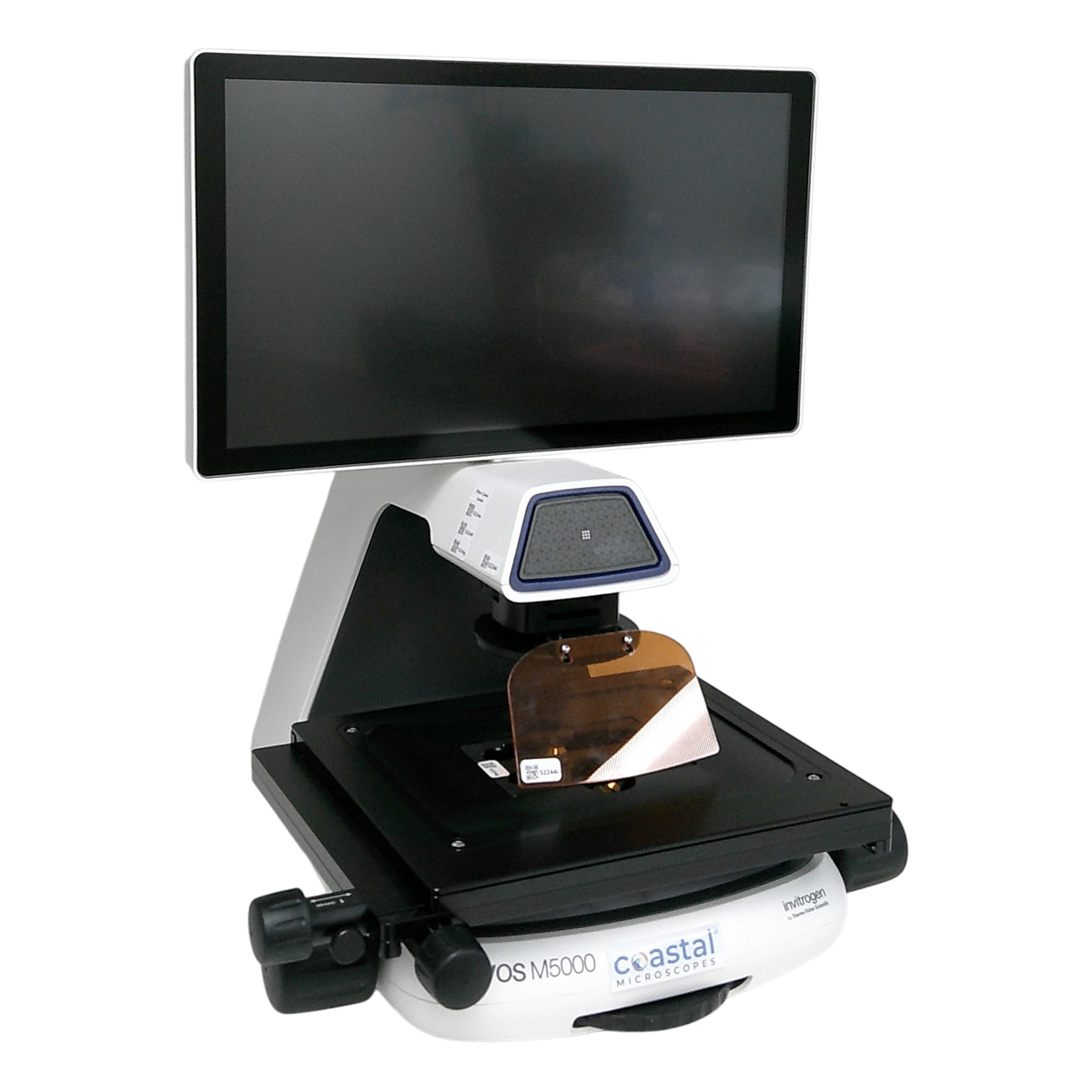

Thermo Scientific EVOS M5000 Inverted Phase Contrast Fluorescence Motorized Imaging System (Used)

The Thermo Scientific EVOS M5000 is a fully integrated inverted fluorescence imaging system designed for advanced live-cell and fixed-cell imaging applications. Combining high-quality optics, motorized automation, transmitted light imaging, phase contrast, and LED fluorescence in a self-contained platform, the EVOS M5000 delivers exceptional image quality with an intuitive touchscreen interface—eliminating the need for an external computer. Ideal for research laboratories, core imaging facilities, and cell biology workflows, the EVOS M5000 streamlines image acquisition, documentation, and quantitative analysis.

Condition

Condition: Refurbished/Used
(This system has been inspected and verified to meet manufacturer specifications.)

Included Items

• Thermo Fisher Scientific EVOS M5000 Inverted Imaging System
• Integrated High-Resolution Digital Color CMOS Camera
• Motorized Objective Turret
• Motorized Fluorescence Filter Cube Turret
• Integrated LED Transmitted Light Illumination
• Integrated LED Fluorescence Illumination
• Motorized Mechanical XY Stage
• Integrated 22" Touchscreen Display
• Power Supply and Power Cord

Customization and Optional Upgrades

• Objectives: Please discuss your application or preferred objective configuration with our team. We have a full suite of options available.
• Stage: Motorized stage included. Additional vessel adapters available for multiwell plates, dishes, chamber slides, flasks, and microscope slides.
• Nosepiece: Motorized 5-position objective turret.
• Filter Cubes: (3) Fluorescence filter cubes of your choice (additional cubes available for purchase).
• Fluorescence Channels: Standard configurations available for DAPI, GFP/FITC, RFP/TRITC, Cy5, Texas Red, YFP and additional fluorophores.
• Software & Analysis: Image analysis, cell counting, measurements, annotations, and automated acquisition workflows available.

Key Features

• Fully integrated all-in-one inverted digital imaging system
• Motorized 5-position objective turret for automated magnification changes
• Motorized fluorescence filter cube changer for rapid multi-channel imaging
• Integrated LED fluorescence illumination with long-life solid-state LEDs
• Brightfield, phase contrast, color brightfield, and fluorescence imaging modes
• Large integrated touchscreen interface with intuitive EVOS software
• High-resolution digital CMOS camera for publication-quality images
• Motorized mechanical XY stage for precise navigation and image stitching
• Supports multi-position imaging, Z-stack acquisition, time-lapse imaging, and tile scanning
• No external computer required for routine operation
• USB and network connectivity for image storage and data export

Applications

• Live Cell Imaging
• Fixed Cell Fluorescence Imaging
• Phase Contrast Cell Culture Observation
• Immunofluorescence
• Cell Biology Research
• Stem Cell Research
• Cancer Research
• Drug Discovery
• High-Content Imaging
• Multiwell Plate Imaging
• Routine Laboratory Documentation

Specifications

Configuration shown is for demonstration purposes. Contact us to discuss your application and imaging requirements for a customized quotation, including objectives, fluorescence filters, stage accessories, and software options.
