Thermo Phenom G6 Pro Scanning Electron Microscope
Thermo Phenom G6 Pro Scanning Electron Microscope
Couldn't load pickup availability
- ✓ Tested in house. 180-day parts and labor warranty (US). International: 30-day parts warranty
- ✓ Typical delivery in 1 to 3 weeks, depending on parts
- ✓ Prices shown exclude freight, insurance, tariffs and applicable taxes
- ✓ Installation, training and service available from our engineers (quoted separately)
- ✓ SAM.gov registered (CAGE 10ZU5). Purchase orders welcome
- ✓ Leasing and finance companies available
Questions? Call (877) 564-2767 or email sales@coastalmicroscopes.com

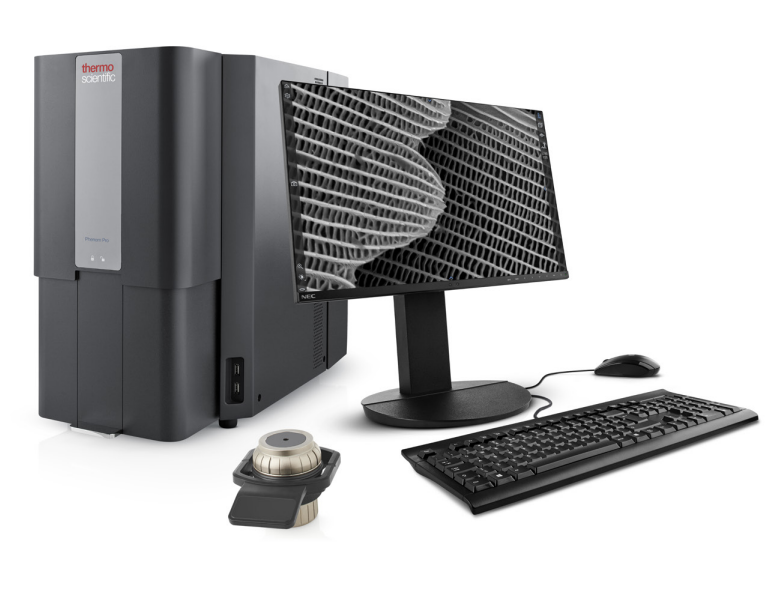

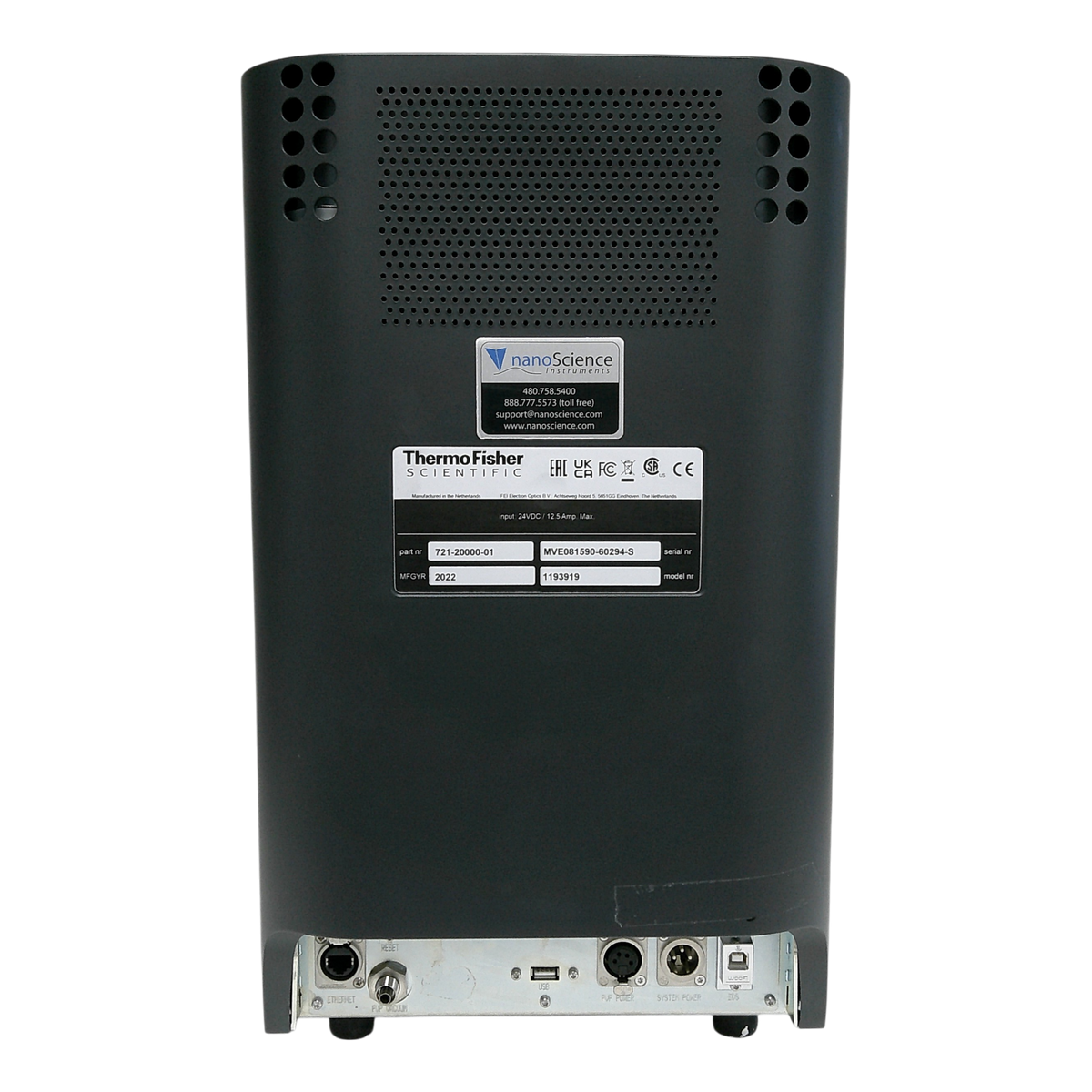

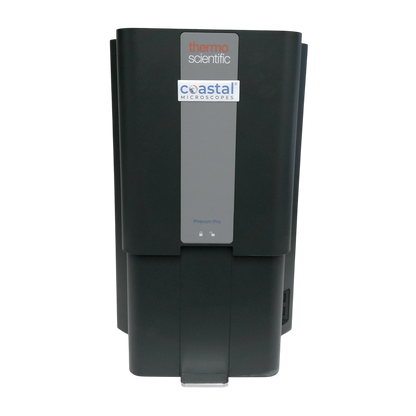

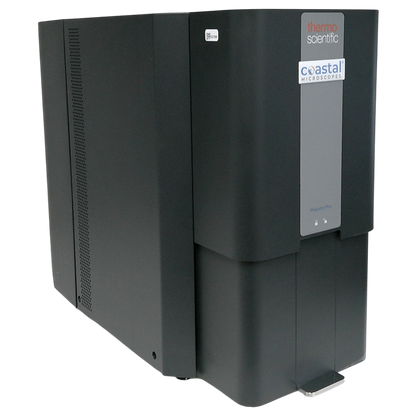

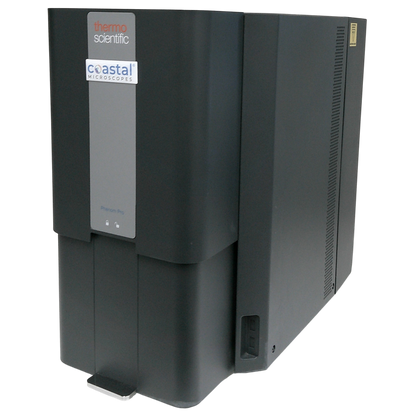

Thermo Scientific Phenom G6 Pro SEM Desktop Scanning Electron Microscope – High-Resolution Imaging with CeB6 Source
The Thermo Scientific Phenom G6 Pro Desktop SEM delivers fast, high-resolution imaging in a compact footprint, bridging the gap between optical microscopy and full-size SEM systems. Designed for ease of use and versatility, this system is well suited for multi-user labs requiring rapid, reliable analysis. This unit includes a recent manufacturer preventive maintenance service completed in February 2025, during which the electron source was replaced.
Condition
Condition: Refurbished/Used (This product has been inspected and verified to meet manufacturer specifications.)
Recent PM completed by the manufacturer in February 2025, including electron source replacement.
Included Items

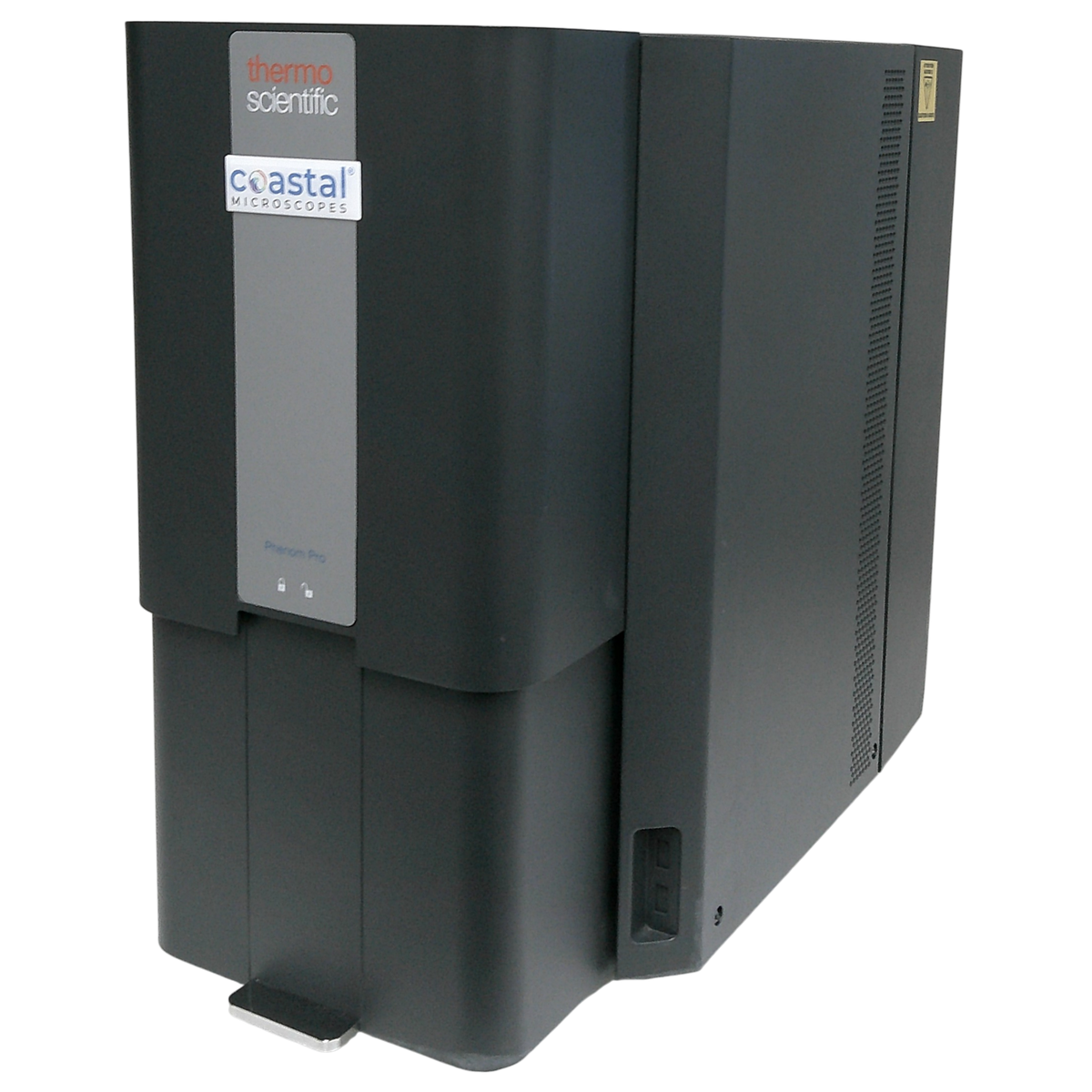

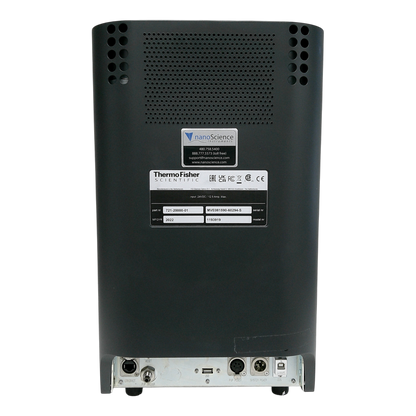

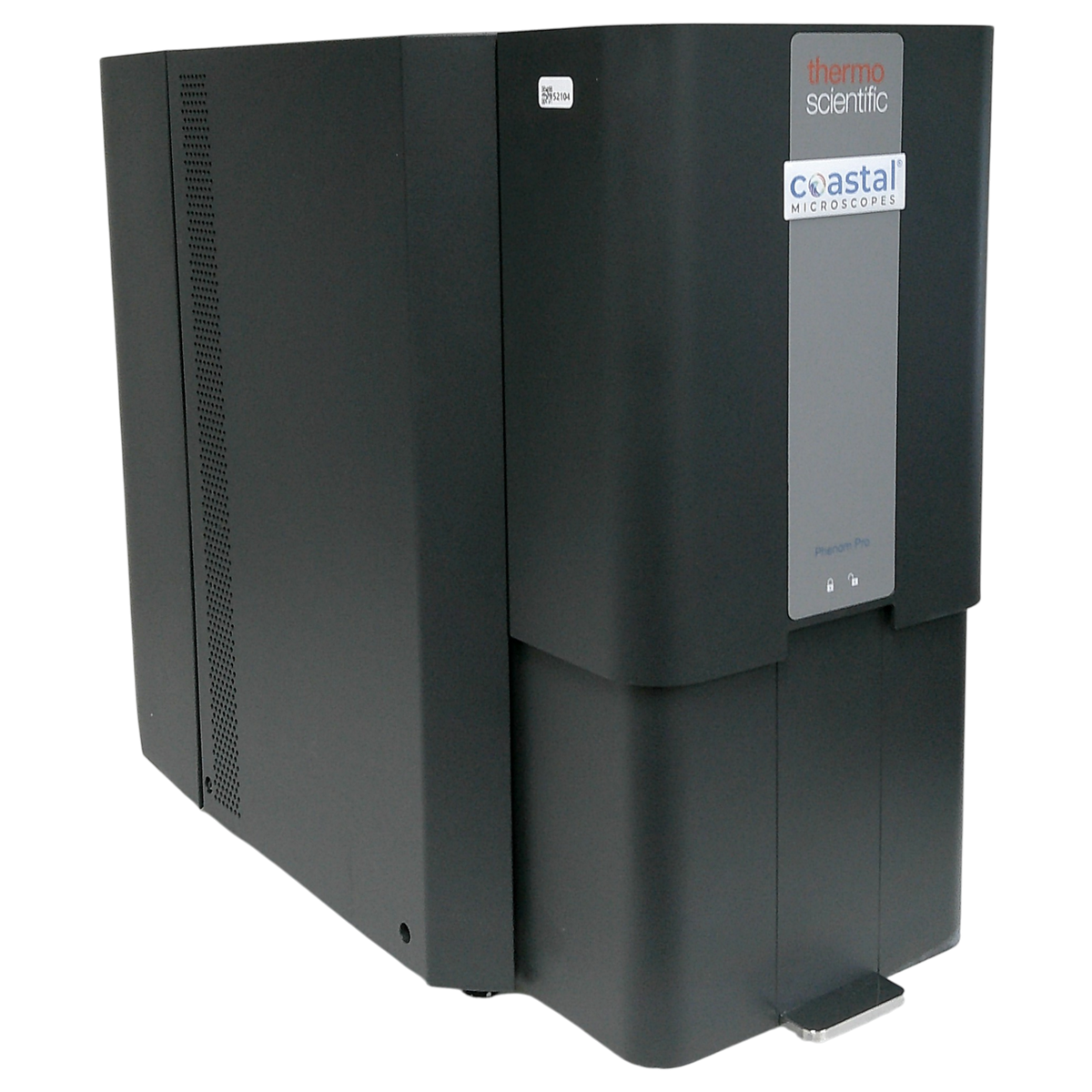

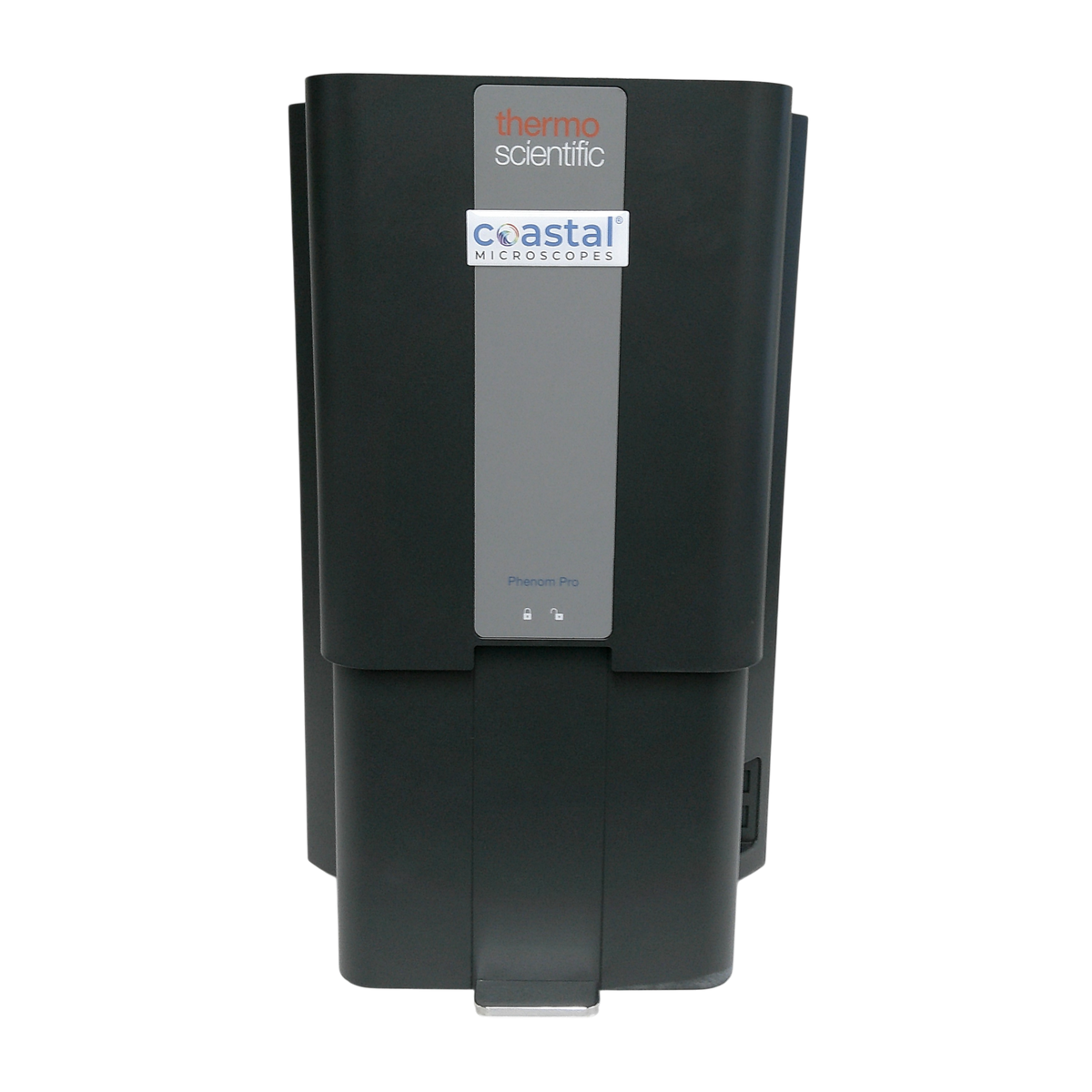

- Phenom G6 Pro SEM
- Charge Reduction Sample Holder
- Secondary Electron Detector (SED)
- Original Computer/Workstation
Key Features
- High-brightness CeB6 electron source for strong imaging performance
- Electron optical magnification range of 160x to 350,000x
- Integrated color optical navigation camera for fast sample targeting
- Standard backscattered electron imaging with included secondary electron detector
- Live mixing of backscattered and secondary electron images
- Motorized X-Y sample stage for precise positioning
- Compact desktop format suitable for lab environments without specialized SEM infrastructure
- Fast sample loading and quick transition to electron imaging
Applications
- Materials science and metallurgy
- Failure analysis and quality control
- Semiconductor and electronics inspection
- Particle and fiber analysis
- Research and teaching laboratories
- General surface morphology and compositional contrast imaging
Specifications
| Manufacturer | Thermo Scientific |
| Model | Phenom Pro G6 Desktop SEM |
| Electron Source | Long lifetime thermionic CeB6 source |
| Optical Magnification Range | 20x–134x |
| Electron Magnification Range | 160x–350,000x |
| Acceleration Voltages | Default: 5 kV, 10 kV, 15 kV; Advanced mode: adjustable from 4.8 kV to 20.5 kV |
| Resolution | ≤6 nm (SED), ≤8 nm (BSD) |
| Standard Detector | Backscattered electron detector |
| Included Detector | Secondary electron detector (SED) |
| Digital Image Detection | Color navigation camera |
| Image Formats | JPEG, TIFF, PNG |
| Image Resolution Options | 960 x 600, 1920 x 1200, 3840 x 2400, 7680 x 4800 pixels |
| Data Storage | Network, workstation with SSD |
| Sample Stage | Computer-controlled motorized X and Y |
| Sample Size | 25 mm diameter (up to 32 mm optional), 35 mm height (up to 100 mm optional) |
| Sample Loading Time | Optical: <5 seconds; Electron optical: <30 seconds |
| Main Unit Dimensions | 286 (W) x 566 (D) x 495 (H) mm |
| Main Unit Weight | 50 kg |
| Diaphragm Vacuum Pump | 145 (W) x 220 (D) x 213 (H) mm, 4.5 kg |
| Power Supply | 156 (W) x 300 (D) x 74 (H) mm, 3 kg |
| Workstation | Power workstation with SSD storage and four USB slots |
| Operating Temperature | 15°C to 30°C |
| Humidity | 20% to 80% RH |
| Power Requirements | Single phase AC 100–240 V, 50/60 Hz, 153 W average, 348 W max |
| Recommended Table Dimensions | 150 x 75 cm, load rating 100 kg |
Specifications sourced from the manufacturer datasheet.
Additional Details
Additional Details
- Manufacturer: Thermo
- Model:
- Catalog Number: 52104

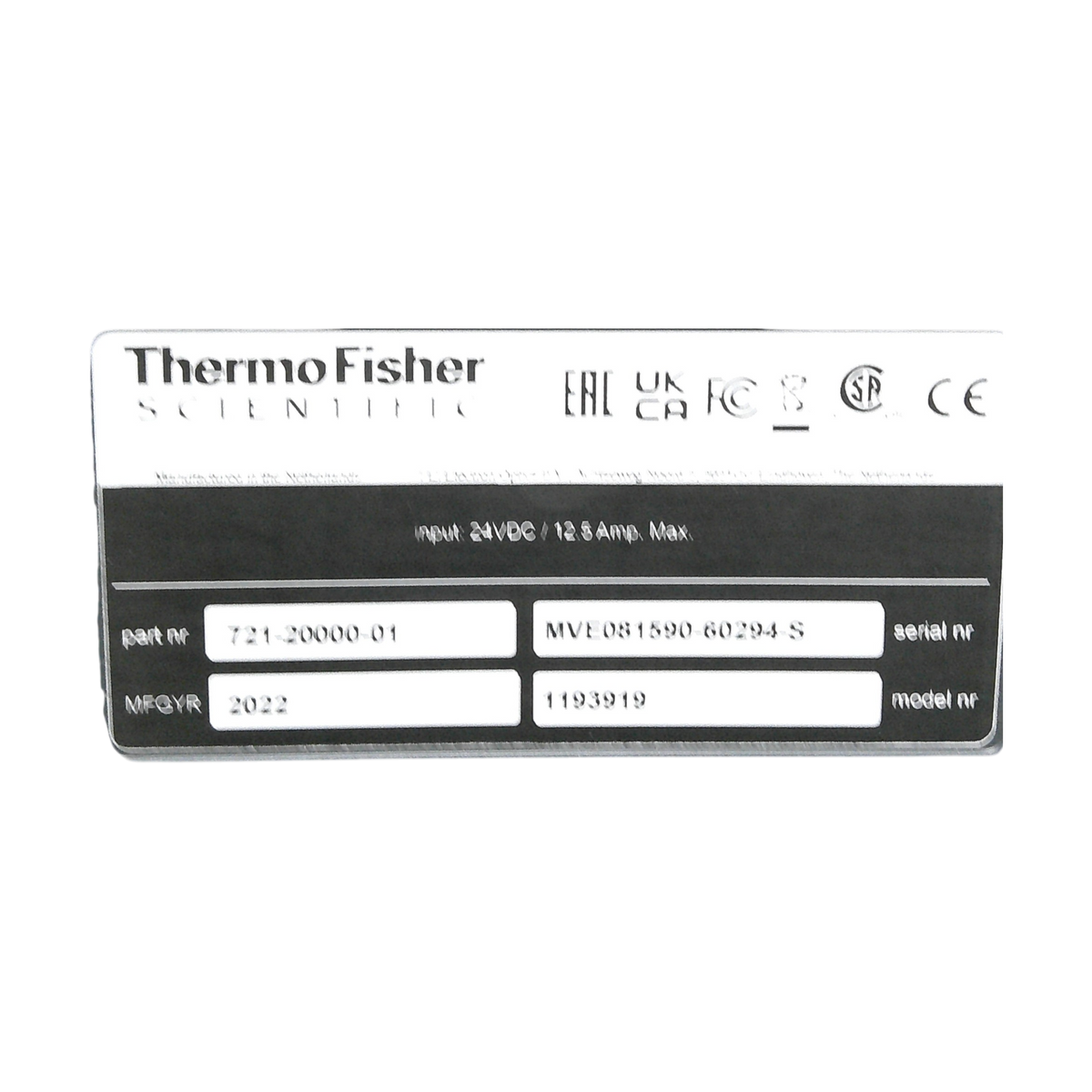

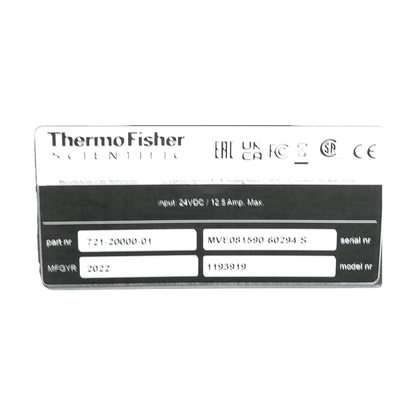

- Serial Number: MVE081590-60294-S
- Condition: Used
