SKU: PRODUCT ID:401D
Tucsen 401D 4MP Monochrome Uncooled CMOS Microscope Camera
Tucsen 401D 4MP Monochrome Uncooled CMOS Microscope Camera
This is the Tucsen manufacturer list price.
Additional discounts may apply. Contact us for potential discount pricing and your exact quote.
Call (877) 564-2767 or email sales@coastalmicroscopes.com
Couldn't load pickup availability
- ✓ New, with the full manufacturer warranty
- ✓ Typical delivery in 1 to 3 weeks, depending on parts
- ✓ Prices shown exclude freight, insurance, tariffs and applicable taxes
- ✓ Installation, training and service available from our engineers (quoted separately)
- ✓ SAM.gov registered (CAGE 10ZU5). Purchase orders welcome
- ✓ Leasing and finance companies available
Questions? Call (877) 564-2767 or email sales@coastalmicroscopes.com

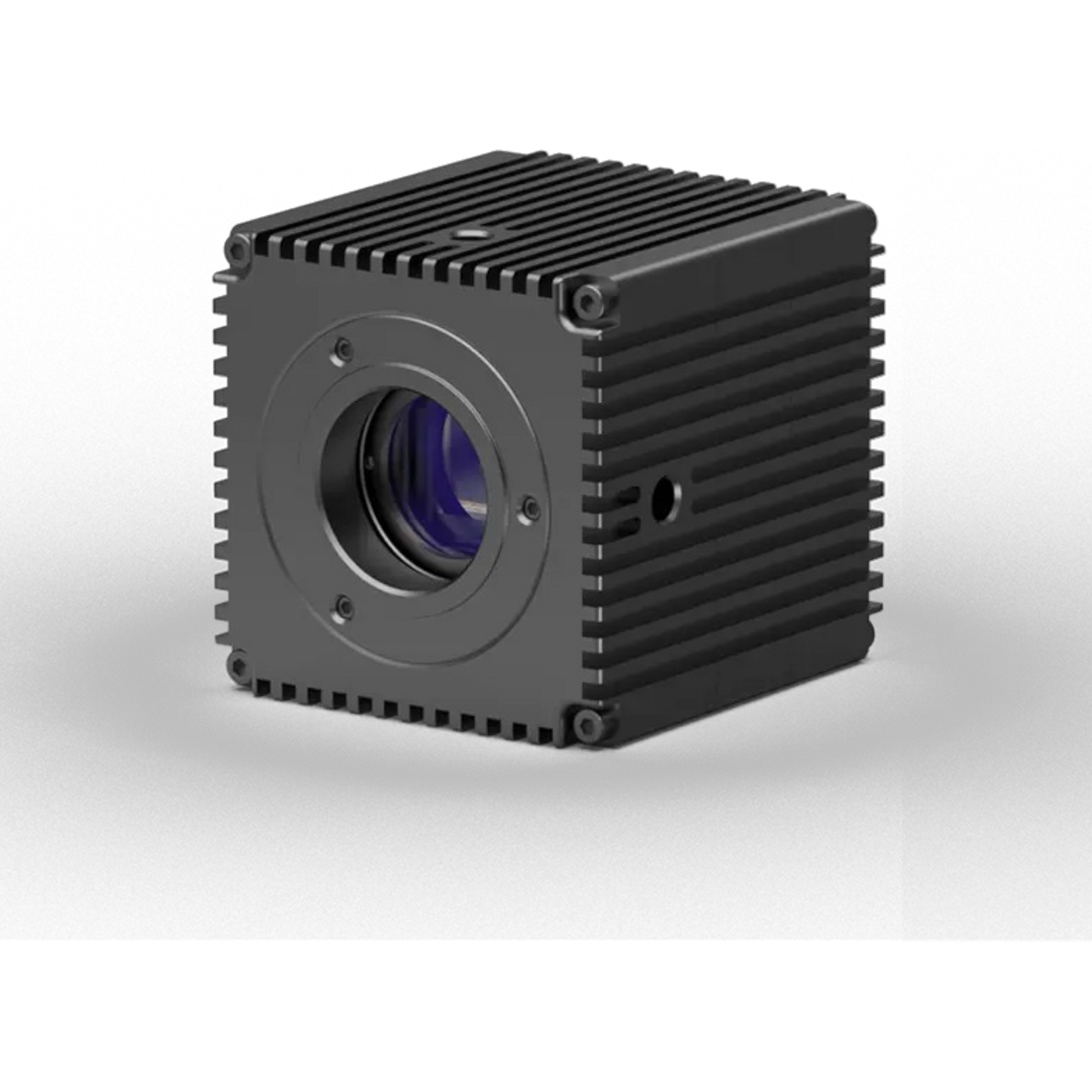

Tucsen Dhyana 401D 4MP Monochrome Uncooled sCMOS Camera
The Tucsen Dhyana 401D is a compact, cost-effective 4-megapixel monochrome uncooled sCMOS camera designed for integration into imaging systems. Its 2048 × 2048 sensor with 6.5 μm × 6.5 μm pixels delivers good sensitivity and low noise for fluorescence microscopy, laser spot analysis and diffractive phase interferometry imaging.
Condition
New with Manufacturer Warranty
Key Features
- 4MP Sensor: 2048 × 2048 pixel array for detailed image acquisition.
- Compact Design: Measuring 56 mm × 56 mm × 61.7 mm, optimized for easy integration into various systems.
- Quantum Efficiency (QE): Up to 72% at 595 nm.
- Low Readout Noise: Typical readout noise of 2.1 e⁻ (median) for low-light imaging.
- Frame Rates: 40 fps at 16-bit and 45 fps at 8-bit, suitable for dynamic imaging applications.
- USB 3.0 Interface: Data and power over a single USB 3.0 connection.
- Flexible Exposure Control: Exposure times ranging from 10 μs to 10 s.
Applications
- Fluorescence Microscopy
- Laser Spot Analysis
- Diffractive Phase Interferometry Imaging
- Biomedical Imaging
- Materials Science
- Industrial Inspection
Specifications
| Feature | Specification |
|---|---|
| Sensor Type | Front-Side Illuminated (FSI) sCMOS |
| Sensor Model | Gpixel GSENSE2020 |
| Color / Mono | Monochrome |
| Resolution | 2048 (H) × 2048 (V) |
| Pixel Size | 6.5 μm × 6.5 μm |
| Effective Area | 13.3 mm × 13.3 mm |
| Array Diagonal | 18.8 mm |
| Peak Quantum Efficiency | 72% @ 595 nm |
| Full-Well Capacity | Typically 43 ke⁻ |
| Readout Noise | Typically 2.1 e⁻ (Median) |
| Frame Rate | 40 fps @ 16-bit, 45 fps @ 8-bit |
| Shutter Type | Rolling |
| Exposure Time | 10 μs to 10 s |
| Binning | 2 × 2, 4 × 4 |
| Region of Interest (ROI) | Supported |
| Trigger Mode | Hardware, Software |
| Output Trigger Signals | Exposure Start, Readout End, Trigger Ready |
| Trigger Interface | Hirose |
| Data Interface | USB 3.0 |
| Data Bit Depth | 8-bit, 12-bit, 16-bit |
| Optical Interface | C-Mount |
| Power Supply | USB 3.0 |
| Power Consumption | < 4 W |
| Dimensions | 56 mm × 56 mm × 61.7 mm |
| Weight | 305 g |
| Software Compatibility | Mosaic, LabVIEW, MATLAB, Micro-Manager 2.0, SamplePro |
| SDK Support | C, C++, C#, Python |
| Operating System | Windows, Linux |
| Operating Environment | Temperature: 0 ~ 40 °C, Humidity: 10 ~ 85% |
Additional discounts may apply. Contact us for a quote.
Additional tariffs may apply.
Additional Details
Additional Details
- Manufacturer: Tucsen
- Model: 401D 4MP Monochrome Uncooled CMOS
- Catalog Number: 401D
- Serial Number: N/A
- Condition: New
