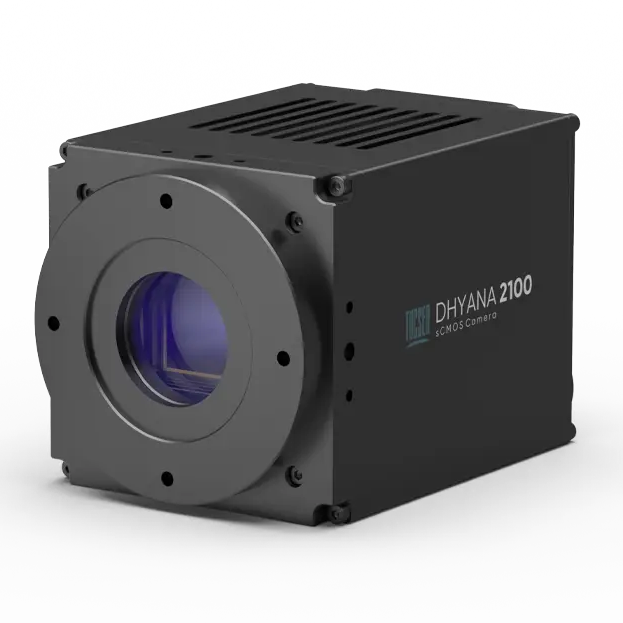

Tucsen Dhyana 2100 21 Megapixel Monochrome sCMOS Microscope Camera
Tucsen Dhyana 2100 21 Megapixel Monochrome sCMOS Microscope Camera
The Dhyana 2100 is designed to deliver the maximum speed and maximum resolution combination seen yet with a sCMOS sensor. Achieving an amazing 450 frames per second when running in full resolution of 5120 x 4096, it provides amazing high speed data even with low-light signals.
Applications:
- Semiconductor & Wafer Inspection
- Aerial photography
- SMT Inspection
- Voltage Sensitive Imaging
Specifications:
- Model: Dhyana 2100
- Sensor Type: FSI CMOS
- Sensor Model: Gpixel GSPRINT4521
- Peak QE: 63% @ 520nm
- Color / Mono: Mono
- Array Diagonal: 29.5 mm
- Effective Area: 23.04 mm x 18.43 mm
- Resolution: 5120 (H) x 4096 (V)
- Pixel Size: 4.5 µm x 4.5 µm
- Full-Well Capacity: Typ. : 28 ke- (12 bit Gain 0), 120 ke- (binned)
- Dynamic Range: Typ. : 68.8 dB (12 bit Gain 2)
- Frame Rate:
- Full mode: 450 fps @ 8 bit, 300 fps @ 10 bit, 250 fps @ 12 bit
- Base mode: 225 fps @ 8 bit, 150 fps @ 10 bit, 150 fps @ 12 bit
- Readout Noise: Typ. : 3.5 e- @ 12 bit
- Shutter Type: Global
- Exposure Time: 4 µs ~ 10 s
- DSNU: e-
- PRNU: Typ. : 0.15 % @ 12 bit gain 0, Typ. : 0.45 % @ 12 bit gain 3
- Cooling Method: Air, Liquid
- Max. Cooling: 30 °C below ambient
- Binning: x 2, 4 x 4, 8 x 8
- ROI: Support
- Trigger Mode: Hardware, Software
- Output Trigger Signals: Exposure start, Readout end
- Trigger Interface: Horise
- Data Interface: Full mode: CXP12 x8, Base mode: CXP12 x4
- Data Bit Depth: 8 bit, 10 bit, 12 bit
- Optical Interface: M58 / F-Mount / user Customization
- Power Supply: DC 24 V / 6 A
- Power Consumption: ≤ 120 W
- Dimensions: 95 mm x 95 mm x 140.5 mm
- Weight: 1816 g
- Software: SamplePro, LabView, Matlab, Micromanager
- SDK: C, C++, C#
- Operating System: Windows, Linux
- Operating Environment: Temperature 0~40 °C , Humidity 10~85 %
Additional Details
Additional Details
- Manufacturer: Tucsen
- Model Name: Dhyana 2100 21 Megapixel Monochrome sCMOS
- Model Number:
- Product ID: 24025
