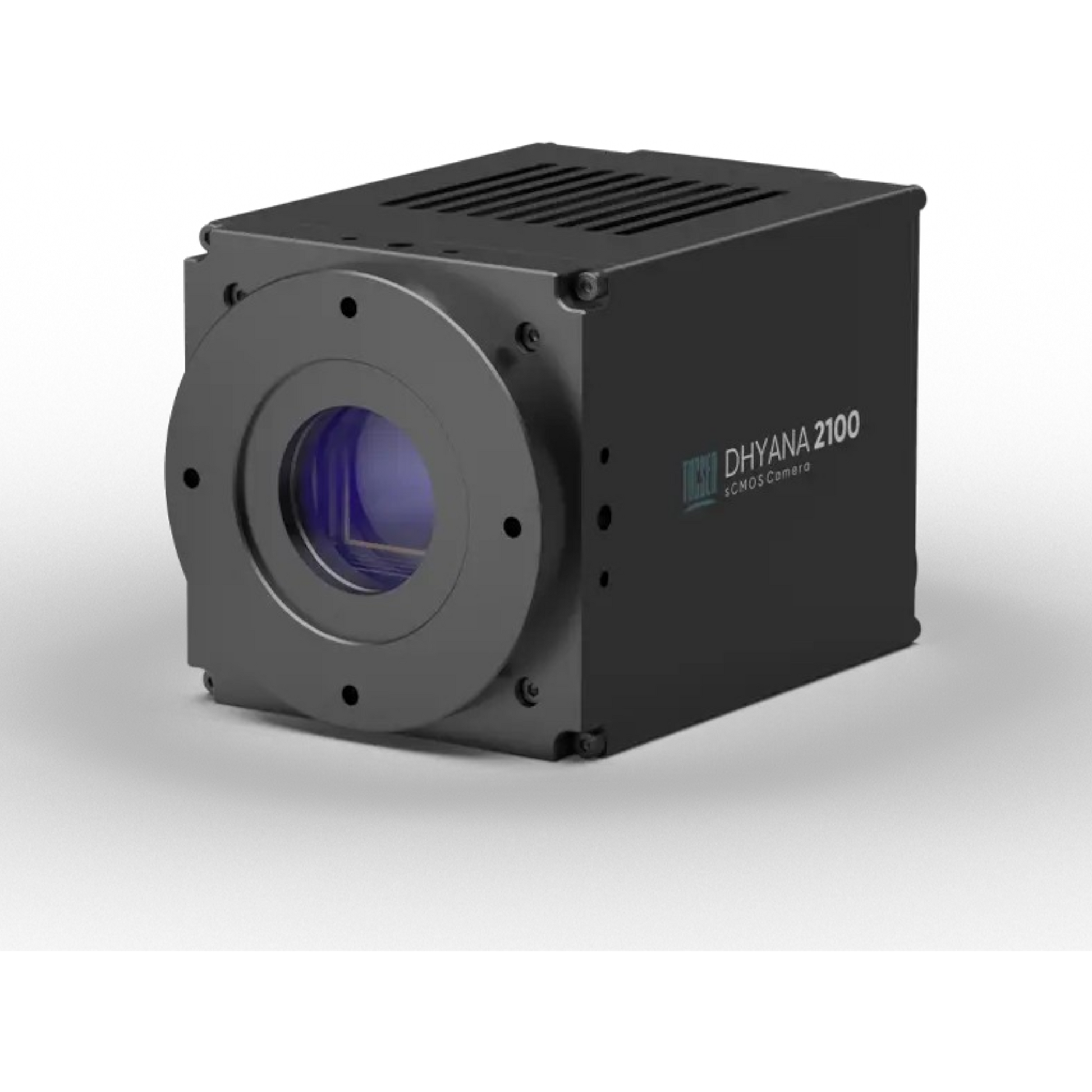

Tucsen Dhyana 2100 (Full version) 21MP Monochrome Cooled sCMOS Microscope Camera
Tucsen Dhyana 2100 (Full version) 21MP Monochrome Cooled sCMOS Microscope Camera
Couldn't load pickup availability
Tucsen Dhyana 2100 (Full Version) 21MP Monochrome Cooled sCMOS Camera
The Tucsen Dhyana 2100 (Full Version) is a high-performance 21-megapixel monochrome cooled sCMOS camera, engineered to meet the rigorous demands of advanced scientific imaging applications. Featuring a front-side illuminated sensor, global shutter, and high-speed data interface, it delivers exceptional sensitivity and versatility for various microscopy and industrial imaging applications.
Condition:
New with Manufacturer Warranty
Key Features:
- High-Speed Performance: Supports up to 450 frames per second (fps) at full resolution in 8-bit mode, ensuring real-time imaging of dynamic processes.
- Global Shutter: Eliminates rolling shutter artifacts and distortion, providing crisp and accurate images even at high frame rates.
- Advanced Cooling System: Incorporates both air and liquid cooling methods, achieving temperatures up to 30°C below ambient, reducing dark current, and allowing longer exposure times.
- Large Field of View: Features a 29.5 mm diagonal sensor size, capturing more data in a single frame for enhanced imaging efficiency.
Applications:
- Semiconductor & Wafer Inspection
- Aerial Photography
- SMT Inspection
- Voltage Sensitive Imaging
Specifications:
| Specification | Details |
|---|---|
| Sensor Type | Front-Side Illuminated (FSI) CMOS |
| Sensor Model | Gpixel GSPRINT4521 |
| Resolution | 5120 × 4096 pixels |
| Pixel Size | 4.5 µm × 4.5 µm |
| Effective Area | 23.04 mm × 18.43 mm |
| Array Diagonal | 29.5 mm |
| Peak Quantum Efficiency | 63% @ 520 nm |
| Readout Modes | HDR, Speed, Sensitivity, Super-Sensitivity |
| Bit Depth | 8-bit, 10-bit, 12-bit |
| Frame Rates (Full Version) |
450 fps @ 8-bit 300 fps @ 10-bit 250 fps @ 12-bit |
| Readout Noise | 3.5 e⁻ @ 12-bit |
| Full-Well Capacity |
28,000 e⁻ (12-bit Gain 0) 16,500 e⁻ (12-bit Gain 2) 120,000 e⁻ (binned) |
| Dark Current | 0.02 e⁻/pixel/s @ -10°C chip temperature |
| Shutter Mode | Global |
| Region of Interest (ROI) | Supported |
| Binning | 2 × 2, 4 × 4, 8 × 8 |
| Cooling Methods | Air and Liquid |
| Cooling Performance | 30°C below ambient temperature |
| Trigger Modes | Hardware, Software |
| Output Trigger Signals | Exposure start, Readout end |
| Trigger Interface | Hirose |
| Data Interface | CXP12 (x8) |
| Optical Interface | M58 / F-Mount / User Customization |
| Power Supply | DC 24V / 6.67A |
| Power Consumption | ≤ 120W |
| Dimensions | 95 mm × 95 mm × 140.5 mm |
| Weight | < 1850 g |
| Operating Systems | Windows, Linux |
| Operating Environment | Temperature: 0~40°C, Humidity: 10~85% |
Included Items:
- Tucsen Dhyana 2100 21MP Monochrome Cooled sCMOS Camera (Full Version)
- CXP12 Data Cables
- Power Supply
- User Manual
- Software Installation CD
Please verify the included items upon purchase, as they may vary.
Disclaimer:
Specifications are subject to change without notice. Please consult the manufacturer's documentation for the most current information.
Additional Details
Additional Details
- Manufacturer: Tucsen
- Model: Dhyana 2100 (Full version) 21MP Monochrome Cooled sCMOS
- Catalog Number: Dhyana2100Full
- Serial Number: N/A
- Condition: New
