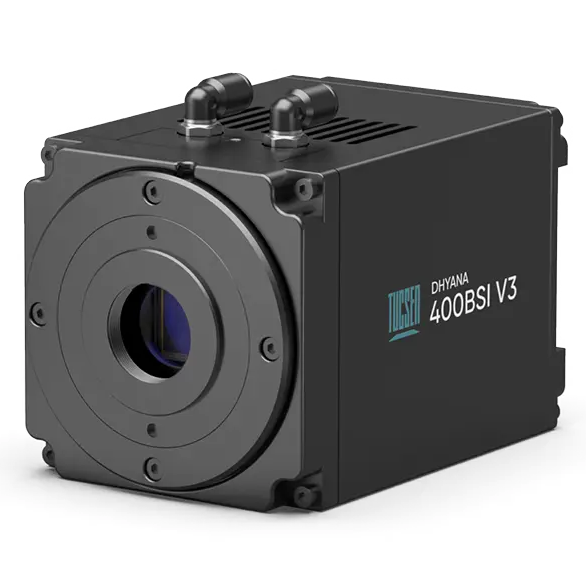

Tucsen Dhyana 400BSI V3 4.2MP Monochrome sCMOS Back Illuminated Microscope Camera
Tucsen Dhyana 400BSI V3 4.2MP Monochrome sCMOS Back Illuminated Microscope Camera
The Dhyana 400BSI V3 is features the Gpixel Gsense2020BSI sensor. It is designed for seamless integration, fits easily into small spaces, uses less power, and gives results you can rely on so that you and your customers can make the correct decisions.
Applications:
- Light-sheet microscopy
- Calcium imaging
- High content imaging
- Confocal microscopy
Specifications:
- Model: Dhyana 400BSI V3
- Sensor Type: BSI sCMOS
- Sensor Model: GSENSE2020BSI
- Peak QE: 95 % @ 600 nm
- Color/Mono: Mono
- Array Diagonal: 18.8 mm
- Effective Area: 13.3 mm x 13.3 mm
- Resolution: 2048 (H) x 2048 (V)
- Pixel Size: 6.5 μm x 6.5 μm
- Full-Well Capacity: Typ. : 45 ke-
- Dynamic Range: Typ. : 90 dB
- Frame Rate: HDR mode: 74 fps @ CameraLink, 40 fps @ USB 3.0
- HighSpeed mode: 100 fps @ CameraLink
- Readout Noise: CMS: 1.1 e- (Median) , 1.2 e- (RMS)
- Shutter Type: Rolling, Global reset
- Exposure Time: 6.6 μs ~ 10 s
- DSNU: 0.2 e-
- PRNU: 0.3 %
- Cooling Method: Air, Liquid
- Max. Cooling Temperature: 45℃below ambient
- Dark Current: Air: 0.5 e-/pixel/s @ -15℃, Liquid: 0.2 e-/pixel/s @ -25℃
- Binning: 2 x 2, 4 x 4
- ROI: Support
- Timestamp Accuracy: 1 μs
- Trigger Mode: Hardware, Software
- Output TriggerSignals: Exposure start, Global, Readout end, High level, Low level
- Trigger Interface: SMA
- Data Interface: USB 3.0, CameraLink
- Data Bit Depth: 11 bit, 12 bit, 16 bit
- Optical Interface: C-mount
- Power Supply: 12 V / 8 A
- Power Consumption: 45 W
- Dimensions: 85 mm x 85 mm x 127 mm
- Weight: 995 g
- Software: Mosaic, Samplepro, LabView, Matlab, Micromanager
- SDK: C, C++, C#
- Operating System: Windows, Linux
- Operating Environment: Temperature 0 ~ 40 °C, Humidity 10 ~ 85 %
Additional Details
Additional Details
- Manufacturer: Tucsen
- Model Name: Dhyana 400BSI V3 4.2MP Monochrome sCMOS Back Illuminated
- Model Number:
- Product ID: 400BSIV3
