Product ID: 400D

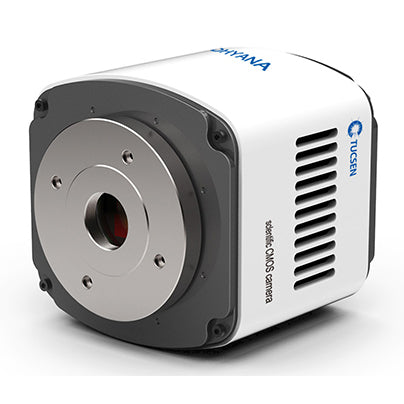

Tucsen Dhyana 400D 4.2MP Monochrome SCMOS Microscope Camera

Tucsen Dhyana 400D 4.2MP Monochrome SCMOS Microscope Camera

The Tucsen Dhyana 400D is equipped with a 1.2 inch SCMOS sensor and a and 6.5X6.5um pixel size, which provide 80% quantum efficiency at 600nm.

Dhyana 400D has a hardware 2X2 binning function which make it superior sensitivity for low light imaging.

Dhyana 400D has a wide FOV, extremely low noise, high dynamic range, and high frame rate.



Specifications:

  • Sensor size: 1.2″
  • Sensor model: G2020e(Scmos)
  • Color/monochrome: Monochrome
  • Quantum efficiency: 80%@600nm
  • Effective no. of pixels: 2048(H) x 2044(V)
  • Pixel size: 6.5 x 6.5(μm)
  • Effective area: 13.3 x 13.3(mm)
  • Full well capacity: 30,000e-
  • Frame rate: 35fps@full resolution
  • Read noise: 2e-
  • Shutter type: Rolling shutter
  • Exposure mode: Manual
  • Exposure time: 0.013ms-10s
  • Cooling method: Peltier cooling
  • Cooling temperature: Forced air(Ambient at +25℃):-10 ℃
  • Dark current:
  • 0.6 electrons/pixel/s(0 ℃)(typ.)
  • 0.35 electrons/pixel/s(-10 ℃)(typ.)
  • Dynamic range: 85dB
  • Sub-array: Available
  • Binning: 2×2

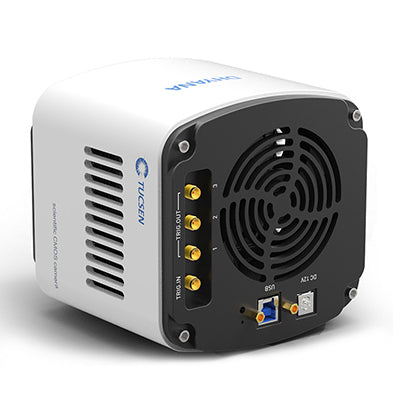

  • External trigger mode: Standard/Synchronous/Global trigger
  • Trigger delay function: 0-10s(1μs steps)
  • Trigger output: 3 programable timing outputs (Exposure/Global/readout signal)
  • External trigger routing: SMA
  • Digital interface: USB3.0
  • SDK: Support
  • Bit depth: 16 bit
  • Lens mount: C-mount
  • Power supply: 12V/8A
  • Power consumption: 50W

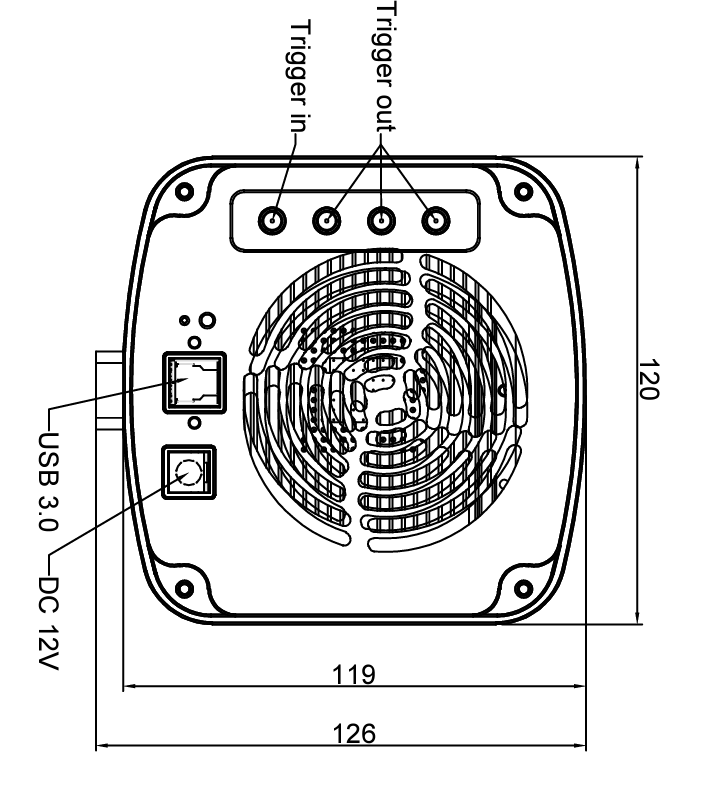

  • Camera size: 120 x 119 x 121 (mm)
  • Parameter settings: White balance, Exposure, 3D denoise, Gamma, Contrast, Saturation, Flat fielding
  • PC software: Mosaic/LabVIEW/Matlab/Micromanager
  • Compatible system: Windows/Linux is supported and Mac is under development
  • Operating temperature: 0-40℃
  • Operating humidity: 10%-85% RH



Additional Details

  • Manufacturer: Tucsen
  • Model Name: Dhyana 400D 4.2MP Monochrome SCMOS
  • Model Number:
  • Product ID: 400D
