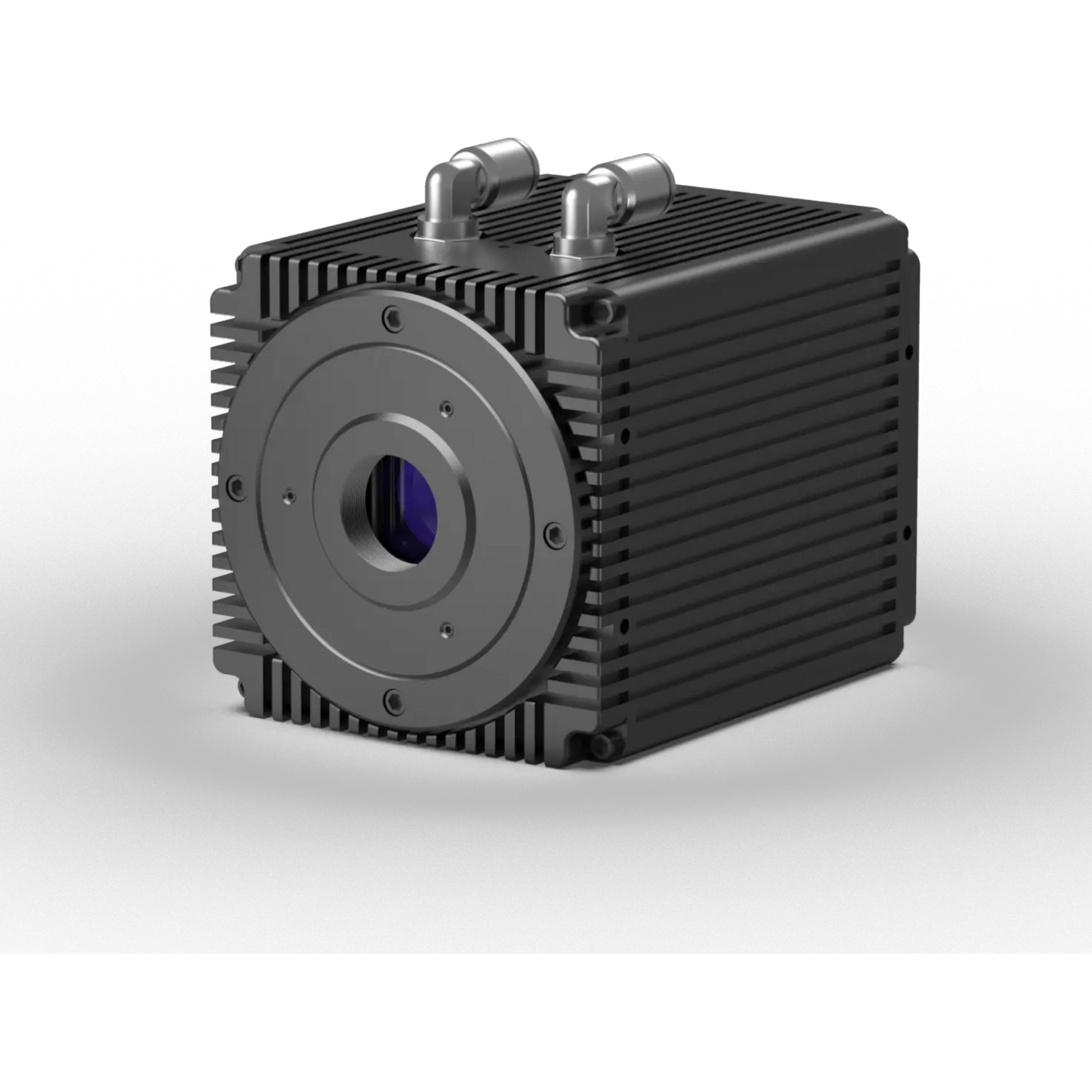

Tucsen Dhyana 95 V2 4MP Monochrome Cooled sCMOS Microscope Camera

Tucsen Dhyana 95 V2 4MP Monochrome Cooled sCMOS Microscope Camera

$17,350.00 USD
$17,350.00 USD
Sale Sold out
Shipping calculated at checkout.

Tucsen Dhyana 95 V2 4MP Monochrome Cooled sCMOS Camera

The Tucsen Dhyana 95 V2 is a high-sensitivity 4-megapixel monochrome cooled sCMOS camera, meticulously engineered for advanced scientific imaging applications. Its back-illuminated sensor technology and robust cooling system ensure exceptional image quality, making it ideal for low-light and high-speed imaging scenarios.

Condition:

New with Manufacturer Warranty

Key Features:

  • High Quantum Efficiency: Achieves a peak quantum efficiency of 95% at 560 nm, ensuring superior sensitivity for detecting faint signals.
  • Large Pixel Size: Features 11 µm × 11 µm pixels, enhancing light-gathering capability and improving signal-to-noise ratio.
  • Low Read Noise: Offers a median read noise of 1.6 electrons, facilitating the capture of high-quality images with minimal background interference.
  • High Resolution: Provides a resolution of 2048 × 2048 pixels, suitable for applications requiring detailed imaging.
  • Flexible Connectivity: Equipped with CameraLink and USB 3.0 interfaces, ensuring compatibility with various imaging systems and facilitating high-speed data transfer.
  • Advanced Cooling System: Incorporates both air and liquid cooling methods, reducing dark current and enabling longer exposure times without compromising image quality.
  • High Dynamic Range: Supports a dynamic range of up to 90 dB, allowing for the capture of both bright and dim features within the same image.
  • Fast Frame Rates: Capable of achieving frame rates up to 48 fps at 12-bit standard mode and 24 fps at 16-bit high dynamic range (HDR) mode, enabling real-time imaging of dynamic processes.

Applications:

  • Super-Resolution Microscopy
  • Single Molecule Imaging
  • Astronomical Research
  • Spectroscopy
  • Flat Panel Display (FPD) Inspection
  • Semiconductor and Wafer Inspection

Specifications:

Specification Details
Sensor Type Backside-Illuminated (BSI) sCMOS
Sensor Model Gpixel GSENSE400BSI
Resolution 2048 × 2048 pixels
Pixel Size 11 µm × 11 µm
Effective Area 22.5 mm × 22.5 mm
Peak Quantum Efficiency 95% at 560 nm
Full-Well Capacity 80 ke⁻ (HDR), 100 ke⁻ (STD)
Dynamic Range 90 dB
Frame Rate 24 fps at 16-bit HDR, 48 fps at 12-bit STD
Shutter Type Rolling
Readout Noise 1.6 e⁻ (Median), 1.7 e⁻ (RMS)
Exposure Time 21 µs to 10 s
Cooling Methods Air and Liquid
Cooling Performance 45°C below ambient (Liquid)
Data Interface USB 3.0, CameraLink
Optical Interface C-mount / F-mount
Power Consumption 60 W
Operating Temperature 0°C to 40°C
Storage Temperature 0°C to 60°C
Dimensions C-mount: 100 mm × 118 mm × 127 mm; F-mount: 100 mm × 118 mm × 157 mm
Weight 1613 g
Software Compatibility Mosaic, LabVIEW, MATLAB, Micro-Manager, MetaMorph
Operating Systems Windows, Linux

Included Items:

  • Tucsen Dhyana 95 V2 4MP Monochrome Cooled sCMOS Camera
  • USB 3.0 Interface Cable
  • CameraLink Cable
  • Power Supply
  • User Manual
  • Software Installation CD

Please verify the included items upon purchase, as they may vary.

Disclaimer:

Specifications are subject to change without notice. Please consult the manufacturer's documentation for the most current information.

Additional Details

  • Manufacturer: Tucsen
  • Model: Dhyana 95 V2 4MP Monochrome Cooled sCMOS
  • Catalog Number: Dhyana95V2
  • Serial Number: N/A
  • Condition: New
