Tucsen Dhyana 95 V2 4MP Monochrome Cooled sCMOS USB Connection Microscope Camera
Tucsen Dhyana 95 V2 4MP Monochrome Cooled sCMOS USB Connection Microscope Camera
This is the Tucsen manufacturer list price.
Additional discounts may apply. Contact us for potential discount pricing and your exact quote.
Call (877) 564-2767 or email sales@coastalmicroscopes.com
Couldn't load pickup availability
- ✓ New, with the full manufacturer warranty
- ✓ Typical delivery in 1 to 3 weeks, depending on parts
- ✓ Prices shown exclude freight, insurance, tariffs and applicable taxes
- ✓ Installation, training and service available from our engineers (quoted separately)
- ✓ SAM.gov registered (CAGE 10ZU5). Purchase orders welcome
- ✓ Leasing and finance companies available
Questions? Call (877) 564-2767 or email sales@coastalmicroscopes.com
Tucsen Dhyana 95 V2 4MP Monochrome Cooled sCMOS Camera (USB Only)

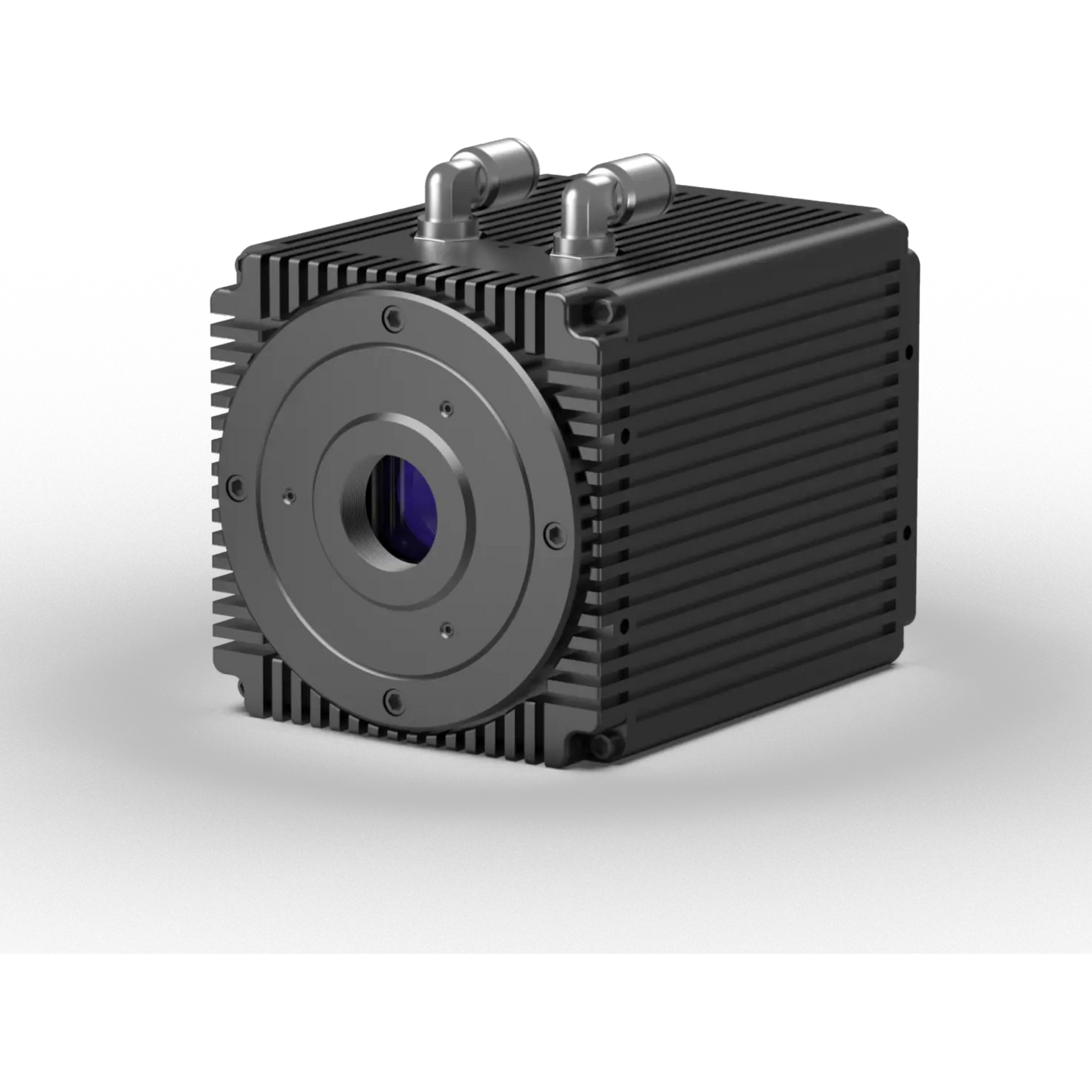

The Tucsen Dhyana 95 V2 is a high-performance 4-megapixel monochrome cooled sCMOS camera, designed to meet the rigorous demands of advanced scientific imaging applications. Featuring a back-illuminated sensor and USB 3.0 connectivity, it offers exceptional sensitivity and versatility for various microscopy and spectroscopy applications.
Condition
New with Manufacturer Warranty
Key Features
- High Quantum Efficiency: Achieves a peak quantum efficiency of 95% at 560 nm, capturing nearly every photon and enhancing sensitivity for low-light imaging.
- Large Pixel Size: Equipped with 11 µm × 11 µm pixels, ideal for high-numerical-aperture objectives, ensuring optimal spatial sampling and sensitivity.
- Low Read Noise: Offers a median read noise of 1.6 electrons, enabling a high signal-to-noise ratio even with weak signals.
- High Dynamic Range: Provides a dynamic range of 90 dB, allowing for the capture of both bright and dim details within the same image.
- Advanced Cooling System: Incorporates both air and liquid cooling methods, achieving temperatures 45°C below ambient, reducing dark current, and allowing longer exposure times.
- Expansive Field of View: Features a large 32 mm sensor diagonal, providing outstanding imaging efficiency and allowing you to capture more in a single snapshot.
Applications
- Super-Resolution Microscopy
- Single Molecule Imaging
- Astronomical Research
- Spectroscopy
- Semiconductor & Wafer Inspection
Specifications
| Specification | Details |
|---|---|
| Sensor Type | Backside-Illuminated (BSI) sCMOS |
| Sensor Model | Gpixel GSENSE400BSI |
| Resolution | 2048 × 2048 pixels |
| Pixel Size | 11 µm × 11 µm |
| Effective Area | 22.5 mm × 22.5 mm |
| Peak Quantum Efficiency | 95% at 560 nm |
| Full-Well Capacity | 100 ke⁻ |
| Dynamic Range | 90 dB |
| Frame Rate | 48 fps at 12-bit via USB 3.0 |
| Shutter Type | Rolling |
| Readout Noise | 1.6 e⁻ (Median); 1.7 e⁻ (RMS) |
| Exposure Time | 21 µs to 10 s |
| Cooling Methods | Air and Liquid |
| Cooling Performance | 45°C below ambient |
| Data Interface | USB 3.0 |
| Optical Interface | C-mount / F-mount |
| Power Supply | 12V / 8A |
| Power Consumption | 60 W |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | 0°C to 60°C |
| Dimensions | 100 mm × 118 mm × 127 mm (C-mount); 100 mm × 118 mm × 157 mm (F-mount) |
| Weight | 1613 g |
| Software Compatibility | Mosaic, LabVIEW, MATLAB, Micro-Manager, MetaMorph |
| Operating Systems | Windows, Linux |
Included Items
- Tucsen Dhyana 95 V2 4MP Monochrome Cooled sCMOS Camera
- USB 3.0 Interface Cable
- Power Supply
- User Manual
- Software Installation CD
Please verify the included items upon purchase, as they may vary.
Disclaimer
Specifications are subject to change without notice. Please consult the manufacturer's documentation for the most current information.
