PRODUCT ID:Dhyana9KTDI

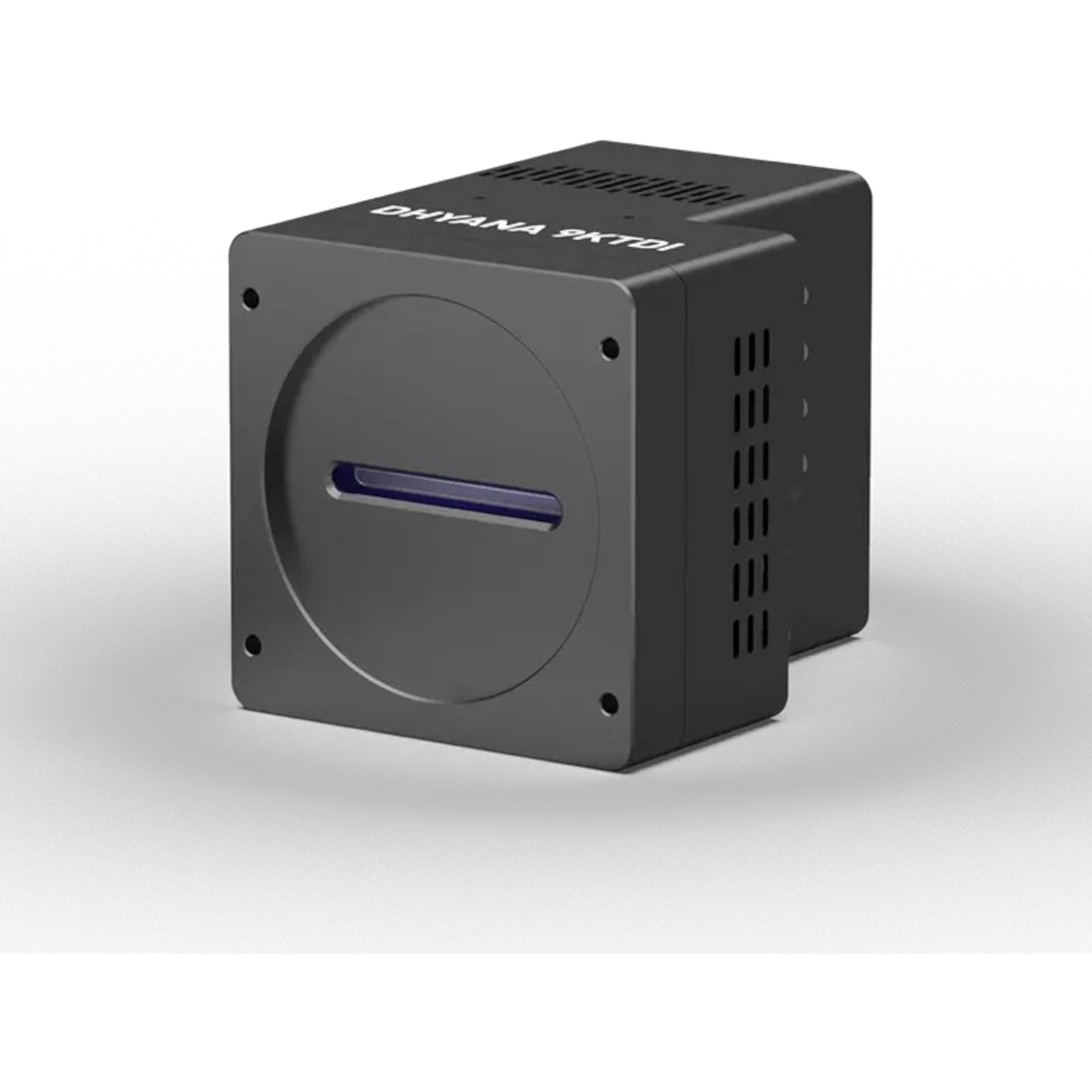

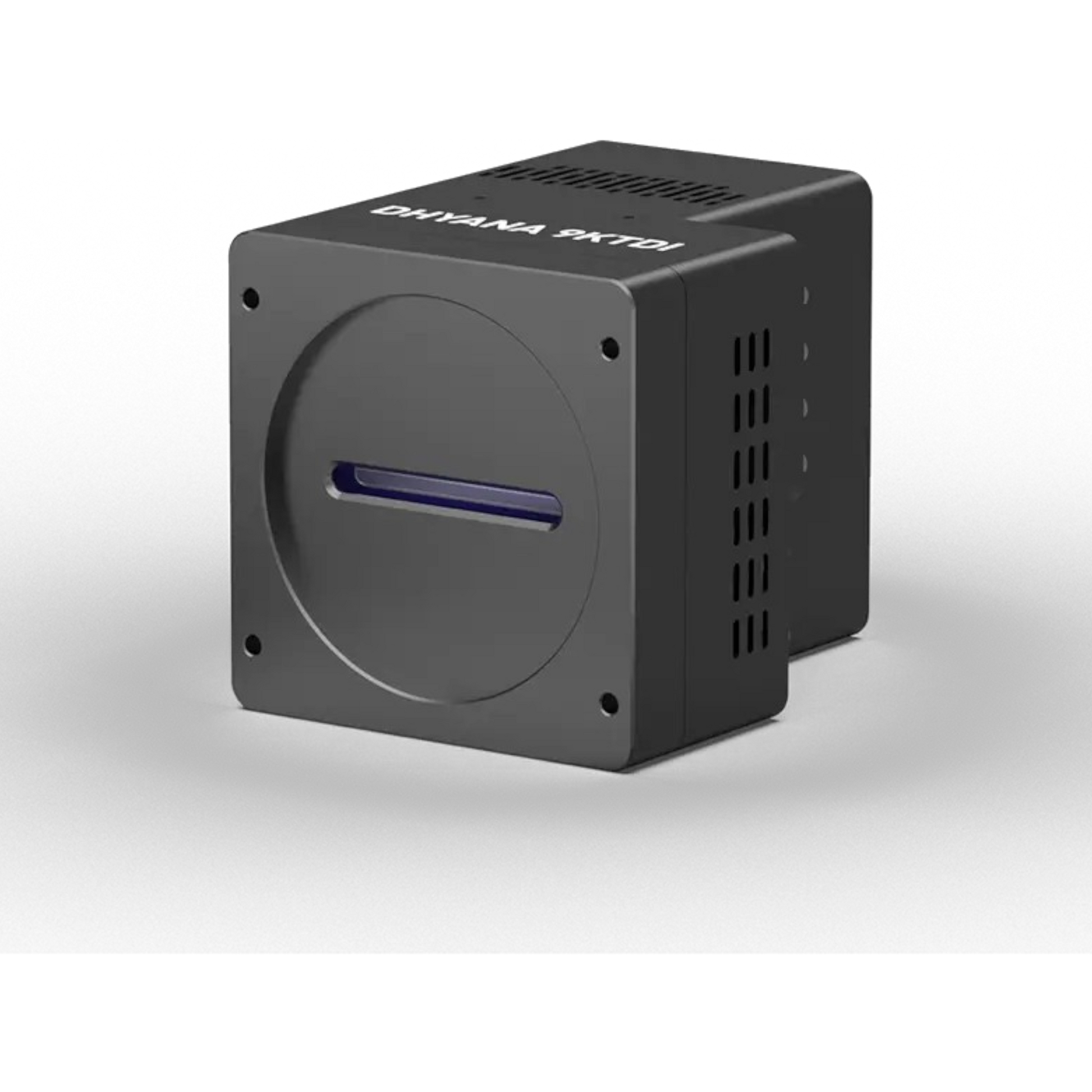

Tucsen Dhyana 9K TDI 2.32MP Monochrome sCMOS Microscope Camera

Tucsen Dhyana 9K TDI 2.32MP Monochrome sCMOS Microscope Camera

$13,000.00 USD
$13,000.00 USD
Sale Sold out
Shipping calculated at checkout.

Tucsen Dhyana 9K TDI 9072×256 Monochrome Cooled sCMOS Camera

The Tucsen Dhyana 9K TDI is a high-performance monochrome cooled sCMOS camera, designed for applications requiring exceptional sensitivity and speed. Its back-illuminated sCMOS technology and Time-Delay Integration (TDI) capabilities make it ideal for low-light and high-speed inspection tasks.

Condition:

New with Manufacturer Warranty

Key Features:

  • Wide Spectral Response: Covers wavelengths from 200 nm to 1100 nm, suitable for UV, visible, and near-infrared imaging.
  • High Quantum Efficiency: Offers 82% peak QE at 550 nm, enhancing light sensitivity.
  • 256 TDI Stages: Improves signal-to-noise ratio (SNR) for clearer images in low-light conditions.
  • High Throughput: Supports line rates up to 510 kHz at 9K resolution, increasing inspection efficiency.
  • Efficient Cooling: Advanced cooling methods reduce dark noise, ensuring stable performance during extended use.

Applications:

  • Semiconductor & Wafer Inspection
  • Flat Panel Display (FPD) Inspection
  • Fluorescence Detection
  • Materials Science Imaging
  • Aerospace & Defense Imaging
  • Biomedical Imaging in the UV Range

Specifications:

Specification Details
Sensor Type Back-Side Illuminated (BSI) sCMOS TDI
Sensor Model Gpixel GLT5009BSI
Resolution 9072 (H) × 256 (V)
Pixel Size 5 µm × 5 µm
Effective Area 45.36 mm × 1.28 mm
Quantum Efficiency (QE) 82% @ 550 nm; 50% @ 350 nm; 38% @ 800 nm
Maximum Line Rate 510 kHz @ 9K
Operation Modes TDI, Area
TDI Stages 4, 8, 16, 32, 64, 96, 128, 160, 192, 224, 240, 248, 252, 256
Scan Directions Forward, Reverse, Trigger Control
Charge Transfer Efficiency (CTE) ≥ 0.99993
Data Bit Depth 12-bit, 10-bit, 8-bit
Full-Well Capacity 15.5 ke⁻ @ 12-bit; 14 ke⁻ @ 10-bit
Dynamic Range 68.7 dB @ 12-bit; 63.6 dB @ 10-bit
Readout Noise 7.2 e⁻ @ 12-bit; 11.4 e⁻ @ 10-bit
Cooling Methods Air and Liquid
Cooling Performance 25°C below ambient temperature (Liquid)
Binning 1 × 1, 2 × 1, 4 × 1, 8 × 1
Region of Interest (ROI) Supported
Trigger Modes Trigger Input, Scan Direction Input
Output Trigger Signals Strobe Out
Data Interface CoaXPress 2.0
Optical Interface M72 / User Customization
Power Supply 12V / 8A
Power Consumption < 60W
Dimensions 86 mm × 86 mm × 109 mm
Weight 1.1 kg
Operating Environment Temperature: 0~40°C; Humidity: 10~85%

Included Items:

  • Tucsen Dhyana 9K TDI 9072×256 Monochrome Cooled sCMOS Camera
  • CoaXPress Data Cables
  • Power Supply
  • User Manual
  • Software Installation CD

Please verify the included items upon purchase, as they may vary.

Disclaimer:

Specifications are subject to change without notice. Please consult the manufacturer's documentation for the most current information.

Additional Details

  • Manufacturer: Tucsen
  • Model: Dhyana 9K TDI 9072x256 Monochrome Cooled sCMOS
  • Catalog Number: Dhyana9KTDI
  • Serial Number: N/A
  • Condition: New
