SKU: PRODUCT ID:FL26BW

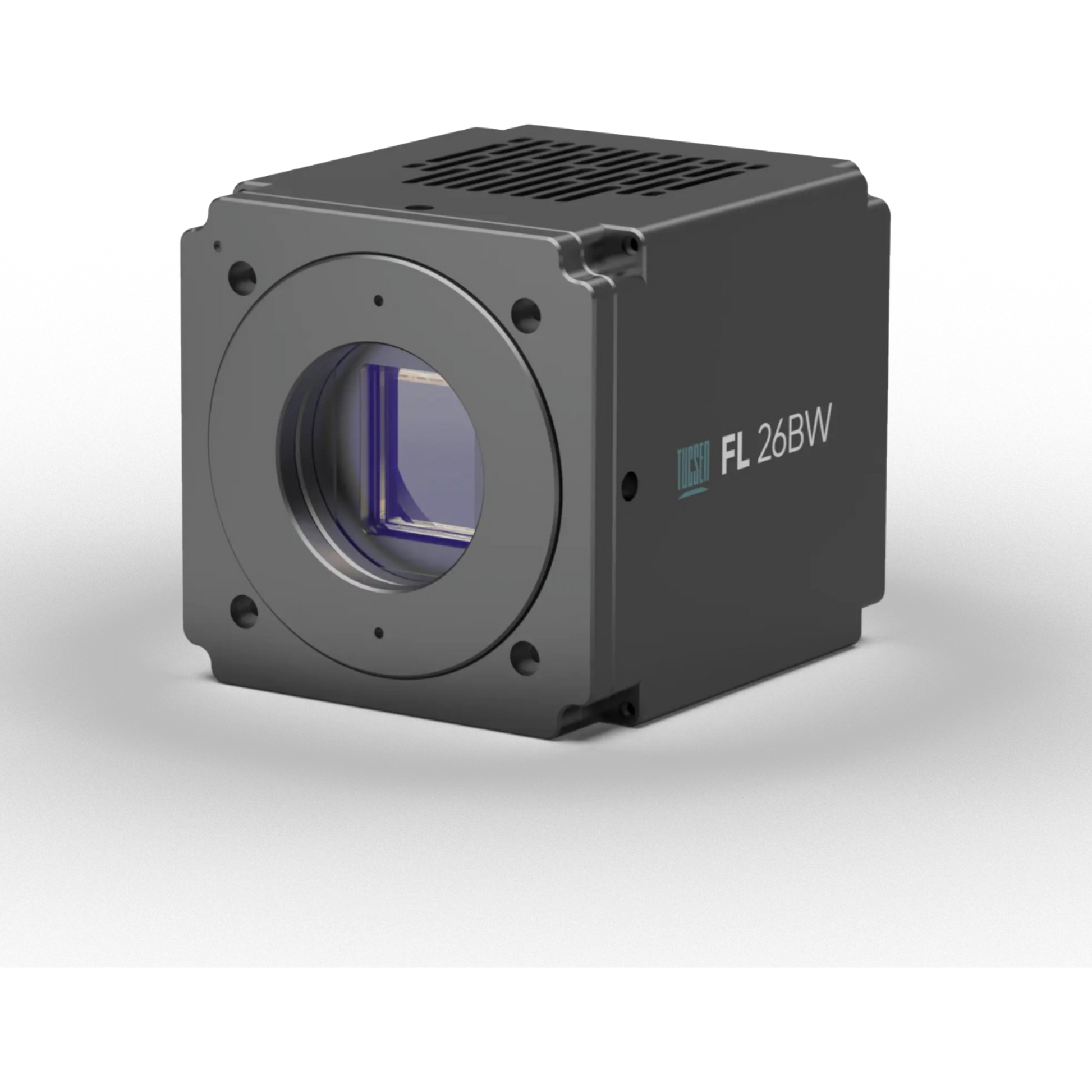

Tucsen FL 26BW 26MP Monochrome Cooled CMOS Microscope Camera
Tucsen FL 26BW 26MP Monochrome Cooled CMOS Microscope Camera
This is the Tucsen manufacturer list price.
Additional discounts may apply. Contact us for potential discount pricing and your exact quote.
Call (877) 564-2767 or email sales@coastalmicroscopes.com
Couldn't load pickup availability
- ✓ New, with the full manufacturer warranty
- ✓ Typical delivery in 1 to 3 weeks, depending on parts
- ✓ Prices shown exclude freight, insurance, tariffs and applicable taxes
- ✓ Installation, training and service available from our engineers (quoted separately)
- ✓ SAM.gov registered (CAGE 10ZU5). Purchase orders welcome
- ✓ Leasing and finance companies available
Questions? Call (877) 564-2767 or email sales@coastalmicroscopes.com
Tucsen FL 26BW 26MP Monochrome Cooled CMOS Camera
The Tucsen FL 26BW is a 26-megapixel monochrome cooled CMOS camera designed for imaging applications requiring high sensitivity, low noise and a large field of view. With a 6244 × 4168 sensor, deep cooling and high quantum efficiency, it suits fluorescence microscopy, low-light imaging and scientific research applications.
Condition
New with Manufacturer Warranty
Key Features
- 26MP High-Resolution Sensor: 6244 × 4168 pixel array for detailed image acquisition.
- Deep Cooling System: Achieves -25℃ at 22℃ ambient temperature, significantly reducing thermal noise for long-exposure imaging.
- Back-Illuminated CMOS Technology: Provides a balance of speed, low noise and dynamic range.
- High Quantum Efficiency (QE): Up to 92% at 460 nm, maximizing photon collection.
- USB 3.0 Interface: Enables fast and efficient data transfer.
- Large Field of View (FoV): Well suited to microscopy and large-format imaging.
- Low Dark Current: Less than 0.0005 e⁻/pixel/second for a high signal-to-noise ratio in low-light conditions.
- Flexible Exposure Control: Exposure from 34 μs to 60 minutes.
Applications
- Fluorescence Microscopy
- Biomedical Imaging
- Astronomical Imaging
- Materials Science
- Live Cell Imaging
- Quantitative Imaging & Photometry
Specifications
| Feature | Specification |
|---|---|
| Sensor Type | Back-Illuminated CMOS (Monochrome) |
| Sensor Model | SONY IMX571BLR-J |
| Resolution | 26MP (6244 × 4168) |
| Pixel Size | 3.76 μm × 3.76 μm |
| Sensor Size | 28.3 mm diagonal (Effective area: 23.4 mm × 15.6 mm) |
| Peak Quantum Efficiency | 92% @ 460 nm |
| Dark Current | < 0.0005 e⁻/pixel/second |
| Readout Noise | 2.7 e⁻ @ Gain 0; 1.0 e⁻ @ Gain 1; 0.95 e⁻ @ Gain 2; 0.85 e⁻ @ Gain 3 |
| Full Well Capacity | 50 ke⁻ @ Gain 0; 15 ke⁻ @ Gain 1; 7.8 ke⁻ @ Gain 2; 3 ke⁻ @ Gain 3 |
| Bit Depth | 16-bit |
| Dynamic Range | 16000:1 |
| Frame Rate | 6.5 fps |
| Exposure Time | 34 μs to 60 minutes |
| Shutter Mode | Rolling |
| Binning | 2×2, 3×3, 4×4, 5×5, 6×6, 8×8, 16×16 |
| Region of Interest (ROI) | Supported |
| Cooling Method | Air-cooled |
| Cooling Temperature | -25℃ @ 22℃ ambient temperature |
| Data Interface | USB 3.0 |
| Optical Interface | M42, customizable |
| Trigger Mode | Hardware, Software |
| Output Trigger Signals | Exposure Start, Global, Readout End, High Level, Low Level |
| Trigger Interface | Hirose |
| Software Compatibility | Mosaic, SamplePro, LabVIEW, MATLAB, Micro-Manager |
| SDK Support | C, C++, C# |
| Power Supply | 12 V / 8 A |
| Power Consumption | ≤ 55 W |
| Dimensions | 85 mm × 85 mm × 97 mm |
| Weight | 945 g |
| Operating System | Windows / Linux |
| Operating Environment | Temperature: 0~40℃, Humidity: 10~85% |
Additional discounts may apply. Contact us for a quote.
Additional tariffs may apply.
Additional Details
Additional Details
- Manufacturer: Tucsen
- Model: FL 26BW 26MP Monochrome Cooled CMOS
- Catalog Number: FL26BW
- Serial Number: N/A
- Condition: New
