Wienecke & Sinske Scanning Stage 130x100 Piezo Microscope Stage
Wienecke & Sinske Scanning Stage 130x100 Piezo Microscope Stage
Couldn't load pickup availability
- ✓ Tested in house. 180-day parts and labor warranty (US). International: 30-day parts warranty
- ✓ Typical delivery in 1 to 3 weeks, depending on parts
- ✓ Prices shown exclude freight, insurance, tariffs and applicable taxes
- ✓ Installation, training and service available from our engineers (quoted separately)
- ✓ SAM.gov registered (CAGE 10ZU5). Purchase orders welcome
- ✓ Leasing and finance companies available
Questions? Call (877) 564-2767 or email sales@coastalmicroscopes.com
Wienecke & Sinske Scanning Stage M-686K033 – 432027-9000-000 (Used)
The Wienecke & Sinske M-686K033 is a high-precision motorized XY scanning stage with piezo drive and linear encoders, engineered for advanced imaging applications on Zeiss Axio Observer inverted microscopes. This stage offers a large 130 mm × 100 mm travel range, exceptional resolution, and support for fast scanning and high repeatability. It is fully compatible with Z PIEZO modules, Autocorr objectives, and Zeiss AI Sample Finder, making it ideal for demanding research workflows such as live-cell imaging, high-content screening, and tile scanning.
Condition
Condition: Refurbished/Used
(This product has been inspected and verified to meet manufacturer specifications)
Key Features
- Motorized XY scanning stage with integrated piezo drive
- Linear encoders for precise closed-loop feedback
- Large 130 mm × 100 mm travel range
- High-speed scanning with max drive speed of 100 mm/s
- Outstanding resolution: 0.1 µm
- Reproducibility: ±0.6 µm
- Absolute positioning accuracy: ±3 µm
- Adjustable travel range and flexible mounting options
- Compatible with Zeiss K 160 × 110 mm frame holders and Z PIEZO modules
- Supports AI Sample Finder and objectives with autocorr functionality
Applications
- High-content fluorescence imaging
- Live-cell and time-lapse imaging
- Automated tile scanning and stitching
- Super-resolution and confocal microscopy
- Quantitative analysis and reproducible multi-position workflows
Specifications
| Feature | Specification |
|---|---|
| Model Number | M-686K033 |
| Part Number | 432027-9000-000 |
| Motion Type | Motorized XY with piezo drive |
| Travel Range | 130 mm × 100 mm |
| Resolution | 0.1 µm |
| Reproducibility | ±0.6 µm |
| Absolute Accuracy | ±3 µm |
| Max Speed | 100 mm/s |
| Mounting Compatibility | K 160 × 110 mm frames, Z PIEZO modules |
| Objective Compatibility | Supports autocorr objectives |
| Software Features | Compatible with Zeiss AI Sample Finder |
⚠️ Configuration shown is for demonstration purposes. Contact us to confirm compatibility with your Zeiss Axio Observer system or to request a complete motorized stage bundle with controller and software.
Additional Details
Additional Details

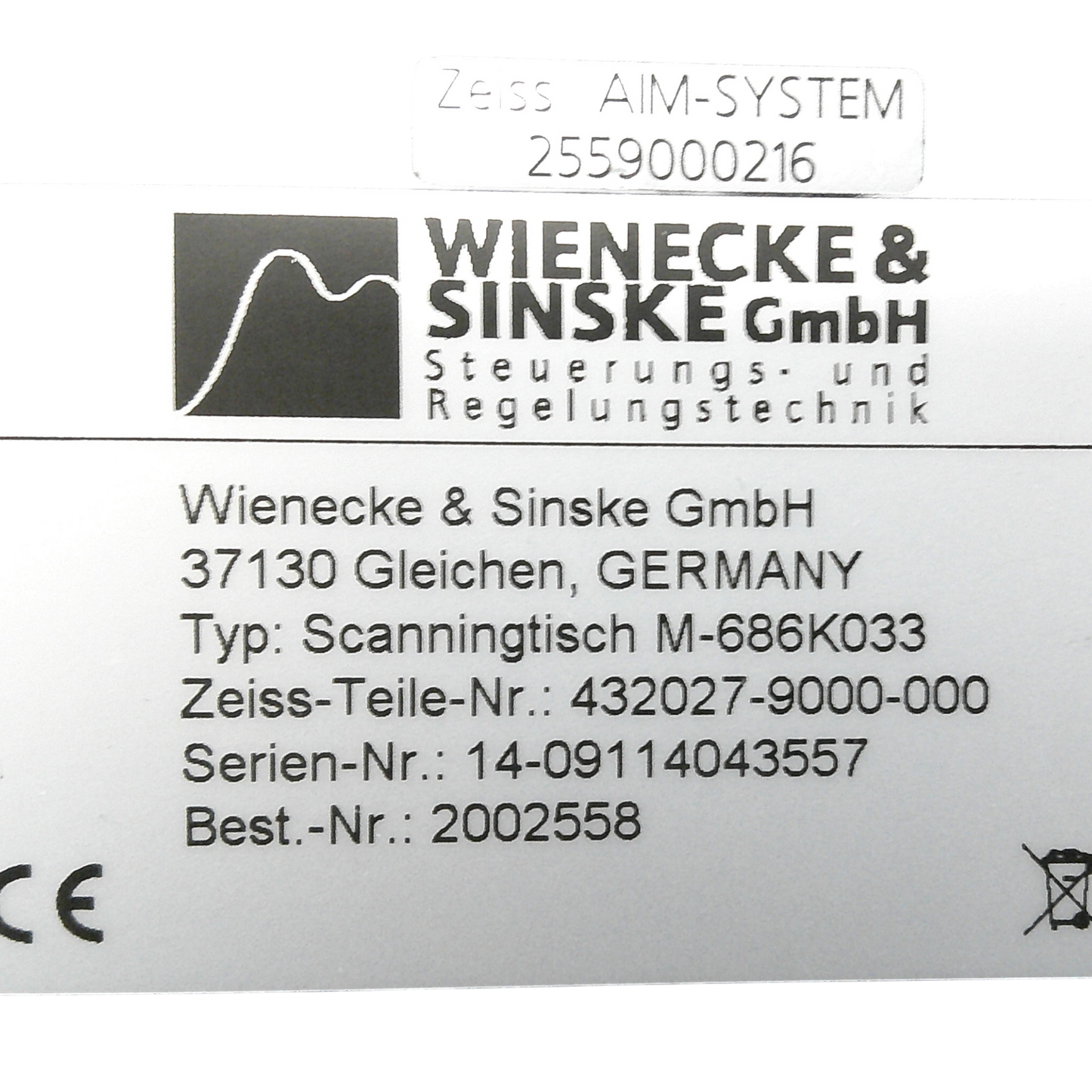

- Manufacturer: Wienecke & Sinske
- Model:
- Catalog Number: 51622o
- Serial Number: 14-09114043557
- Condition: Used
