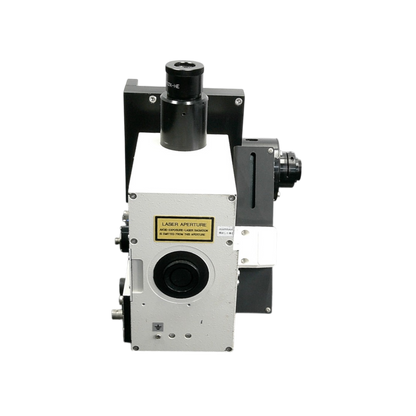

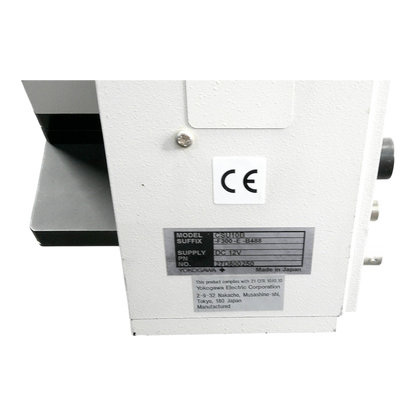

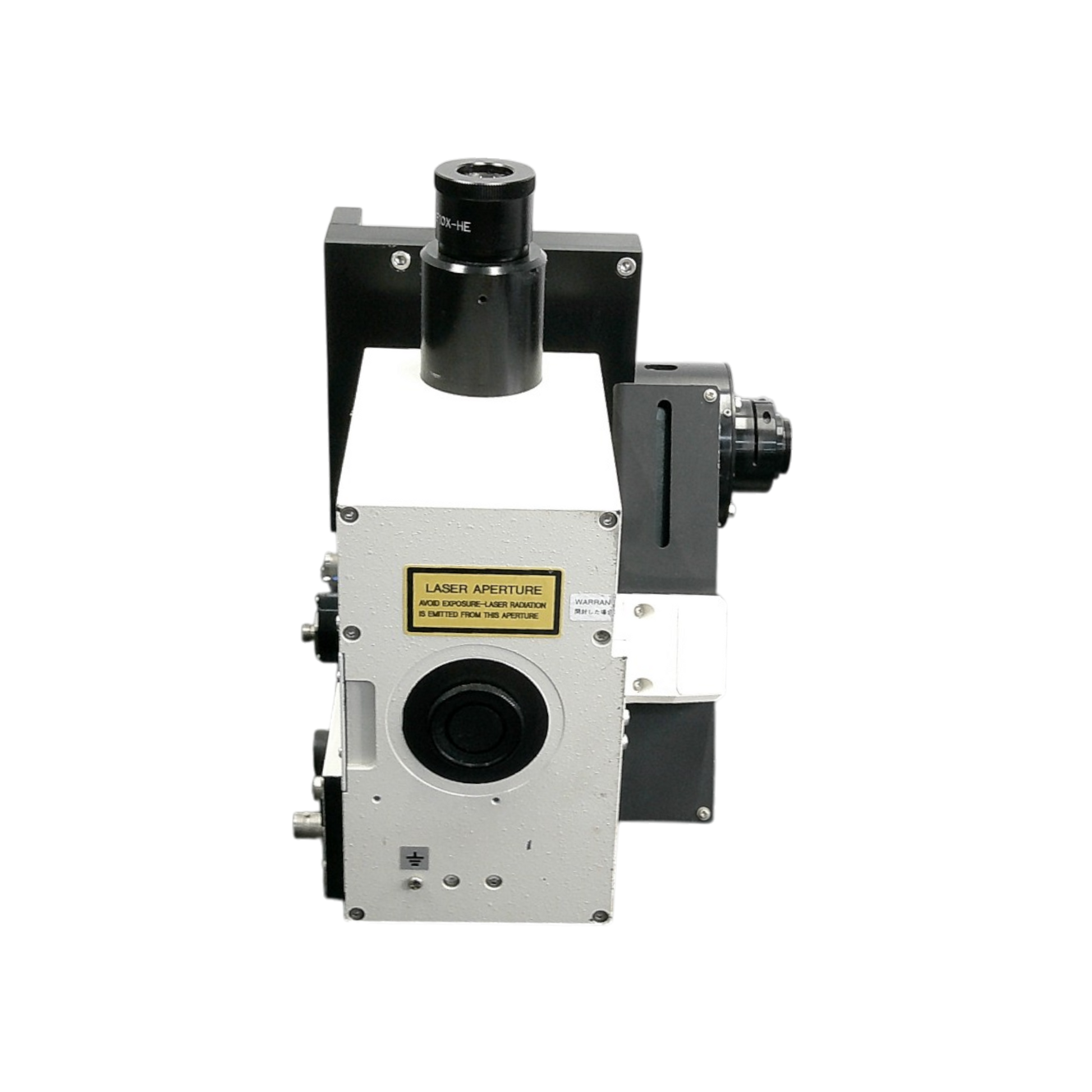

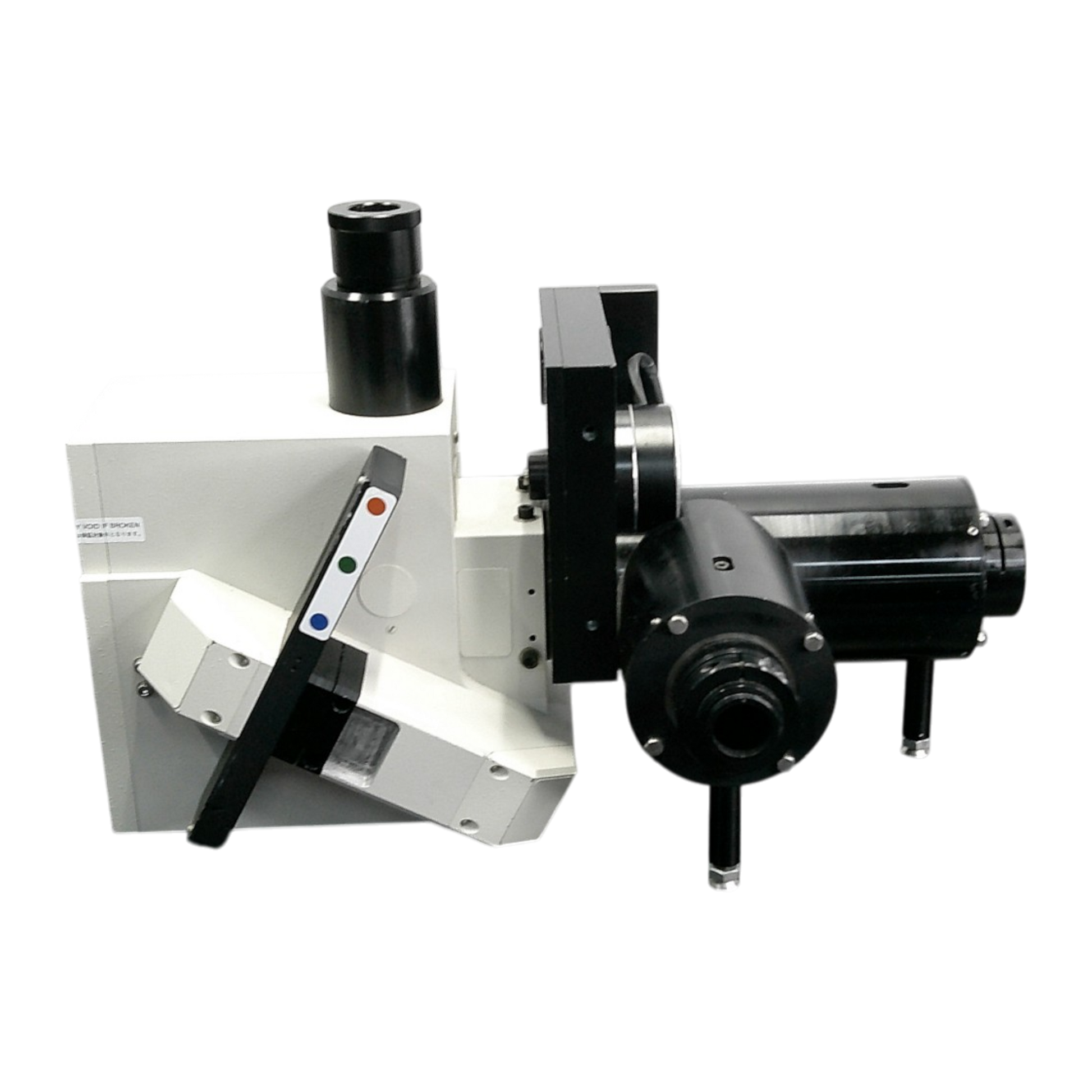

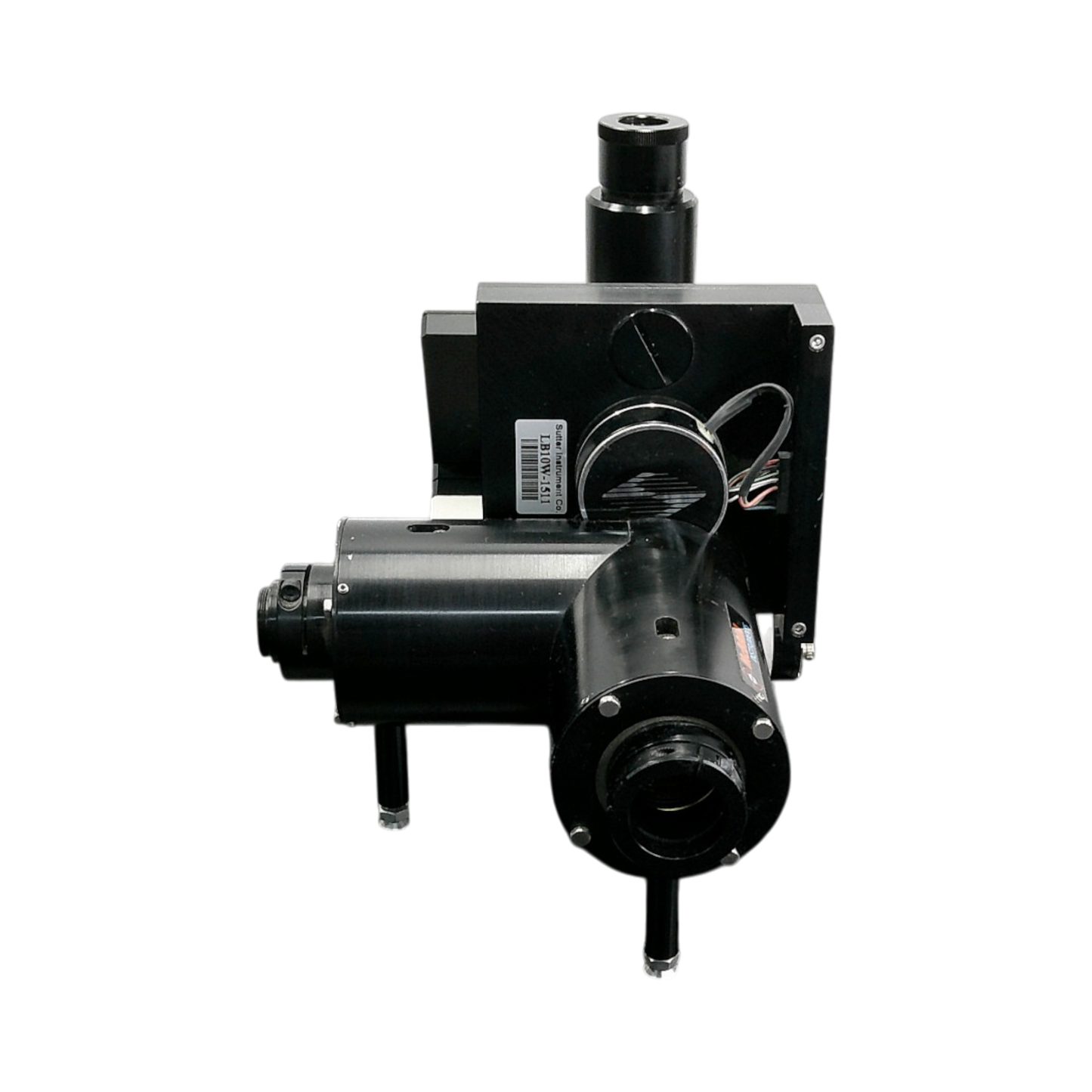

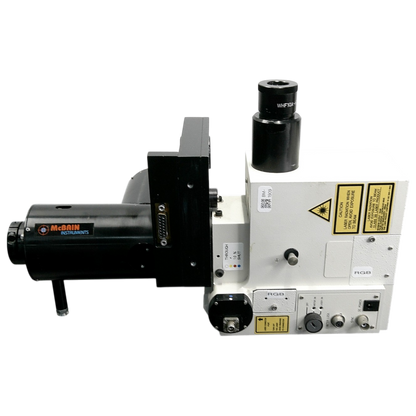

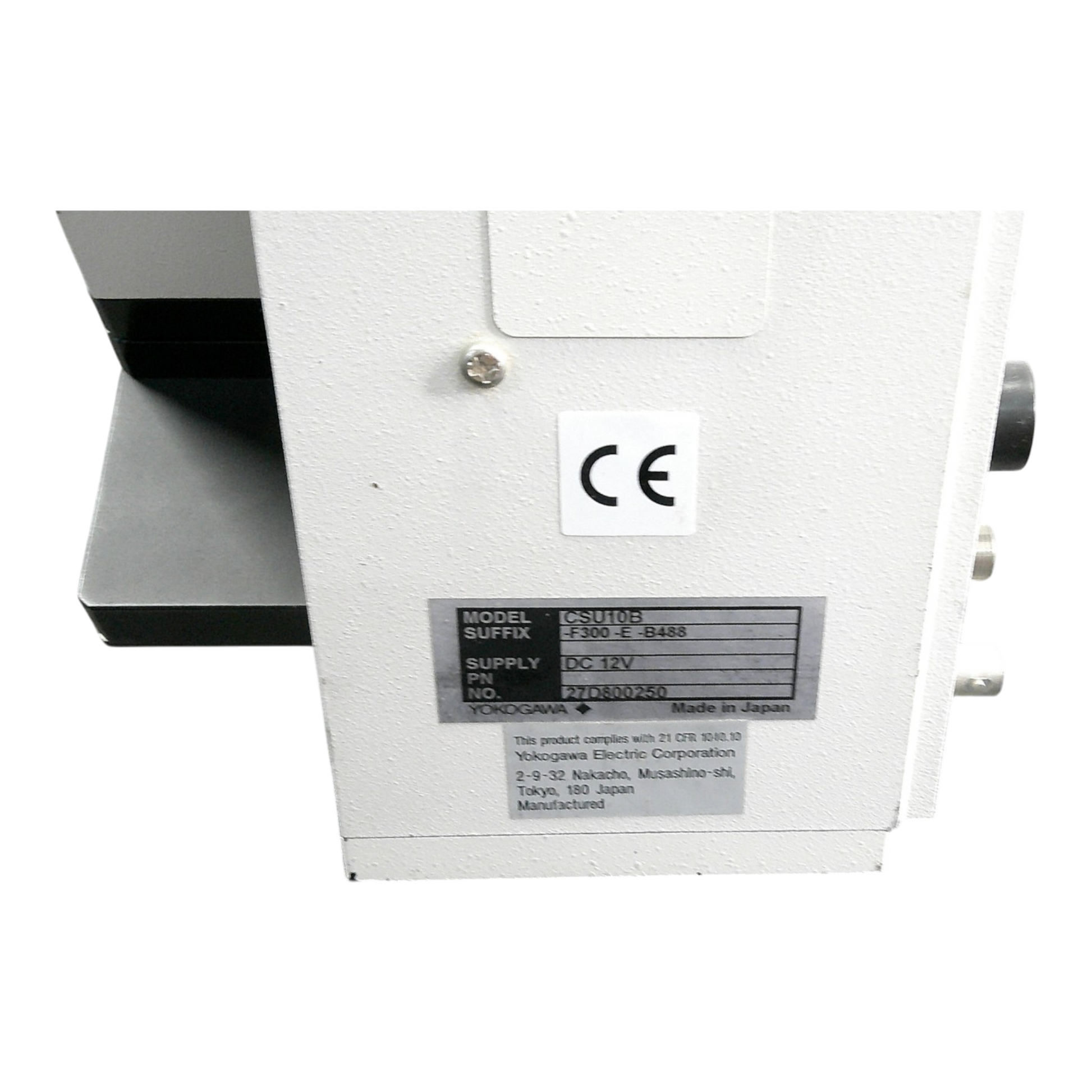

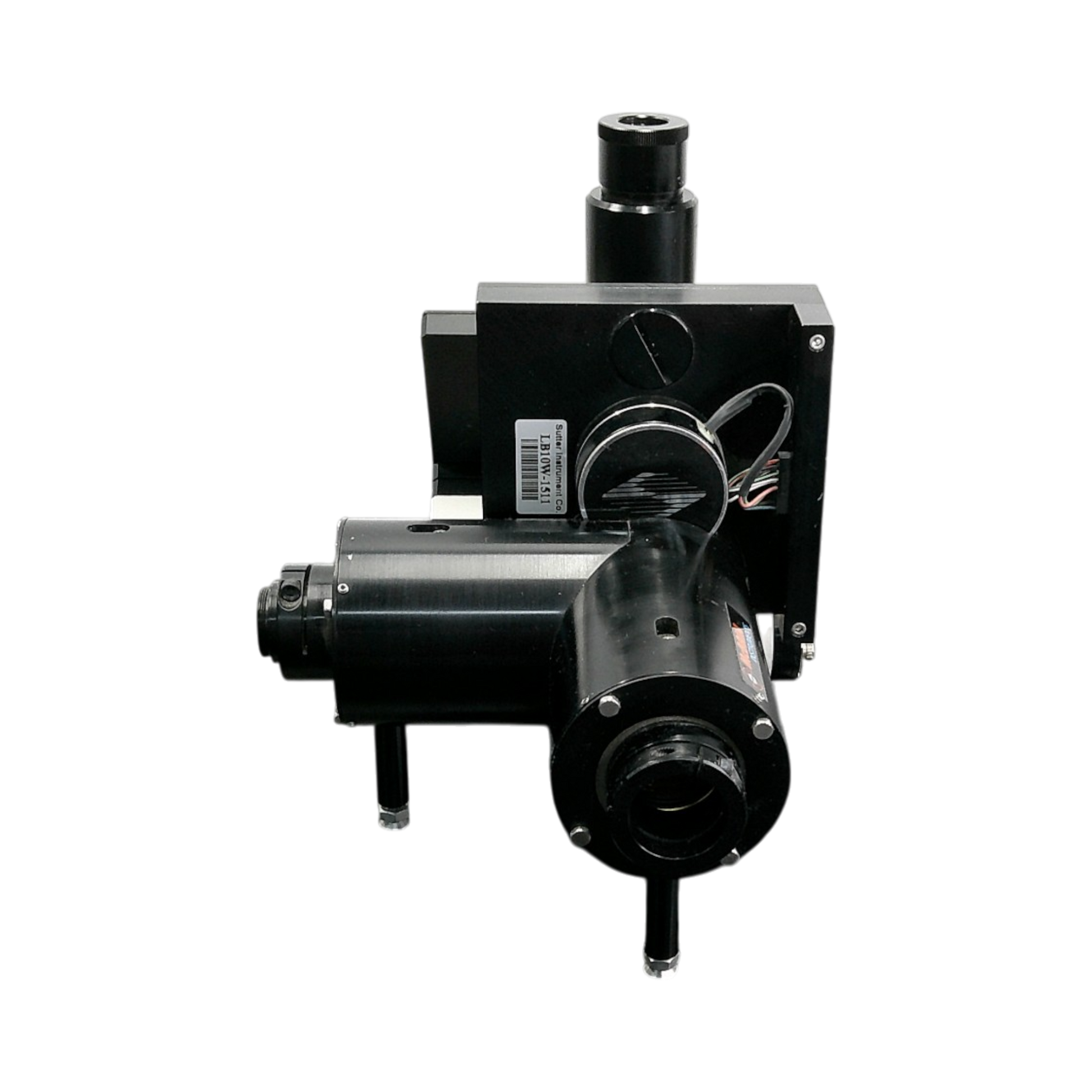

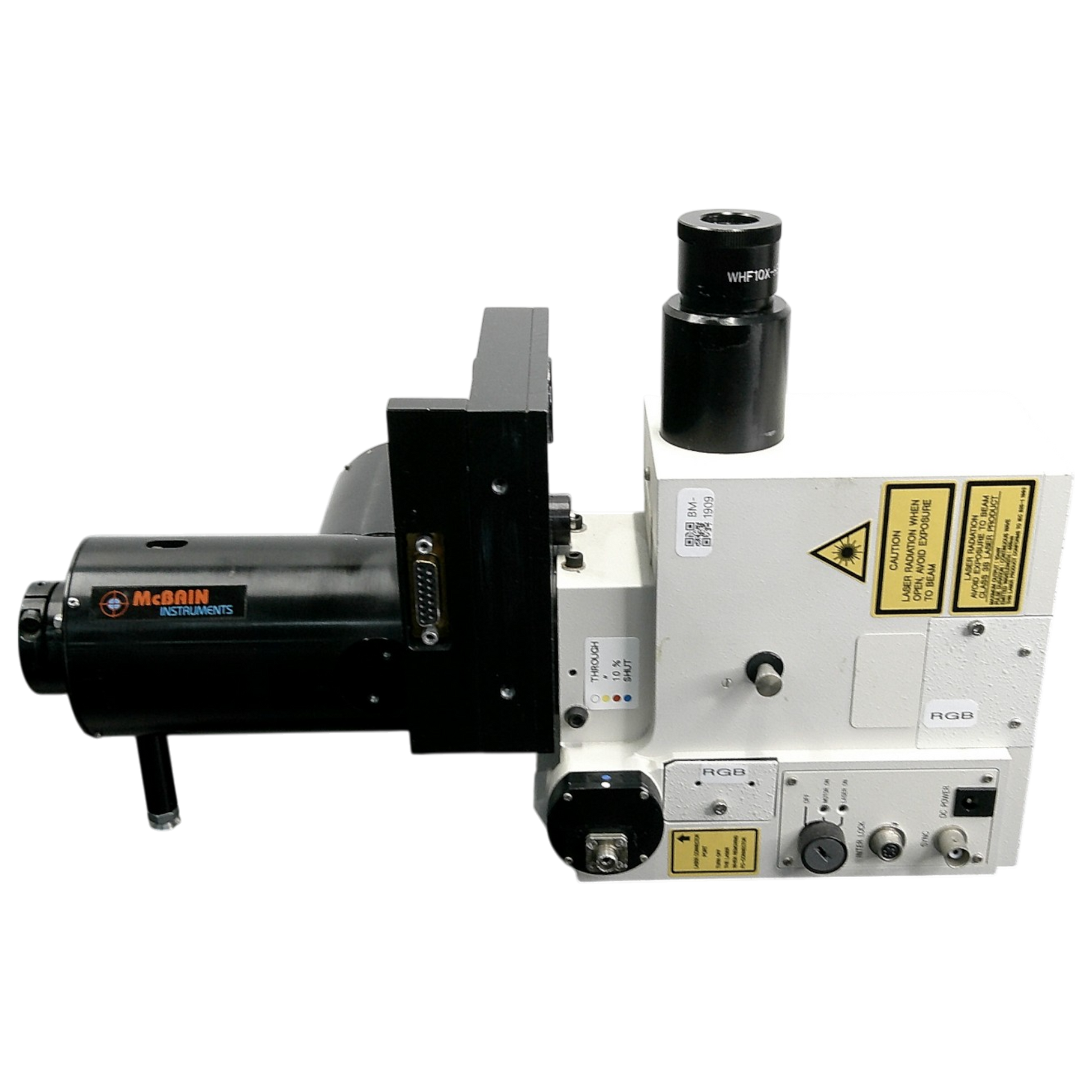

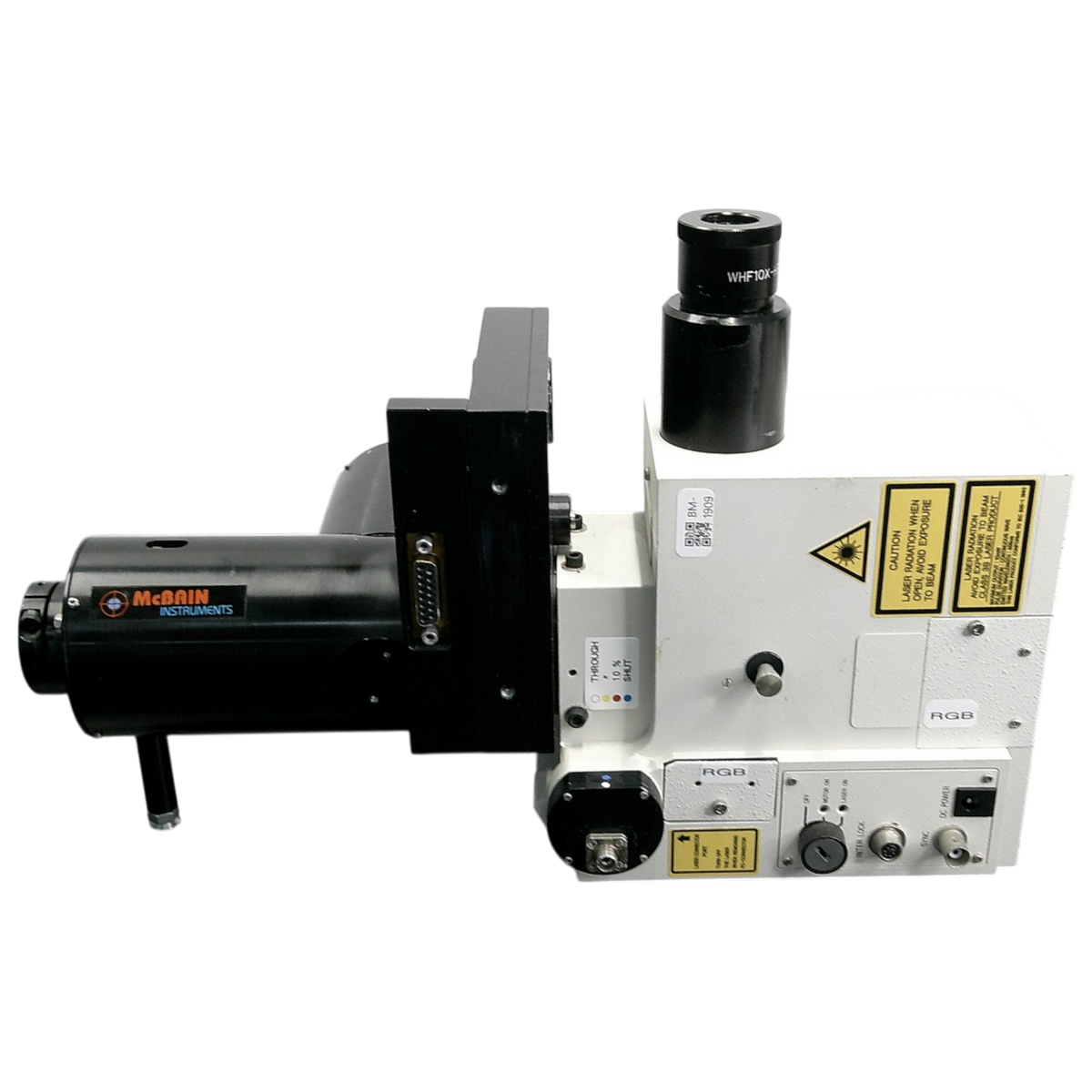

Yokogawa CSU10B Spinning Disk Confocal Scanner Unit | CSU10B-F300-E-B488

The Yokogawa CSU10B (CSU10B-F300-E-B488) is a spinning disk confocal scanner unit for real-time optical sectioning and live-cell fluorescence imaging. Its dual Nipkow disk design pairs a disk of about 20,000 microlenses with a matching pinhole disk, rotating together at 1,800 rpm to raster-scan the specimen with many laser beams at once. With 12 frames captured per rotation, the CSU10B delivers confocal imaging at up to 360 frames per second, with significantly lower photobleaching and phototoxicity than single-point laser scanning confocals. The microlens array improves optical efficiency by roughly two orders of magnitude over a conventional Nipkow disk, enabling clear confocal images even of dim fluorescent specimens.

Condition

Condition: Refurbished/Used (This product has been inspected and verified to meet manufacturer specifications)

Included Items

• Yokogawa CSU10B Confocal Scanner Unit (CSU10B-F300-E-B488)
• Power Supply and Standard Fittings

Available Options

• Microscope Adapter for your inverted or upright stand (Zeiss, Leica, Nikon, Olympus)
• Camera Adapter (C-mount)
• Laser Launch / Laser Combiner with fiber (488nm and other configurations available)
• Dichroic Mirror and Emission Filter Sets
• Compatible Microscope Stand (Please discuss your preferred stand with our team.)
• Workstation and Monitor
• Optical Table: New and Refurbished options available

Cameras (sCMOS, EMCCD, CCD, CMOS):

• New or Used Hamamatsu
• New or Used Tucsen
• New or Used PCO
• New or Used Teledyne Photometrics
• New or Used Teledyne Lumenera
• Used Andor

Key Features

• Dual Nipkow disk with approx. 20,000 microlenses for high optical efficiency and high signal-to-noise
• Fast scanning at up to 360 frames per second (1,800 rpm, 12 frames per rotation)
• Real-time confocal viewing directly through the eyepiece
• Low photobleaching and phototoxicity, ideal for live specimens
• Simple operation without computer control
• Mounts on most research microscopes (adapter dependent)
• Camera-based detection compatible with sCMOS, EMCCD, and CCD cameras

Applications

• Live-cell imaging and time-lapse fluorescence microscopy
• Real-time calcium (Ca2+) signaling in cells and tissues
• GFP imaging of living cells, microorganisms, and plant cells
• Whole-mount embryo optical sectioning
• Pathological and histological specimen imaging
• 3D and Z-stack confocal imaging

Specifications

Configuration shown is for demonstration purposes. Contact us to discuss your application and needs for a customized quote.
