Yokogawa CSU-X1 Spinning Disk Confocal

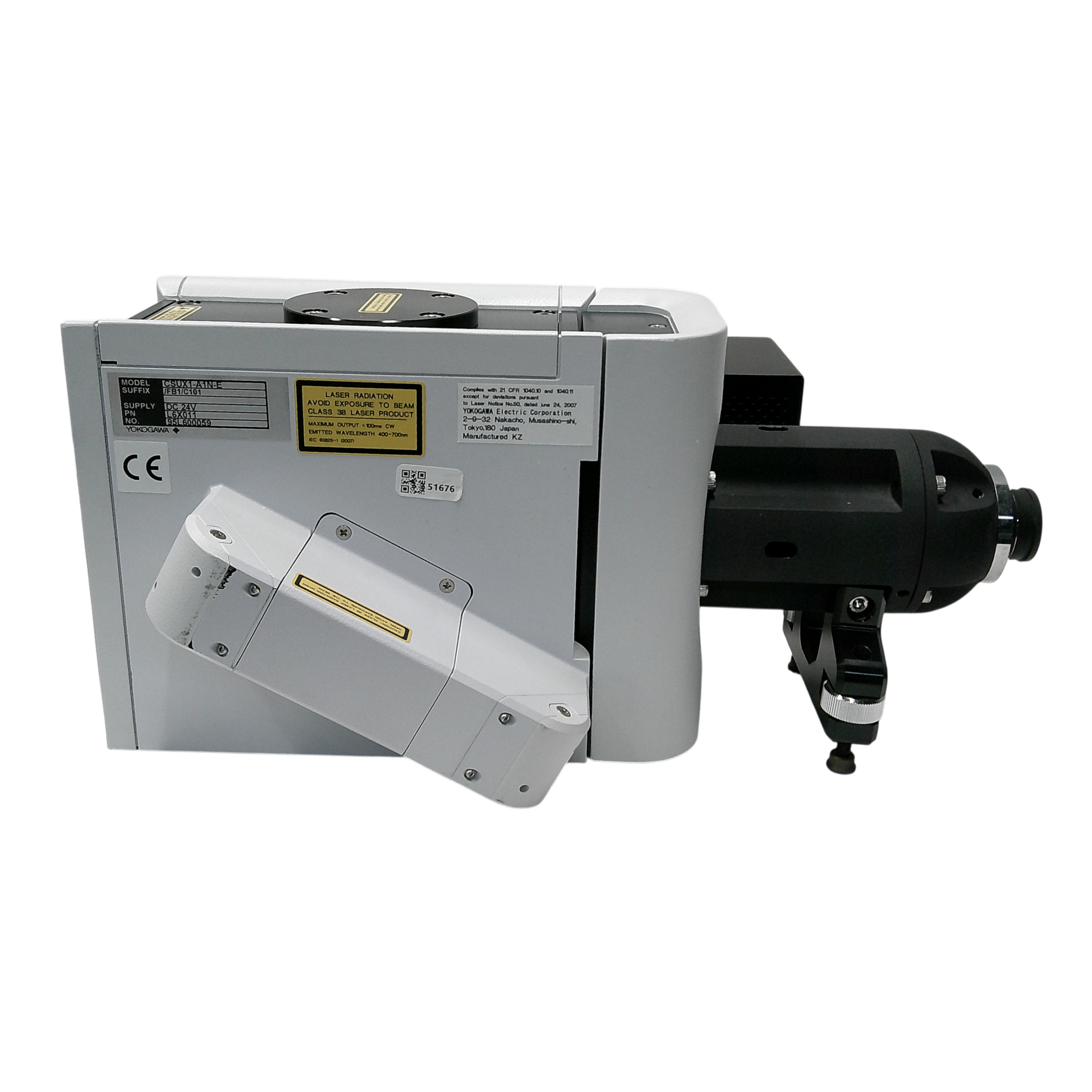

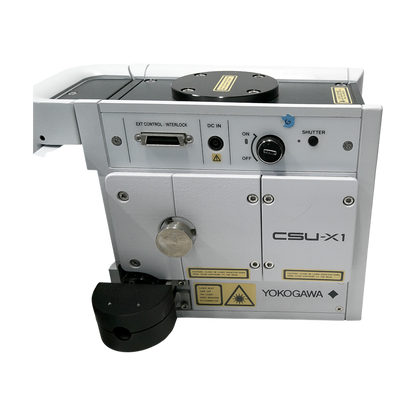

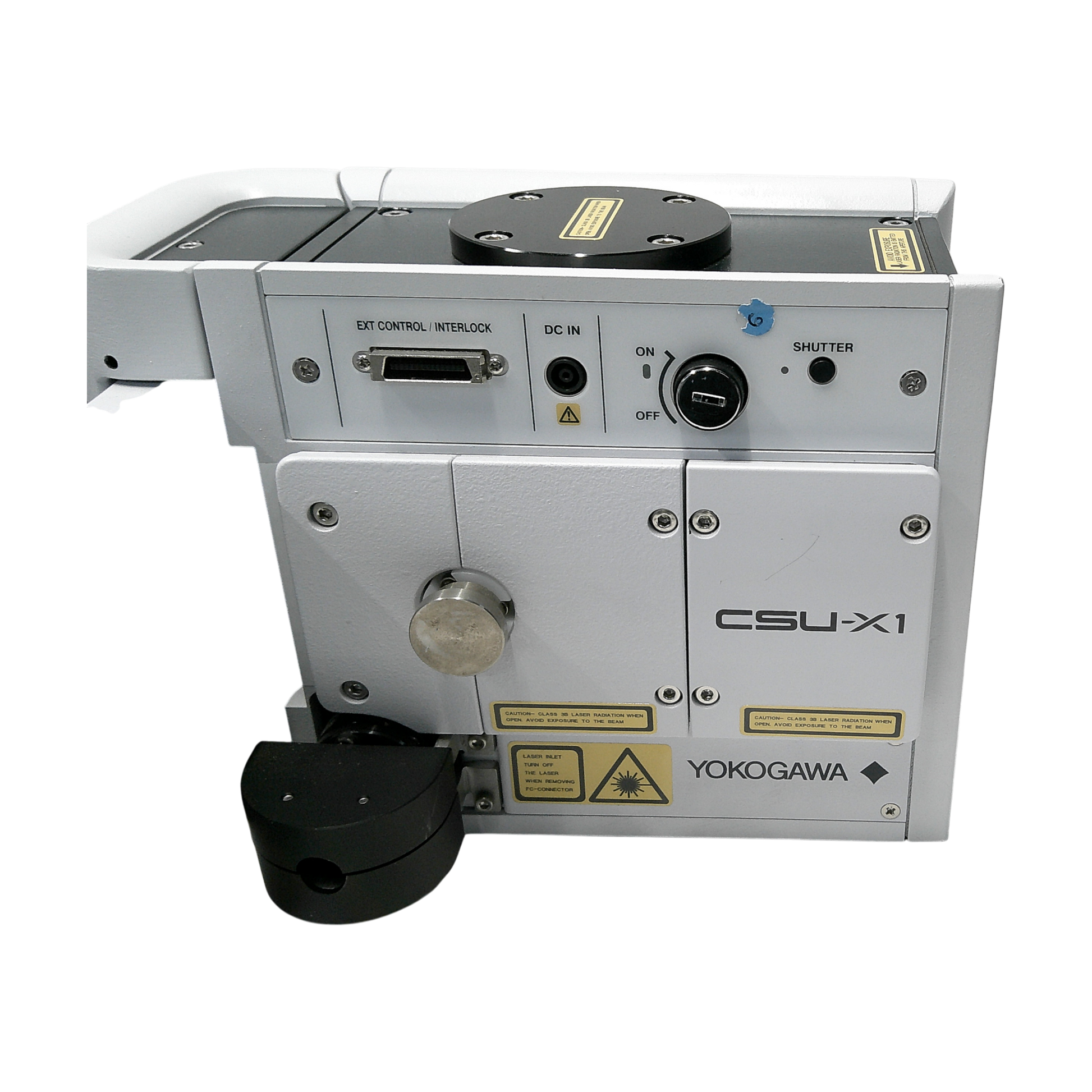

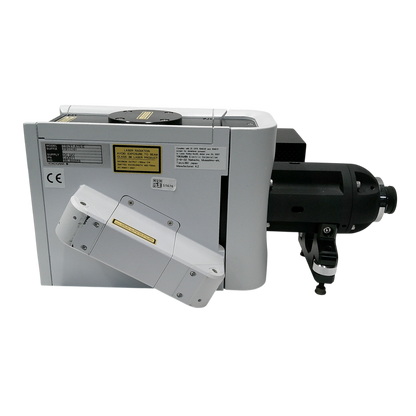

Yokogawa CSU-X1 Spinning Disk Confocal Scanner Unit | CSUX1-A1N-E /FB1/C101

The Yokogawa CSU-X1 (CSUX1-A1N-E /FB1/C101) is a high-end spinning disk confocal scanner unit for fast optical sectioning and 3D imaging in live-cell and dynamic fluorescence applications. Its dual Nipkow disk design pairs about 20,000 pinholes with a matching microlens disk, raster-scanning the field of view with roughly 1,000 laser beams at once. That multi-beam scanning gives high speed with significantly lower photobleaching and phototoxicity than single-point laser scanning confocals. This High-End A1 model adds a motorized 3-position dichroic block and a 6-position high-speed emission filter wheel for automated multicolor imaging, and this configuration includes the 405–650nm laser induction fiber and a C-mount camera port.

Condition

Condition: Refurbished/Used (This product has been inspected and verified to meet manufacturer specifications)

Included Items

• Yokogawa CSU-X1 Confocal Scanner Unit, High-End Model (CSUX1-A1N-E)
• 6-Position High-Speed Emission Filter Wheel (CSUX1FW-06P)
• CSU-X1 Control Unit (CSUX1CU-F1)
• Laser Induction Fiber, 405–650nm, with Collimating Lens (/FB1)
• C-Mount Camera Port (/C101)
• AC Adapter and Cabling

Available Options

• Microscope Adapter for your inverted or upright stand (Zeiss, Leica, Nikon, Olympus)
• Laser Launch / Laser Combiner (405, 488, 561, 640nm and other configurations available)
• Dichroic Mirror and Emission Filter Sets
• Compatible Microscope Stand (Please discuss your preferred stand with our team.)
• Workstation and Monitor
• Optical Table: New and Refurbished options available

Cameras (sCMOS, EMCCD, CCD, CMOS):

• New or Used Hamamatsu
• New or Used Tucsen
• New or Used PCO
• New or Used Teledyne Photometrics
• New or Used Teledyne Lumenera
• Used Andor

Key Features

• Dual Nipkow disk with microlens array for high-speed optical sectioning
• Multi-beam scanning with low photobleaching and phototoxicity, ideal for live specimens
• Standard-speed model: 1,500–5,000 rpm, up to 1,000 fps (camera dependent)
• Motorized dichroic block with up to three dichroic mirror positions
• 6-position high-speed emission filter wheel, 33 ms adjacent-position switching
• Laser induction fiber (405–650nm) with collimating lens included
• C-mount camera port for standard scientific cameras
• Built-in laser shutter to minimize photobleaching between acquisitions
• External synchronization and TTL/analog I/O through the control unit
• Mounts on inverted and upright microscopes from Zeiss, Leica, Nikon, and Olympus

Applications

• Live-cell imaging and time-lapse studies
• 3D and Z-stack fluorescence microscopy
• Developmental biology and embryo imaging
• Calcium imaging and fast dynamic processes
• FRET imaging
• High-content screening and phenotypic assays

Specifications

Configuration shown is for demonstration purposes. Contact us to discuss your application and needs for a customized quote.
