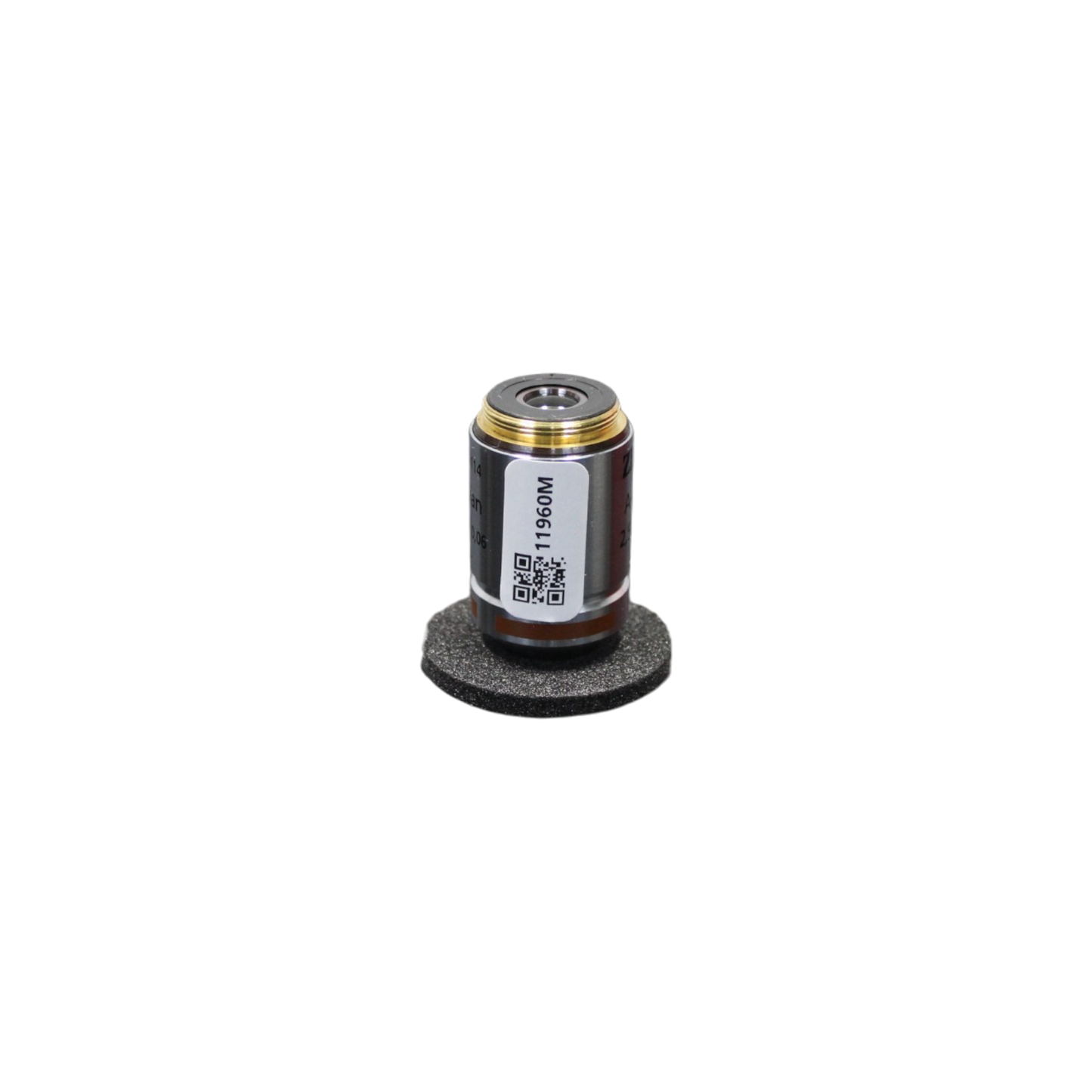

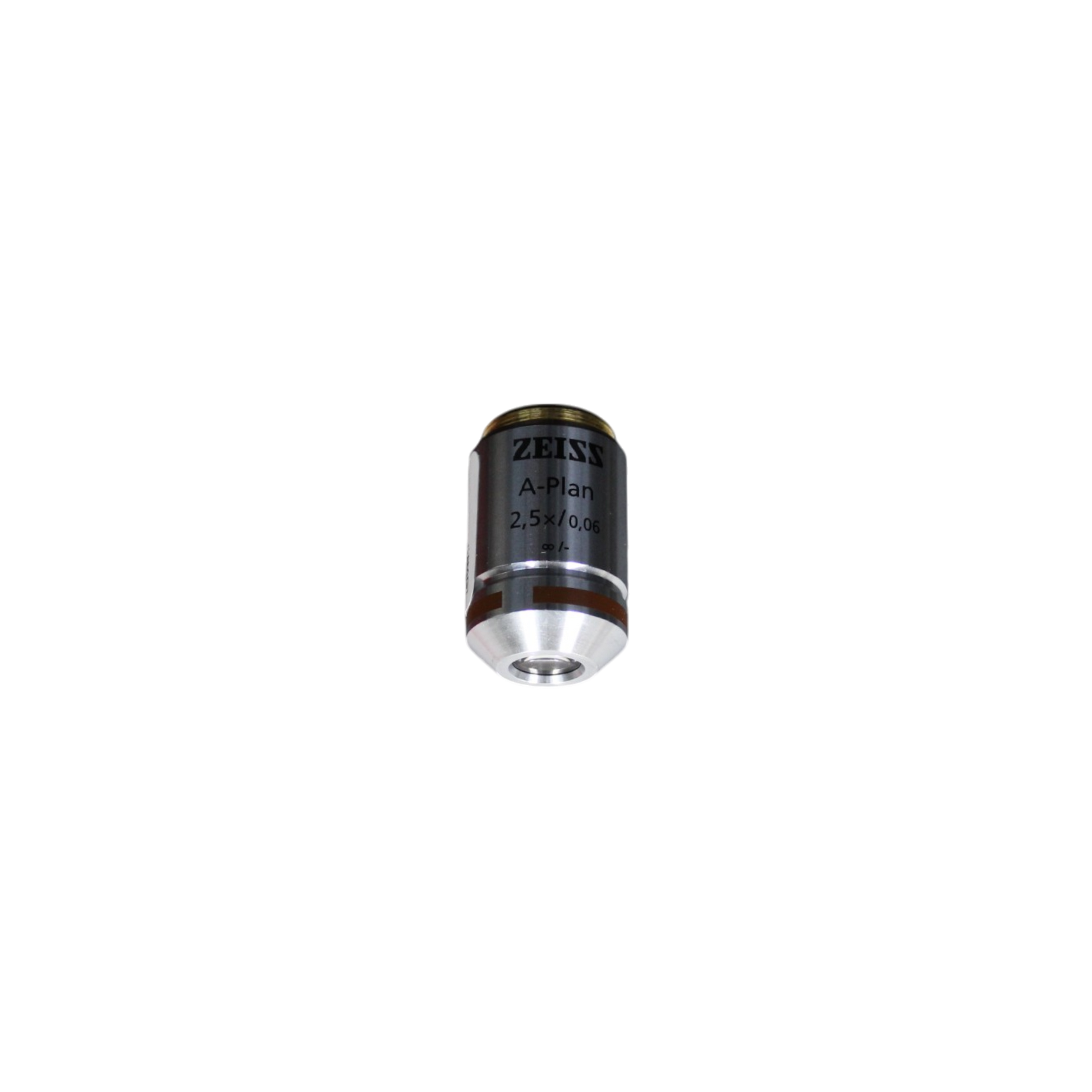

Zeiss A-Plan 2.5x/0.06 RMS Thread Size Microscope Objective
Zeiss A-Plan 2.5x/0.06 RMS Thread Size Microscope Objective
Couldn't load pickup availability
- ✓ Tested in house. 30-day warranty
- ✓ Typical delivery in 1 to 3 weeks, depending on parts
- ✓ Prices shown exclude freight, insurance, tariffs and applicable taxes
- ✓ Installation, training and service available from our engineers (quoted separately)
- ✓ SAM.gov registered (CAGE 10ZU5). Purchase orders welcome
- ✓ Leasing and finance companies available
Questions? Call (877) 564-2767 or email sales@coastalmicroscopes.com
Zeiss A-Plan 2.5x/0.06 RMS Thread Size - 1113-114 (Used)
The Zeiss A-Plan 2.5x/0.06 is a high-quality achromatic low-magnification objective designed for brightfield microscopy. With a numerical aperture (NA) of 0.06, this objective provides excellent contrast, field flatness, and uniform illumination, making it ideal for whole-slide imaging, pathology, and general microscopy applications. The RMS thread size ensures compatibility with Zeiss and other standard microscopes.
Condition
Refurbished/Used
(This product has been inspected and verified to meet manufacturer specifications.)
Included Items
- Zeiss A-Plan 2.5x/0.06 Objective
Key Features
- 2.5x magnification for low-magnification imaging
- A-Plan achromatic optics for excellent color correction and contrast
- Numerical aperture (NA) of 0.06 for uniform illumination
- RMS thread size for compatibility with Zeiss and other standard microscopes
- Flat field correction for sharp, edge-to-edge imaging
- Designed for brightfield microscopy
Applications
- Brightfield microscopy
- Whole-slide imaging
- Low-magnification tissue and pathology imaging
- Routine biological and clinical research
Specifications
| Specification | Details |
|---|---|
| Magnification | 2.5x |
| Numerical Aperture (NA) | 0.06 |
| Working Distance | ~8.9 mm |
| Immersion Medium | Air (Dry) |
| Cover Glass Thickness | 0.17 mm |
| Optical Correction | A-Plan (Achromatic, Flat Field, High Contrast) |
| Thread Size | RMS (0.8" / 20.32mm diameter, 0.706mm pitch) |
| Parfocal Distance | 45 mm |
| Compatible Microscopes | Zeiss Standard, Axioscope, and other RMS-compatible models |
| Special Features | Low-magnification objective with excellent field flatness for large sample imaging |
Additional Details
Additional Details
- Manufacturer: Zeiss
- Model: A-Plan 2.5x/0.06 RMS Thread Size
- Catalog Number: 11960M
- Serial Number: N/A
- Condition: Seller Refurbished
