SKU: PRODUCT ID:OBJ-000-169

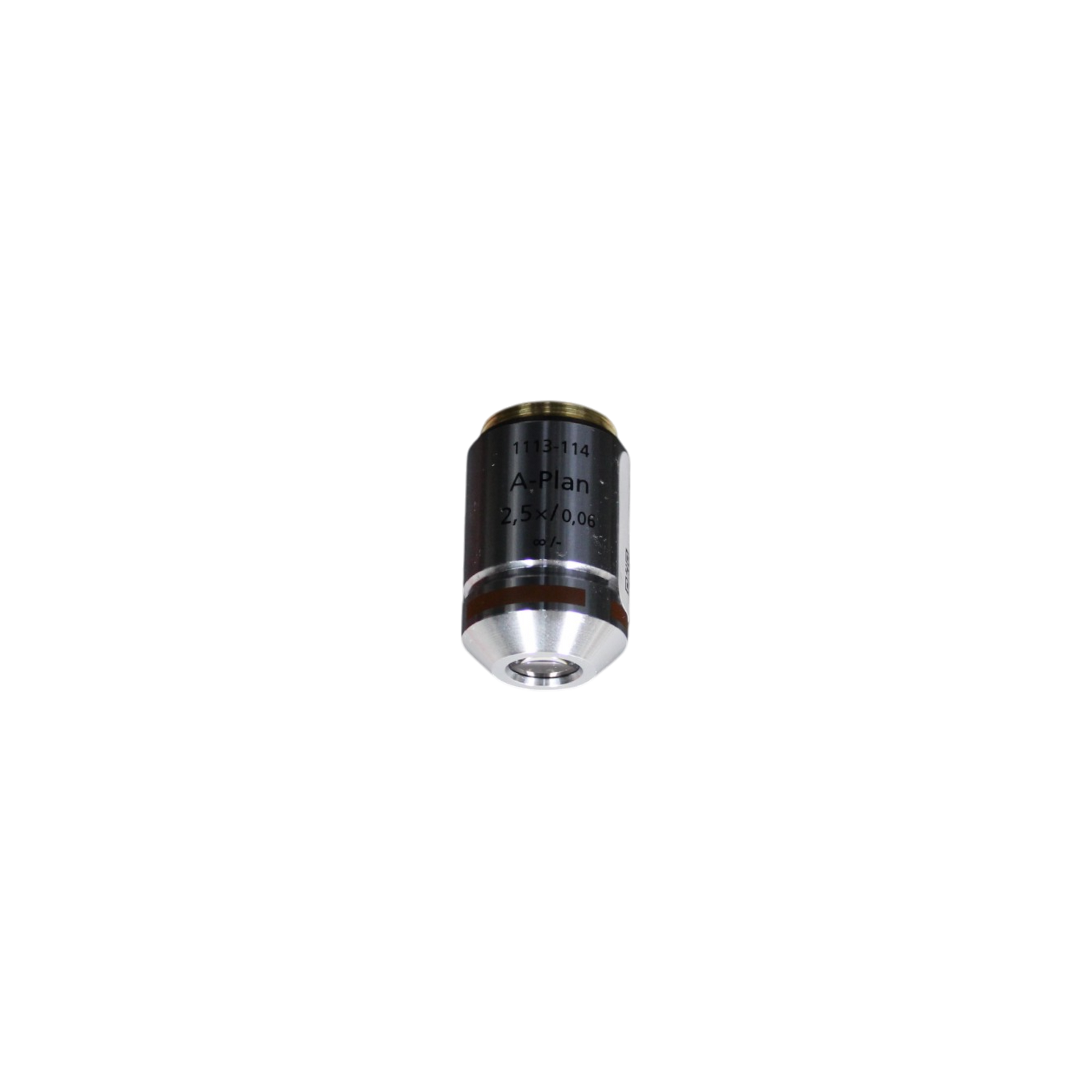

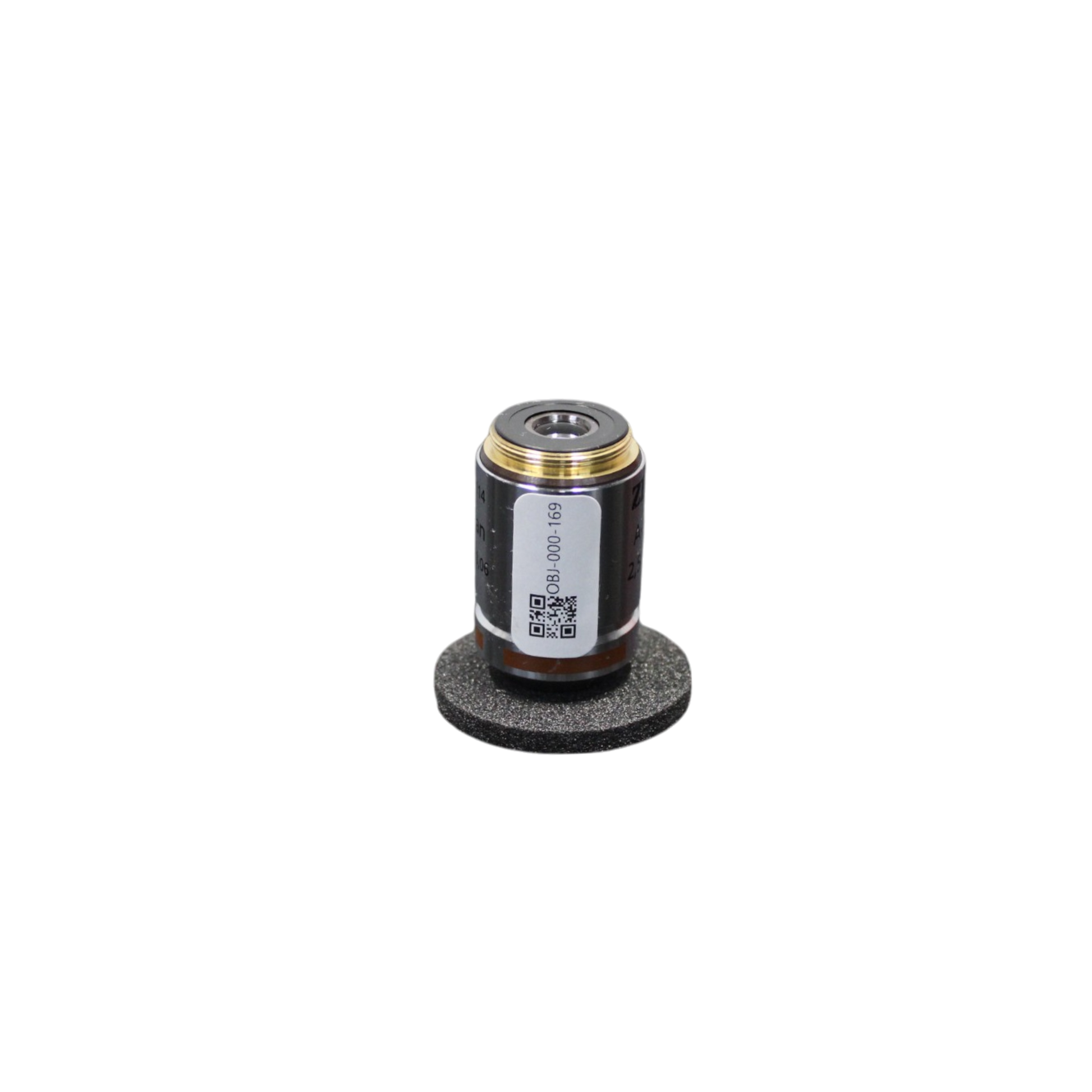

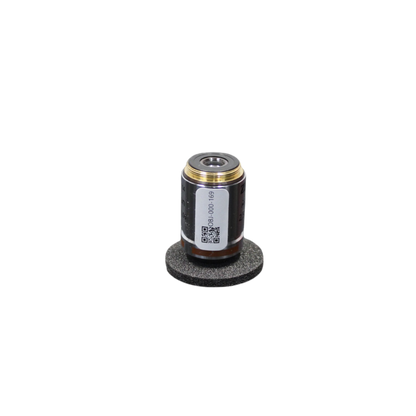

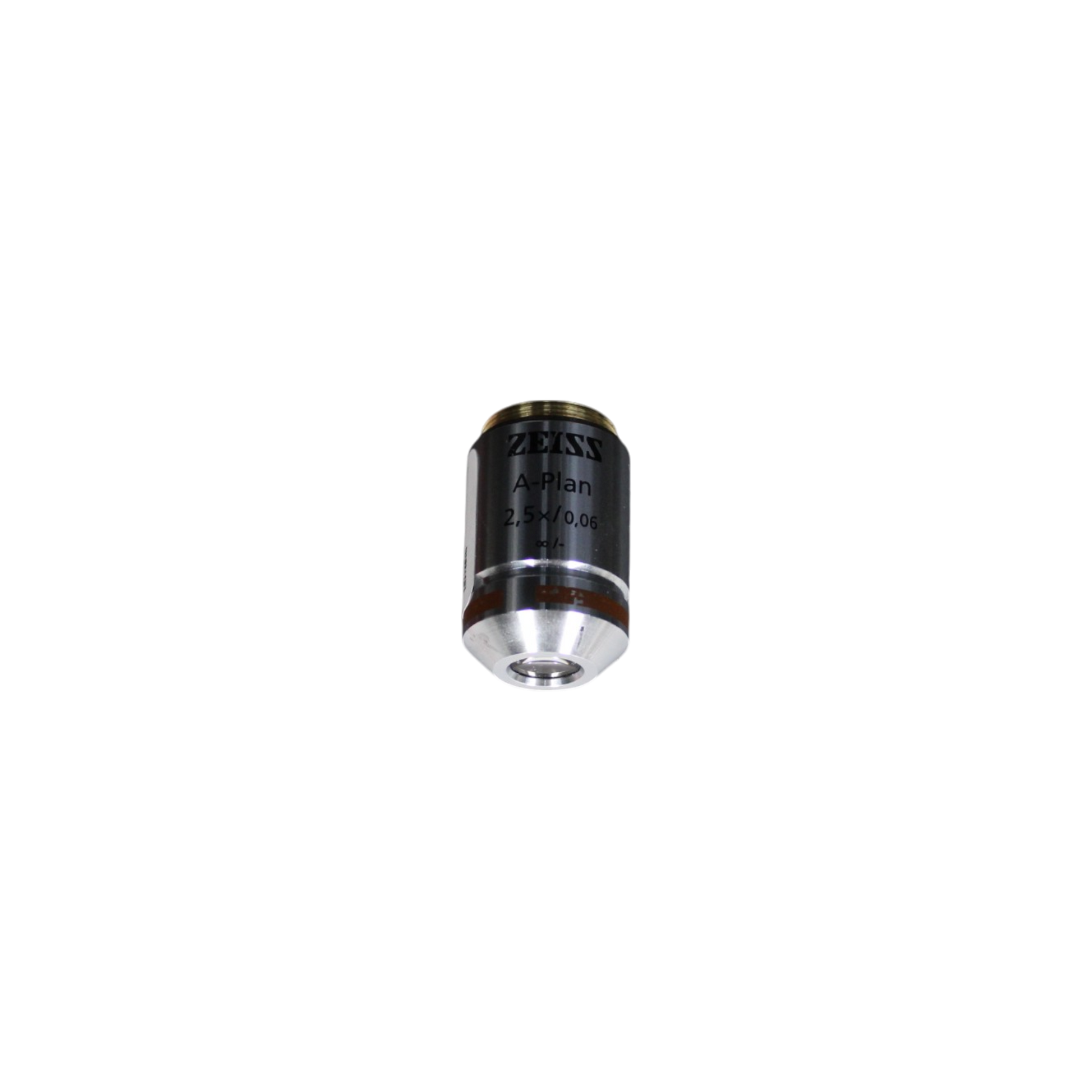

Zeiss A-Plan 2.5x/0.06 RMS Thread Size Microscope Objective
Zeiss A-Plan 2.5x/0.06 RMS Thread Size Microscope Objective
Couldn't load pickup availability
- ✓ Tested in house. 30-day warranty
- ✓ Typical delivery in 1 to 3 weeks, depending on parts
- ✓ Prices shown exclude freight, insurance, tariffs and applicable taxes
- ✓ Installation, training and service available from our engineers (quoted separately)
- ✓ SAM.gov registered (CAGE 10ZU5). Purchase orders welcome
- ✓ Leasing and finance companies available
Questions? Call (877) 564-2767 or email sales@coastalmicroscopes.com
Overview
The Zeiss A-Plan 2.5x/0.06 objective is a reliable low-power lens designed for sample overview and wide-area scanning. With its plan achromat optical correction and dry use design, this objective ensures flat-field imaging across the viewing area. Featuring a standard RMS thread, it integrates easily with Zeiss and other compatible upright microscopes.
Condition
Condition: Refurbished/Used (This product has been inspected and verified to meet manufacturer specifications).
Key Features
- 2.5x magnification for low-power scanning and navigation
- 0.06 Numerical Aperture (NA) for large depth of field
- Plan achromat optics for flat-field correction
- Dry objective – no immersion oil required
- Standard RMS thread for universal microscope compatibility
- Designed for brightfield transmitted light applications
Applications
- Sample orientation and scanning
- Histology and pathology overview
- Routine laboratory workflows
- Educational and research use
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Zeiss |
| Model | A-Plan 2.5x/0.06 |
| Catalog Number | 1113-114 |
| Magnification | 2.5x |
| Numerical Aperture (NA) | 0.06 |
| Optical Design | Plan Achromat |
| Thread Type | RMS |
| Immersion | Dry |
| Microscope Compatibility | Zeiss and other RMS-compatible upright microscopes |
Additional Details
Additional Details
- Manufacturer: Zeiss
- Model: A-Plan 2.5x/0.06 RMS Thread Size
- Catalog Number: OBJ-000-169
- Serial Number: N/A
- Condition: Seller Refurbished
