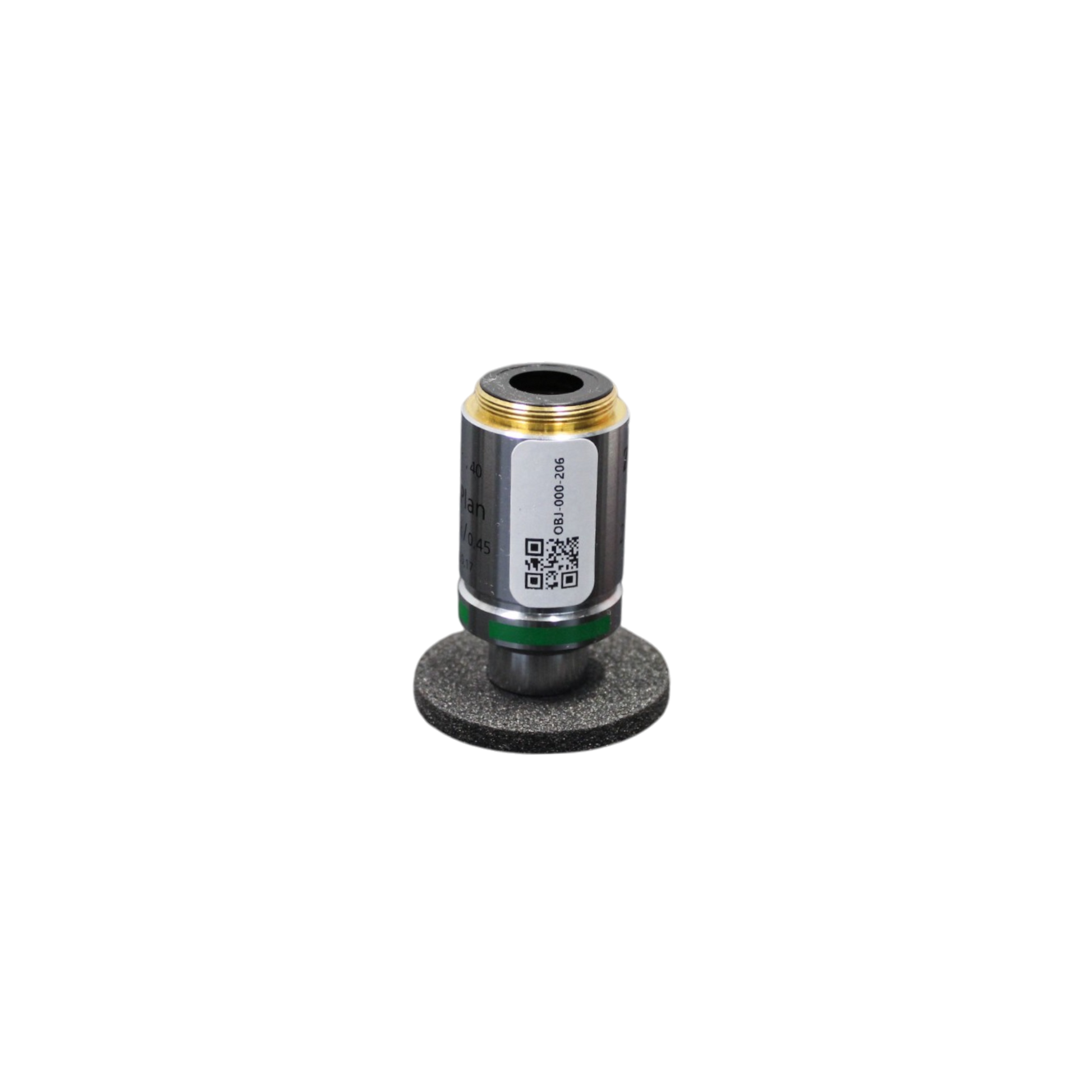

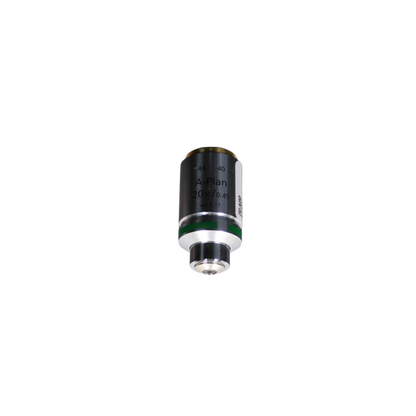

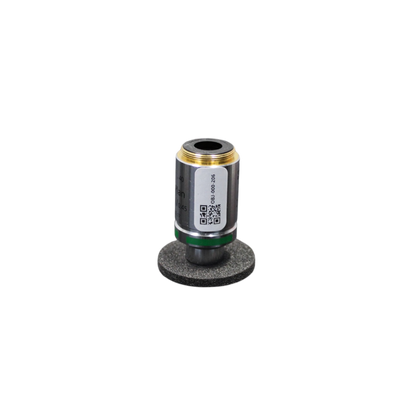

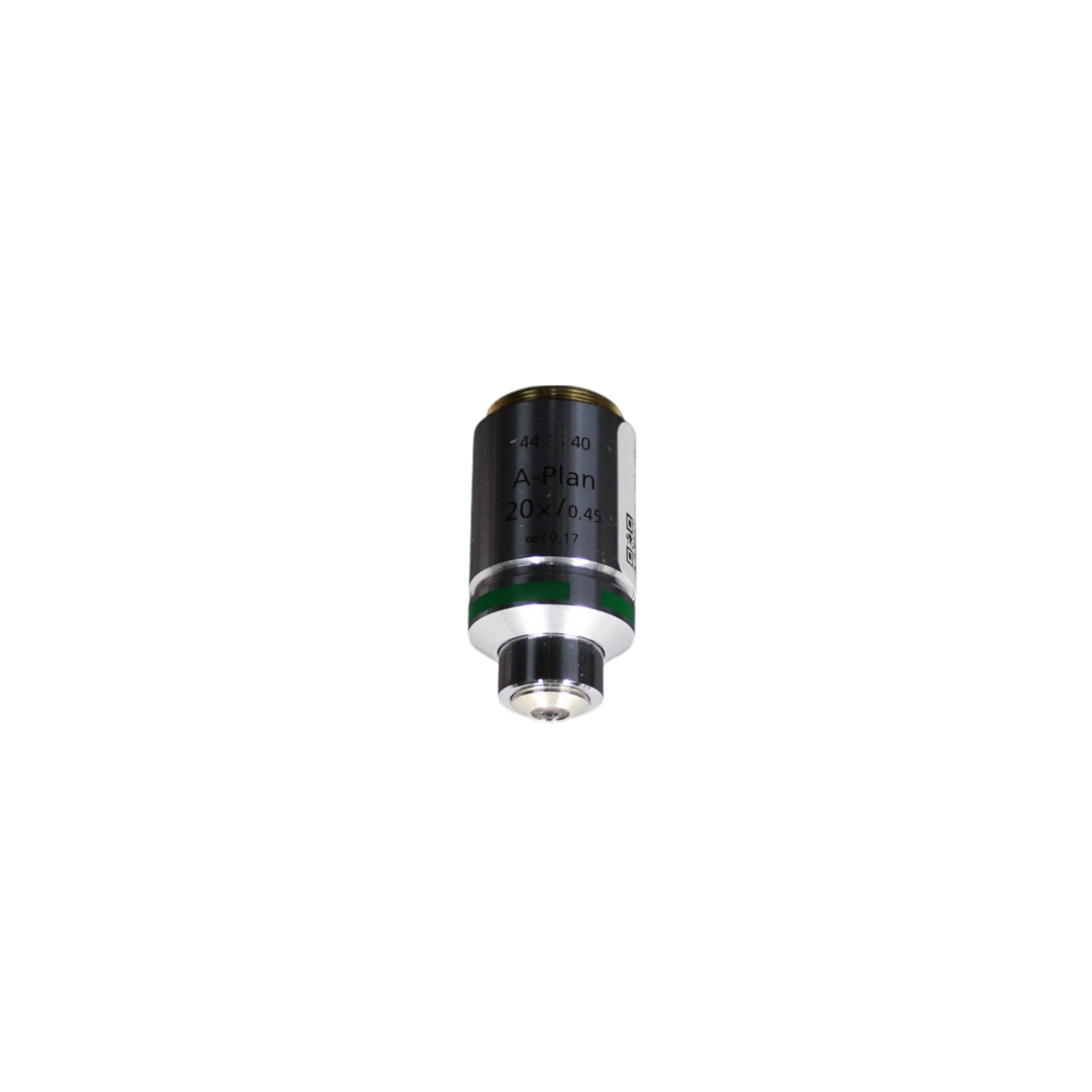

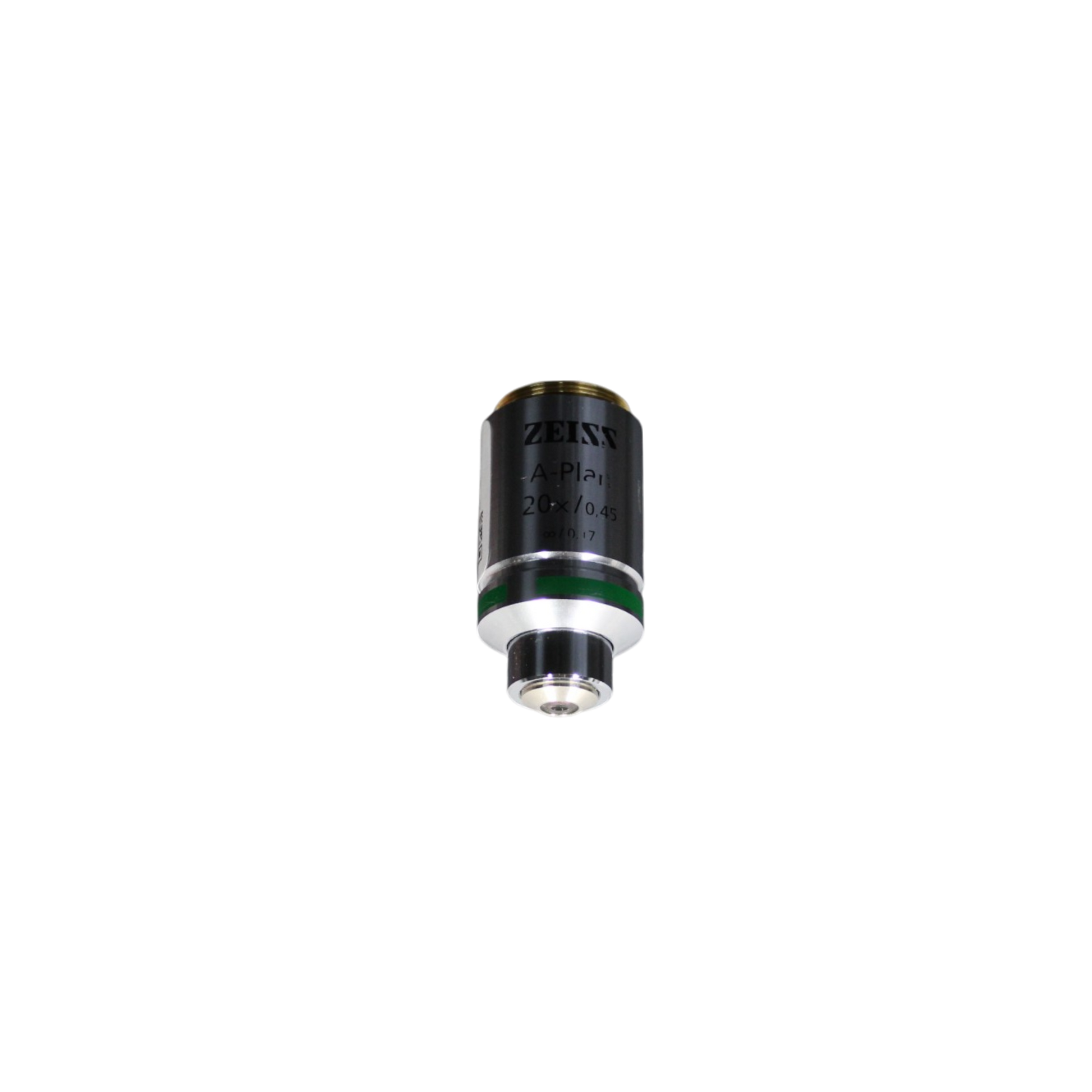

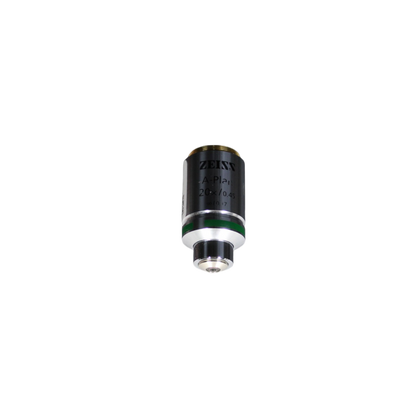

Zeiss A-Plan 20x/0.45 RMS Thread Size Microscope Objective
Zeiss A-Plan 20x/0.45 RMS Thread Size Microscope Objective
Couldn't load pickup availability
Zeiss A-Plan 20x/0.45 RMS Thread Size - 44 10 40 (Used)
The Zeiss A-Plan 20x/0.45 is a high-quality **achromatic objective** designed for **brightfield microscopy**. With a **numerical aperture (NA) of 0.45**, this objective provides excellent resolution, contrast, and flat-field correction, making it ideal for **routine laboratory use, pathology, and biological research**. The **RMS thread size** ensures compatibility with Zeiss and other RMS-compatible microscopes.
Condition
Refurbished/Used
(This product has been inspected and verified to meet manufacturer specifications.)
Included Items
- Zeiss A-Plan 20x/0.45 Objective
Key Features
- 20x magnification for high-resolution imaging
- Plan Achromatic (A-Plan) optics for enhanced contrast and color correction
- Numerical aperture (NA) of 0.45 for improved light transmission
- RMS thread size for compatibility with Zeiss and other standard microscopes
- Flat field correction for sharp, edge-to-edge imaging
- Optimized for brightfield microscopy with high transmission coatings
Applications
- Brightfield microscopy
- Routine laboratory imaging
- Pathology and histology
- Biological and clinical research
- Educational use
Specifications
| Specification | Details |
|---|---|
| Magnification | 20x |
| Numerical Aperture (NA) | 0.45 |
| Working Distance | ~2.0 mm |
| Immersion Medium | Air (Dry) |
| Cover Glass Thickness | 0.17 mm |
| Optical Correction | Plan Achromatic (Flat Field, High Contrast) |
| Thread Size | RMS (0.8" / 20.32mm diameter, 0.706mm pitch) |
| Parfocal Distance | 45 mm |
| Compatible Microscopes | Zeiss Axioscope, Standard, and other RMS-compatible models |
| Special Features | High contrast and resolution, optimized for brightfield applications |
Additional Details
Additional Details
- Manufacturer: Zeiss
- Model: A-Plan 20x/0.45 RMS Thread Size
- Catalog Number: OBJ-000-206
- Serial Number: N/A
- Condition: Seller Refurbished
