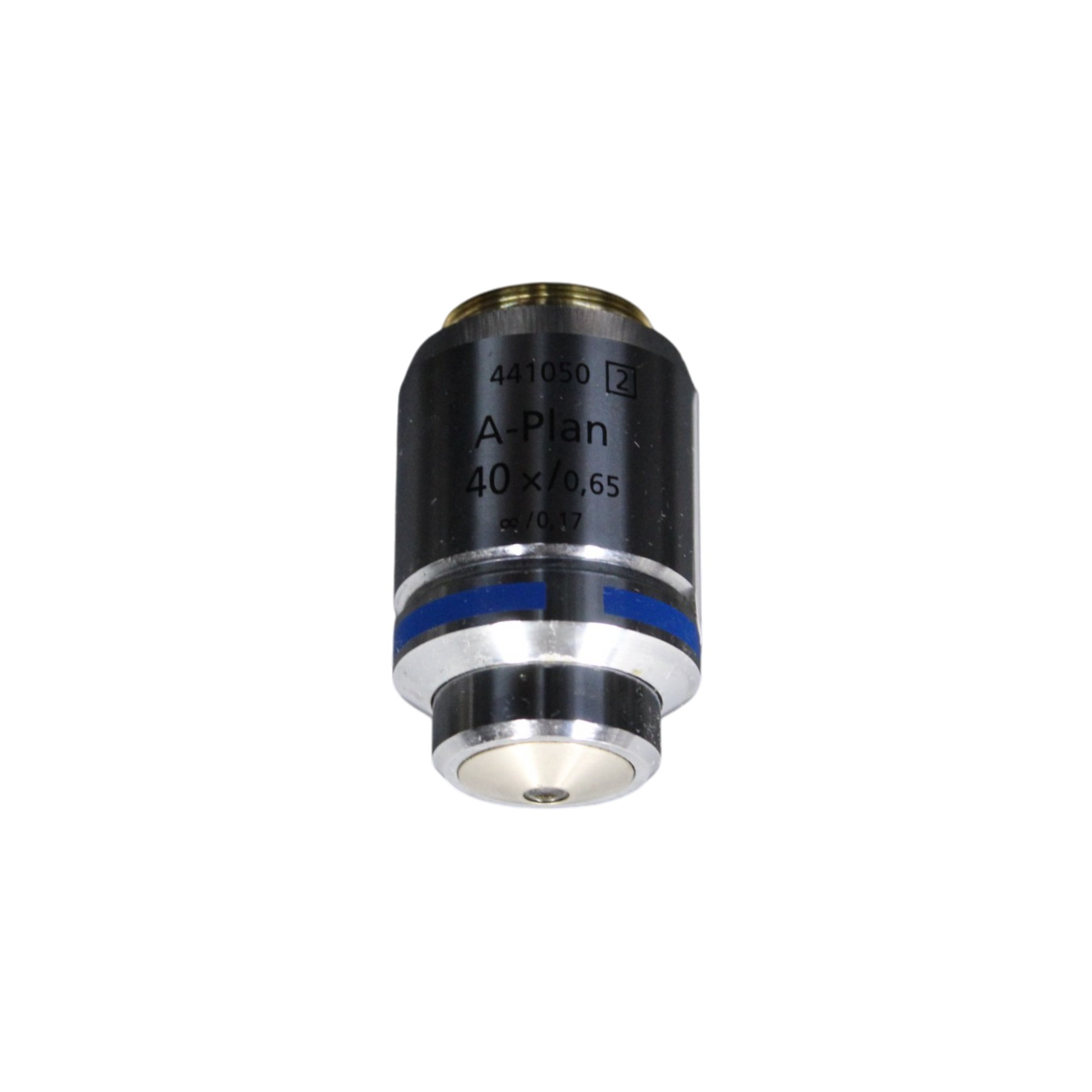

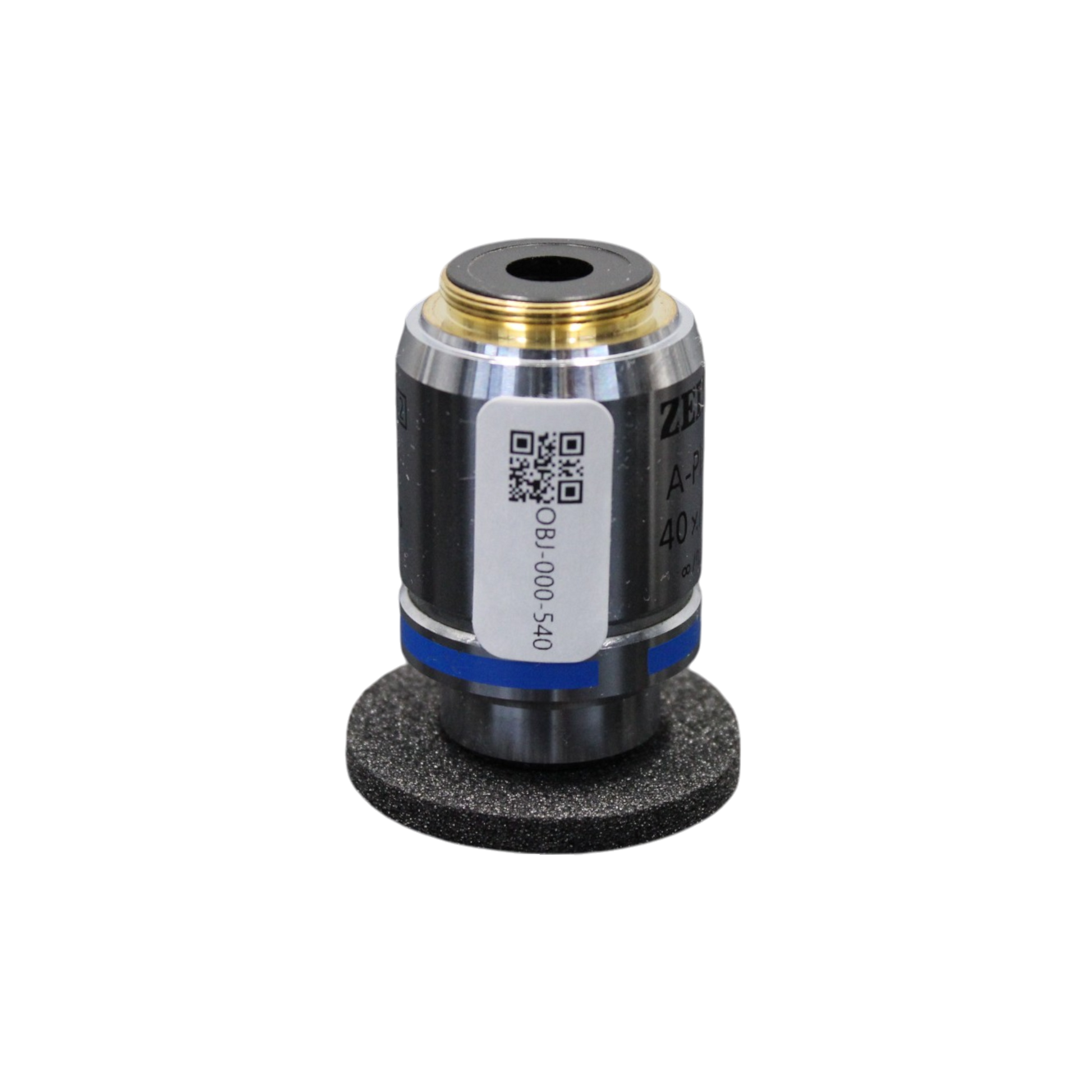

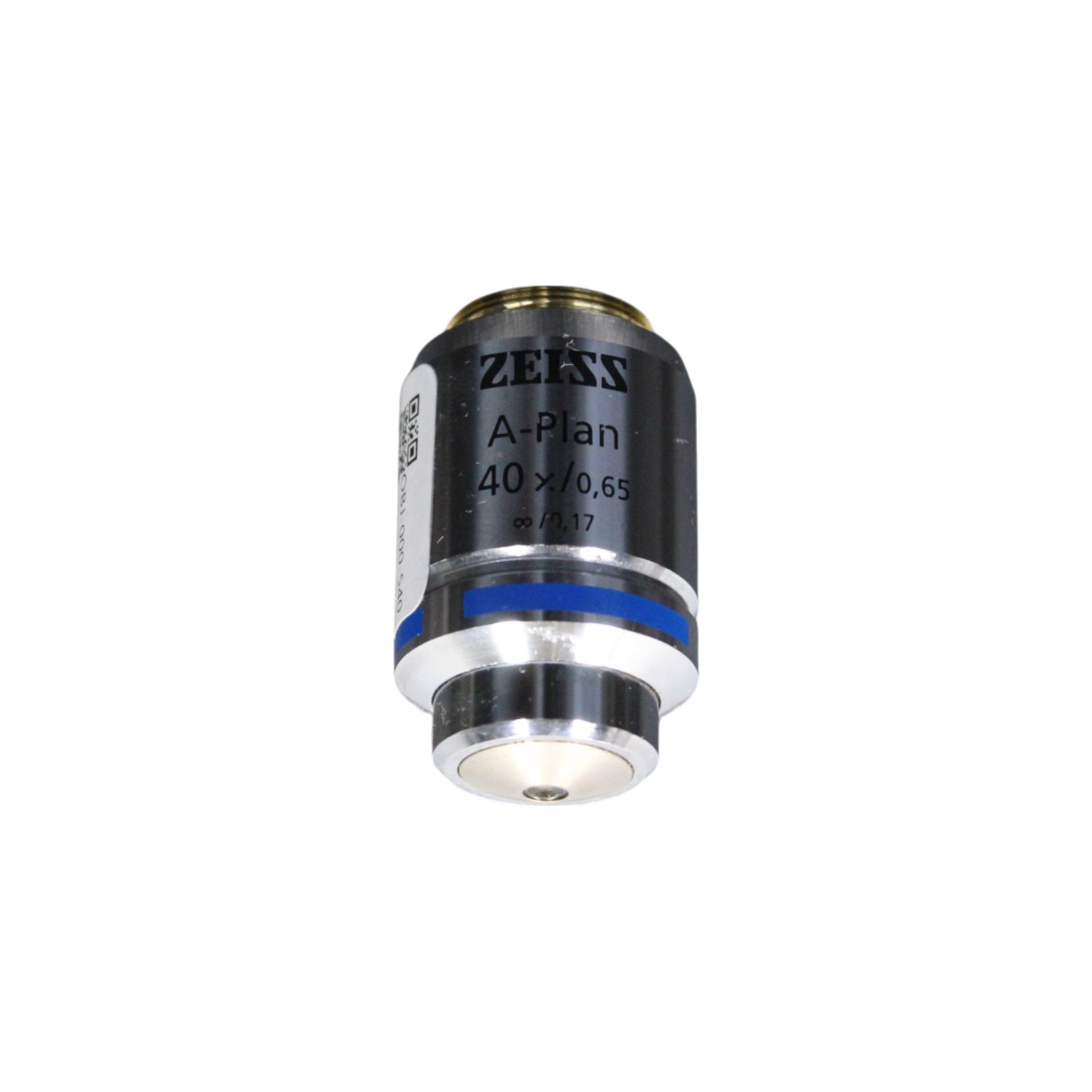

Zeiss A-Plan 40x/0.65 RMS Thread Size Microscope Objective
Zeiss A-Plan 40x/0.65 RMS Thread Size Microscope Objective
Couldn't load pickup availability
- ✓ Tested in house. 30-day warranty
- ✓ Typical delivery in 1 to 3 weeks, depending on parts
- ✓ Prices shown exclude freight, insurance, tariffs and applicable taxes
- ✓ Installation, training and service available from our engineers (quoted separately)
- ✓ SAM.gov registered (CAGE 10ZU5). Purchase orders welcome
- ✓ Leasing and finance companies available
Questions? Call (877) 564-2767 or email sales@coastalmicroscopes.com
Zeiss A-Plan 40x/0.65 RMS Thread Size - 441050(2) (Used)
The Zeiss A-Plan 40x/0.65 is a high-quality objective designed for precise imaging in brightfield applications. With a numerical aperture (NA) of 0.65, this plan achromatic objective delivers excellent resolution and contrast. It features a standard RMS thread size, making it compatible with Zeiss and other standard microscopes.
Condition
Refurbished/Used
(This product has been inspected and verified to meet manufacturer specifications.)
Included Items
- Zeiss A-Plan 40x/0.65 Objective
Key Features
- 40x magnification for detailed imaging
- Plan achromatic optics for superior resolution and contrast
- Numerical aperture (NA) of 0.65 for enhanced light transmission
- RMS thread size for compatibility with Zeiss and other standard microscopes
- Flat field correction for sharp images across the field of view
Applications
- Brightfield microscopy
- Pathology and histology
- Routine laboratory imaging
- Biological and clinical research
Specifications
| Specification | Details |
|---|---|
| Magnification | 40x |
| Numerical Aperture (NA) | 0.65 |
| Working Distance | 0.57 mm |
| Immersion Medium | Air (Dry) |
| Cover Glass Thickness | 0.17 mm |
| Optical Correction | Plan Achromatic (Flat Field, High Contrast) |
| Thread Size | RMS (0.8" / 20.32mm diameter, 0.706mm pitch) |
| Parfocal Distance | 45 mm |
| Compatible Microscopes | Zeiss Standard, Axioscope, and other RMS-compatible models |
| Special Features | Anti-reflective coating for enhanced image clarity |
Additional Details
Additional Details
- Manufacturer: Zeiss
- Model: A-Plan 40x/0.65 RMS Thread Size
- Catalog Number: OBJ-000-540
- Serial Number: N/A
- Condition: Seller Refurbished
