SKU: PRODUCT ID:OBJ-000-208

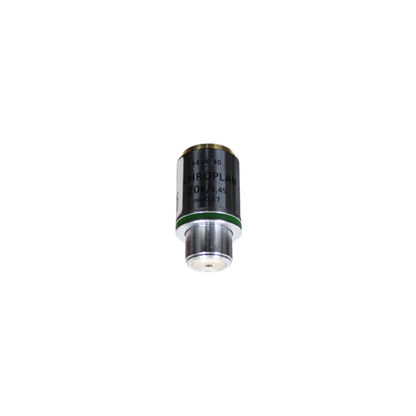

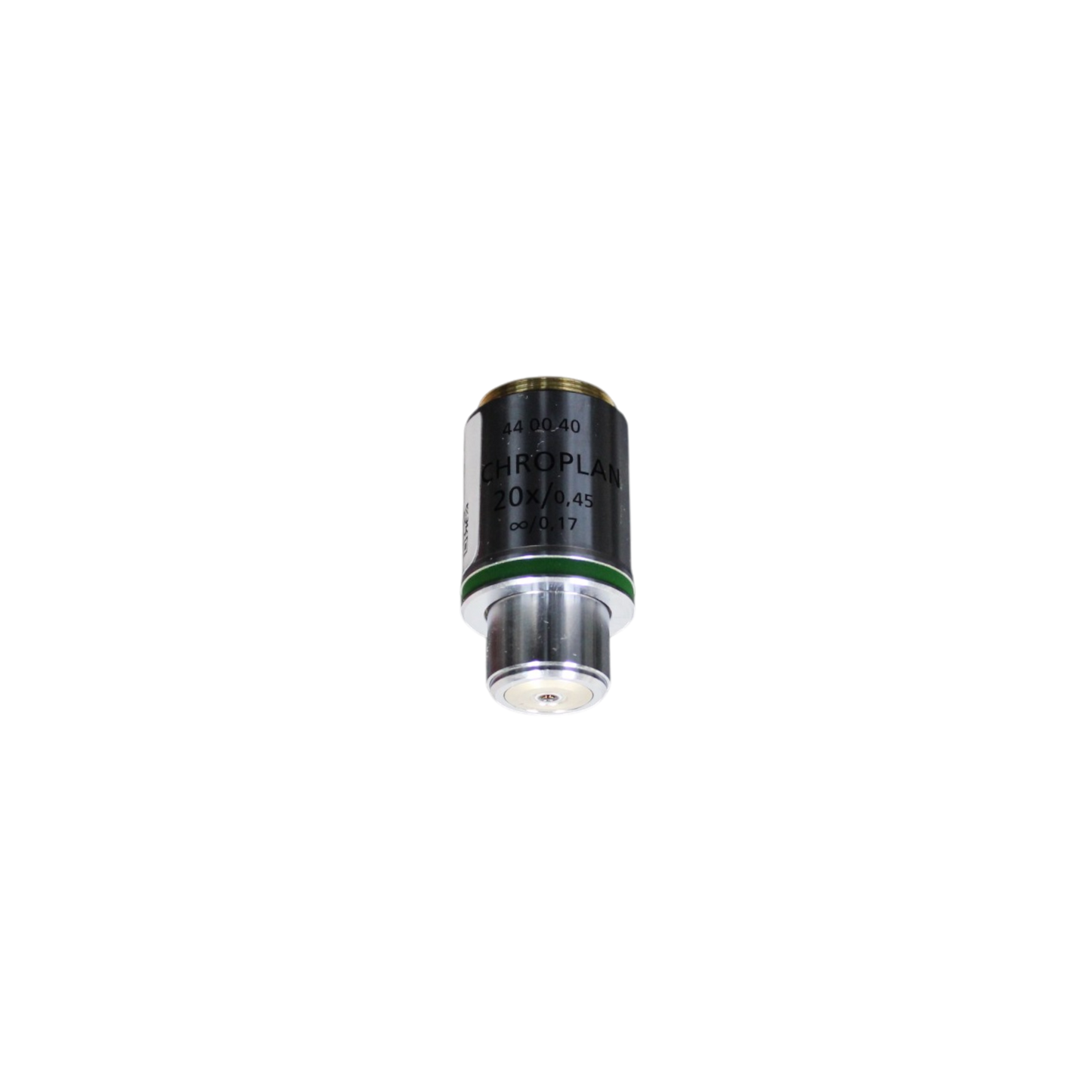

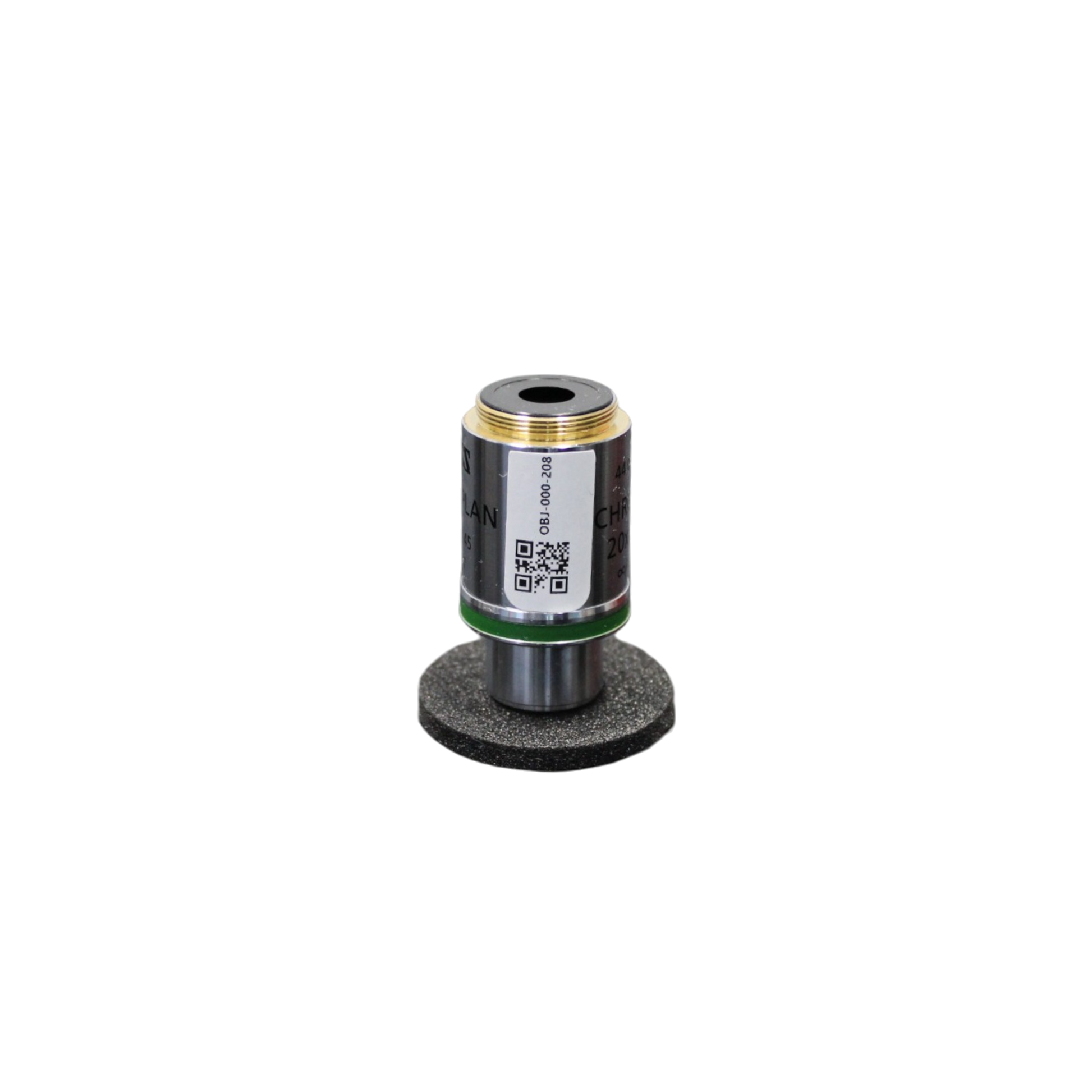

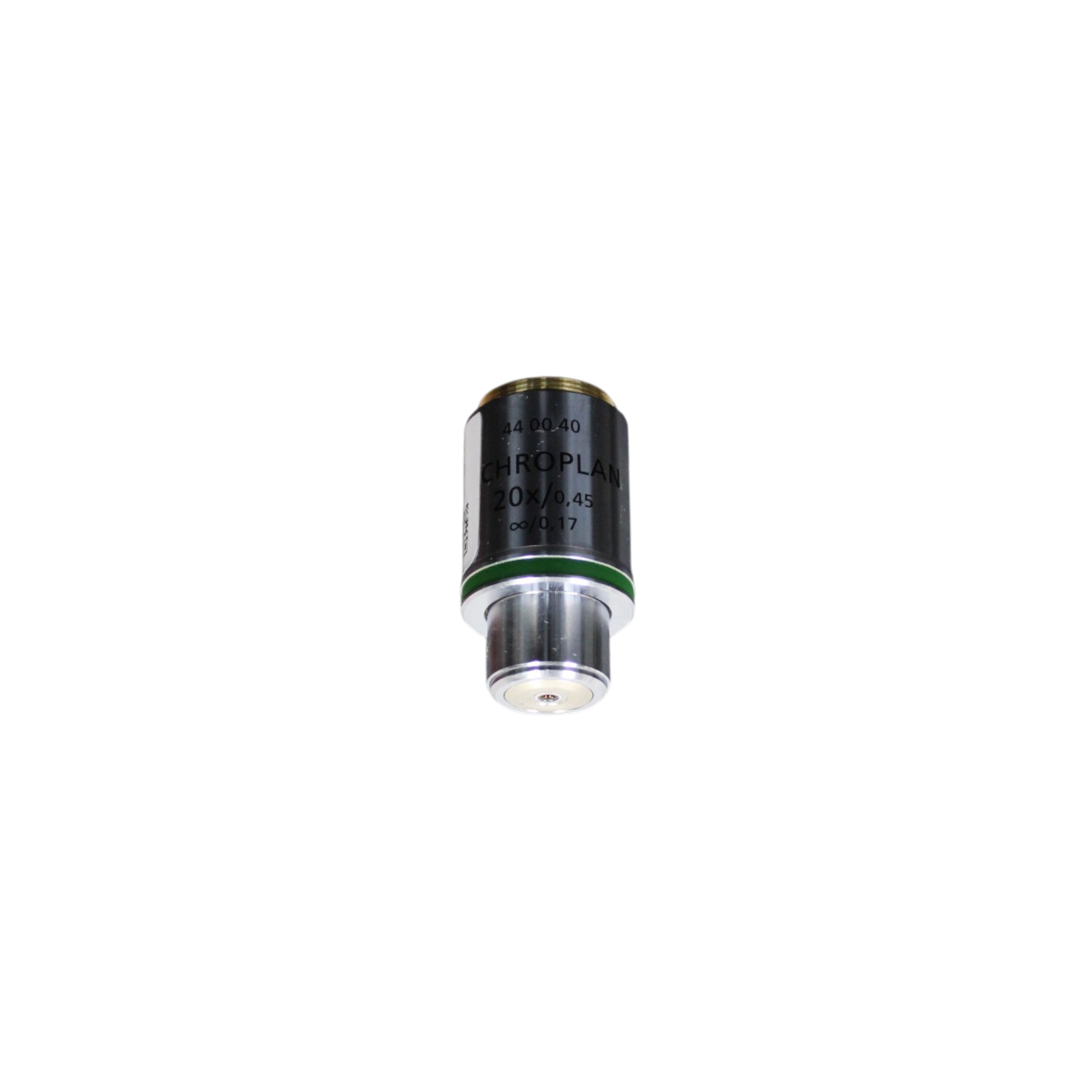

Zeiss Achroplan 20x/0.45 RMS Thread Size Microscope Objective
Zeiss Achroplan 20x/0.45 RMS Thread Size Microscope Objective
Couldn't load pickup availability
- ✓ Tested in house. 30-day warranty
- ✓ Typical delivery in 1 to 3 weeks, depending on parts
- ✓ Prices shown exclude freight, insurance, tariffs and applicable taxes
- ✓ Installation, training and service available from our engineers (quoted separately)
- ✓ SAM.gov registered (CAGE 10ZU5). Purchase orders welcome
- ✓ Leasing and finance companies available
Questions? Call (877) 564-2767 or email sales@coastalmicroscopes.com
Zeiss Achroplan 20x/0.45 RMS Thread Size - 44 00 40 (Used)
The Zeiss Achroplan 20x/0.45 is a high-quality achromatic objective designed for brightfield and fluorescence microscopy. With a numerical aperture (NA) of 0.45, this objective provides excellent contrast, resolution, and field flatness, making it ideal for routine laboratory applications, pathology, and biological research. The RMS thread size ensures compatibility with Zeiss and other RMS-compatible microscopes.
Condition
Refurbished/Used
(This product has been inspected and verified to meet manufacturer specifications.)
Included Items
- Zeiss Achroplan 20x/0.45 Objective
Key Features
- 20x magnification for high-resolution imaging
- Achromatic optics for enhanced color correction and contrast
- Numerical aperture (NA) of 0.45 for improved light transmission
- RMS thread size for compatibility with Zeiss and other standard microscopes
- Flat field correction for sharp, edge-to-edge imaging
- Optimized for fluorescence and brightfield microscopy with high transmission coatings
Applications
- Brightfield microscopy
- Fluorescence microscopy
- Routine laboratory imaging
- Pathology and histology
- Biological and clinical research
- Educational use
Specifications
| Specification | Details |
|---|---|
| Magnification | 20x |
| Numerical Aperture (NA) | 0.45 |
| Working Distance | ~2.1 mm |
| Immersion Medium | Air (Dry) |
| Cover Glass Thickness | 0.17 mm |
| Optical Correction | Achromatic (Flat Field, High Contrast) |
| Thread Size | RMS (0.8" / 20.32mm diameter, 0.706mm pitch) |
| Parfocal Distance | 45 mm |
| Compatible Microscopes | Zeiss Axioscope, Standard, and other RMS-compatible models |
| Special Features | Excellent color correction, optimized for brightfield and fluorescence applications |
Additional Details
Additional Details
- Manufacturer: Zeiss
- Model: Achroplan 20x/0.45 RMS Thread Size
- Catalog Number: OBJ-000-208
- Serial Number: N/A
- Condition: Seller Refurbished
