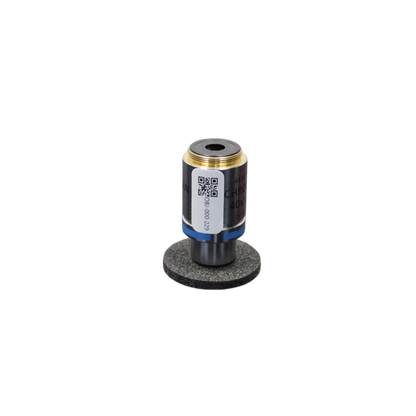

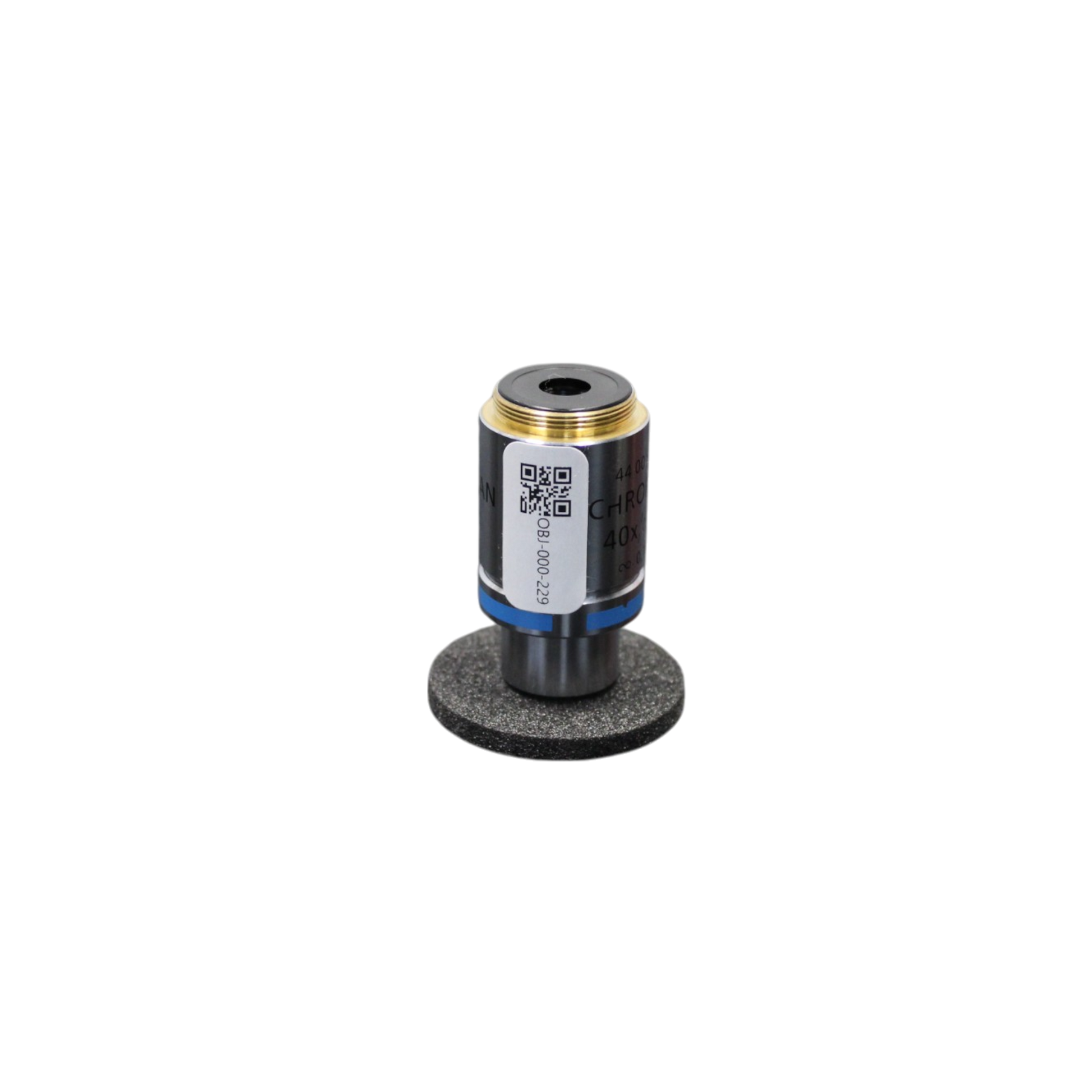

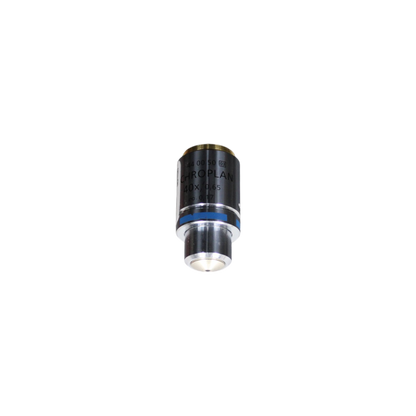

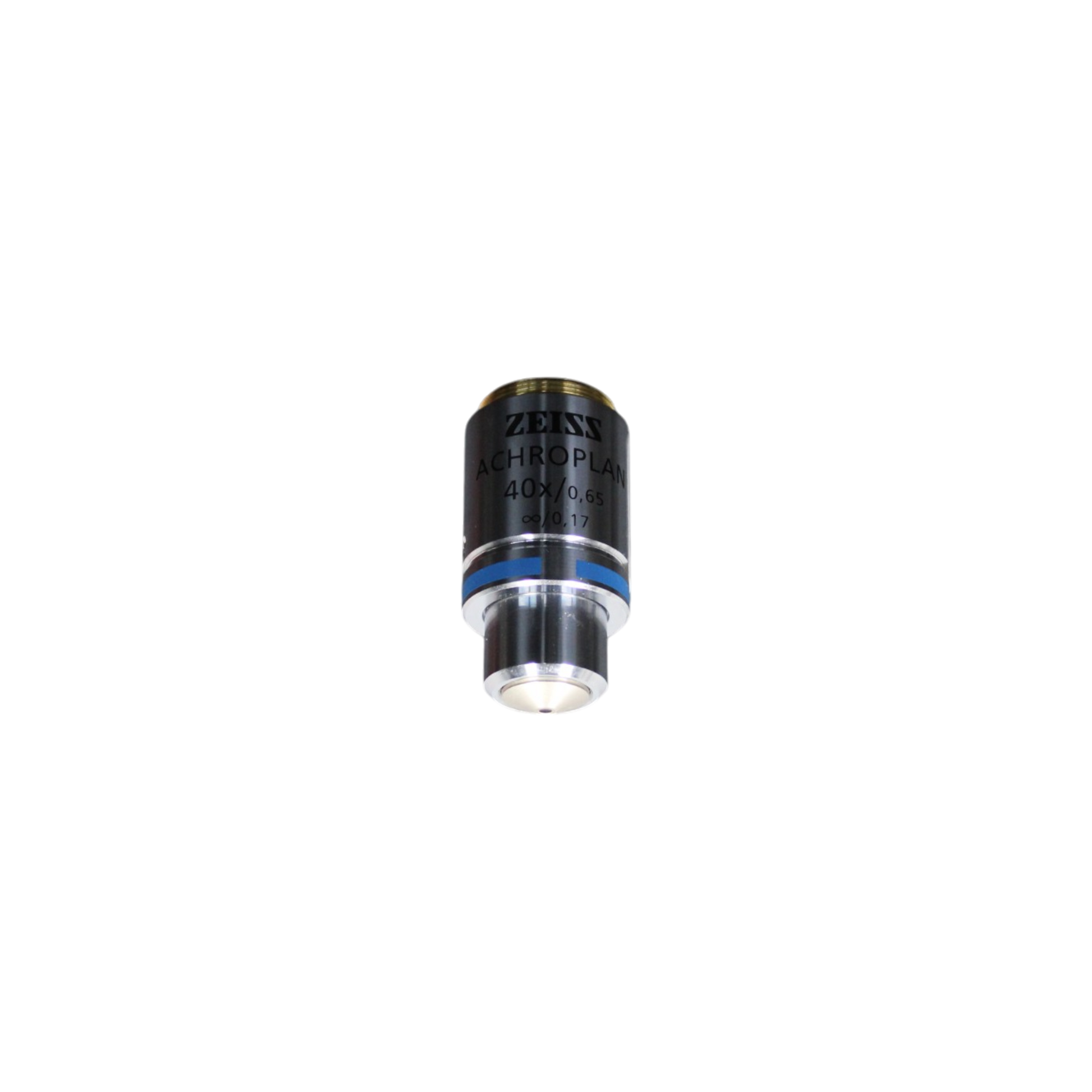

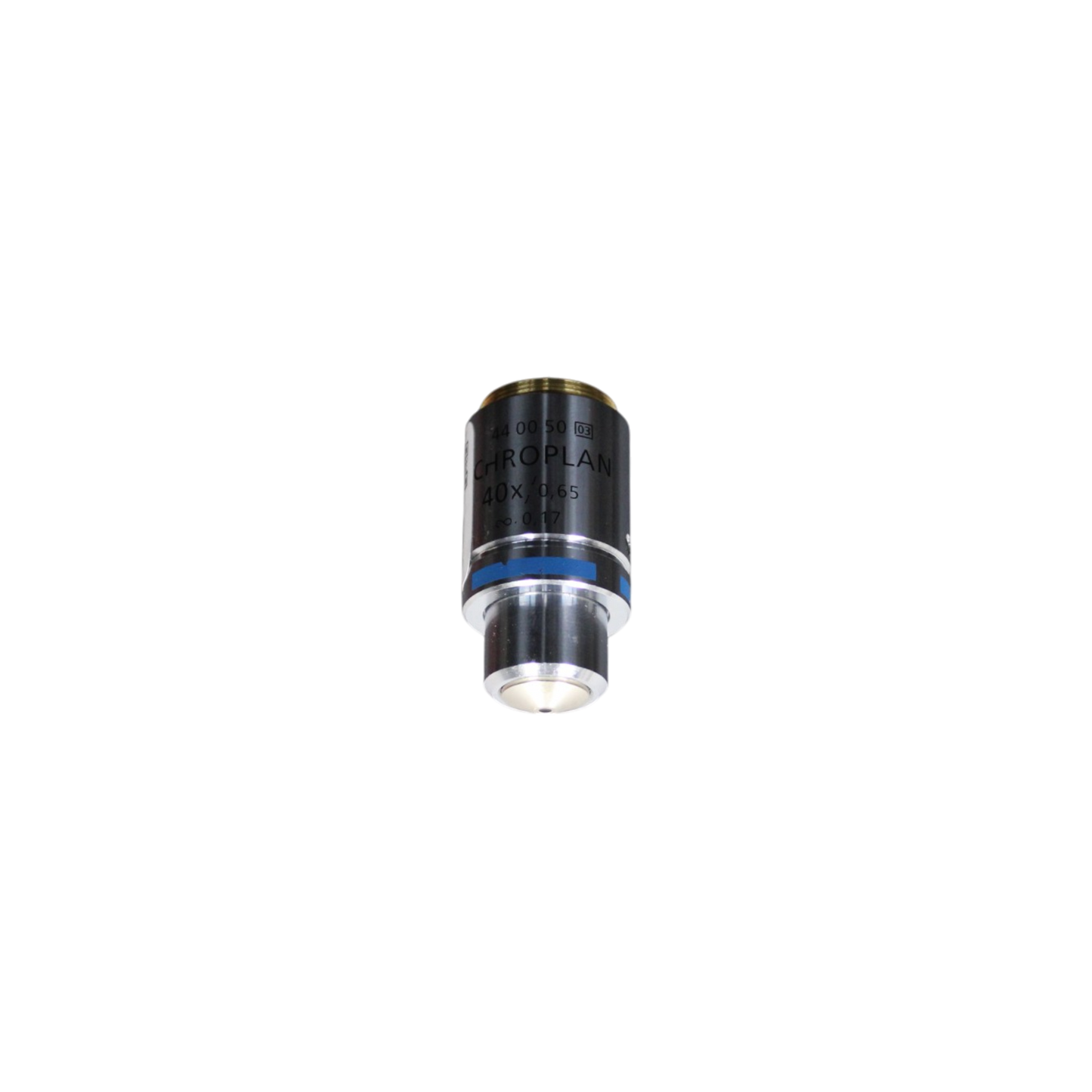

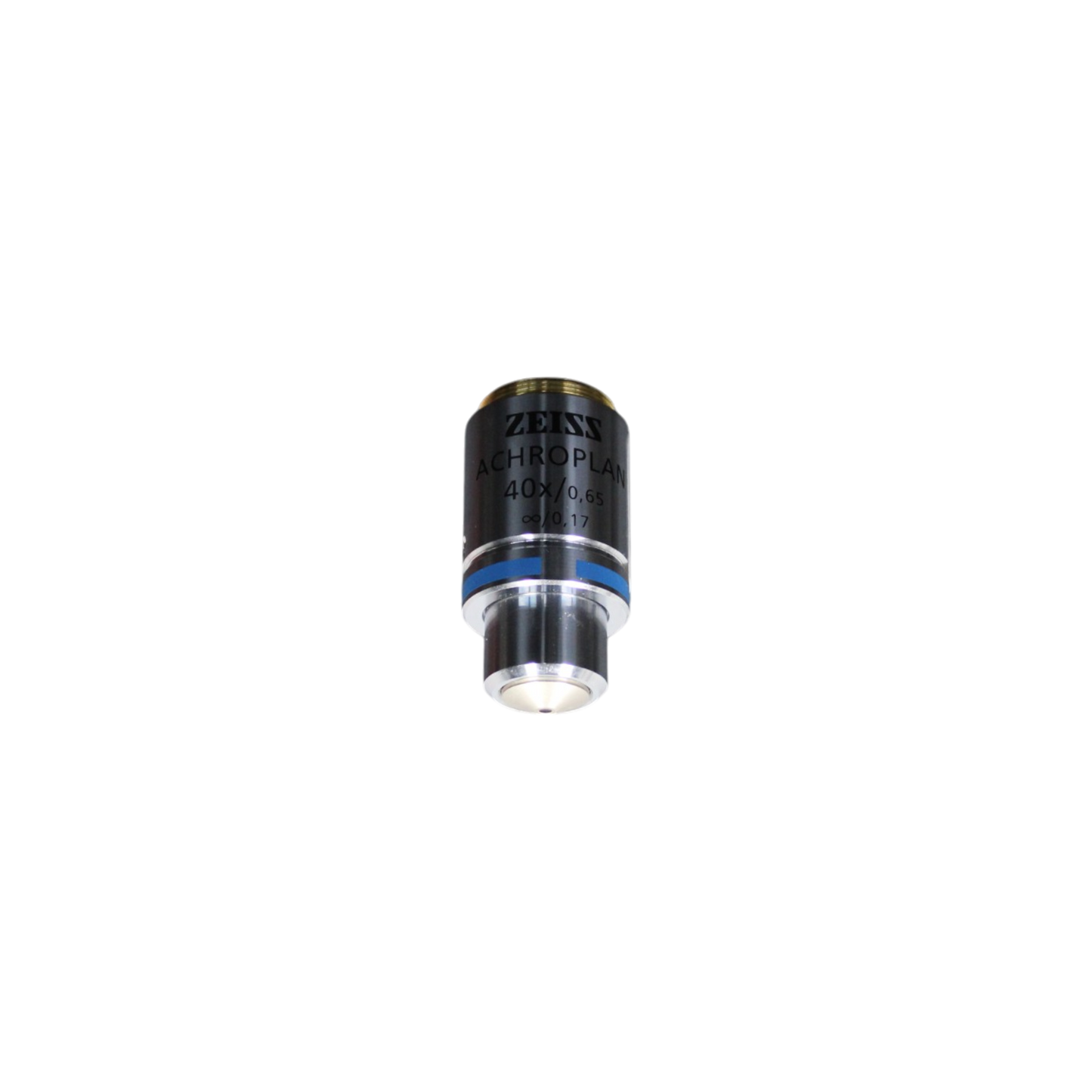

Zeiss Achroplan 40x/0.65 RMS Thread Size Microscope Objective
Zeiss Achroplan 40x/0.65 RMS Thread Size Microscope Objective
Couldn't load pickup availability
- ✓ Tested in house. 30-day warranty
- ✓ Typical delivery in 1 to 3 weeks, depending on parts
- ✓ Prices shown exclude freight, insurance, tariffs and applicable taxes
- ✓ Installation, training and service available from our engineers (quoted separately)
- ✓ SAM.gov registered (CAGE 10ZU5). Purchase orders welcome
- ✓ Leasing and finance companies available
Questions? Call (877) 564-2767 or email sales@coastalmicroscopes.com
Zeiss Achroplan 40x/0.65 RMS Thread Size - 44 00 50
The Zeiss Achroplan 40x/0.65 is a high-quality achromatic objective designed for brightfield and routine laboratory microscopy. With a numerical aperture (NA) of 0.65, this objective delivers excellent resolution and contrast while maintaining color correction across the visible spectrum. The RMS thread size ensures compatibility with Zeiss and other standard microscopes.
Condition
Refurbished/Used
(This product has been inspected and verified to meet manufacturer specifications.)
Included Items
- Zeiss Achroplan 40x/0.65 Objective
Key Features
- 40x magnification for detailed imaging
- Achromat optics for color-corrected, high-contrast images
- Numerical aperture (NA) of 0.65 for enhanced light transmission
- RMS thread size for compatibility with Zeiss and other standard microscopes
- Flat field correction for sharp images across the entire field of view
- Optimized for brightfield microscopy
Applications
- Brightfield microscopy
- Routine laboratory imaging
- Biological and clinical research
- Pathology and histology
Specifications
| Specification | Details |
|---|---|
| Magnification | 40x |
| Numerical Aperture (NA) | 0.65 |
| Working Distance | 0.57 mm |
| Immersion Medium | Air (Dry) |
| Cover Glass Thickness | 0.17 mm |
| Optical Correction | Achromat (Flat Field, Color-Corrected) |
| Thread Size | RMS (0.8" / 20.32mm diameter, 0.706mm pitch) |
| Parfocal Distance | 45 mm |
| Compatible Microscopes | Zeiss Axioscope, Standard, and other RMS-compatible models |
| Special Features | High-quality achromat design for routine microscopy applications |
Additional Details
Additional Details
- Manufacturer: Zeiss
- Model: Achroplan 40x/0.65 RMS Thread Size
- Catalog Number: OBJ-000-229
- Serial Number: N/A
- Condition: Seller Refurbished
