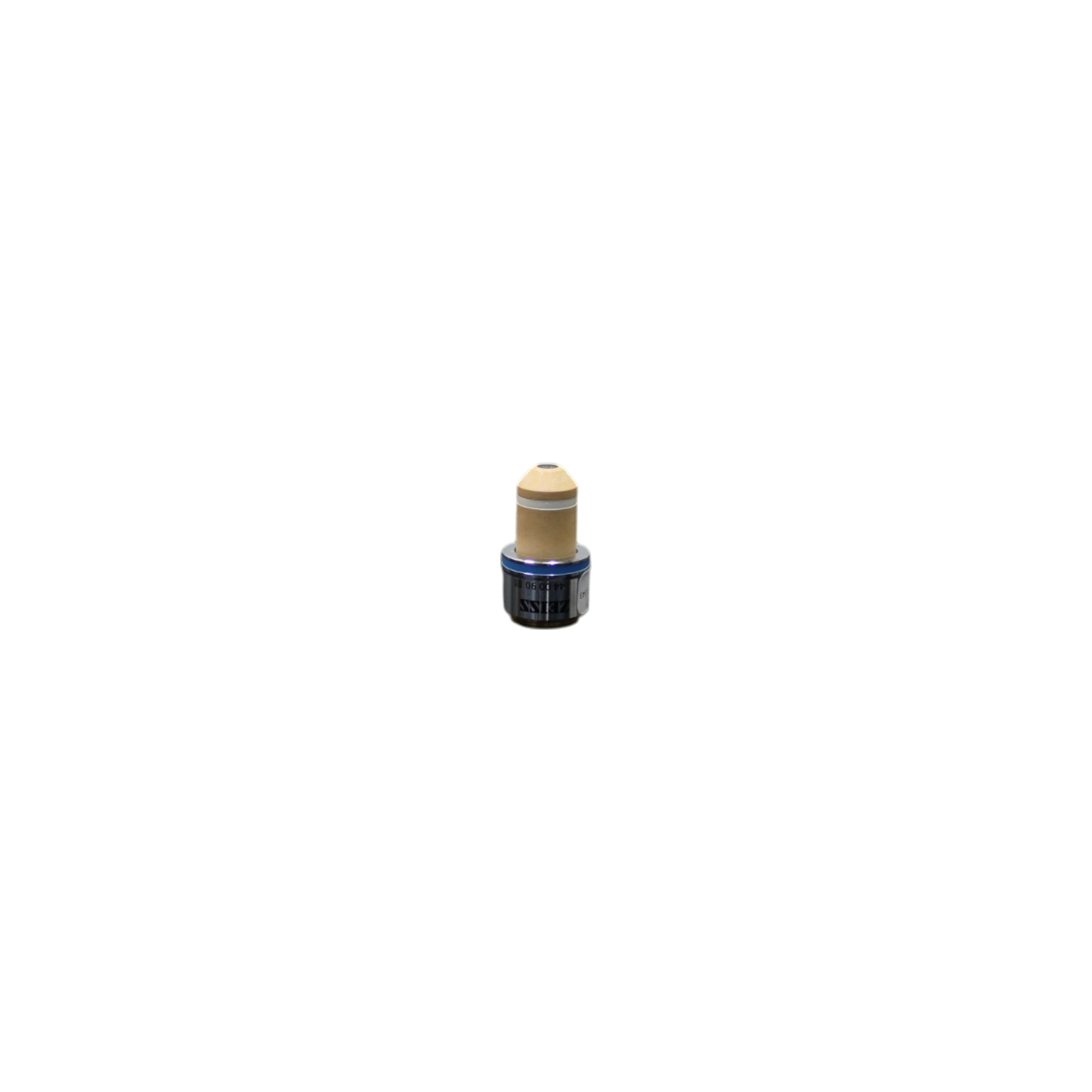

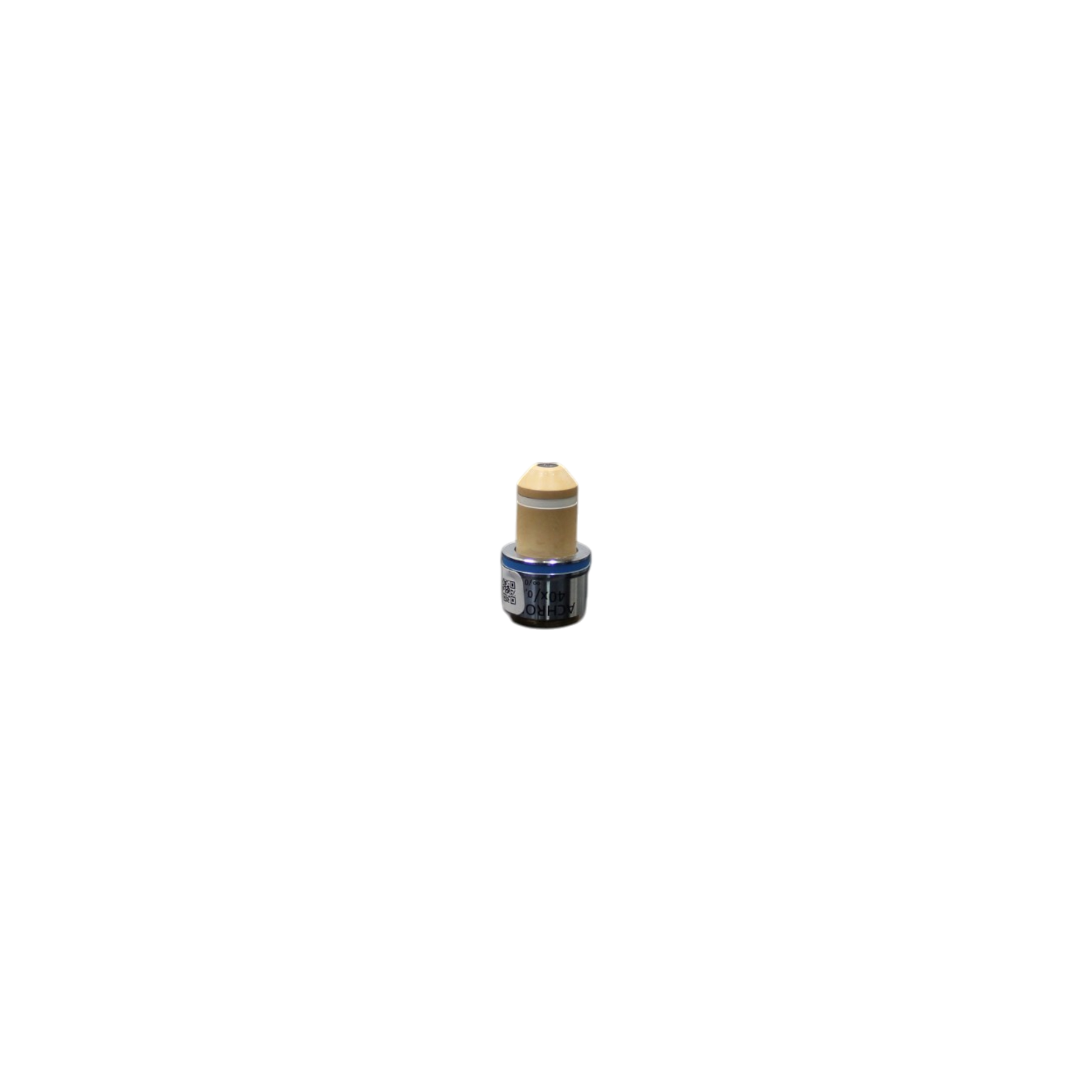

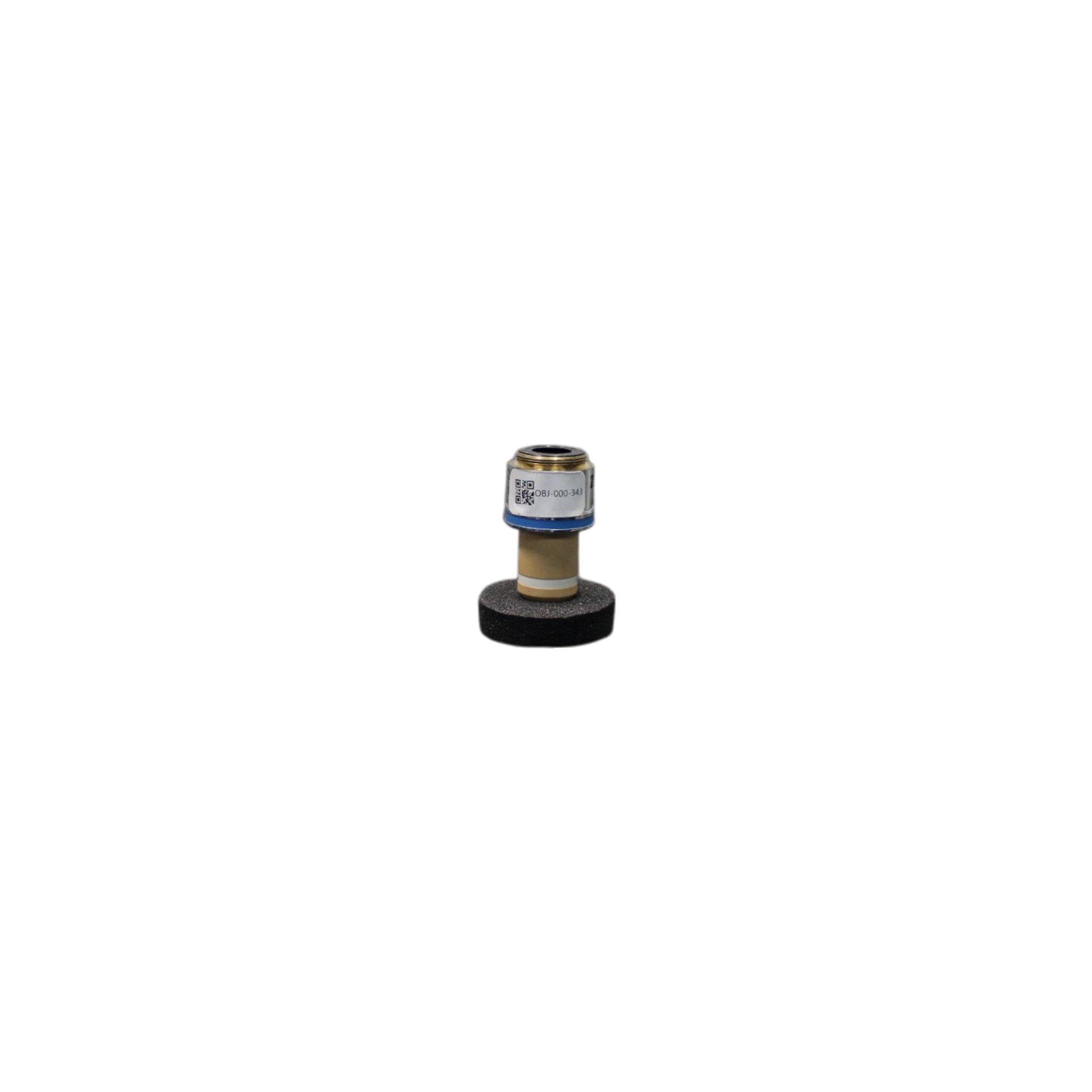

Zeiss Achroplan 40x/0.8 Water RMS Thread Size Microscope Objective
Zeiss Achroplan 40x/0.8 Water RMS Thread Size Microscope Objective
Couldn't load pickup availability
- ✓ Tested in house. 30-day warranty
- ✓ Typical delivery in 1 to 3 weeks, depending on parts
- ✓ Prices shown exclude freight, insurance, tariffs and applicable taxes
- ✓ Installation, training and service available from our engineers (quoted separately)
- ✓ SAM.gov registered (CAGE 10ZU5). Purchase orders welcome
- ✓ Leasing and finance companies available
Questions? Call (877) 564-2767 or email sales@coastalmicroscopes.com
Zeiss Achroplan 40x/0.8 Water RMS Thread Size
The Zeiss Achroplan 40x/0.8 is a high-performance water immersion objective designed for brightfield and fluorescence microscopy. With a numerical aperture (NA) of 0.8, this objective provides excellent resolution and contrast while minimizing spherical aberration. The RMS thread size ensures compatibility with Zeiss and other standard research-grade microscopes.
Condition
Refurbished/Used
(This product has been inspected and verified to meet manufacturer specifications.)
Included Items
- Zeiss Achroplan 40x/0.8 Water Objective
Key Features
- 40x magnification for detailed imaging
- Achromat optics for color-corrected, high-contrast images
- Numerical aperture (NA) of 0.8 for enhanced light-gathering ability
- Water immersion design for improved resolution and reduced aberrations
- RMS thread size for compatibility with Zeiss and other standard microscopes
- Flat field correction for sharp images across the entire field of view
Applications
- Fluorescence microscopy
- Brightfield microscopy
- Live-cell imaging
- Neuroscience and biological research
- Pathology and histology
Specifications
| Specification | Details |
|---|---|
| Magnification | 40x |
| Numerical Aperture (NA) | 0.8 |
| Working Distance | 0.58 mm |
| Immersion Medium | Water |
| Cover Glass Thickness | 0.17 mm |
| Optical Correction | Achromat (Flat Field, Color-Corrected) |
| Thread Size | RMS (0.8" / 20.32mm diameter, 0.706mm pitch) |
| Parfocal Distance | 45 mm |
| Compatible Microscopes | Zeiss Axioscope, Standard, and other RMS-compatible models |
| Special Features | Water immersion for high-resolution imaging with minimal aberrations |
Additional Details
Additional Details
- Manufacturer: Zeiss
- Model: Achroplan 40x/0.8 Water RMS Thread Size
- Catalog Number: OBJ-000-343
- Serial Number: N/A
- Condition: Seller Refurbished
