Zeiss DIC slider EC PN and Fluar 40x/1.30 III, PA 40x/0.95 III DIC Slider

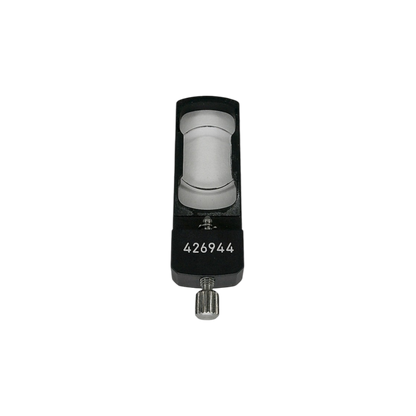

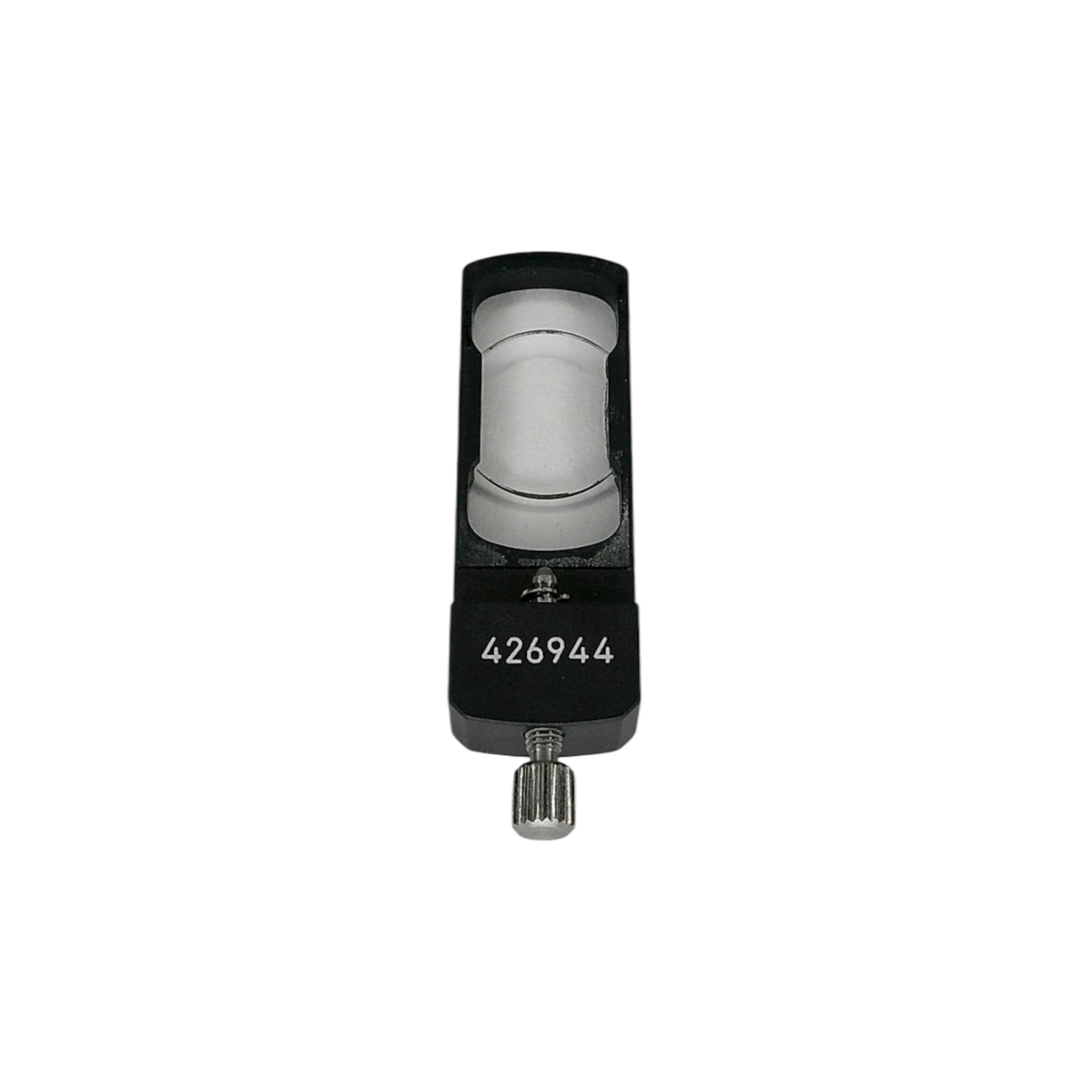

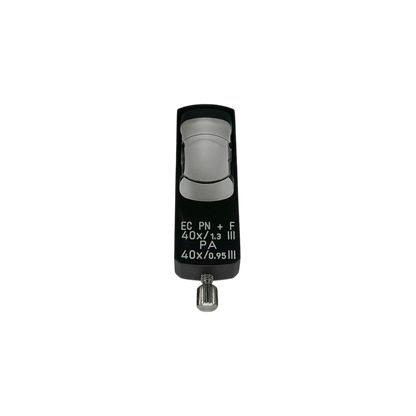

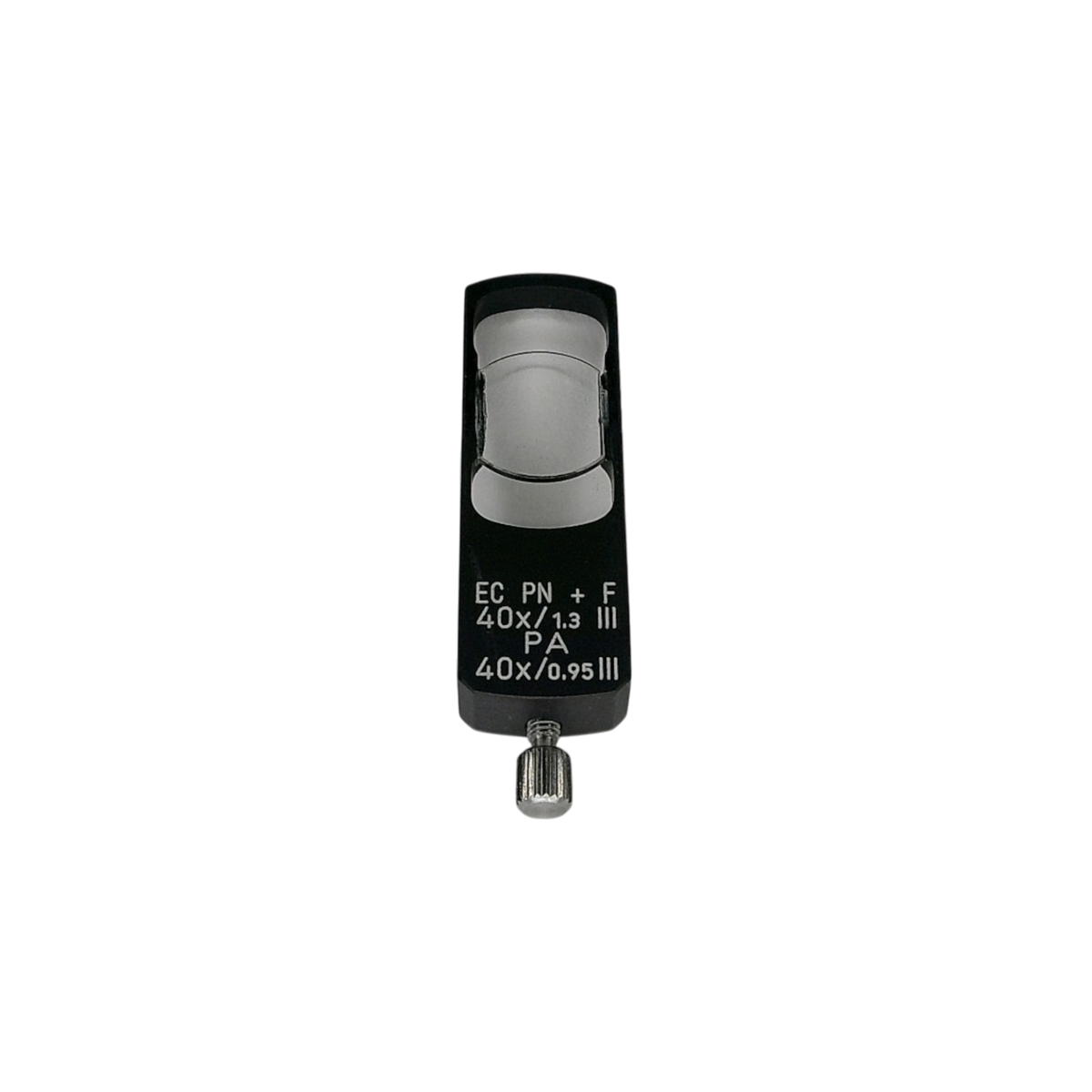

Zeiss DIC Slider EC PN and Fluar 40x/1.30 III, PA 40x/0.95 III (426944-0000-000)

The Zeiss 426944 DIC slider is the objective-side Wollaston/Nomarski prism for high-NA 40x differential interference contrast imaging. It matches the EC Plan-Neofluar 40x/1.30 Oil, Fluar 40x/1.30 Oil, and Plan-Apochromat 40x/0.95 objectives, and it pairs with a condenser DIC prism III to give crisp, three-dimensional-looking relief contrast of unstained live cells and thin specimens.

Condition: Refurbished/Used (This product has been inspected and verified to meet manufacturer specifications)

Key Features

• Genuine Zeiss objective DIC prism slider, catalog number 426944-0000-000
• Matched to three 40x objectives: EC Plan-Neofluar 40x/1.30 Oil, Fluar 40x/1.30 Oil, and Plan-Apochromat 40x/0.95
• Uses condenser prism position III
• Slides directly into the DIC slot above the objective on the nosepiece
• Easy to combine DIC with fluorescence on the same field of view
• A lower-cost alternative to buying new from Zeiss

Applications

• Live-cell imaging and cell morphology
• Pairing DIC with fluorescence on the same sample
• Neuroscience, developmental biology, and cell biology research
• Histology, cytology, and imaging of unstained transparent specimens
• Checking cultured cells, tissue sections, and small organisms
• Transmitted-light DIC channel on LSM confocal systems built on Axio Imager stands

Specifications
