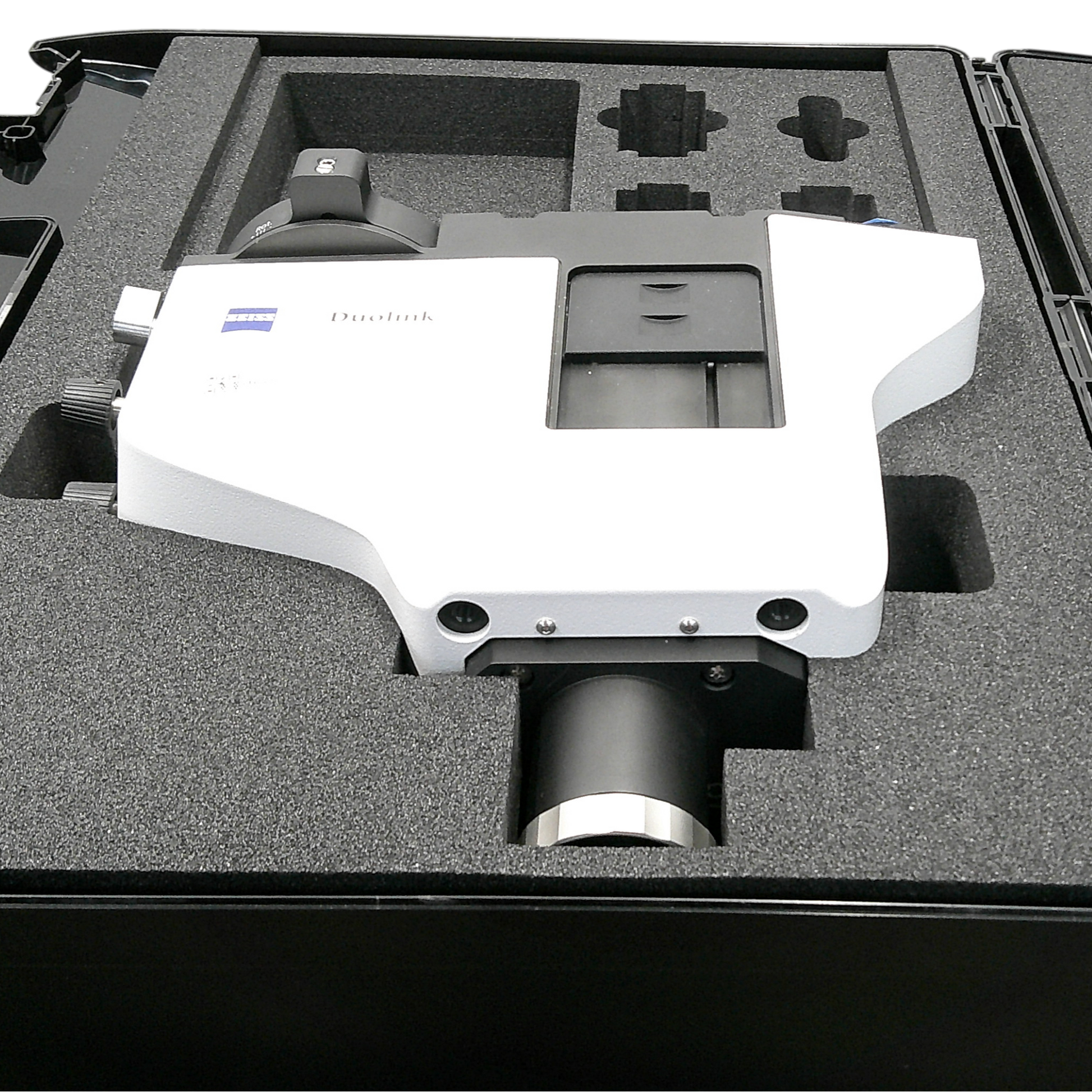

Zeiss Double Adapter Duolink 60N - 2x 60N Man Microscope Camera Adapter

Zeiss Double Adapter Duolink 60N – 2x 60N Manual | 426143-9000-000

The Zeiss Duolink 60N Double Adapter enables dual-camera mounting for simultaneous imaging applications. Designed with two parallel 60N interfaces, it supports precise optical alignment for dual-output setups such as fluorescence plus brightfield capture or simultaneous dual-channel detection. This robust, modular adapter is ideal for advanced microscopy configurations requiring flexible optical routing and mechanical precision.

Condition

Refurbished/Used (This product has been inspected and verified to meet manufacturer specifications)

Key Features

• Dual 60N ports arranged in parallel for two-camera setups
• Horizontal or vertical mounting orientation
• Manual light-path switching via integrated filter module (100% mirror included)
• Adjustable camera exit 2 (x/y: ±1.3 mm, z: +2/-13 mm, rotation: ±3°)
• Calibration slide and Bertrand optics slider for TIRF alignment included
• Supports high-precision alignment and image field consistency between cameras
• Optional laser safety support via compatible safety kit
• Stable construction with height-adjustable supports
• Supports up to 5 kg per camera port

Applications

• Simultaneous multi-channel fluorescence and transmitted light capture
• TIRF and high-resolution dual-camera workflows
• Dual-camera photometry or imaging-based quantitation
• Research setups requiring beam-splitting or optical redirection
