SKU: PRODUCT ID:11982i
Zeiss EC Plan-Neofluar 2.5x/0.085 M27 Thread Size Microscope Objective
Zeiss EC Plan-Neofluar 2.5x/0.085 M27 Thread Size Microscope Objective
Couldn't load pickup availability
- ✓ Tested in house. 30-day warranty
- ✓ Typical delivery in 1 to 3 weeks, depending on parts
- ✓ Prices shown exclude freight, insurance, tariffs and applicable taxes
- ✓ Installation, training and service available from our engineers (quoted separately)
- ✓ SAM.gov registered (CAGE 10ZU5). Purchase orders welcome
- ✓ Leasing and finance companies available
Questions? Call (877) 564-2767 or email sales@coastalmicroscopes.com

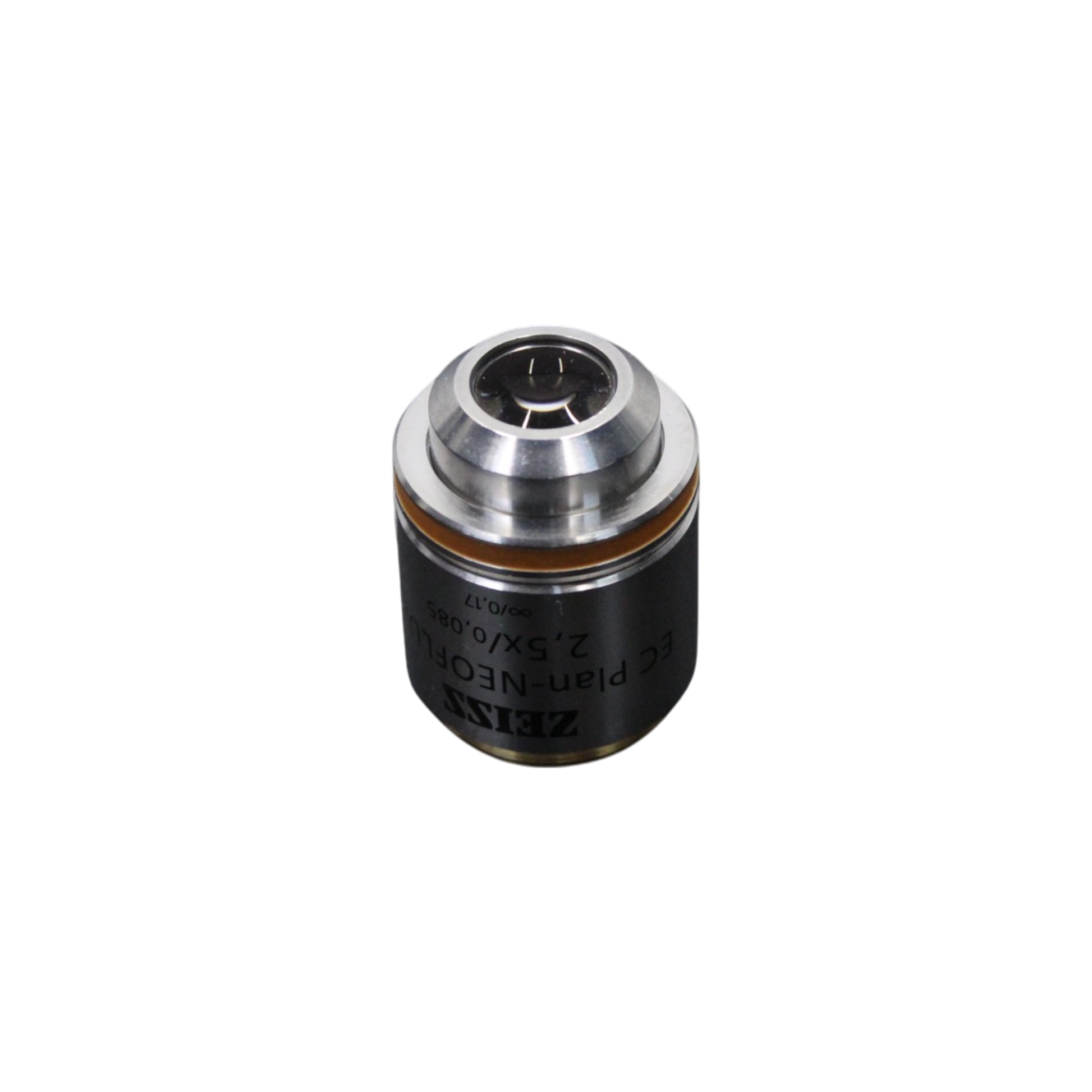

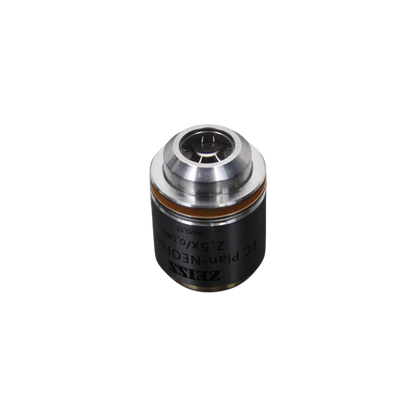

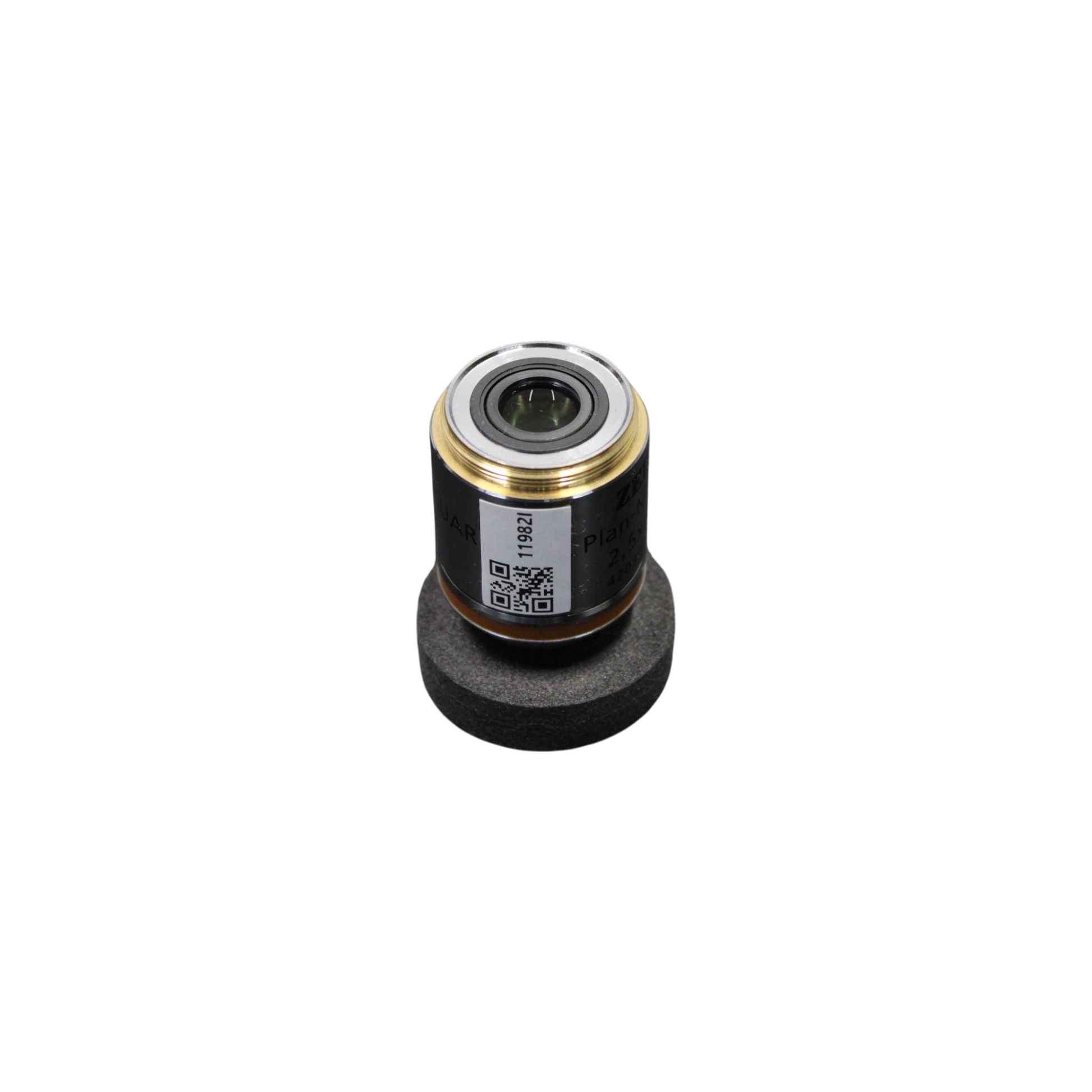

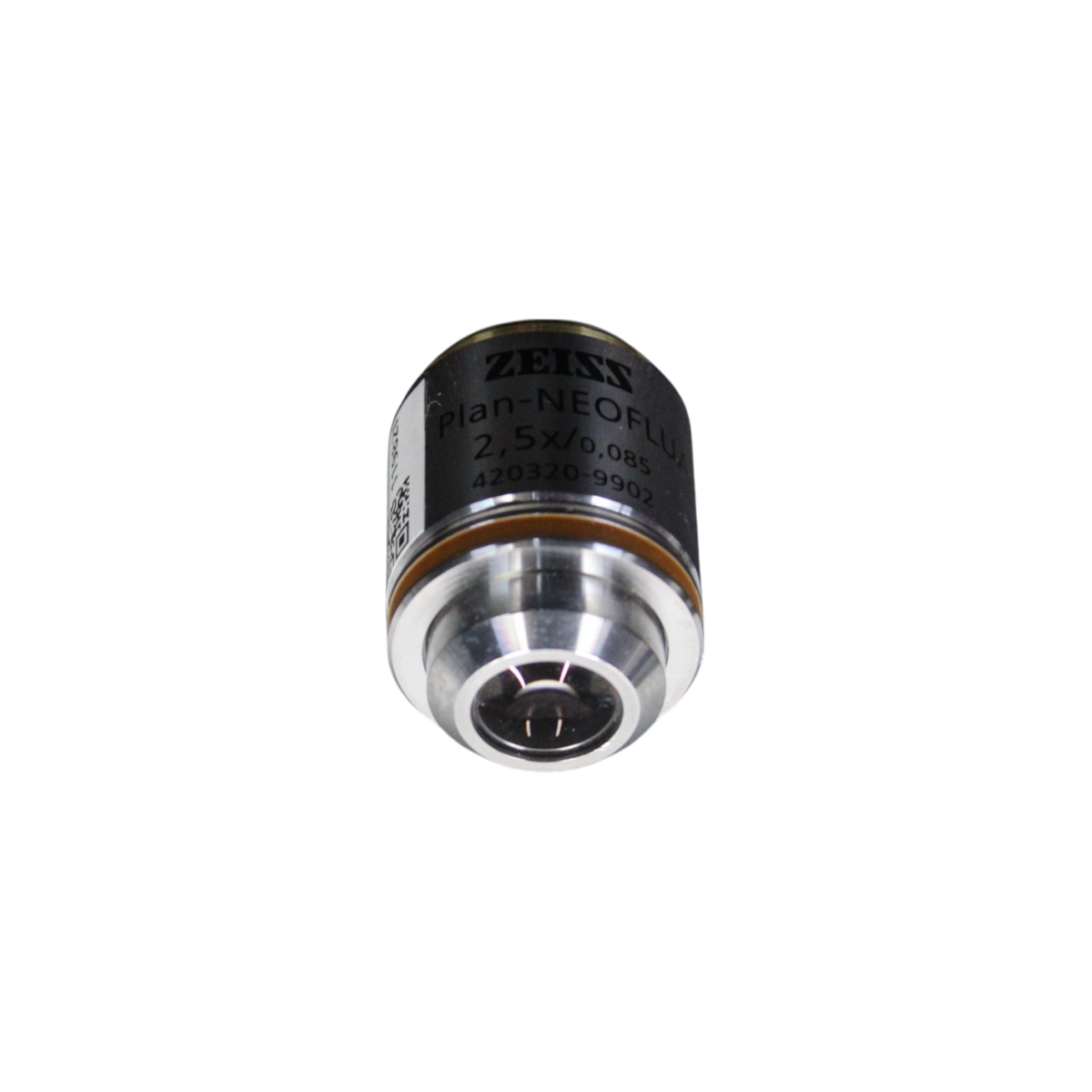

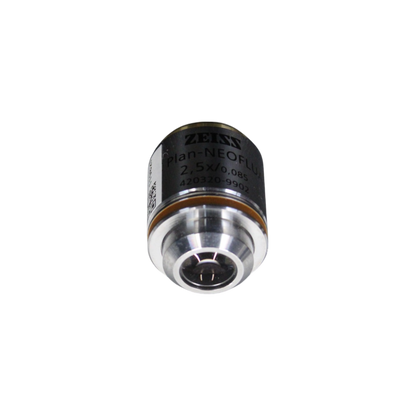

Zeiss EC Plan-Neofluar 2.5x/0.085 M27 Thread Size - 420320-9902 (Used)
The Zeiss EC Plan-Neofluar 2.5x/0.085 is a high-quality plan semi-apochromatic low-magnification objective designed for brightfield and fluorescence microscopy. With a numerical aperture (NA) of 0.085, this objective provides excellent contrast, flat-field correction, and enhanced chromatic aberration correction. The M27 thread size ensures compatibility with Zeiss Axio series and other M27-compatible microscopes.
Condition
Refurbished/Used
(This product has been inspected and verified to meet manufacturer specifications.)
Included Items
- Zeiss EC Plan-Neofluar 2.5x/0.085 Objective
Key Features
- 2.5x magnification for wide-field, low-magnification imaging
- EC Plan-Neofluar optics for superior color correction and contrast
- Numerical aperture (NA) of 0.085 for enhanced light transmission
- M27 thread size for compatibility with Zeiss Axio series microscopes
- Flat field correction for sharp, edge-to-edge imaging
- Optimized for fluorescence microscopy with high transmission coatings
Applications
- Brightfield microscopy
- Fluorescence microscopy
- Whole-slide imaging
- Low-magnification tissue and pathology imaging
- Live-cell imaging
Specifications
| Specification | Details |
|---|---|
| Magnification | 2.5x |
| Numerical Aperture (NA) | 0.085 |
| Working Distance | ~8.5 mm |
| Immersion Medium | Air (Dry) |
| Cover Glass Thickness | 0.17 mm |
| Optical Correction | EC Plan-Neofluar (Flat Field, High Contrast, Semi-Apochromatic) |
| Thread Size | M27 (27mm thread diameter) |
| Parfocal Distance | 45 mm |
| Compatible Microscopes | Zeiss Axio series and other M27-compatible models |
| Special Features | Low-magnification, apochromatic design for high-precision imaging in brightfield and fluorescence applications |
Additional Details
Additional Details
- Manufacturer: Zeiss
- Model: EC Plan-Neofluar 2.5x/0.085 M27 Thread Size
- Catalog Number: 11982i
- Serial Number: N/A
- Condition: Seller Refurbished
