SKU: PRODUCT ID:51573e
Zeiss EC Plan-Neofluar 20x/0.50 Pol M27 Thread Size Microscope Objective
Zeiss EC Plan-Neofluar 20x/0.50 Pol M27 Thread Size Microscope Objective
Couldn't load pickup availability
- ✓ Tested in house. 30-day warranty
- ✓ Typical delivery in 1 to 3 weeks, depending on parts
- ✓ Prices shown exclude freight, insurance, tariffs and applicable taxes
- ✓ Installation, training and service available from our engineers (quoted separately)
- ✓ SAM.gov registered (CAGE 10ZU5). Purchase orders welcome
- ✓ Leasing and finance companies available
Questions? Call (877) 564-2767 or email sales@coastalmicroscopes.com

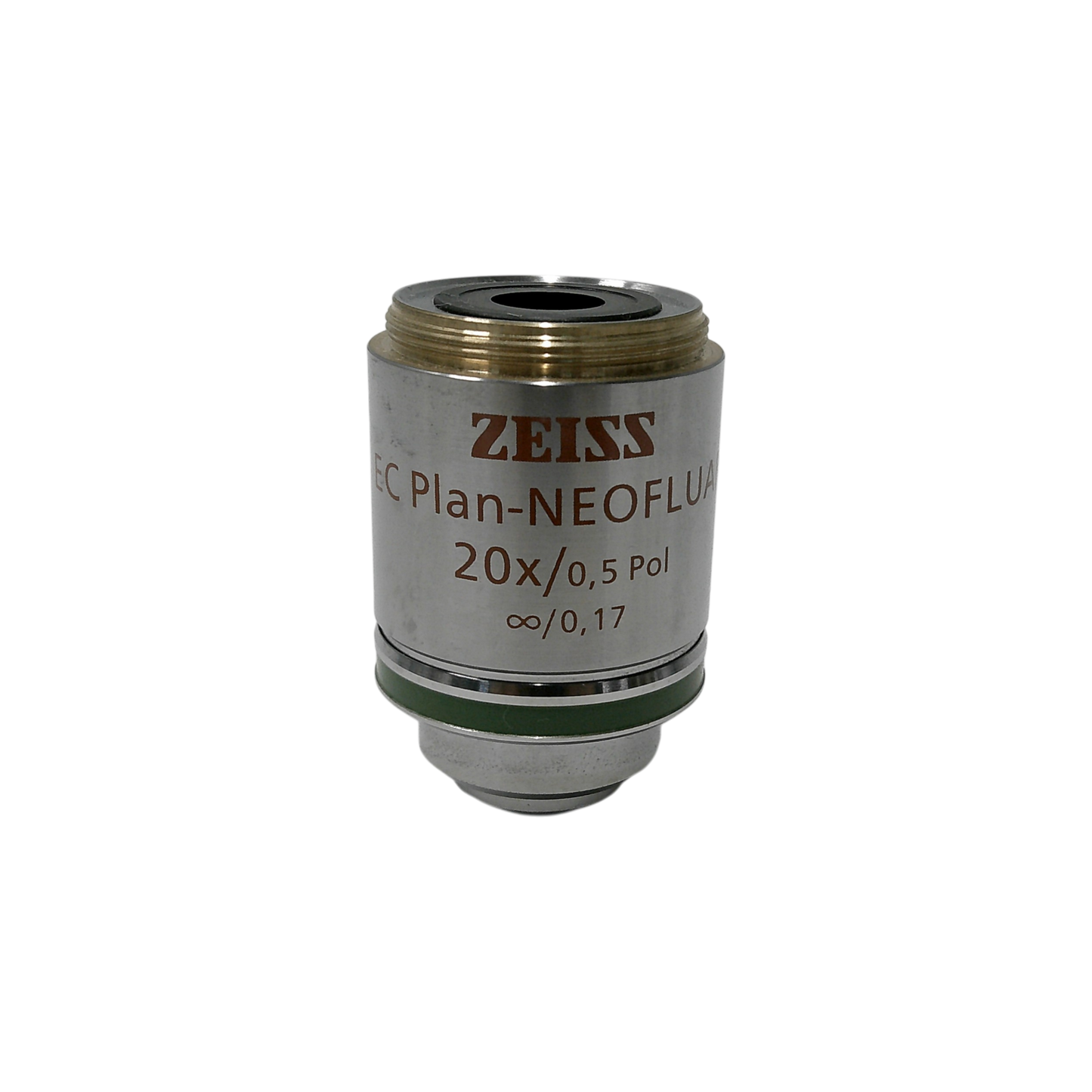

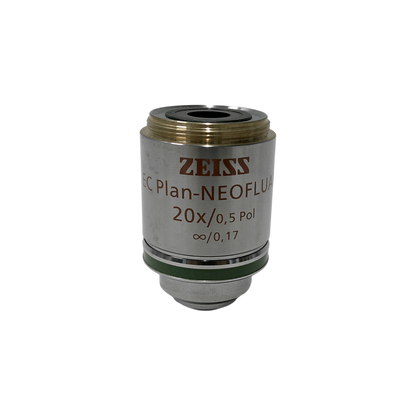

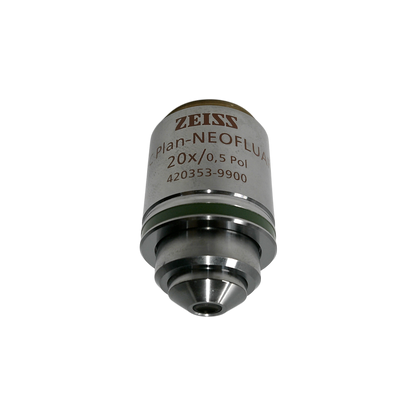

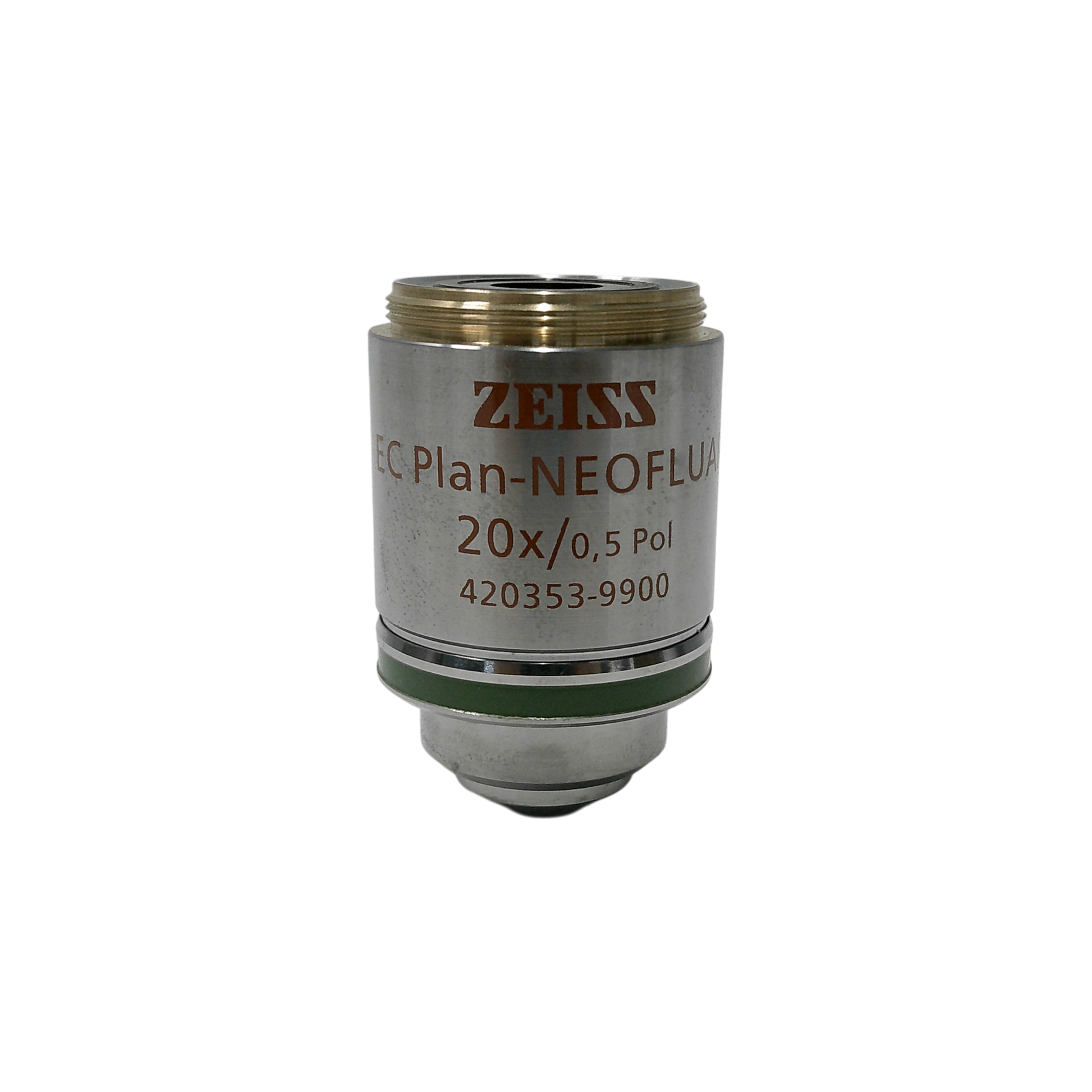

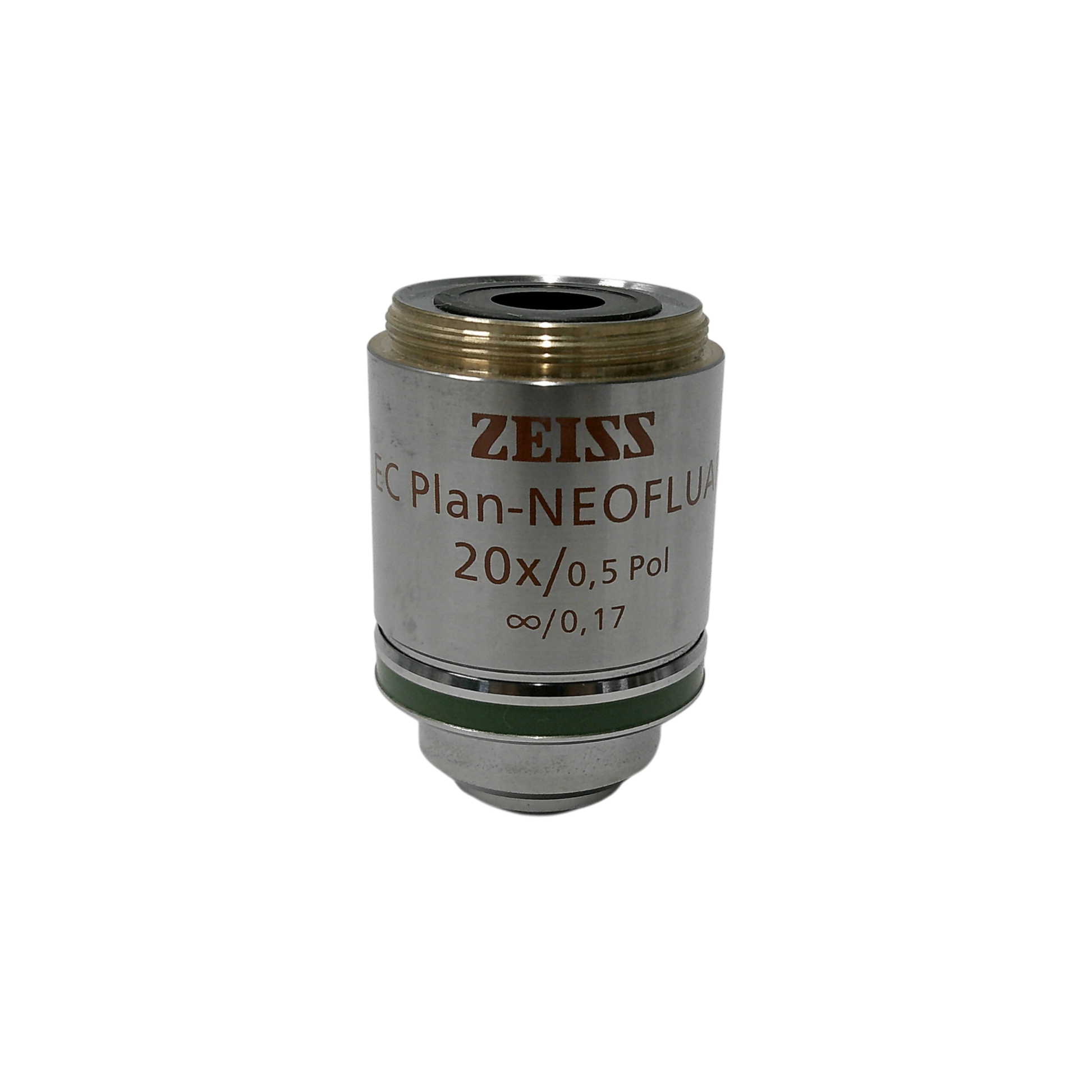

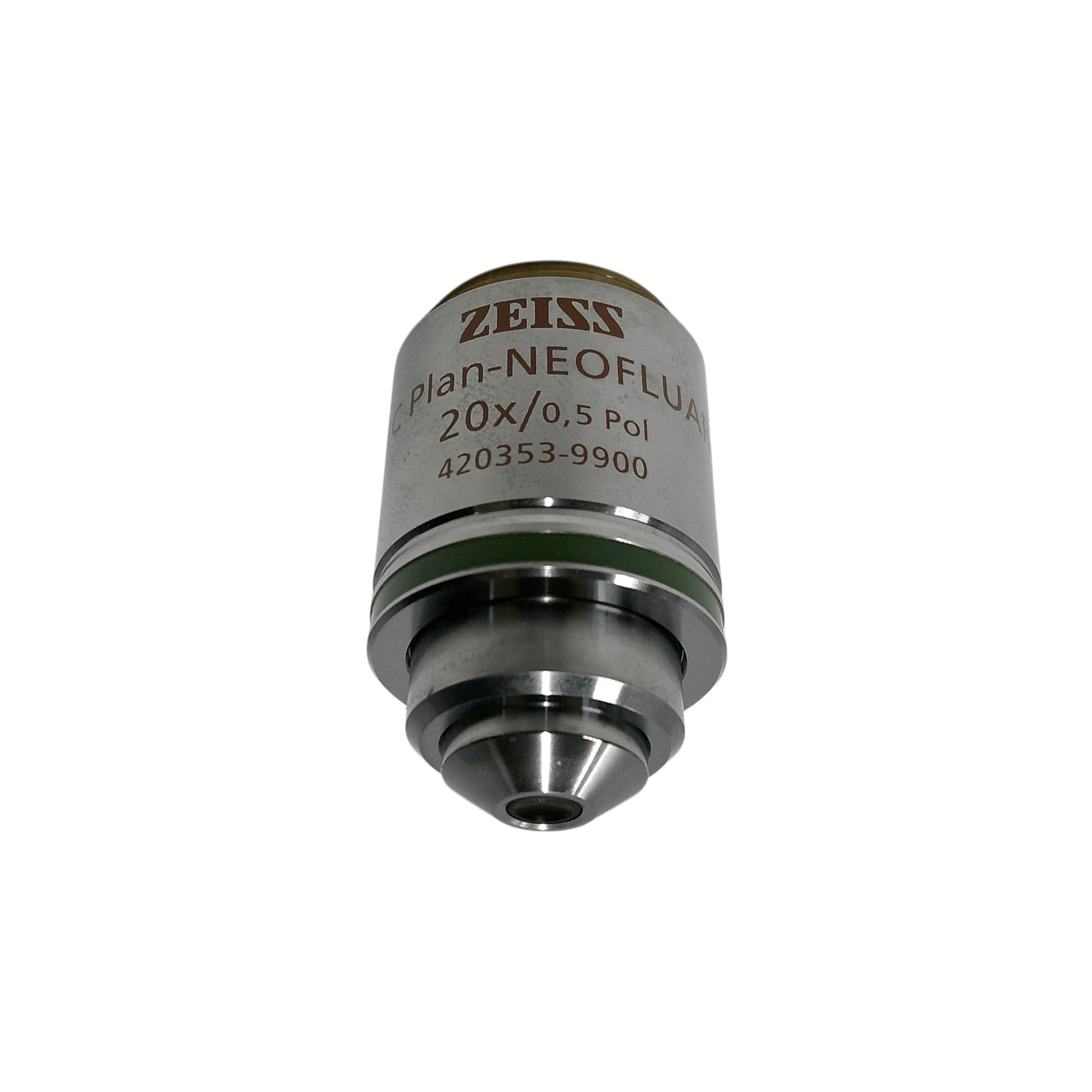

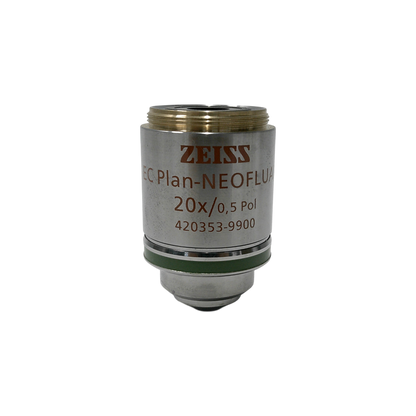

Zeiss EC Plan-NEOFLUAR 20x/0.5 M27 Thread Size - 420350-9900 (Used)
The Zeiss EC Plan-NEOFLUAR 20x/0.5 is a high-performance semi-apochromatic (Plan-NEOFLUAR) objective designed for brightfield, fluorescence, and phase contrast microscopy. With a numerical aperture (NA) of 0.5, this objective provides exceptional resolution, contrast, and chromatic aberration correction, making it ideal for advanced imaging applications. The M27 thread size ensures compatibility with Zeiss Axio series and other M27-compatible microscopes.
Condition
Refurbished/Used
(This product has been inspected and verified to meet manufacturer specifications.)
Included Items
- Zeiss EC Plan-NEOFLUAR 20x/0.5 Objective
Key Features
- 20x magnification for high-resolution imaging
- Enhanced Contrast (EC) optics for superior color correction
- Plan-NEOFLUAR optics for improved contrast and chromatic aberration correction
- Numerical aperture (NA) of 0.5 for excellent light transmission
- M27 thread size for compatibility with Zeiss Axio series and other standard microscopes
- Flat field correction for sharp, edge-to-edge imaging
- Optimized for fluorescence and brightfield microscopy with high transmission coatings
Applications
- Brightfield microscopy
- Fluorescence microscopy
- Live-cell imaging
- Confocal and multiphoton microscopy
- Neuroscience and biological research
- Pathology and histology
Specifications
| Specification | Details |
|---|---|
| Magnification | 20x |
| Numerical Aperture (NA) | 0.5 |
| Working Distance | ~2.0 mm |
| Immersion Medium | Air (Dry) |
| Cover Glass Thickness | 0.17 mm |
| Optical Correction | Plan-NEOFLUAR (Flat Field, High Contrast, Enhanced Chromatic Aberration Correction) |
| Thread Size | M27 (27mm thread diameter) |
| Parfocal Distance | 60 mm |
| Compatible Microscopes | Zeiss Axio series and other M27-compatible models |
| Special Features | High transmission coatings for fluorescence, optimized for high-precision imaging |
Additional Details
Additional Details
- Manufacturer: Zeiss
- Model:
- Catalog Number: 51573e
- Serial Number:
- Condition: Used
