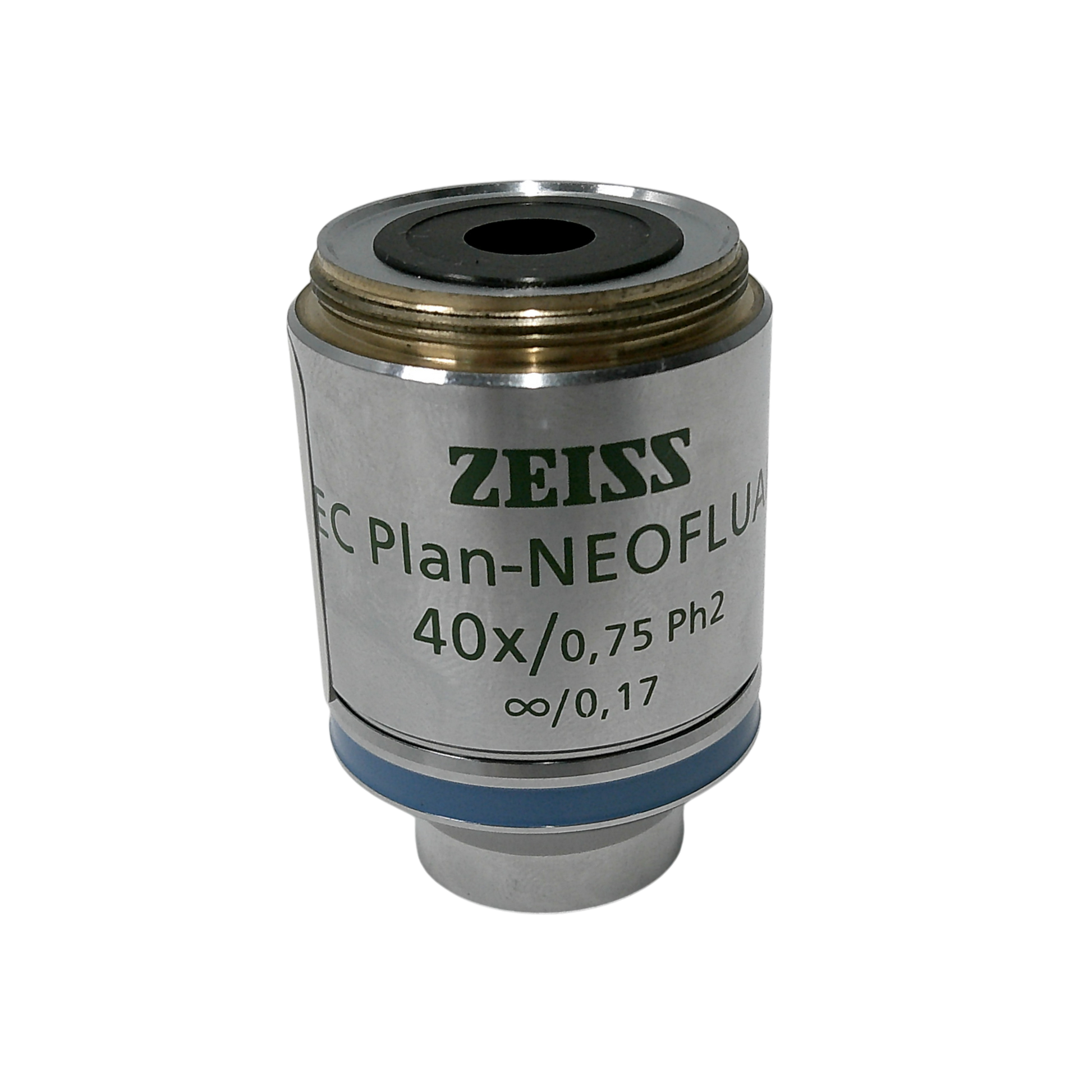

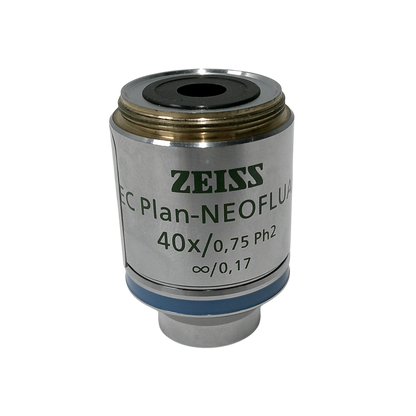

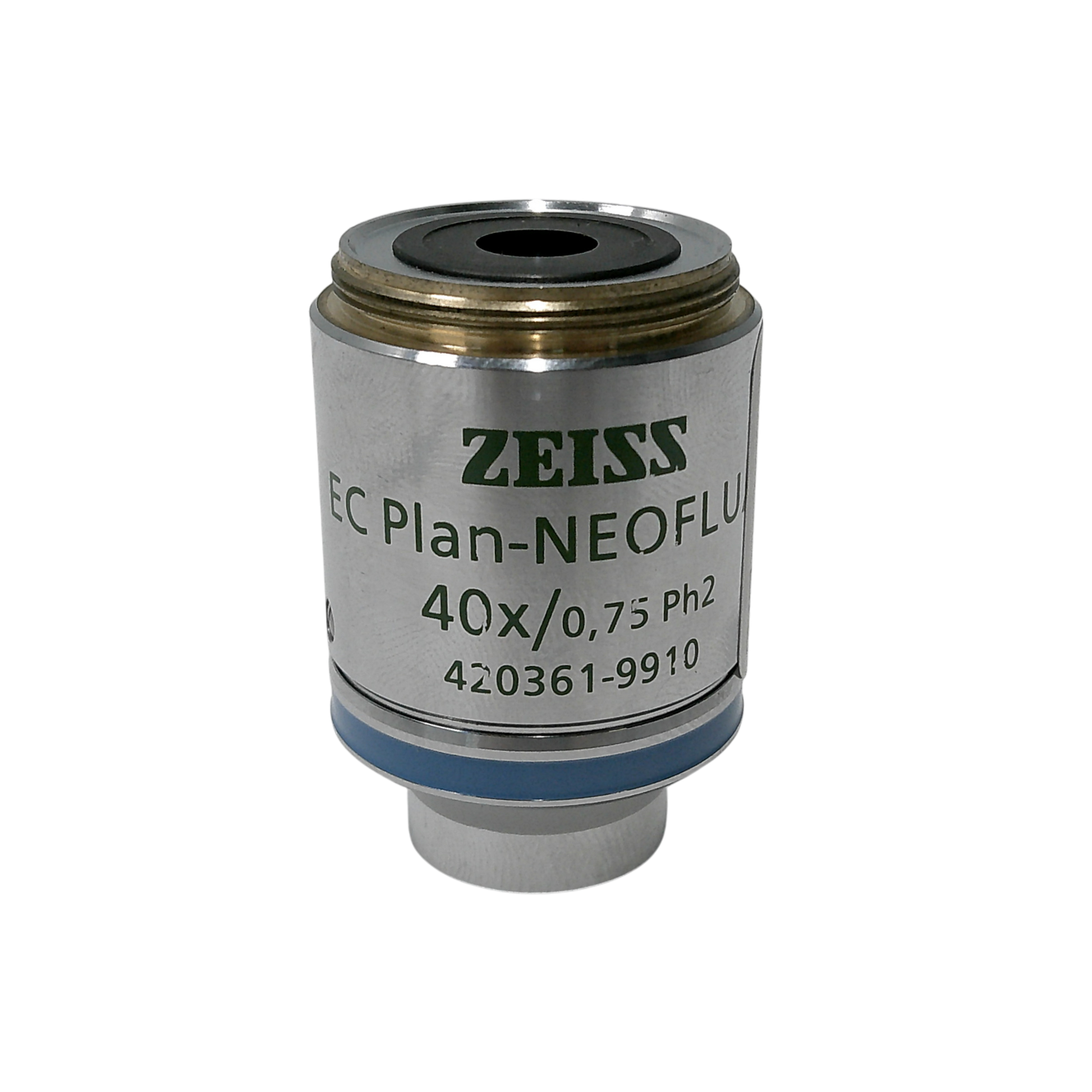

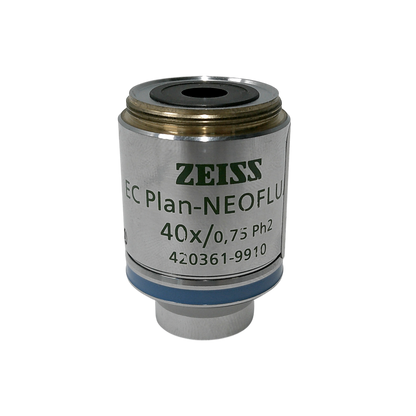

Zeiss EC Plan-Neofluar Ph2 40x/0.75 M27 Thread Size Microscope Objective

Zeiss EC Plan-Neofluar 40x/0.75 Ph2 Objective – RMS Thread

The Zeiss EC Plan-Neofluar 40x/0.75 Ph2 is a high-quality infinity-corrected phase contrast objective designed for precise and high-resolution imaging in transmitted light microscopy. With excellent flat-field correction across the field of view, this 40x objective delivers outstanding contrast and clarity, particularly when imaging transparent or low-contrast specimens using Phase Contrast techniques.

Part of Zeiss’s renowned EC Plan-Neofluar series, it features superior optical coatings, high numerical aperture, and long working distance—all optimized for research-grade imaging systems.

Condition

Refurbished/Used
This product has been inspected and verified to meet manufacturer specifications.

Key Features

• 40x magnification with 0.75 Numerical Aperture
• Phase Contrast Ph2 ring for use with Ph2 condensers
• EC Plan-Neofluar design for excellent flatness and chromatic correction
• Infinity-corrected optical system
• RMS (Royal Microscopical Society) standard thread
• Ideal for both biological and materials phase contrast applications

Applications

• Phase Contrast Microscopy
• Live Cell Imaging
• Cytology and Histology
• Routine Clinical Lab Use
• Educational and Research Environments

Specifications
