PRODUCT ID:OBJ-000-168

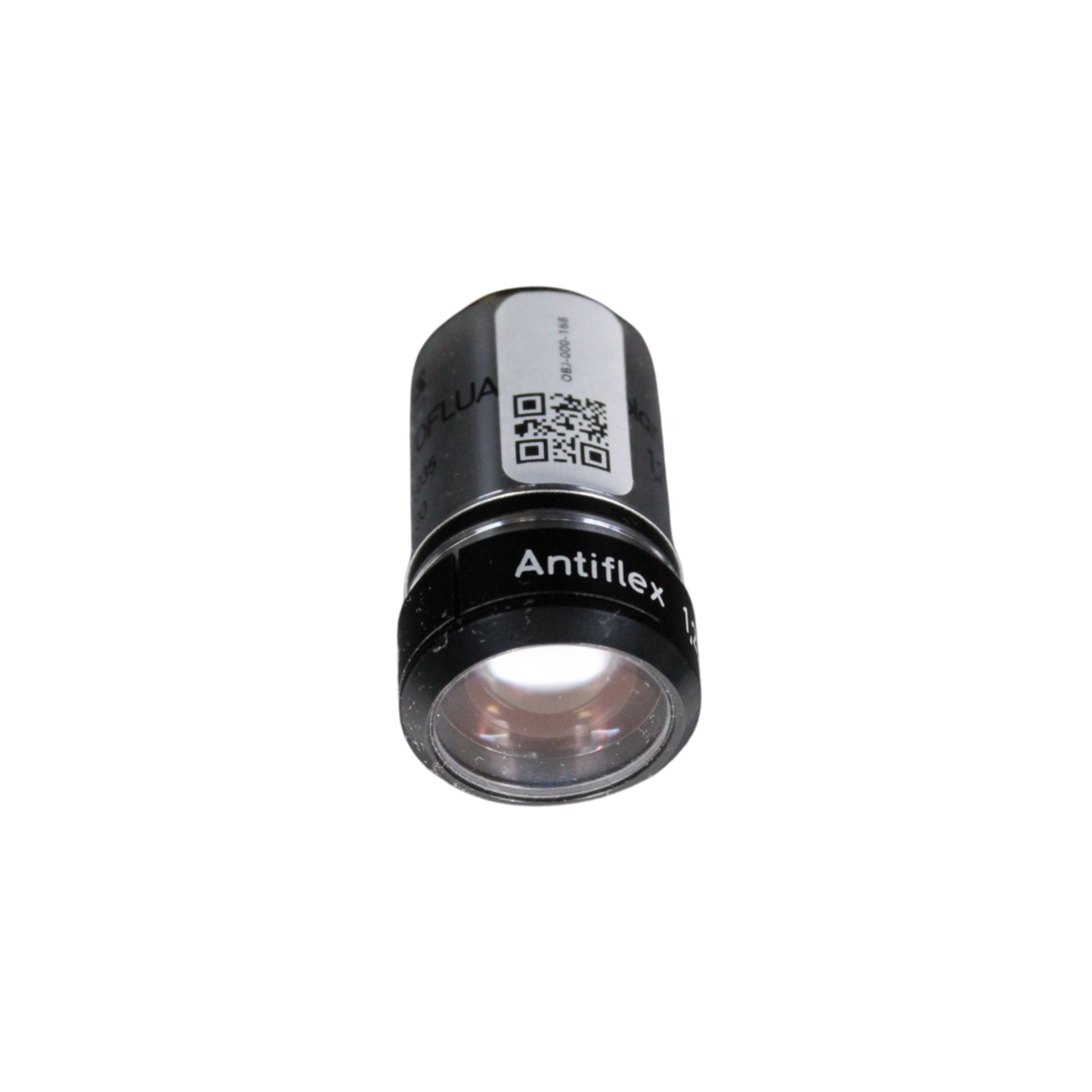

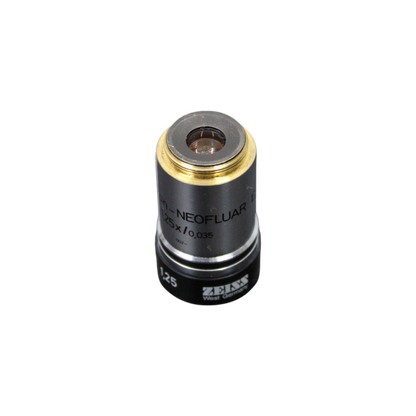

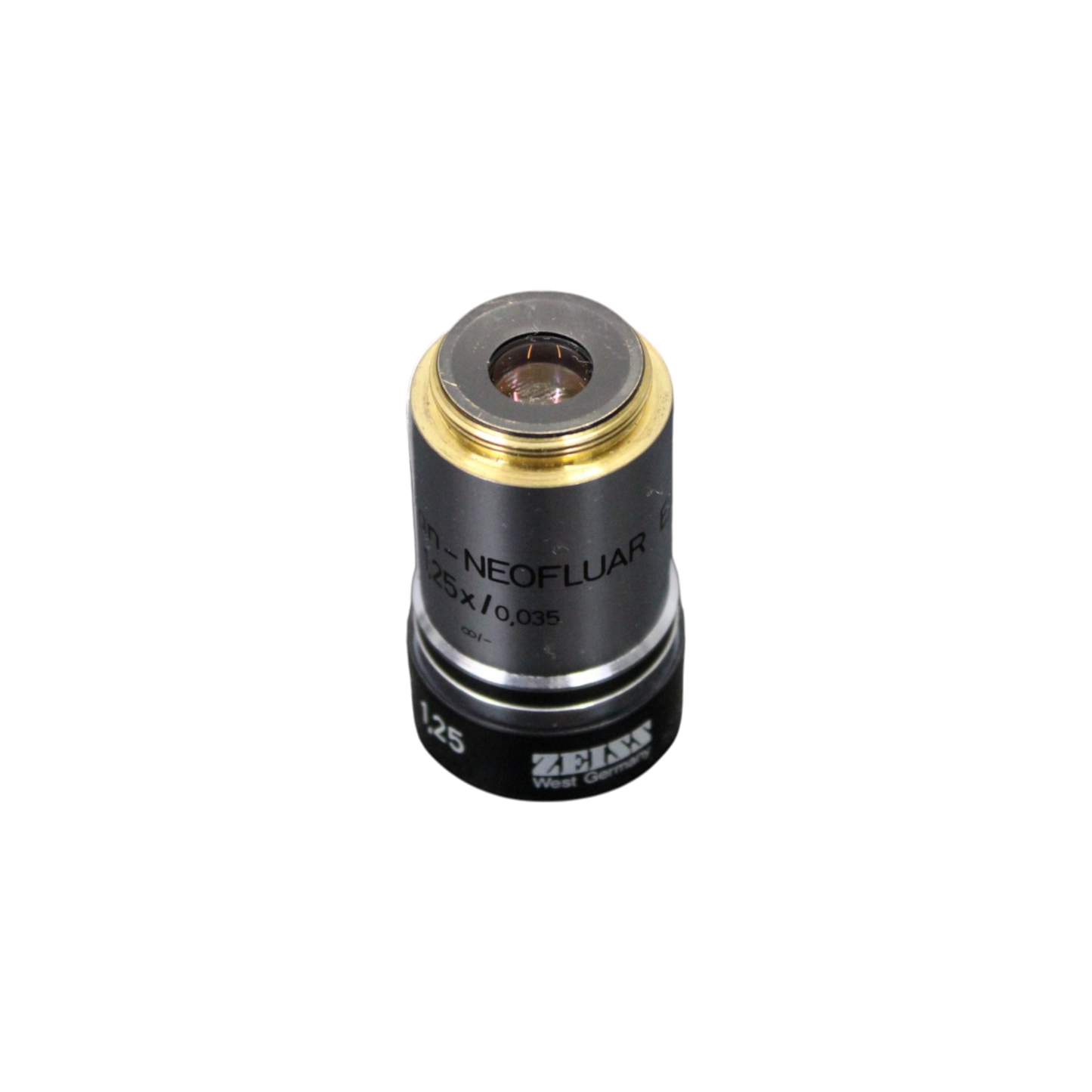

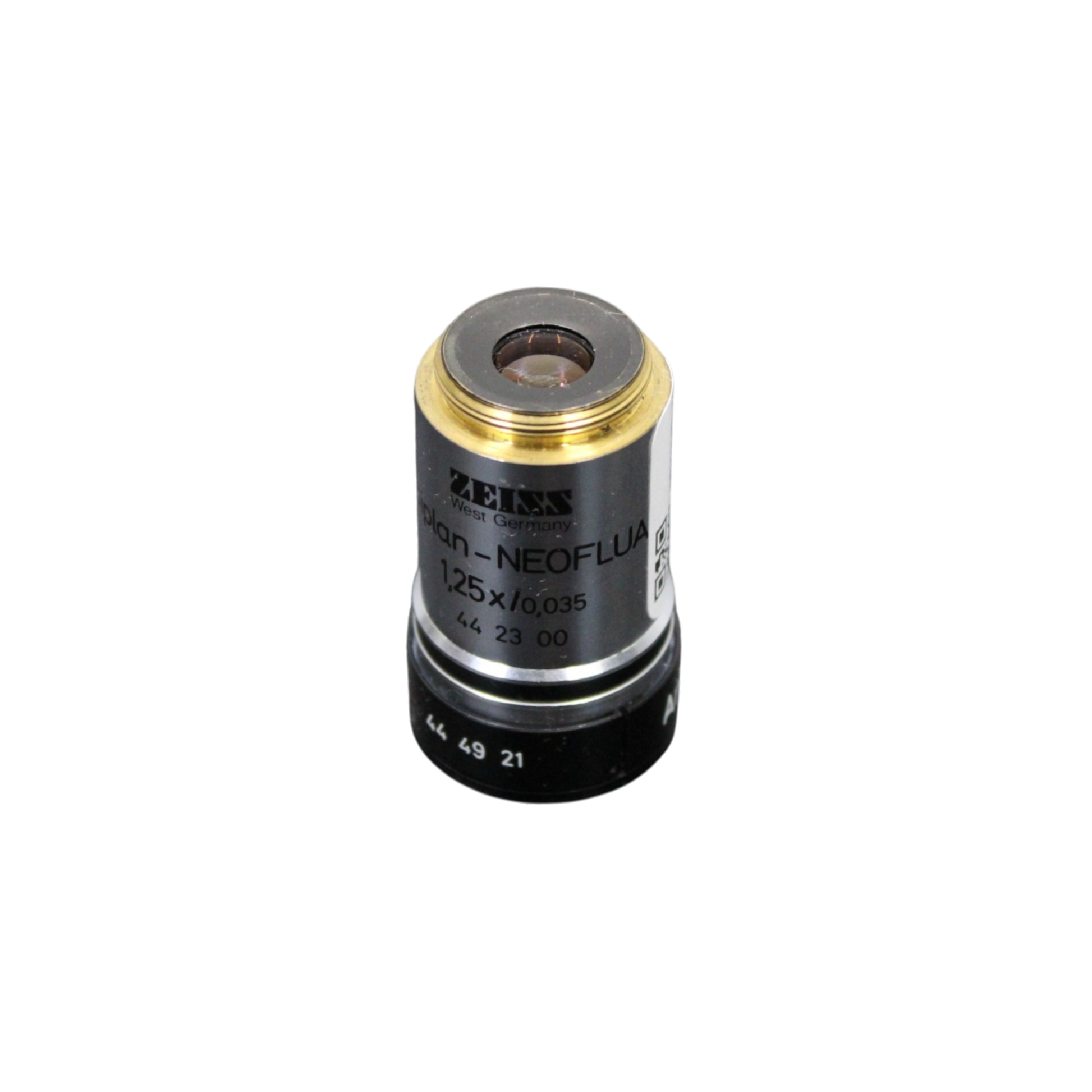

Zeiss Epiplan-Neofluar 1.25x/0.035 RMS Thread Size Microscope Objective

Zeiss Epiplan-Neofluar 1.25x/0.035 RMS Thread Size Microscope Objective

$2,000.00 USD
$2,000.00 USD
Sale Sold out
Shipping calculated at checkout.

Overview

The Zeiss Epiplan-Neofluar 1.25x/0.035 objective is a low-magnification, high-performance lens designed for reflected light (episcopic) microscopy. With its long working distance and advanced Plan-Neofluar optical correction, this dry objective delivers excellent flatness, contrast, and resolution across a wide field of view. It features an RMS thread and is compatible with industrial and materials science upright microscopes.

Condition

Condition: Refurbished/Used (This product has been inspected and verified to meet manufacturer specifications).

Key Features

  • 1.25x magnification for ultra-wide sample overview
  • 0.035 Numerical Aperture (NA) for deep depth of field and broad coverage
  • Plan-Neofluar design for flat-field correction and superior contrast
  • Dry objective – no immersion medium required
  • Optimized for reflected light (episcopic) illumination
  • RMS thread for standard upright microscope compatibility

Applications

  • Metallurgical and materials analysis
  • Surface inspection and industrial quality control
  • Reflected light microscopy
  • Sample overview and navigation

Specifications

Specification Details
Manufacturer Zeiss
Model Epiplan-Neofluar 1.25x/0.035
Catalog Number 44 23 00
Magnification 1.25x
Numerical Aperture (NA) 0.035
Optical Design Plan-Neofluar
Thread Type RMS
Immersion Dry
Illumination Type Reflected (Epi) Light
Microscope Compatibility Zeiss and other RMS-thread upright microscopes

Additional Details

  • Manufacturer: Zeiss
  • Model: Epiplan-Neofluar 1.25x/0.035 RMS Thread Size
  • Catalog Number: OBJ-000-168
  • Serial Number: N/A
  • Condition: Seller Refurbished
