SKU: PRODUCT ID:OBJ-000-197
Zeiss Fluar 10x/0.5 RMS Thread Size Microscope Objective
Zeiss Fluar 10x/0.5 RMS Thread Size Microscope Objective
Couldn't load pickup availability
- ✓ Tested in house. 180-day parts and labor warranty (US). International: 30-day parts warranty
- ✓ Typical delivery in 1 to 3 weeks, depending on parts
- ✓ Prices shown exclude freight, insurance, tariffs and applicable taxes
- ✓ Installation, training and service available from our engineers (quoted separately)
- ✓ SAM.gov registered (CAGE 10ZU5). Purchase orders welcome
- ✓ Leasing and finance companies available
Questions? Call (877) 564-2767 or email sales@coastalmicroscopes.com

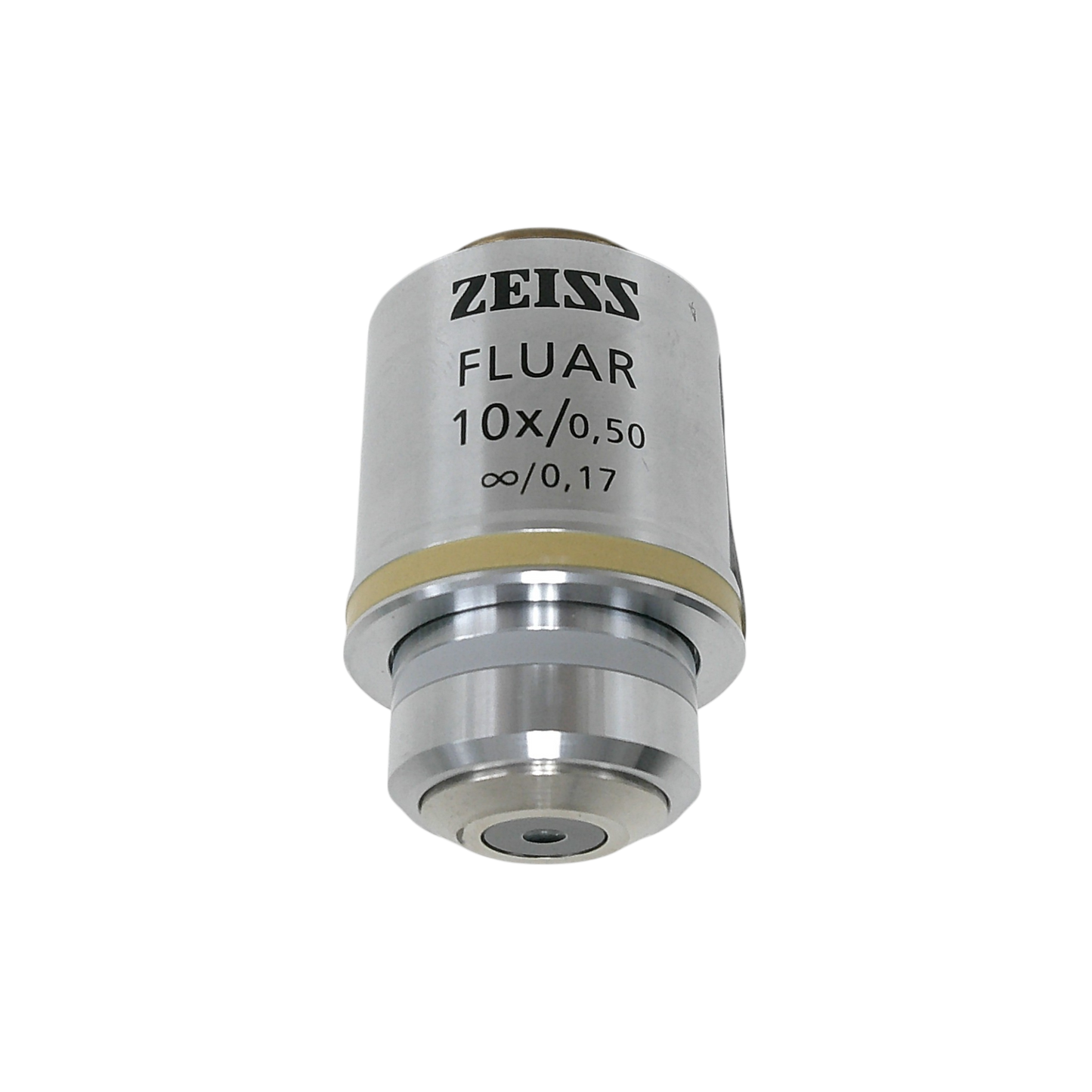

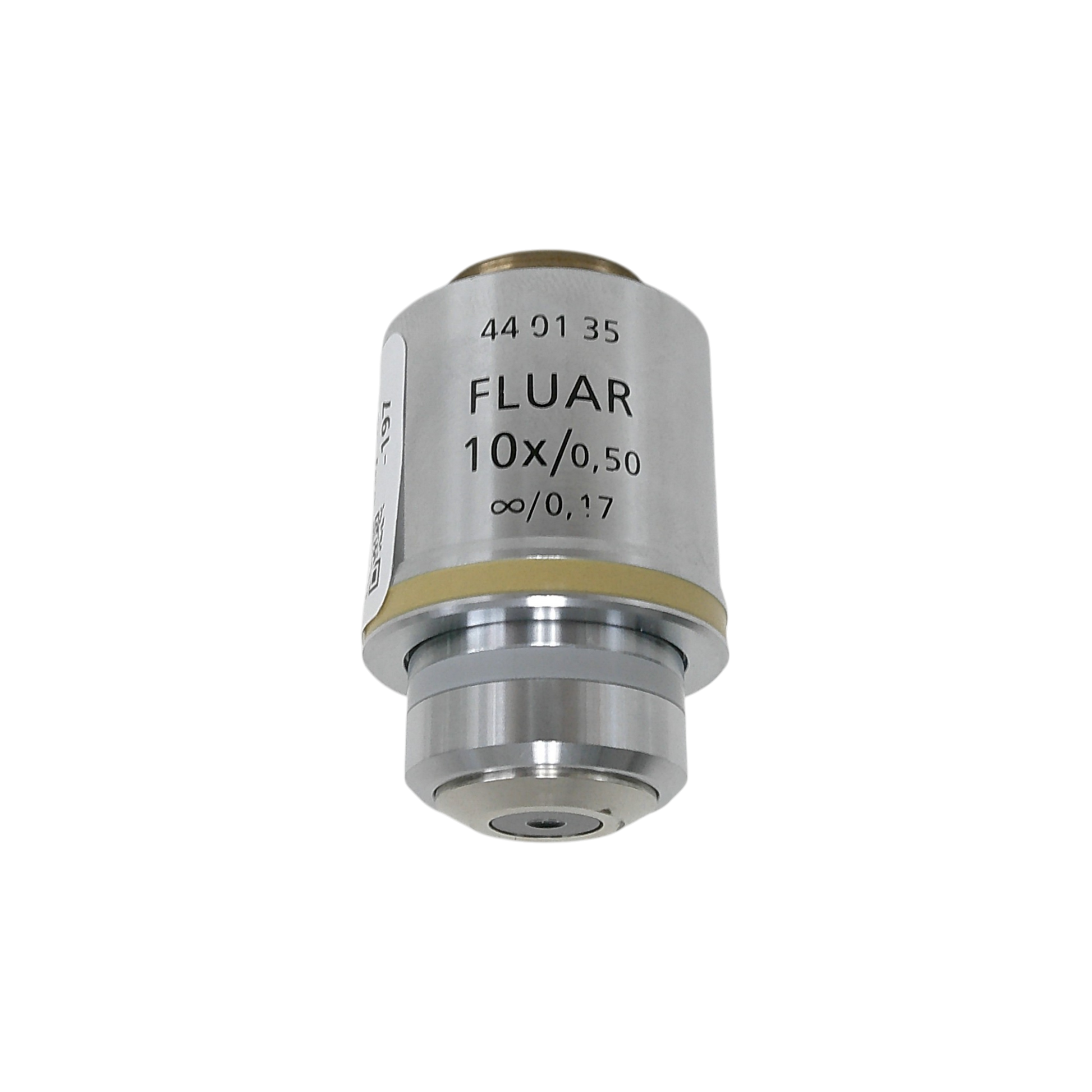

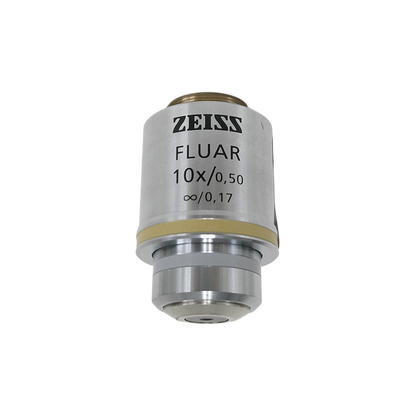

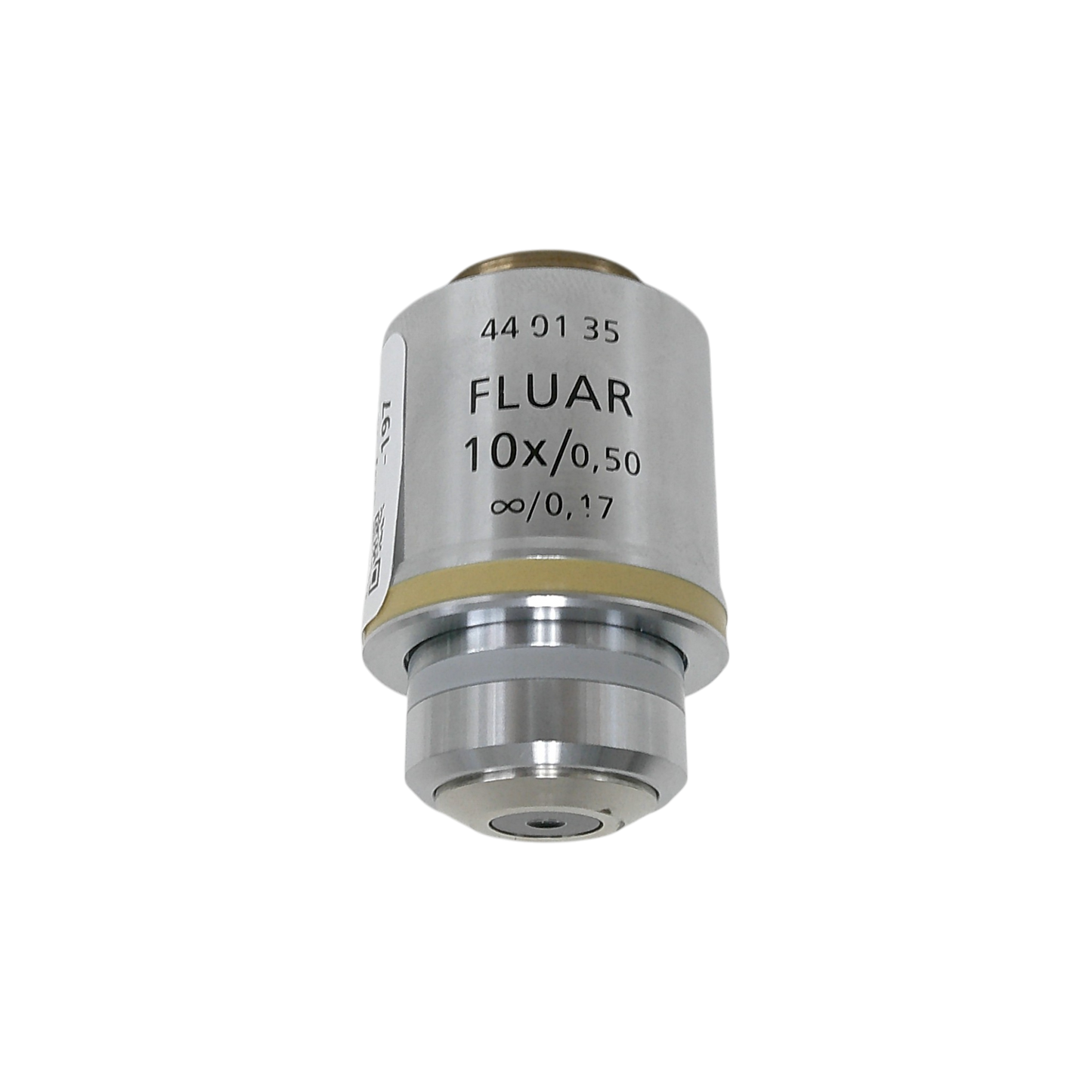

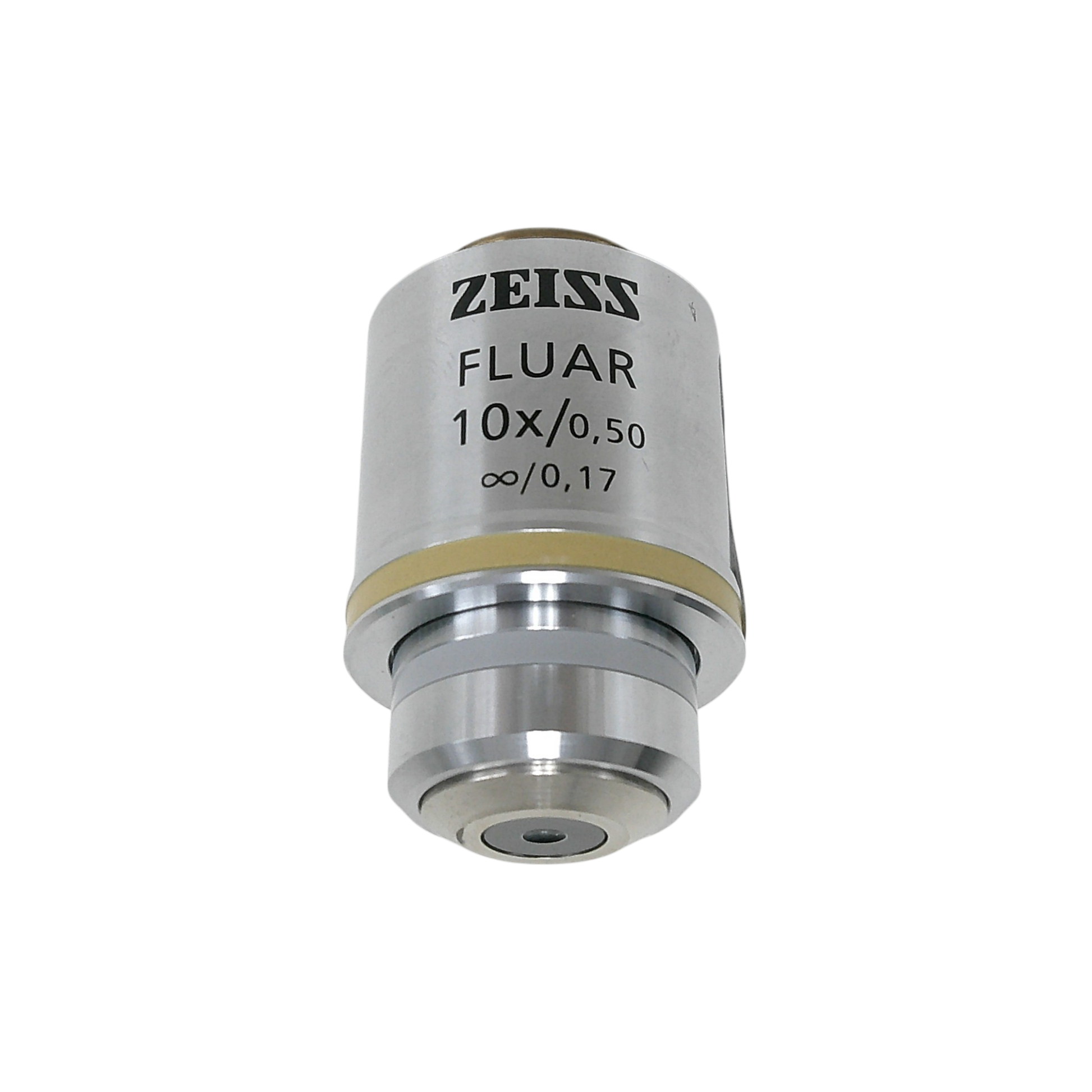

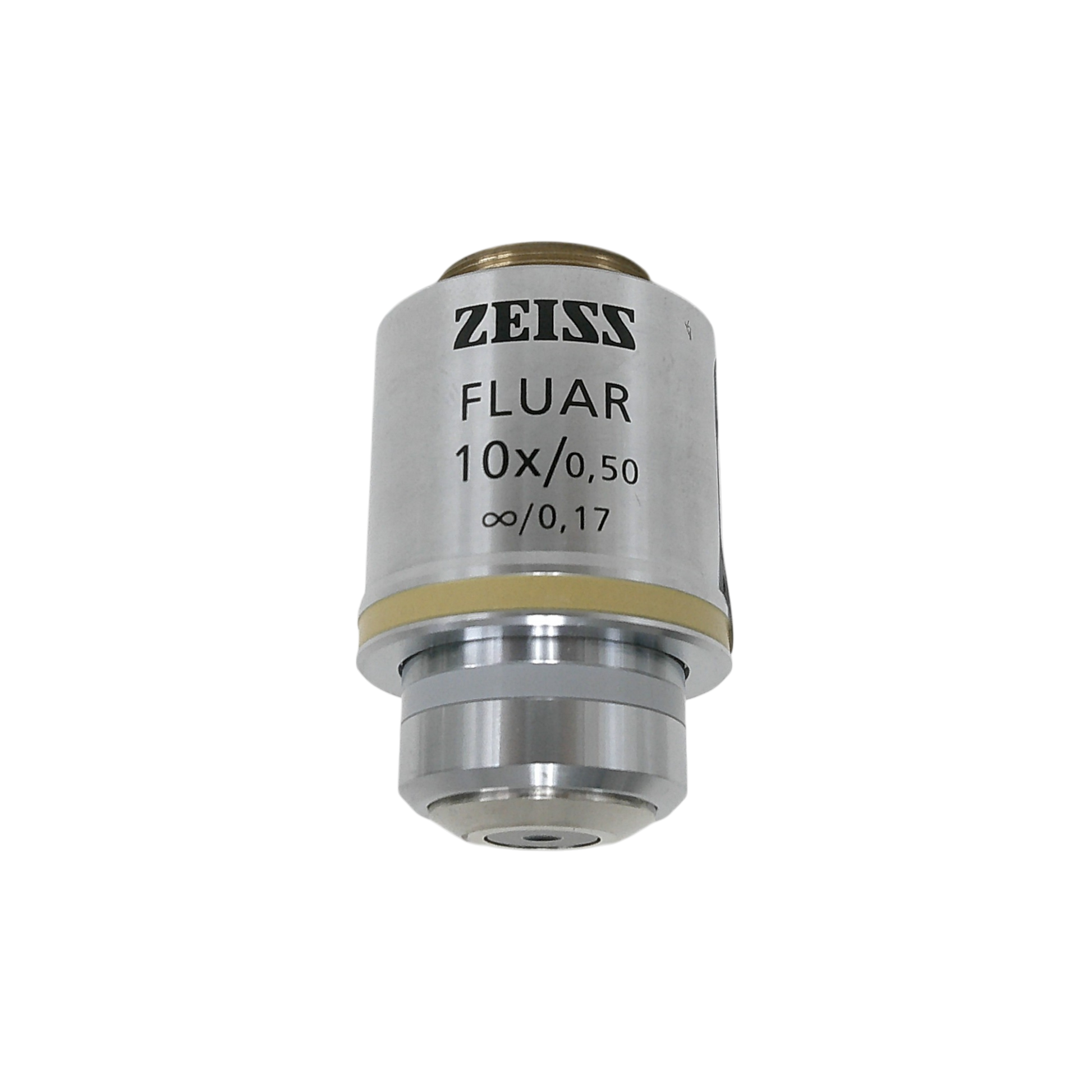

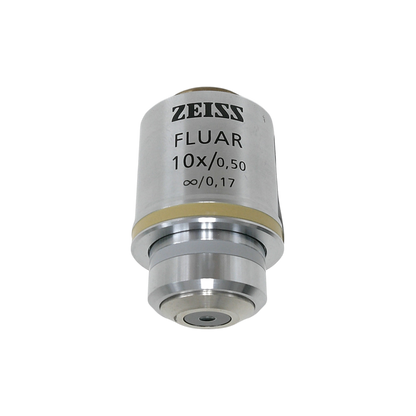

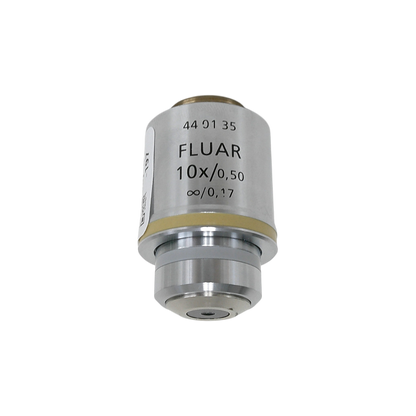

Zeiss Fluar 10x/0.50 Objective – 420140-9900 – M27 Thread
The Zeiss Fluar 10x/0.50 objective, catalog number 420140-9900, is a high-performance, infinity-corrected objective designed for fluorescence and transmitted light microscopy. With a high numerical aperture of 0.50 and M27 thread size, this semi-apochromatic objective delivers exceptional resolution, contrast, and light transmission—ideal for low-magnification fluorescence imaging where brightness and clarity are essential. The Fluar series is optimized for UV to visible light performance, making it suitable for demanding biomedical and research applications.
Condition
Condition: Refurbished/Used (This product has been inspected and verified to meet manufacturer specifications)
Key Features
- Magnification: 10x
- Numerical Aperture: 0.50
- Optical Design: Fluar – Semi-apochromatic, optimized for fluorescence
- Thread Size: M27
- Catalog Number: 420140-9900
- High light transmission across UV, visible, and near-IR spectra
Applications
- Fluorescence microscopy (UV and visible)
- Confocal and widefield imaging
- Live-cell imaging and research
- High-contrast transmitted light observation
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Zeiss |
| Catalog Number | 420140-9900 |
| Objective Type | Fluar |
| Magnification | 10x |
| Numerical Aperture | 0.50 |
| Thread Size | M27 |
| Correction | Infinity-Corrected, Semi-Apochromatic |
| Contrast Techniques | Fluorescence / Brightfield |
Additional Details
Additional Details
- Manufacturer: Zeiss
- Model: Fluar 10x/0.5 RMS Thread Size
- Catalog Number: OBJ-000-197
- Serial Number: N/A
- Condition: Used
