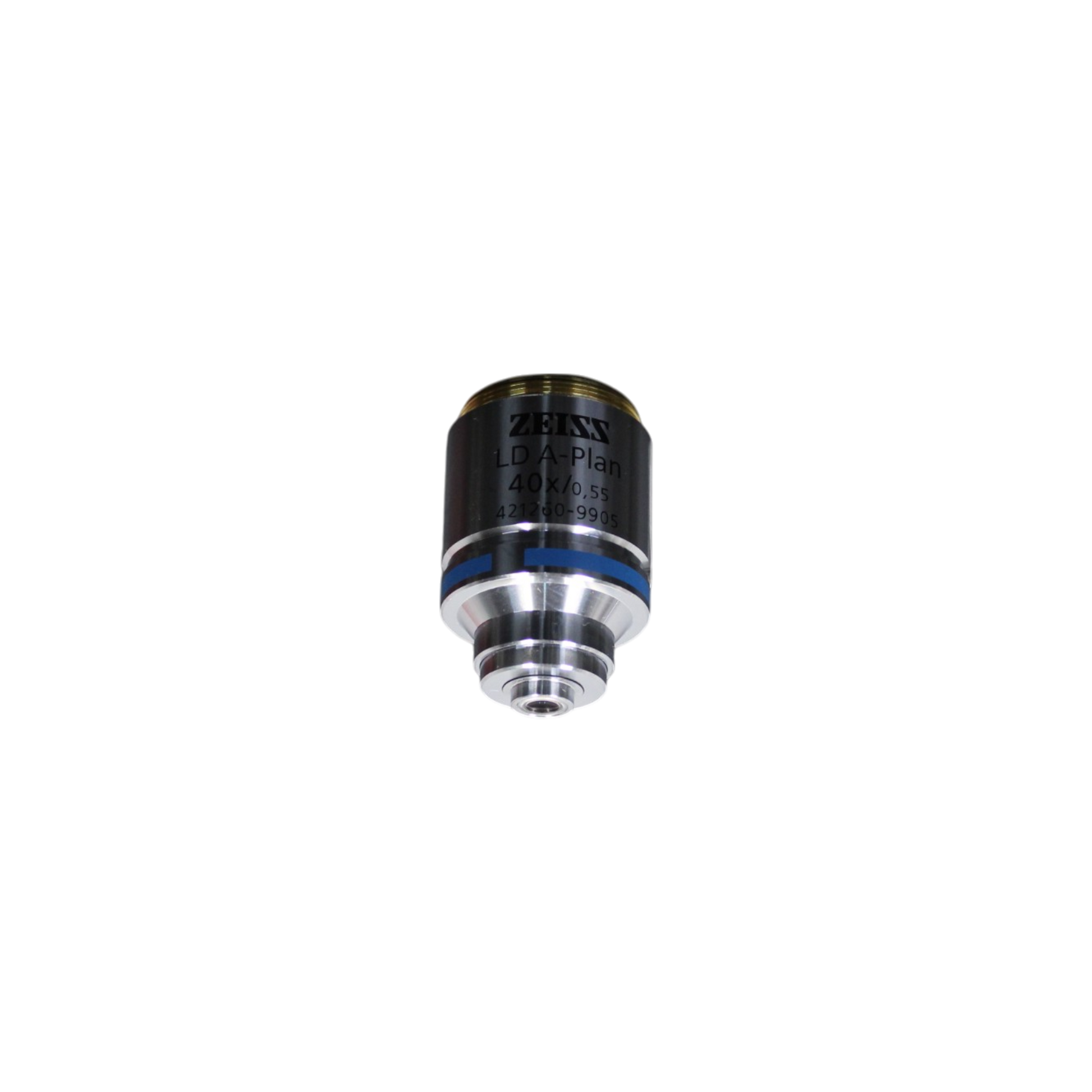

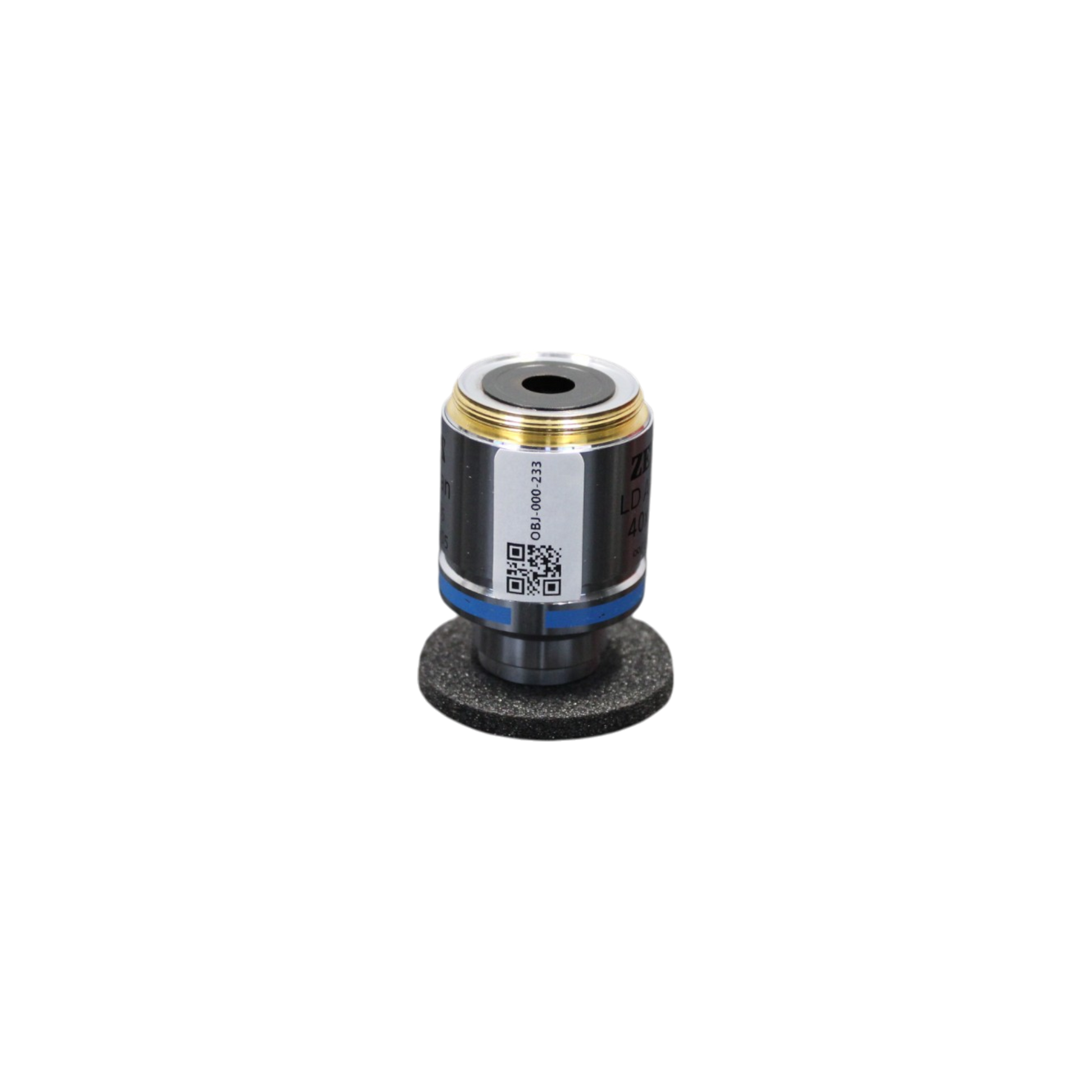

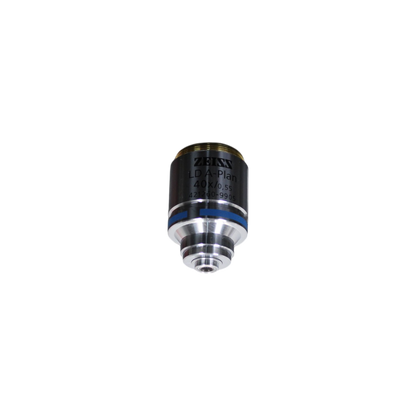

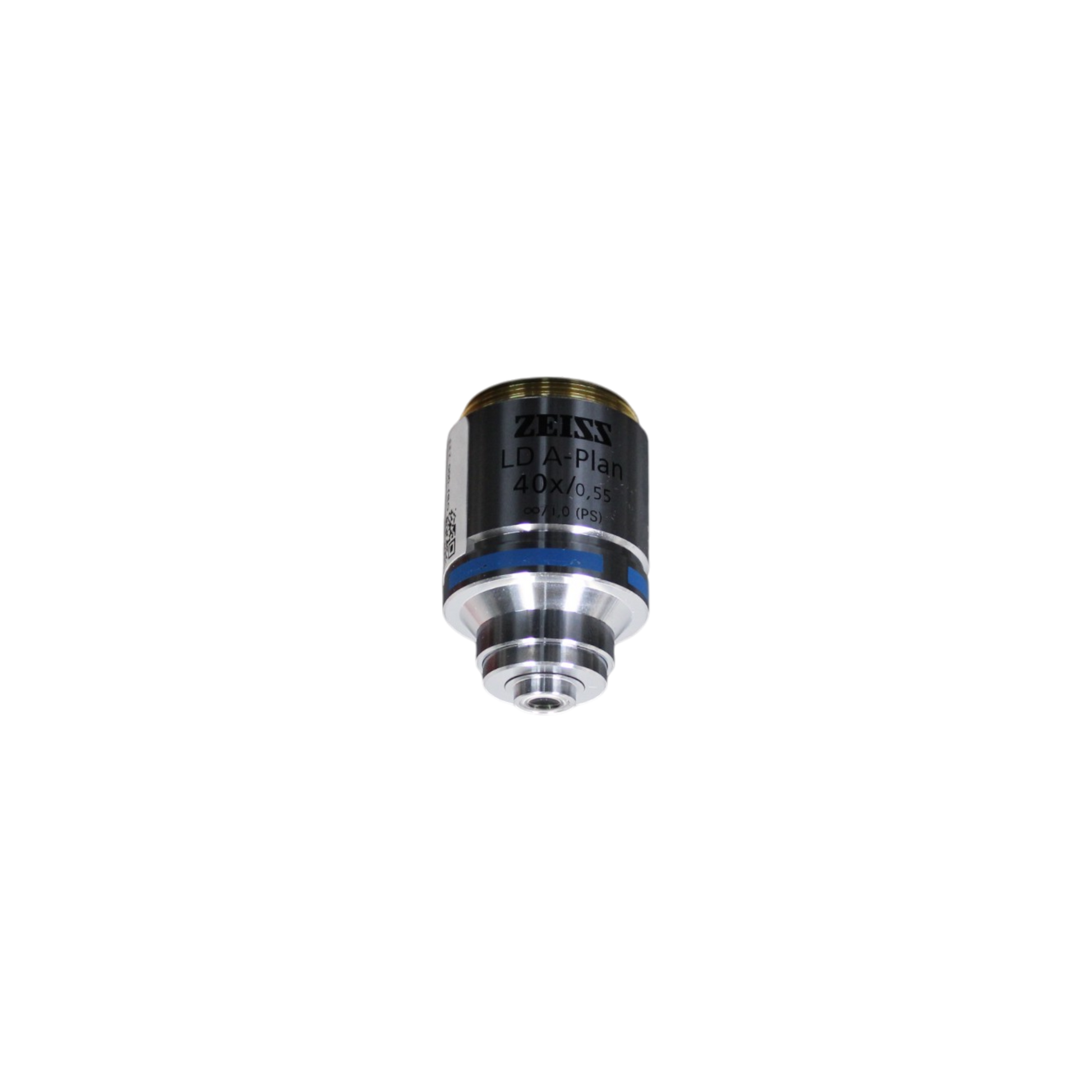

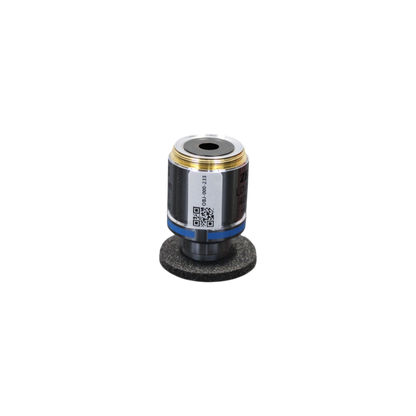

Zeiss LD A-Plan 40x/0.55 M27 Thread Size Microscope Objective
Zeiss LD A-Plan 40x/0.55 M27 Thread Size Microscope Objective
Couldn't load pickup availability
- ✓ Tested in house. 30-day warranty
- ✓ Typical delivery in 1 to 3 weeks, depending on parts
- ✓ Prices shown exclude freight, insurance, tariffs and applicable taxes
- ✓ Installation, training and service available from our engineers (quoted separately)
- ✓ SAM.gov registered (CAGE 10ZU5). Purchase orders welcome
- ✓ Leasing and finance companies available
Questions? Call (877) 564-2767 or email sales@coastalmicroscopes.com
Zeiss LD A-Plan 40x/0.55 M27 Microscope Objective
The Zeiss LD A-Plan 40x/0.55 M27 Microscope Objective is a high-quality, long working distance objective designed for advanced microscopy applications. It features a 0.55 numerical aperture (NA) and is optimized for use with 1.0 mm polystyrene cover glasses. This objective is well-suited for both brightfield and PlasDIC microscopy techniques, ensuring enhanced contrast and image clarity. As part of Zeiss’s renowned Infinity Color Corrected System (ICS), it delivers high-quality optical performance with superior resolution.
Key Features:
- Long Working Distance – Provides 2.3 mm free working distance for imaging thicker specimens.
- Brightfield and PlasDIC Compatibility – Enhances contrast for a variety of microscopy applications.
- Cover Glass Compatibility – Optimized for 1.0 mm polystyrene cover glasses, ideal for live-cell imaging.
- Achromatic Correction – Minimizes chromatic aberrations for accurate color reproduction.
- Dry Objective – No immersion medium required, simplifying imaging procedures.
Applications:
- Cell Culture Observation – Optimized for viewing live cells in culture vessels with polystyrene cover glasses.
- Brightfield Microscopy – Suitable for general-purpose imaging applications.
- PlasDIC Imaging – Enhances contrast for differential interference contrast techniques.
Specifications:
| Feature | Specification |
|---|---|
| Magnification | 40x |
| Numerical Aperture (NA) | 0.55 |
| Free Working Distance | 2.3 mm at 1.0 mm cover glass thickness |
| Cover Glass Thickness | 1.0 mm (optimized for polystyrene cover glasses) |
| Thread Type | M27 x 0.75 |
| Immersion Medium | Dry (no immersion required) |
| Field of View | 23 mm |
| Parfocal Length | 45.06 mm |
| Optical System | Infinity Color Corrected System (ICS) |
| Color Correction | Achromatic |
Additional Details
Additional Details
- Manufacturer: Zeiss
- Model: LD A-Plan 40x/0.55 M27 Thread Size
- Catalog Number: OBJ-000-233
- Serial Number: N/A
- Condition: Seller Refurbished
