Zeiss LD A-Plan Ph1 20x/0.3 RMS Thread Size Microscope Objective
Zeiss LD A-Plan Ph1 20x/0.3 RMS Thread Size Microscope Objective
Couldn't load pickup availability
- ✓ Tested in house. 30-day warranty
- ✓ Typical delivery in 1 to 3 weeks, depending on parts
- ✓ Installation, training and service by our engineers
- ✓ SAM.gov registered (CAGE 10ZU5). Purchase orders welcome
- ✓ Leasing and finance companies available
Questions? Call (877) 564-2767 or email sales@coastalmicroscopes.com

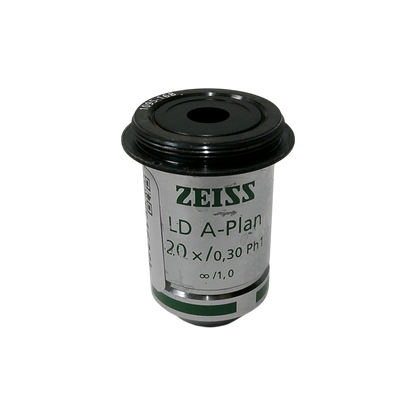

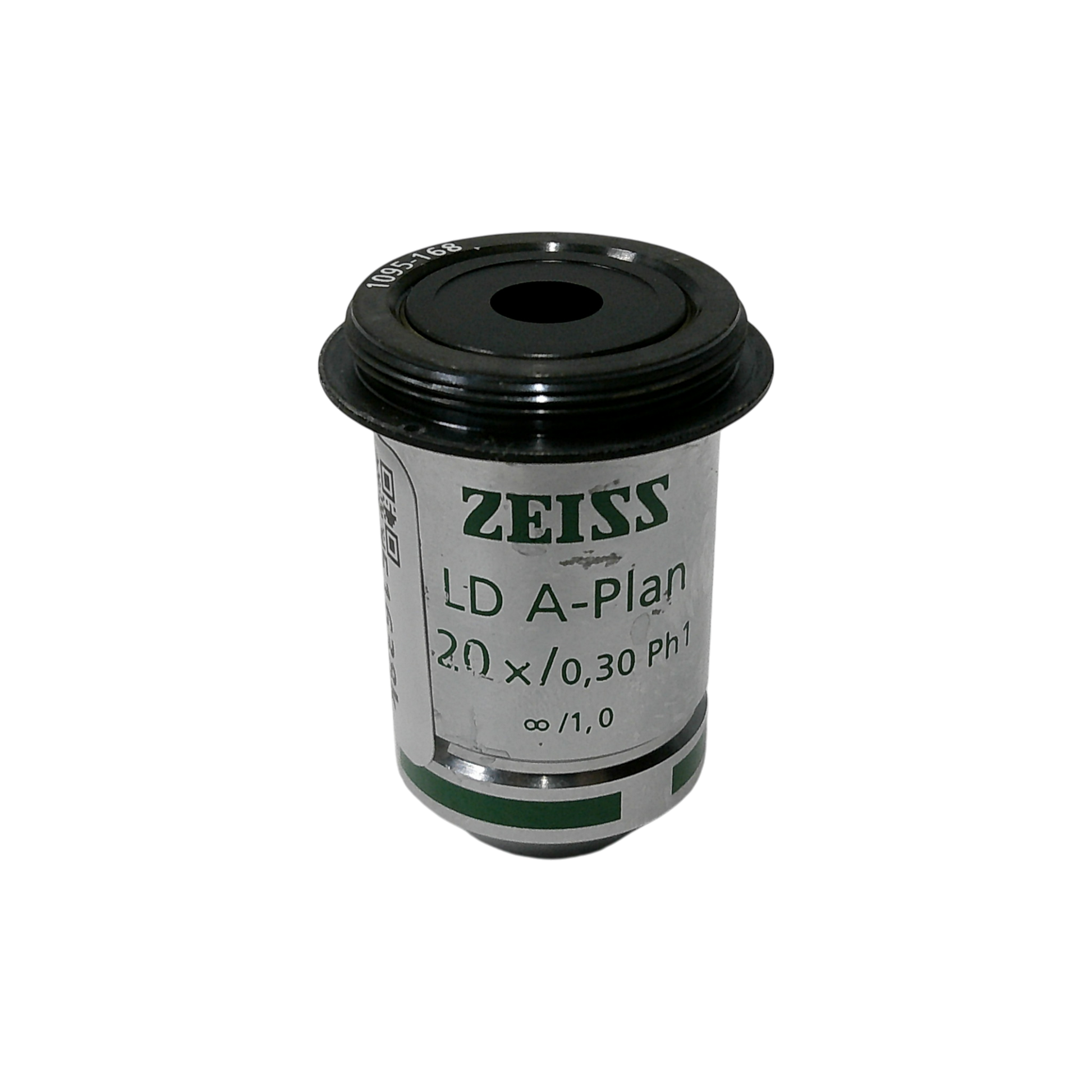

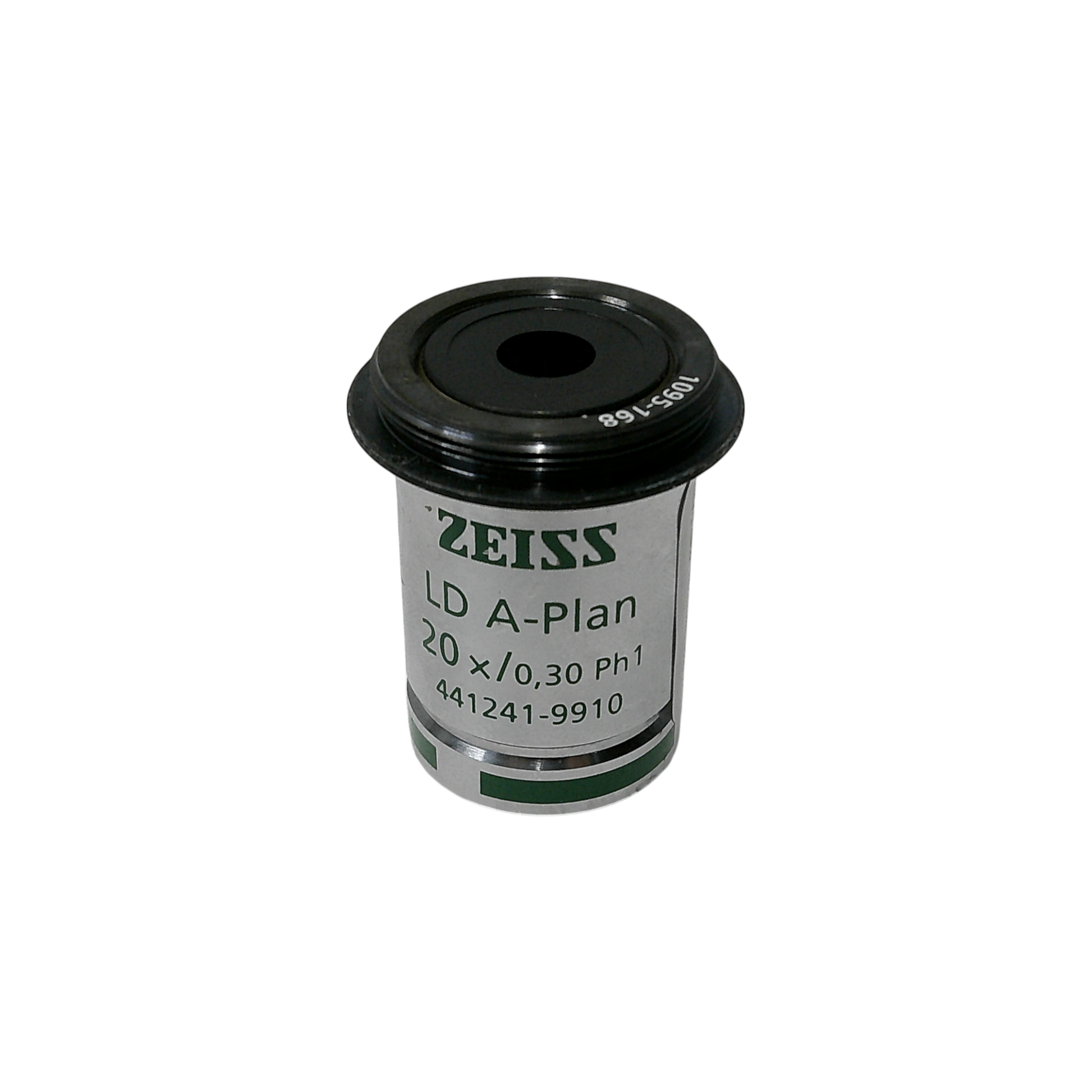

Zeiss LD A-Plan 20x/0.35 Ph1 M27 Thread Size - 421251-9910 (Used)
The Zeiss LD A-Plan 20x/0.35 Ph1 is a high-quality long working distance (LD) achromatic phase contrast objective designed for phase contrast (Ph1), brightfield, and fluorescence microscopy. With a numerical aperture (NA) of 0.35, this objective provides superior contrast, resolution, and flat-field correction, making it ideal for live-cell imaging and unstained sample observation. The M27 thread size ensures compatibility with Zeiss Axio series and other M27-compatible microscopes.
Condition
Refurbished/Used
(This product has been inspected and verified to meet manufacturer specifications.)
Included Items
- Zeiss LD A-Plan 20x/0.35 Ph1 Objective
Key Features
- 20x magnification for high-resolution imaging
- Long working distance (LD) for improved focus on thick samples
- Plan Achromatic (A-Plan) optics for enhanced contrast and color correction
- Numerical aperture (NA) of 0.35 for improved light transmission
- Phase Contrast (Ph1) optimized for unstained biological samples
- M27 thread size for compatibility with Zeiss Axio series and other standard microscopes
- Flat field correction for sharp, edge-to-edge imaging
- Optimized for fluorescence, phase contrast, and brightfield microscopy with high transmission coatings
Applications
- Phase contrast microscopy (Ph1)
- Fluorescence microscopy
- Brightfield microscopy
- Live-cell imaging
- Pathology and histology
- Biological and clinical research
Specifications
| Specification | Details |
|---|---|
| Magnification | 20x |
| Numerical Aperture (NA) | 0.35 |
| Working Distance | ~7.9 mm |
| Immersion Medium | Air (Dry) |
| Cover Glass Thickness | 0.17 mm |
| Optical Correction | Plan Achromatic (Flat Field, High Contrast, Phase Contrast Optimized) |
| Thread Size | M27 (27mm thread diameter) |
| Parfocal Distance | 60 mm |
| Compatible Microscopes | Zeiss Axio series and other M27-compatible models |
| Special Features | Long working distance for thick sample imaging, optimized for phase contrast and fluorescence imaging |
Additional Details
Additional Details
- Manufacturer: Zeiss
- Model:
- Catalog Number: 51638k
- Serial Number:
- Condition: Used
