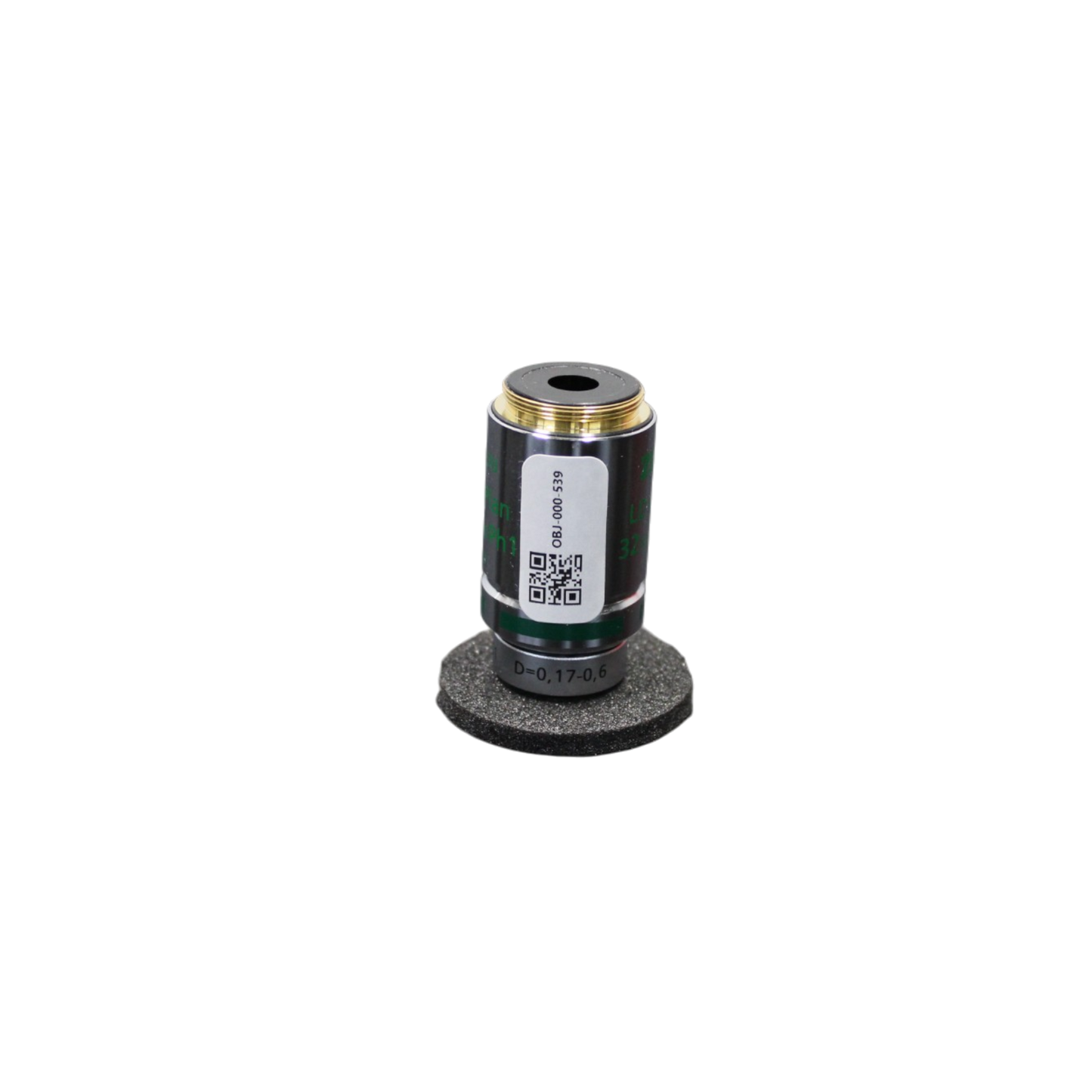

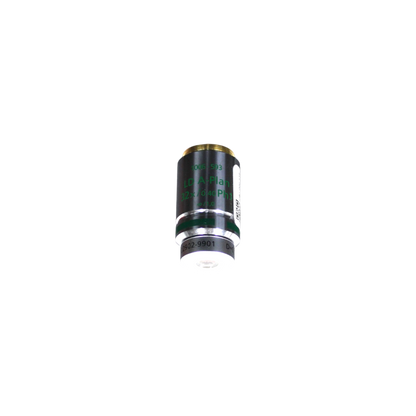

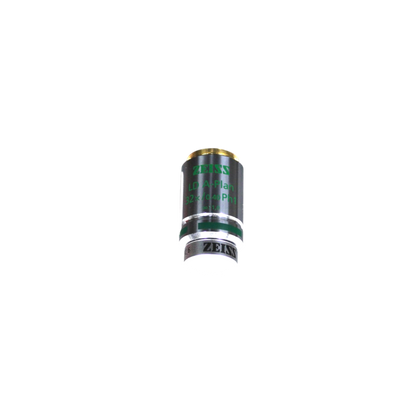

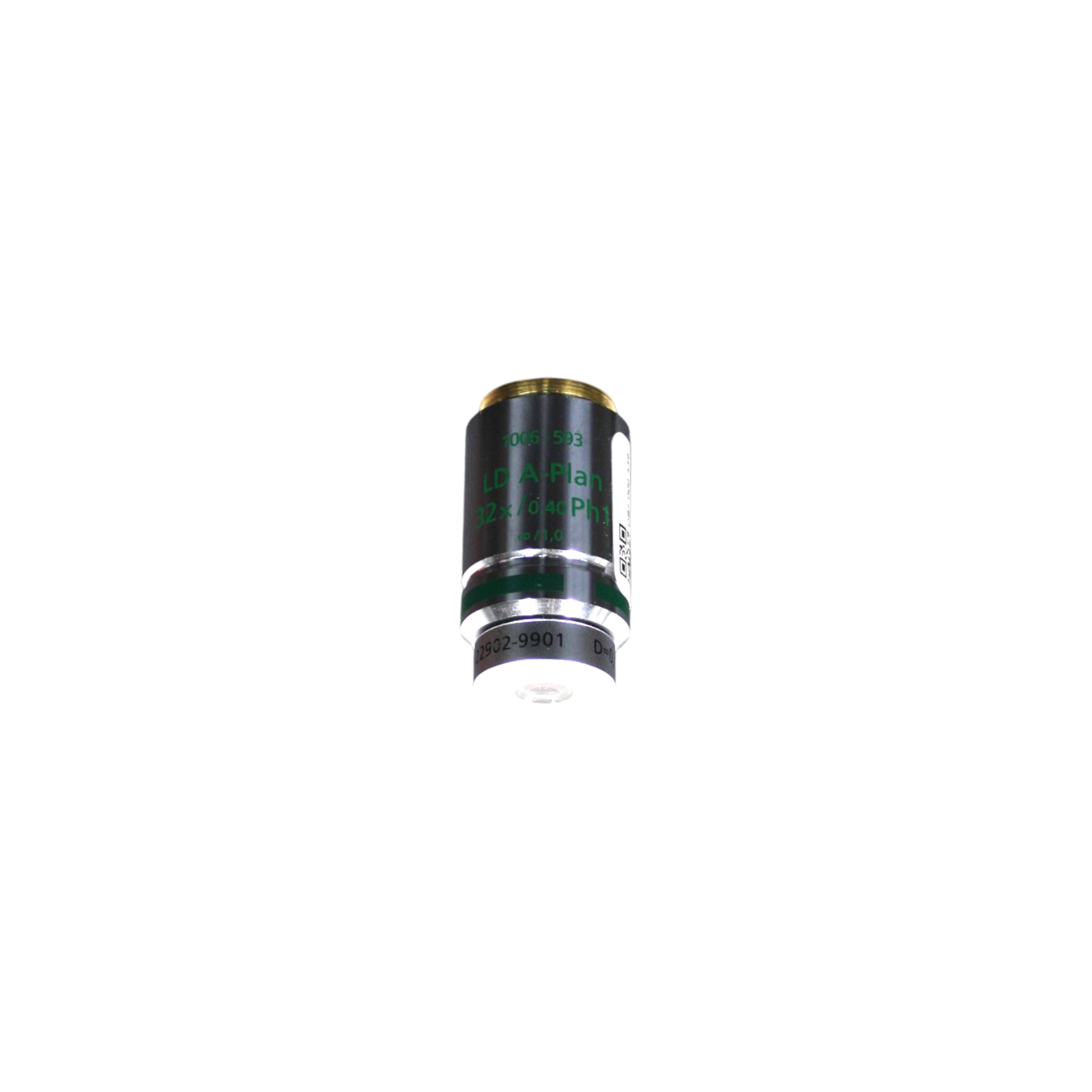

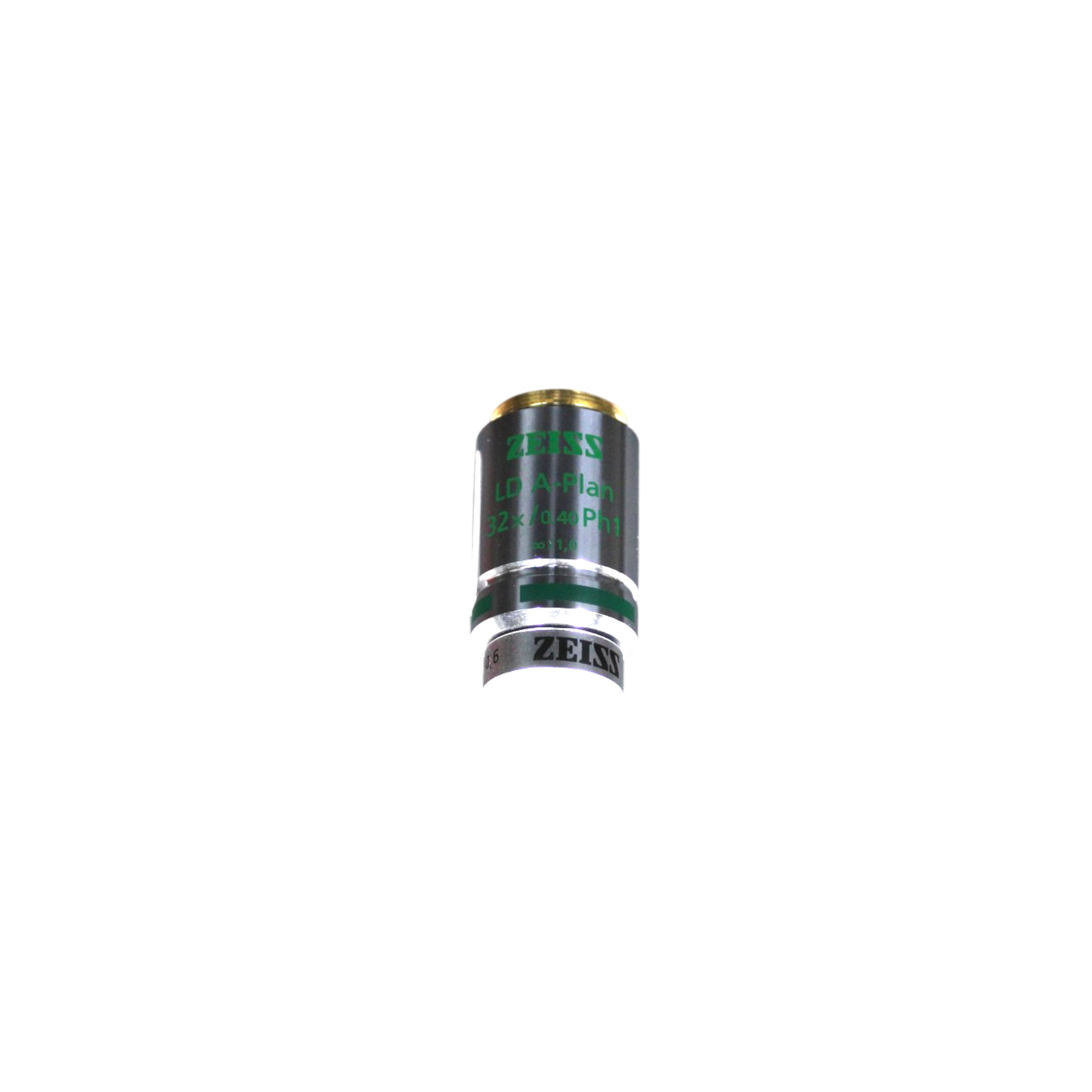

Zeiss LD A-Plan Ph1 32x/0.4 RMS Thread Size Microscope Objective
Zeiss LD A-Plan Ph1 32x/0.4 RMS Thread Size Microscope Objective
Couldn't load pickup availability
- ✓ Tested in house. 30-day warranty
- ✓ Typical delivery in 1 to 3 weeks, depending on parts
- ✓ Prices shown exclude freight, insurance, tariffs and applicable taxes
- ✓ Installation, training and service available from our engineers (quoted separately)
- ✓ SAM.gov registered (CAGE 10ZU5). Purchase orders welcome
- ✓ Leasing and finance companies available
Questions? Call (877) 564-2767 or email sales@coastalmicroscopes.com
Zeiss LD A-Plan Ph1 32x/0.4 RMS Thread Size - 1006-593 (Used)
The Zeiss LD A-Plan Ph1 32x/0.4 is a high-quality long working distance (LD) achromatic objective designed for phase contrast (Ph1) and brightfield microscopy. With a numerical aperture (NA) of 0.4, this objective provides excellent resolution, contrast, and flat-field correction, making it ideal for live-cell imaging and routine laboratory applications. The RMS thread size ensures compatibility with Zeiss and other standard microscopes.
Condition
Refurbished/Used
(This product has been inspected and verified to meet manufacturer specifications.)
Included Items
- Zeiss LD A-Plan Ph1 32x/0.4 Objective
Key Features
- 32x magnification for high-resolution imaging
- Long working distance (LD) for thick sample imaging
- Phase contrast (Ph1) optimized for unstained biological samples
- Numerical aperture (NA) of 0.4 for good light transmission
- RMS thread size for compatibility with Zeiss and other standard microscopes
- Flat field correction for sharp, edge-to-edge imaging
Applications
- Phase contrast microscopy (Ph1)
- Brightfield microscopy
- Live-cell imaging
- Routine laboratory microscopy
- Pathology and histology
Specifications
| Specification | Details |
|---|---|
| Magnification | 32x |
| Numerical Aperture (NA) | 0.4 |
| Working Distance | ~2.5 mm |
| Immersion Medium | Air (Dry) |
| Cover Glass Thickness | 0.17 mm |
| Optical Correction | Achromatic (Flat Field, Phase Contrast Ph1) |
| Thread Size | RMS (0.8" / 20.32mm diameter, 0.706mm pitch) |
| Parfocal Distance | 45 mm |
| Compatible Microscopes | Zeiss Axio, Standard, and other RMS-compatible models |
| Special Features | Long working distance, optimized for phase contrast microscopy |
Additional Details
Additional Details
- Manufacturer: Zeiss
- Model: LD A-Plan Ph1 32x/0.4 RMS Thread Size
- Catalog Number: OBJ-000-539
- Serial Number: N/A
- Condition: Seller Refurbished
