Zeiss LD Achroplan Korr 20x/0.4 RMS Thread Size Microscope Objective
Zeiss LD Achroplan Korr 20x/0.4 RMS Thread Size Microscope Objective
Couldn't load pickup availability
- ✓ Tested in house. 30-day warranty
- ✓ Typical delivery in 1 to 3 weeks, depending on parts
- ✓ Prices shown exclude freight, insurance, tariffs and applicable taxes
- ✓ Installation, training and service available from our engineers (quoted separately)
- ✓ SAM.gov registered (CAGE 10ZU5). Purchase orders welcome
- ✓ Leasing and finance companies available
Questions? Call (877) 564-2767 or email sales@coastalmicroscopes.com

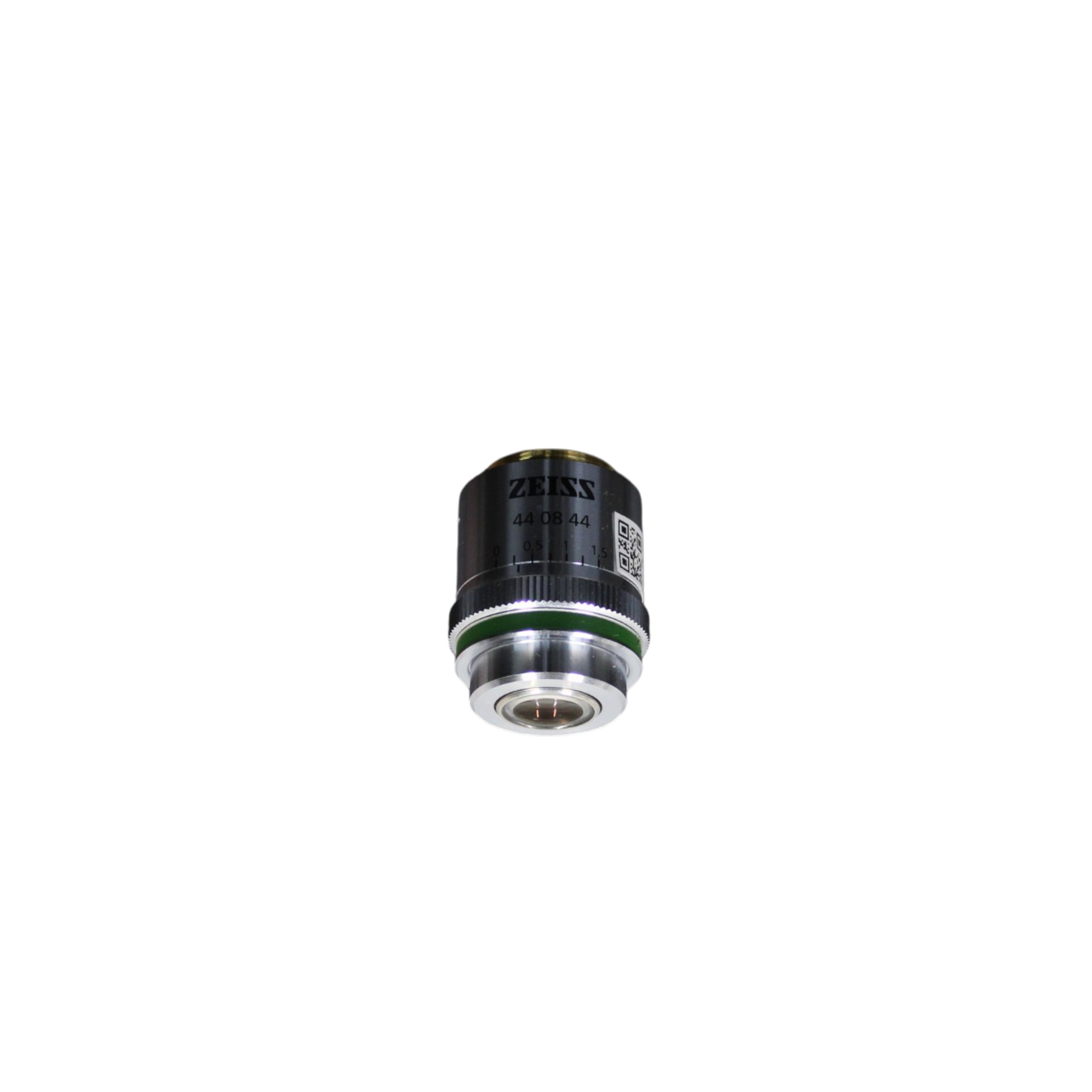

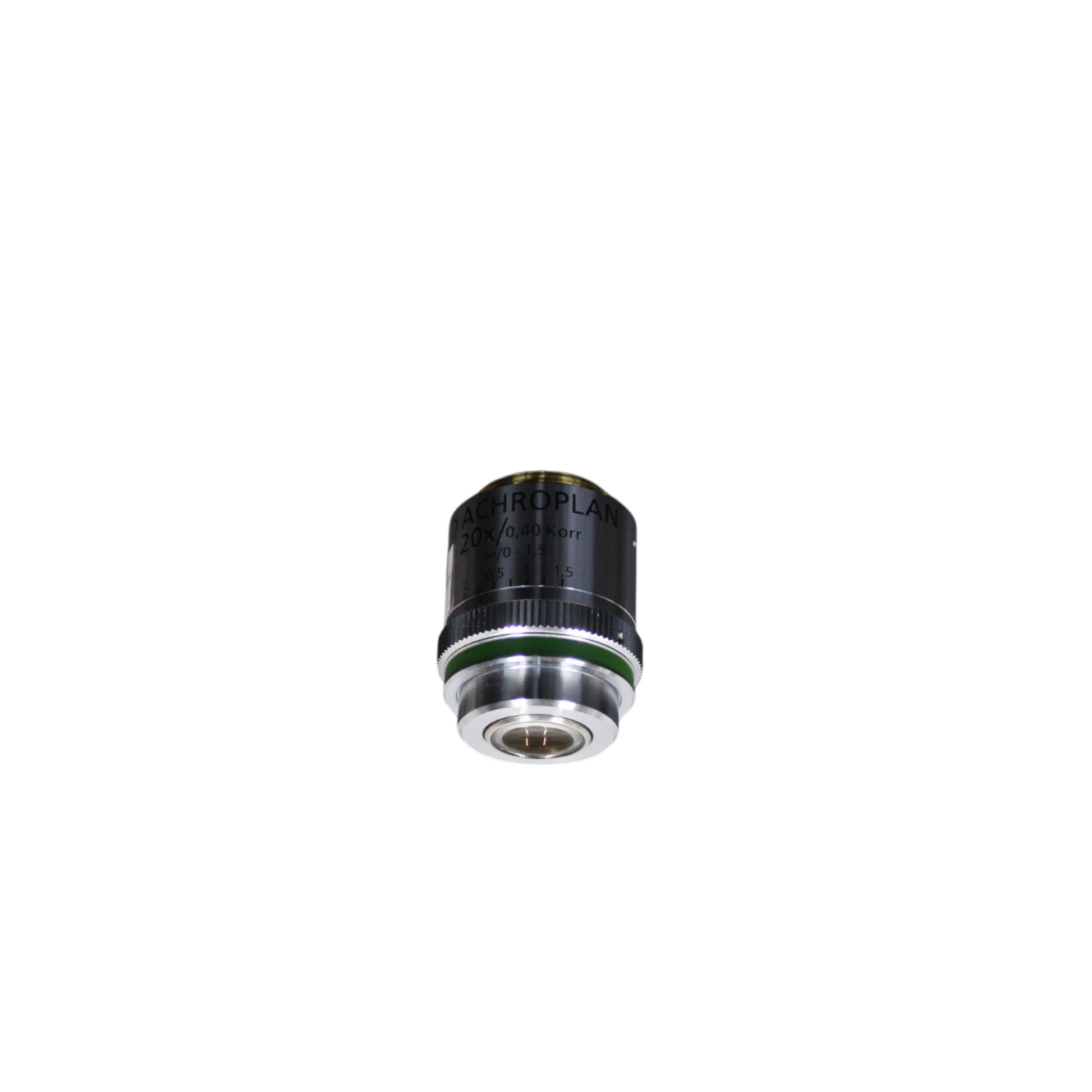

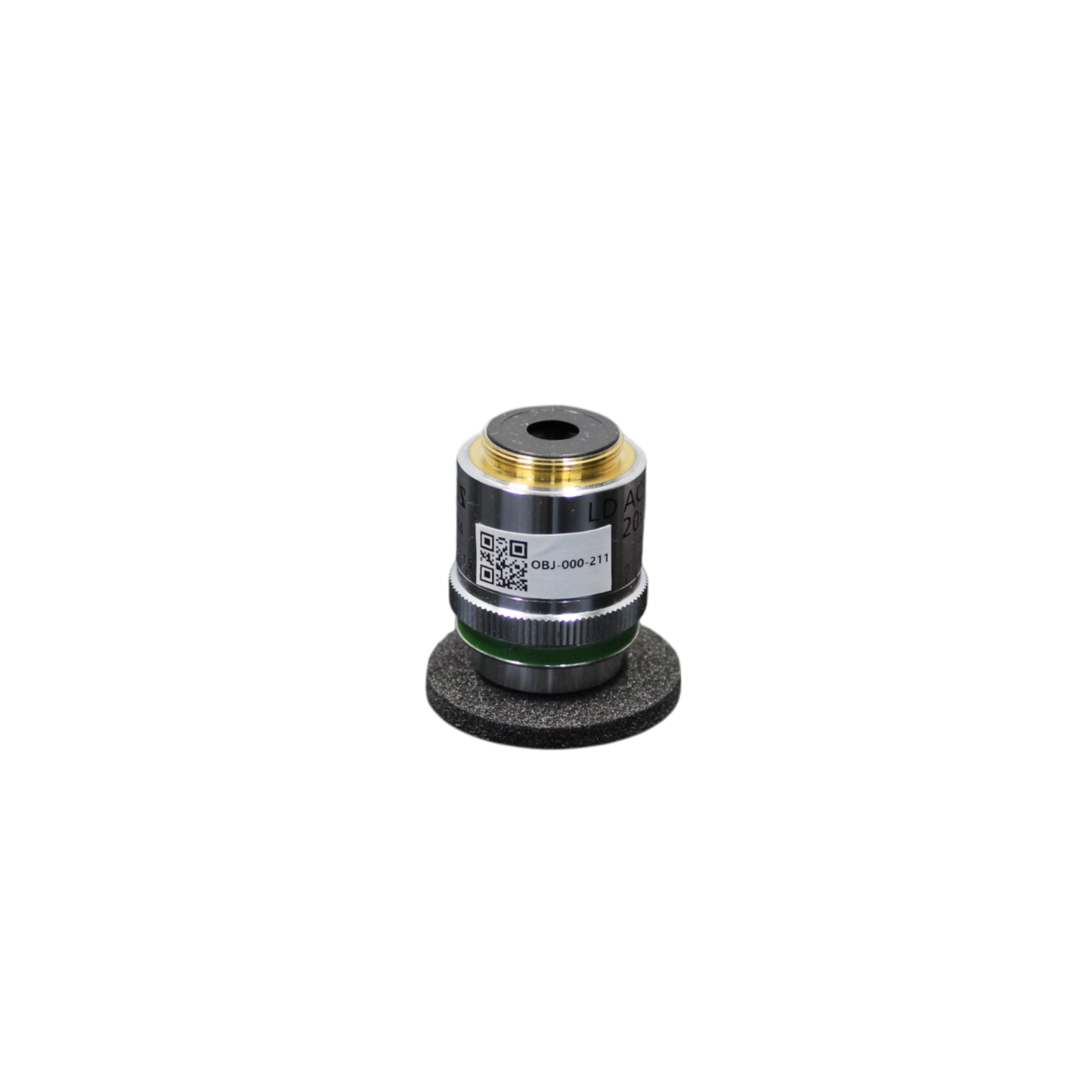

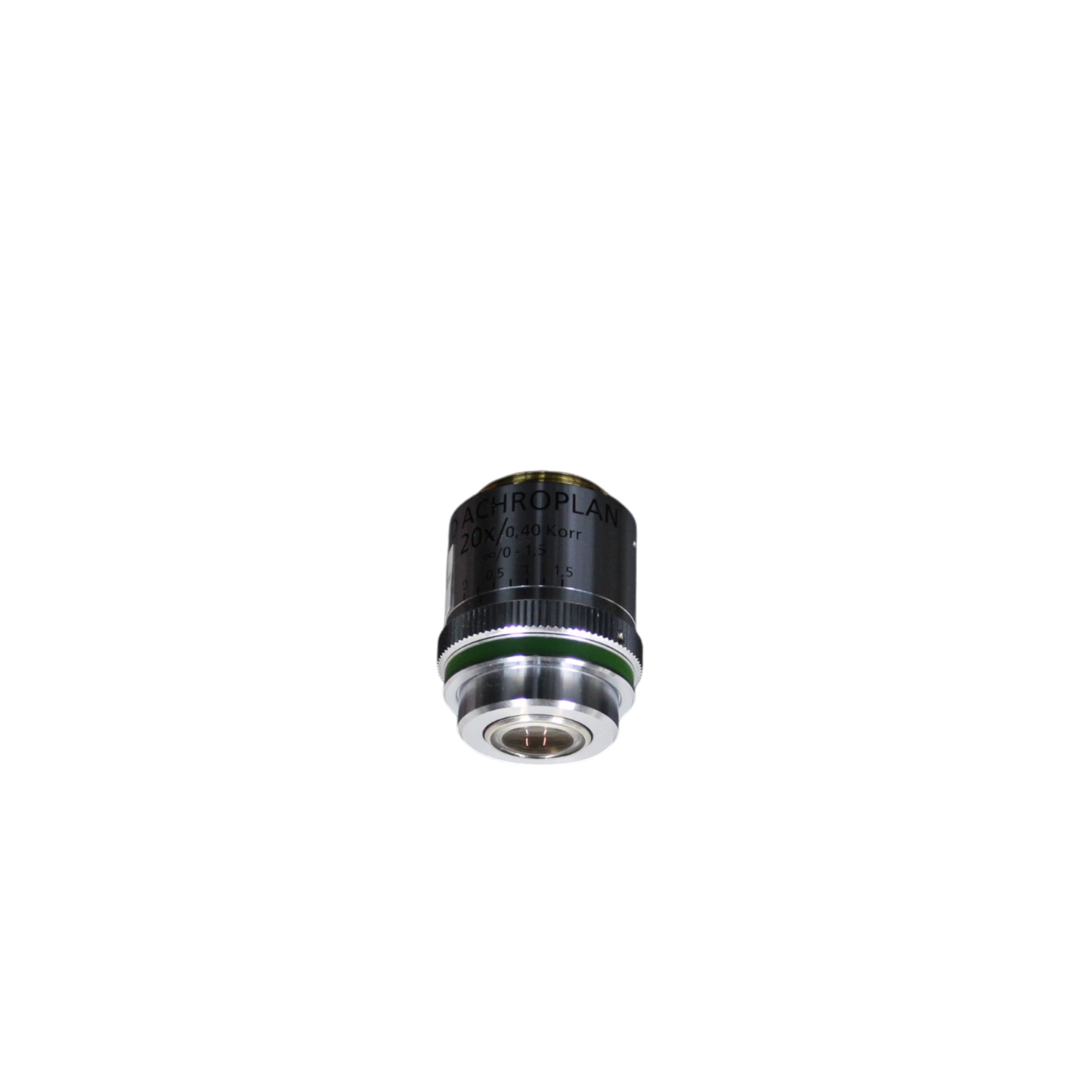

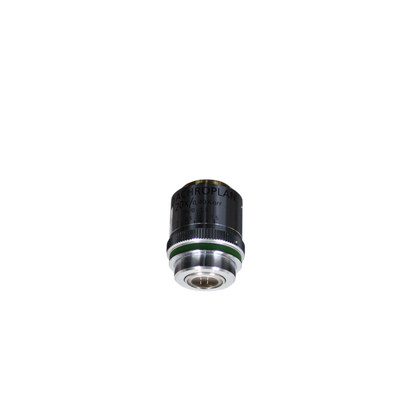

Zeiss LD Achroplan Korr 20x/0.4 RMS Thread Size - 44 08 44 (Used)
The Zeiss LD Achroplan Korr 20x/0.4 is a high-quality long working distance (LD) achromatic objective designed for brightfield, phase contrast, and fluorescence microscopy. With a numerical aperture (NA) of 0.4, this objective provides excellent resolution, contrast, and field flatness, making it ideal for live-cell imaging, unstained sample observation, and routine laboratory use. The RMS thread size ensures compatibility with Zeiss and other RMS-compatible microscopes.
Condition
Refurbished/Used
(This product has been inspected and verified to meet manufacturer specifications.)
Included Items
- Zeiss LD Achroplan Korr 20x/0.4 Objective
Key Features
- 20x magnification for high-resolution imaging
- Long working distance (LD) for improved focus on thick samples
- Achromatic optics for superior contrast and color correction
- Numerical aperture (NA) of 0.4 for enhanced light transmission
- Correction Collar (Korr) for adjusting cover glass thickness
- RMS thread size for compatibility with Zeiss and other standard microscopes
- Flat field correction for sharp, edge-to-edge imaging
- Optimized for fluorescence, brightfield, and phase contrast microscopy with high transmission coatings
Applications
- Brightfield microscopy
- Phase contrast microscopy
- Fluorescence microscopy
- Live-cell imaging
- Pathology and histology
- Biological and clinical research
Specifications
| Specification | Details |
|---|---|
| Magnification | 20x |
| Numerical Aperture (NA) | 0.4 |
| Working Distance | ~3.0 mm |
| Immersion Medium | Air (Dry) |
| Cover Glass Thickness | 0.17 mm (Correction Collar Adjustable) |
| Optical Correction | Achromatic (Flat Field, High Contrast, Adjustable Correction for Cover Glass Variations) |
| Thread Size | RMS (0.8" / 20.32mm diameter, 0.706mm pitch) |
| Parfocal Distance | 45 mm |
| Compatible Microscopes | Zeiss Axioscope, Standard, and other RMS-compatible models |
| Special Features | Correction collar for optimal imaging, high transmission coatings for fluorescence applications |
Additional Details
Additional Details
- Manufacturer: Zeiss
- Model: LD Achroplan Korr 20x/0.4 RMS Thread Size
- Catalog Number: OBJ-000-211
- Serial Number: N/A
- Condition: Seller Refurbished
