Zeiss LD Achrostigmat Ph1 20x/0.30 RMS Thread Size Microscope Objective
Zeiss LD Achrostigmat Ph1 20x/0.30 RMS Thread Size Microscope Objective
Couldn't load pickup availability
- ✓ Tested in house. 30-day warranty
- ✓ Typical delivery in 1 to 3 weeks, depending on parts
- ✓ Prices shown exclude freight, insurance, tariffs and applicable taxes
- ✓ Installation, training and service available from our engineers (quoted separately)
- ✓ SAM.gov registered (CAGE 10ZU5). Purchase orders welcome
- ✓ Leasing and finance companies available
Questions? Call (877) 564-2767 or email sales@coastalmicroscopes.com

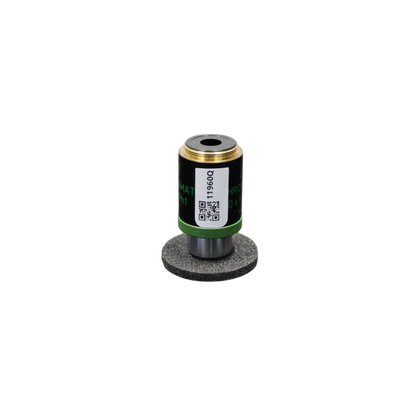

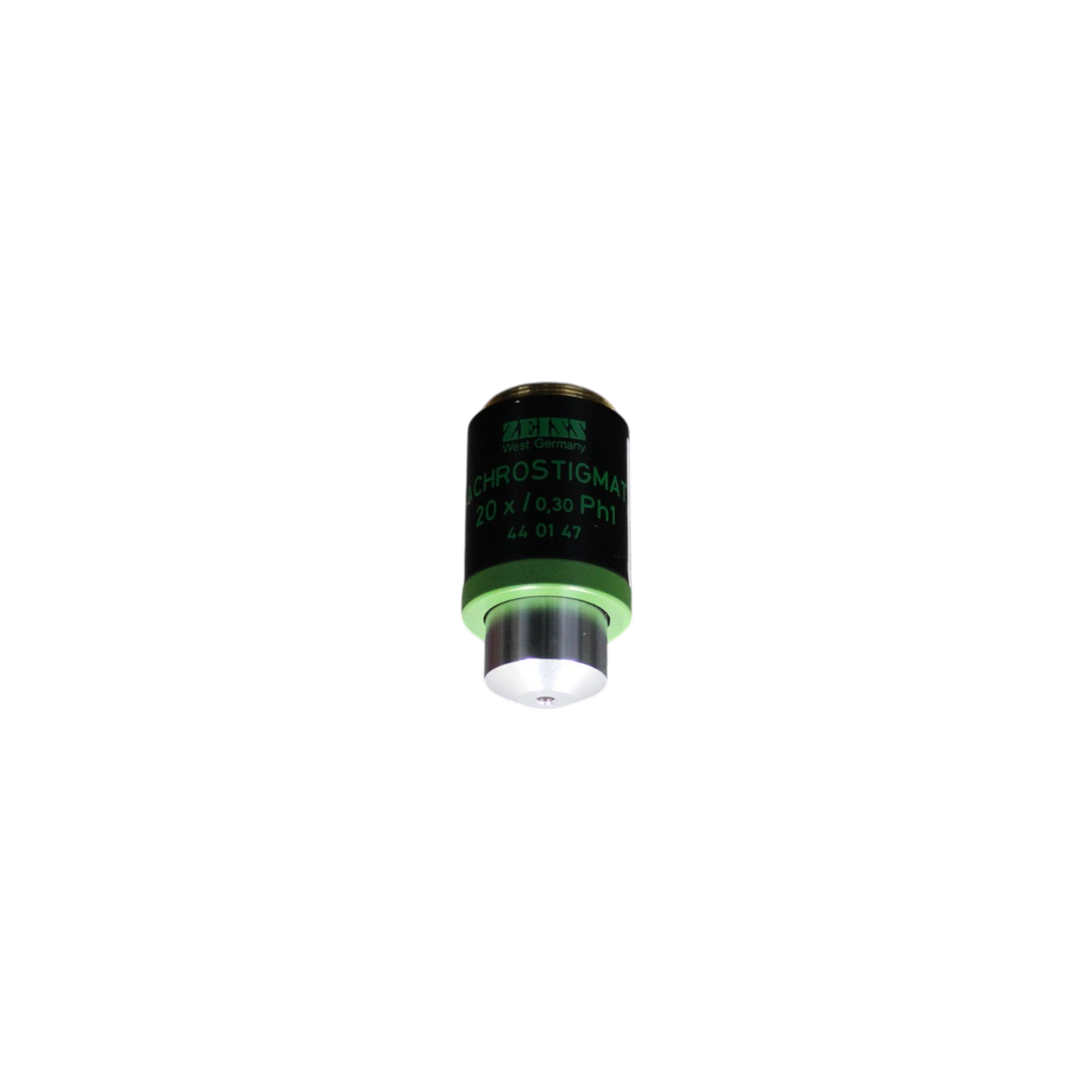

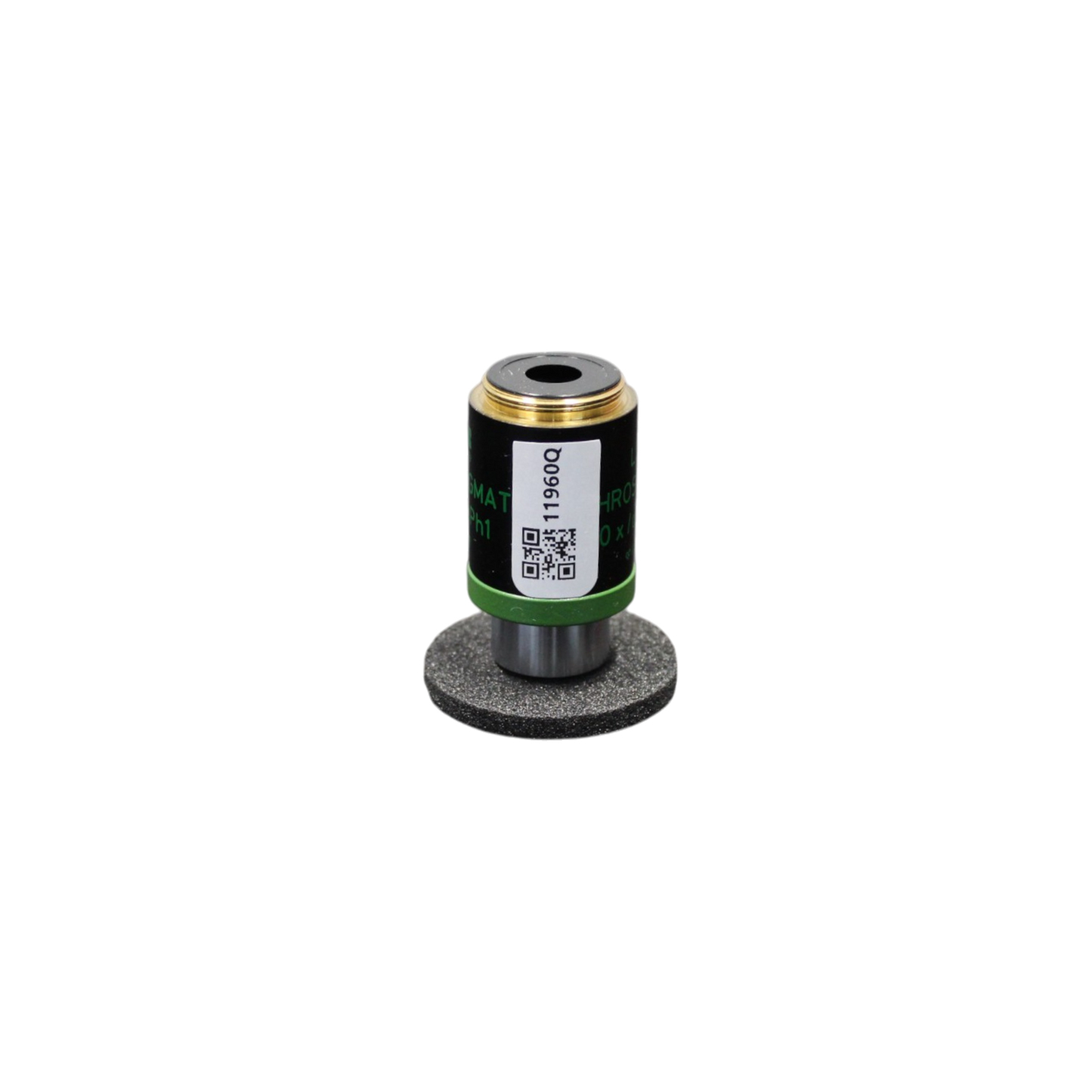

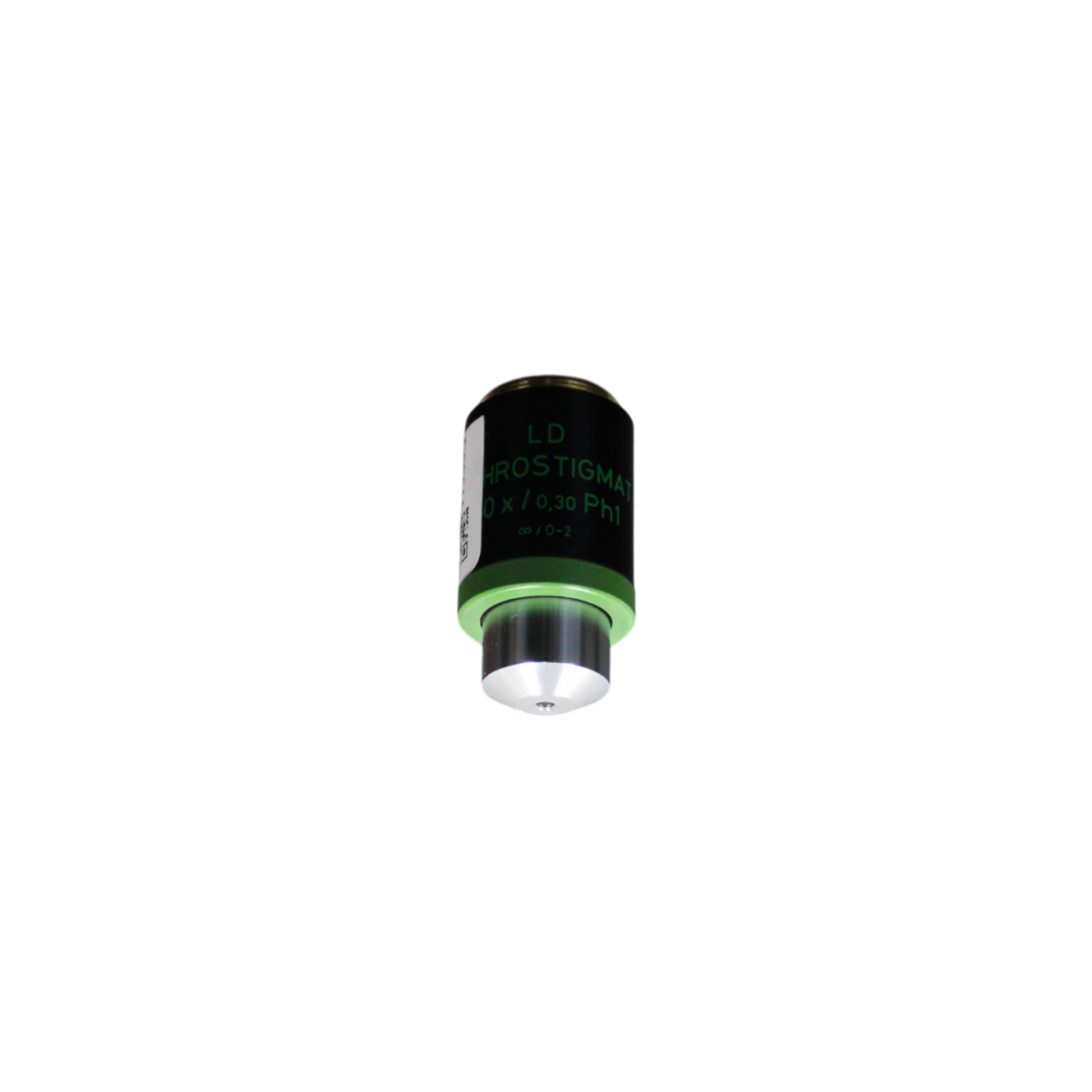

Zeiss LD Achrostigmat 20x/0.30 Ph1 RMS Thread Size - 44 01 47 (Used)
The Zeiss LD Achrostigmat 20x/0.30 Ph1 is a high-quality long working distance (LD) achromatic phase contrast objective designed for phase contrast (Ph1), brightfield, and fluorescence microscopy. With a numerical aperture (NA) of 0.30, this objective provides superior resolution, contrast, and field flatness, making it ideal for live-cell imaging, unstained sample observation, and routine laboratory applications. The RMS thread size ensures compatibility with Zeiss and other RMS-compatible microscopes.
Condition
Refurbished/Used
(This product has been inspected and verified to meet manufacturer specifications.)
Included Items
- Zeiss LD Achrostigmat 20x/0.30 Ph1 Objective
Key Features
- 20x magnification for high-resolution imaging
- Long working distance (LD) for improved focus on thick samples
- Plan Achromatic (Achrostigmat) optics for enhanced contrast and color correction
- Numerical aperture (NA) of 0.30 for improved light transmission
- Phase Contrast (Ph1) optimized for unstained biological samples
- RMS thread size for compatibility with Zeiss and other standard microscopes
- Flat field correction for sharp, edge-to-edge imaging
- Optimized for fluorescence, phase contrast, and brightfield microscopy with high transmission coatings
Applications
- Phase contrast microscopy (Ph1)
- Fluorescence microscopy
- Brightfield microscopy
- Live-cell imaging
- Pathology and histology
- Biological and clinical research
Specifications
| Specification | Details |
|---|---|
| Magnification | 20x |
| Numerical Aperture (NA) | 0.30 |
| Working Distance | ~6.5 mm |
| Immersion Medium | Air (Dry) |
| Cover Glass Thickness | 0.17 mm |
| Optical Correction | Plan Achromatic (Flat Field, High Contrast, Phase Contrast Optimized) |
| Thread Size | RMS (0.8" / 20.32mm diameter, 0.706mm pitch) |
| Parfocal Distance | 45 mm |
| Compatible Microscopes | Zeiss Axioscope, Standard, and other RMS-compatible models |
| Special Features | Long working distance for thick sample imaging, optimized for phase contrast and fluorescence imaging |
Additional Details
Additional Details
- Manufacturer: Zeiss
- Model: LD Achrostigmat 20x/0.30 Ph1 RMS Thread Size
- Catalog Number: 11960q
- Serial Number: N/A
- Condition: Seller Refurbished
